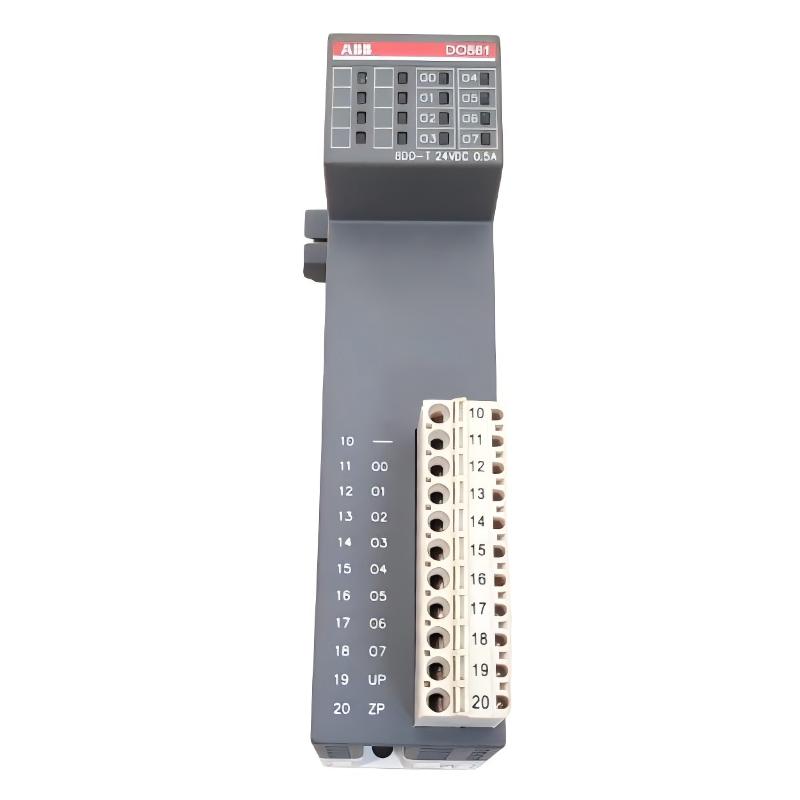

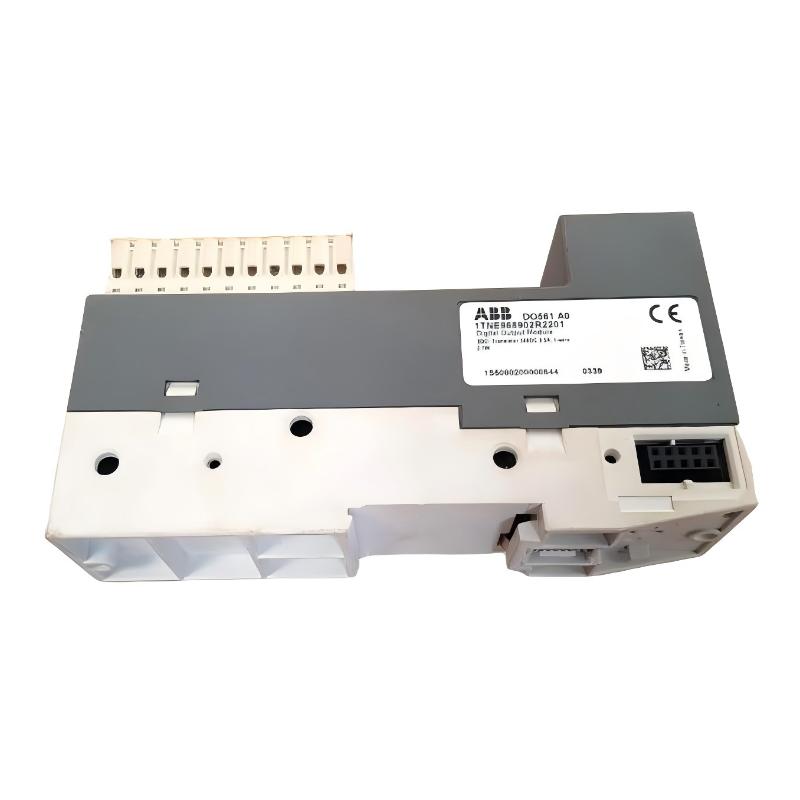

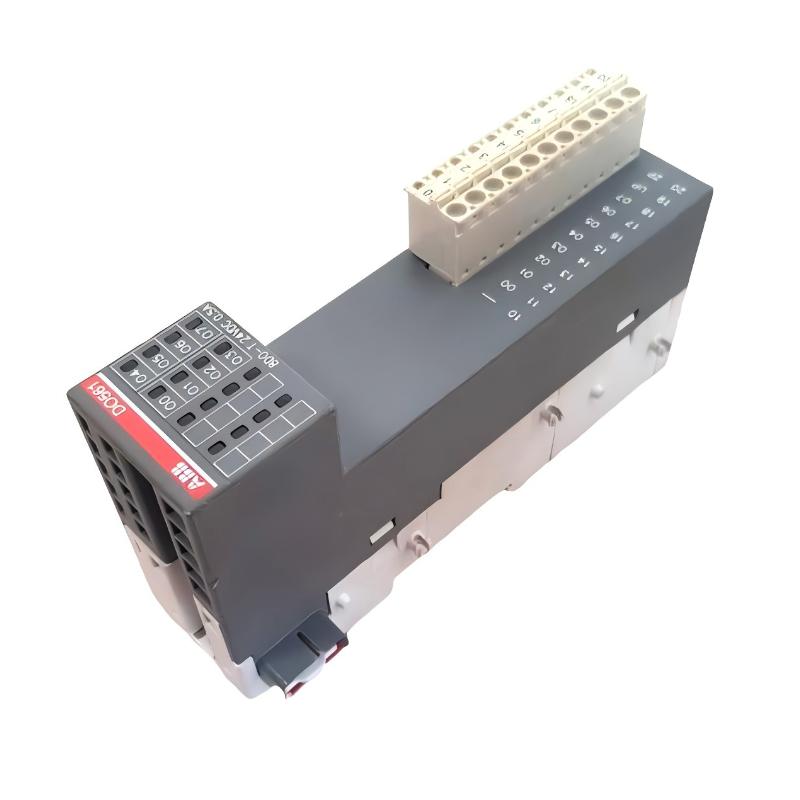

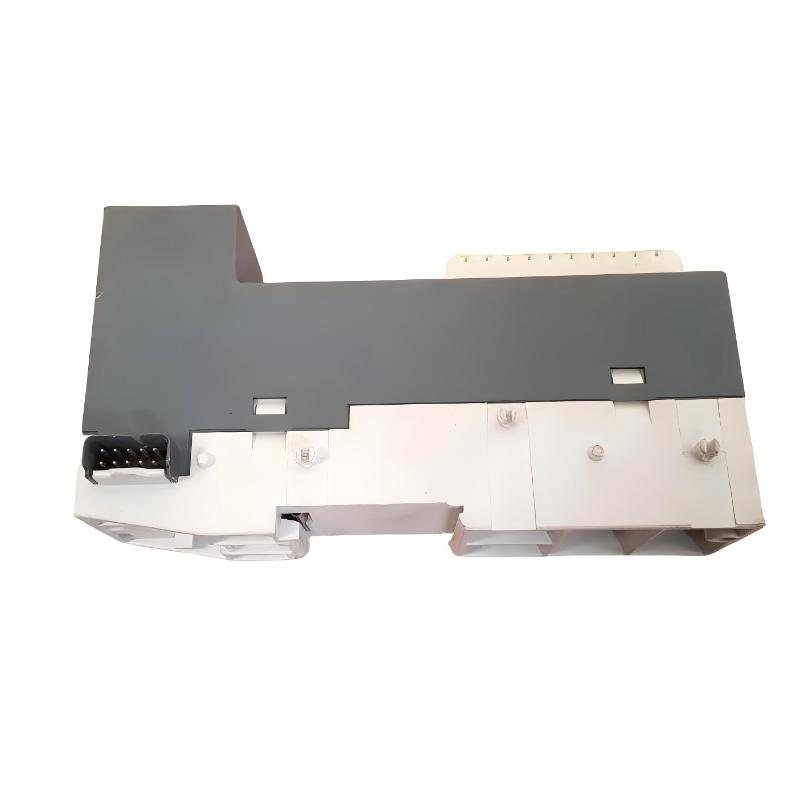

ABB DO561 1TNE968902R2201 Digital Output Module

Brand:ABB PLC
Item No.:DO561 1TNE968902R2201
Product Origin:Sweden
Product Dimensions:75 x 135 x 34 mm
Product Weight:0.118 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact


Introduction
The ABB DO561 digital output module is a high-reliability component designed for ABB distributed automation systems. With multiple digital output channels, it provides precise control for actuators, relays, and other field devices. Its slim and compact design allows for efficient installation in control panels with limited space, while ensuring consistent performance in demanding industrial environments. The DO561 is ideal for applications requiring robust and reliable digital switching.

Technical Specifications

ParameterSpecification
Module TypeDigital Output Module
Dimensions75 × 135 × 34 mm (H × W × D)
Weight0.118 kg
Number of Channels8 digital outputs
Output TypeRelay or transistor outputs (configurable)
Max Load per Channel0.5 A
IsolationOptical isolation per channel
Operating Temperature0°C to 60°C
MountingDIN-rail or panel-mounted
Status IndicatorsLED per channel for output status


Applications

  • Control of actuators, solenoids, and indicator devices in industrial automation systems.

  • Integration into ABB distributed I/O networks for process control.

  • Sequential or timed switching in manufacturing, utilities, and process industries.

  • Dense control cabinet installations where space efficiency is critical.


Advantages

  • Provides reliable and precise digital switching with channel isolation.

  • Compact design allows installation in space-constrained environments.

  • LED indicators per channel facilitate quick troubleshooting and monitoring.

  • Fully compatible with ABB distributed automation systems.

  • Reduces wiring complexity while enhancing operational reliability.


Technical FAQs

  1. How many digital output channels does the DO561 support?
    It supports 8 channels.

  2. What types of outputs are available?
    Configurable relay or transistor outputs.

  3. Is each channel isolated?
    Yes, each channel is optically isolated for reliability.

  4. Can it be mounted on DIN rails?
    Yes, DIN-rail or panel mounting is supported.

  5. Are there status indicators?
    Each output channel has an LED indicator.

  6. What is the maximum current per channel?
    Up to 0.5 A per channel.

  7. Is it compatible with non-ABB systems?
    Primarily designed for ABB distributed I/O systems; third-party integration may require adapters.

  8. What is the operating temperature range?
    0°C to 60°C.

  9. Can it be used in dense control cabinets?
    Yes, its slim design is ideal for space-constrained installations.

  10. Does it require configuration software?
    Yes, channels and operational parameters must be configured in ABB system software.
