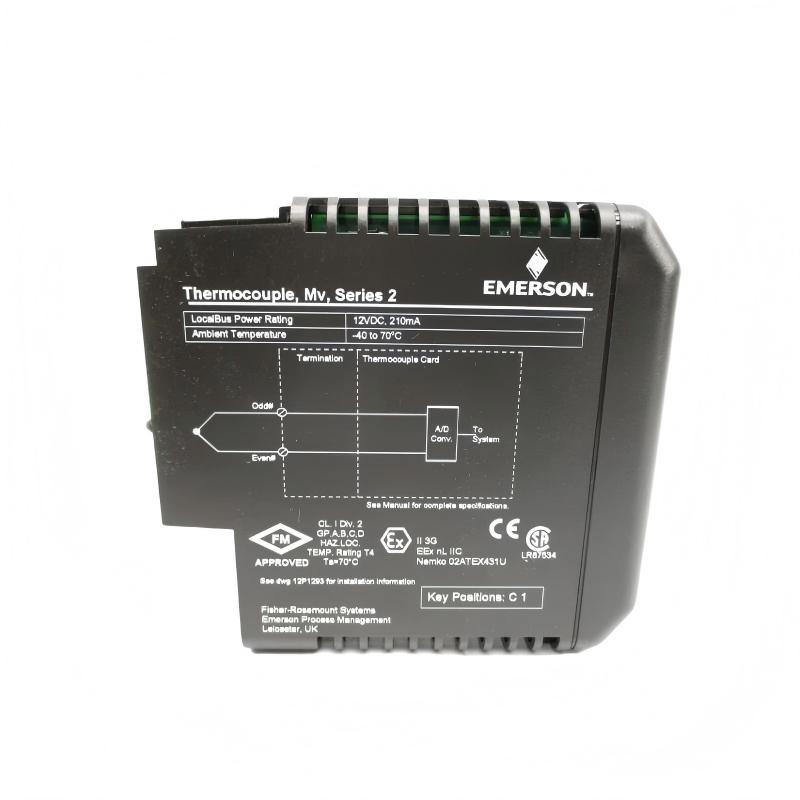

Emerson KJ3224X1-BA1 Thermocouple Module

Name: Emerson KJ3224X1-BA1 Thermocouple Module
Brand: Emerson Module
SKU: 4965
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Emerson Module
Item No.:KJ3224X1-BA1
Product Origin:USA
Product Dimensions:210 mm × 45 mm × 160 mm
Product Weight:1.1kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Emerson KJ3224X1-BA1 Thermocouple Module is a high-precision input device designed for accurate temperature measurement in critical industrial processes. Engineered for seamless integration with Emerson DeltaV systems, this module supports multiple thermocouple types and provides reliable signal acquisition for process automation, safety monitoring, and control applications. With robust design and fast response, the KJ3224X1-BA1 ensures your temperature measurements are accurate, consistent, and repeatable.

Technical Specifications

Feature	Specification
Model	KJ3224X1-BA1
Type	Thermocouple Input Module
Input Channels	16 Thermocouple Inputs
Supported Thermocouples	Types J, K, T, E, R, S, B, N
Resolution	16-bit high-precision conversion
Accuracy	±0.1°C typical
Update Rate	10 ms per channel typical
Communication Interface	DeltaV I/O network
Dimensions	210 mm × 45 mm × 160 mm (L × W × H)
Weight	1.1 kg (2.43 lbs)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Certifications	CE, UL, IEC 61131 Compliant

Applications

Temperature measurement in chemical, petrochemical, and refining processes
Thermal monitoring in power generation and utilities
Furnace and kiln temperature control
Integration with DeltaV process automation systems
Safety and environmental monitoring requiring accurate thermocouple inputs

Its multi-thermocouple compatibility and high accuracy make it ideal for a wide range of industrial applications.

Advantages

High Accuracy: ±0.1°C typical, ensuring precise temperature control.
Multi-Thermocouple Support: Compatible with J, K, T, E, R, S, B, and N types.
Fast Response: 10 ms per channel for near real-time monitoring.
Seamless Integration: Works directly with Emerson DeltaV automation systems.
Compact and Lightweight: 210 × 45 × 160 mm, 1.1 kg for space-constrained panels.
Robust Industrial Design: Performs reliably in harsh process environments.
Reliable Signal Acquisition: High-resolution 16-bit conversion ensures stable data.

Technical FAQs

How many thermocouple inputs does the module support?
16 thermocouple input channels.
Which thermocouple types are supported?
J, K, T, E, R, S, B, and N types.
What is the module’s resolution?
16-bit high-precision conversion.
What is the typical accuracy?
±0.1°C.
What is the update rate per channel?
10 milliseconds.
Which systems is it compatible with?
Emerson DeltaV process automation systems.
What are the physical dimensions?
210 mm × 45 mm × 160 mm (L × W × H).
What is the weight of the module?
1.1 kg (2.43 lbs).
Can it operate reliably in industrial environments?
Yes, designed for electrically noisy and vibration-prone conditions.
Is it certified for industrial safety and compliance?
Yes, CE, UL, and IEC 61131 compliant.
