Introduction

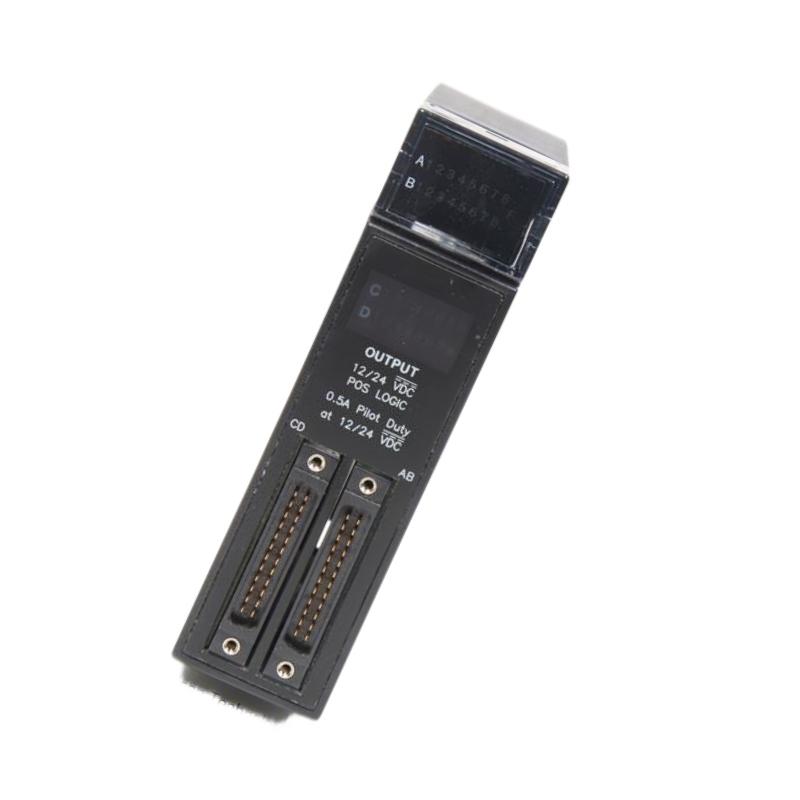

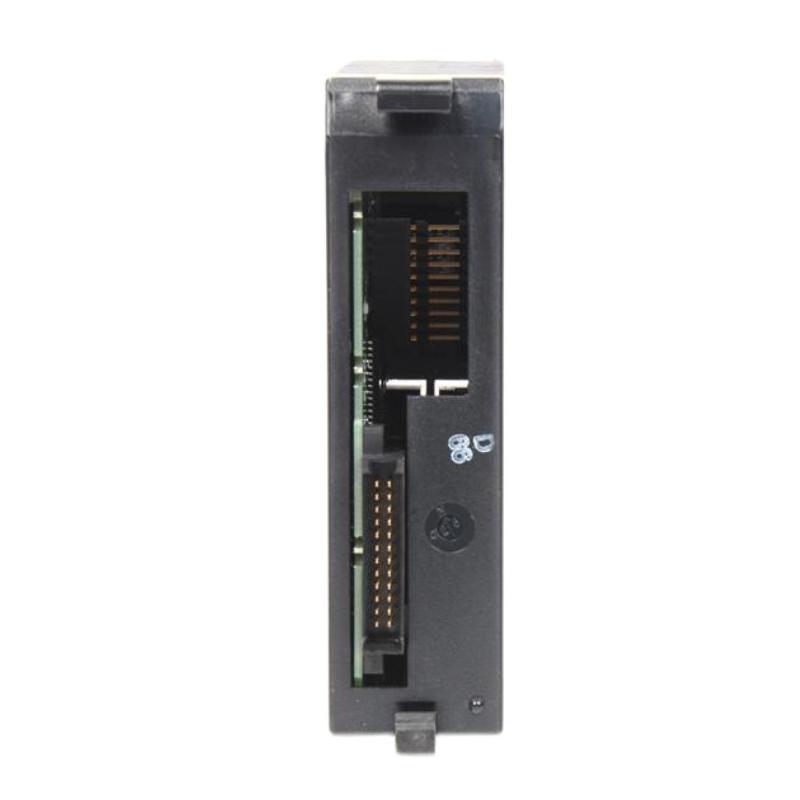

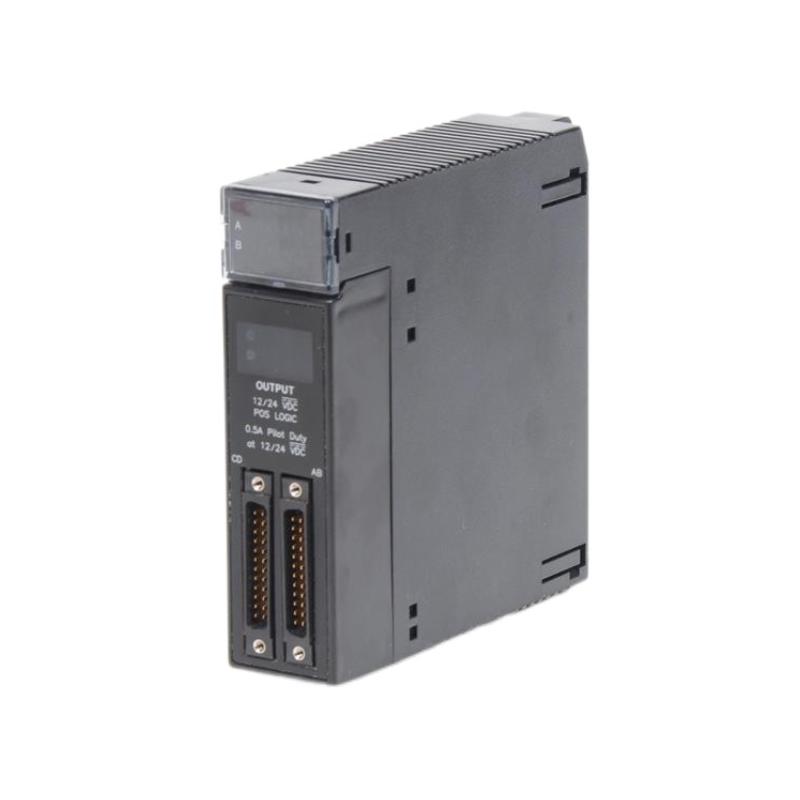

The GE IC693MDL753 Positive/Negative Logic Output Module is a high-density discrete output card designed for GE Fanuc Series 90‑30 PLC systems. It delivers 32 robust DC output channels arranged into four isolated groups, providing engineers with flexibility to switch multiple field loads with precision and reliability. Its positive logic (sourcing) outputs simplify integration with a wide range of actuators, indicator devices, and control circuits in industrial environments.
Designed for demanding automation applications, the IC693MDL753 provides predictable switching, strong electrical isolation, and status visibility via built-in LEDs, making it a proven choice for both greenfield projects and control system expansions.
Technical Specifications
| Specification | Description |
|---|---|
| Model | IC693MDL753 |
| Product Family | Series 90‑30 Output Module |
| Module Type | Discrete Output Module (Positive/Negative Logic) |
| Output Channels | 32 discrete outputs |
| Output Grouping | 4 groups of 8 channels |
| Logic Type | Positive (sourcing) logic outputs |
| Rated Voltage | 12–24 V DC |
| Output Voltage Range | 10.2–28.8 V DC |
| Output Current | 0.5 A per point; 4 A per group max |
| Group Common Rating | 3 A per group common terminal |
| Isolation | 1500 V field-to-logic; 250 V group isolation |
| Inrush Current | 5.4 A for 10 ms |
| On-State Voltage Drop | ≤ 0.3 V |
| Off-State Leakage | ≤ 1 mA |
| Response Time (On/Off) | ≤ 0.5 ms |
| Backplane Current Draw | ~260 mA from 5 V supply |
| Mounting | Series 90‑30 PLC rack compatible |
