Product Profile

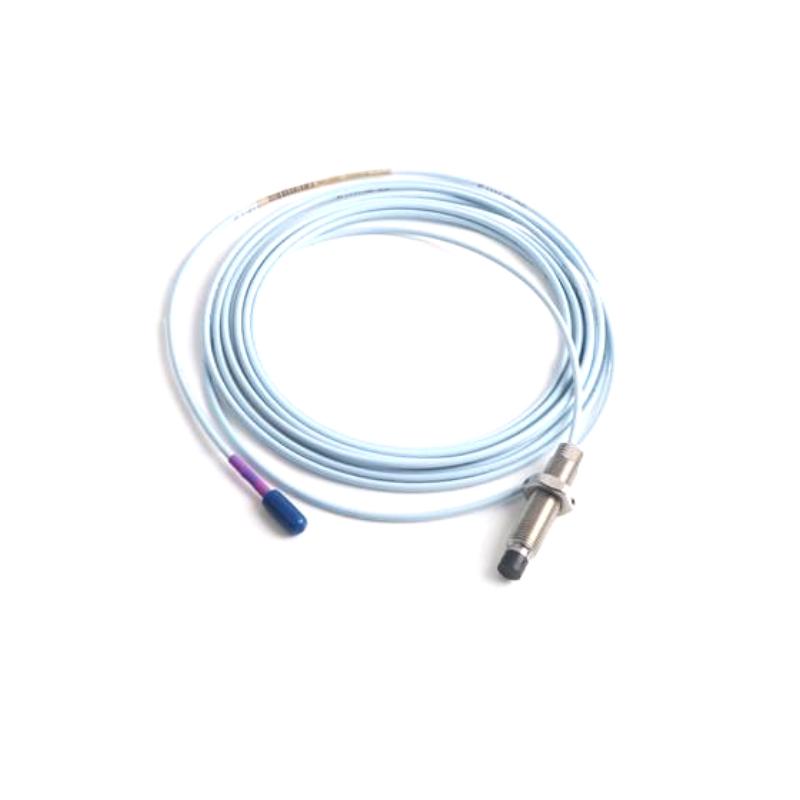

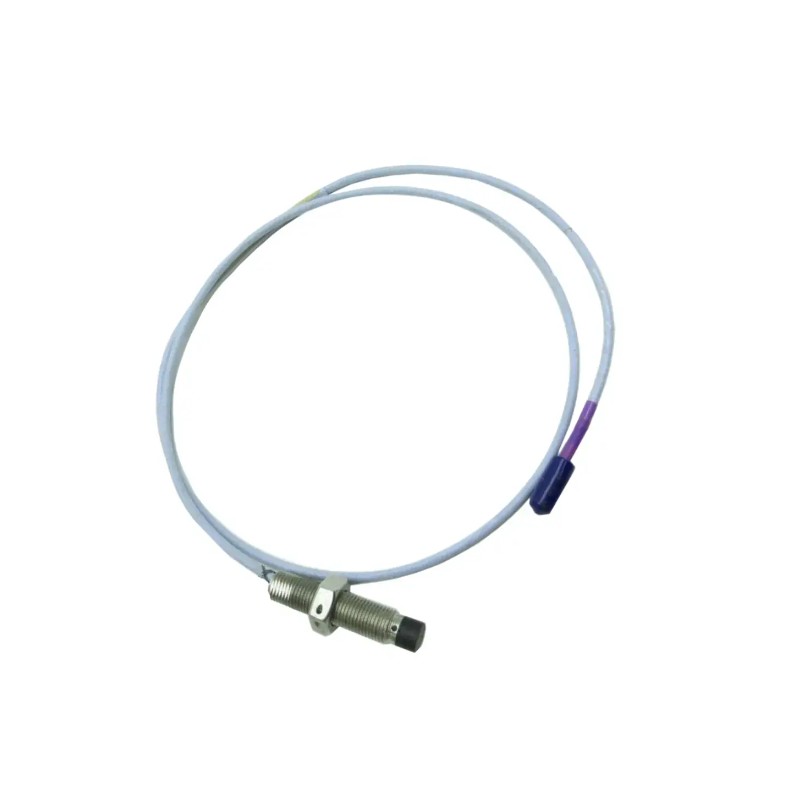

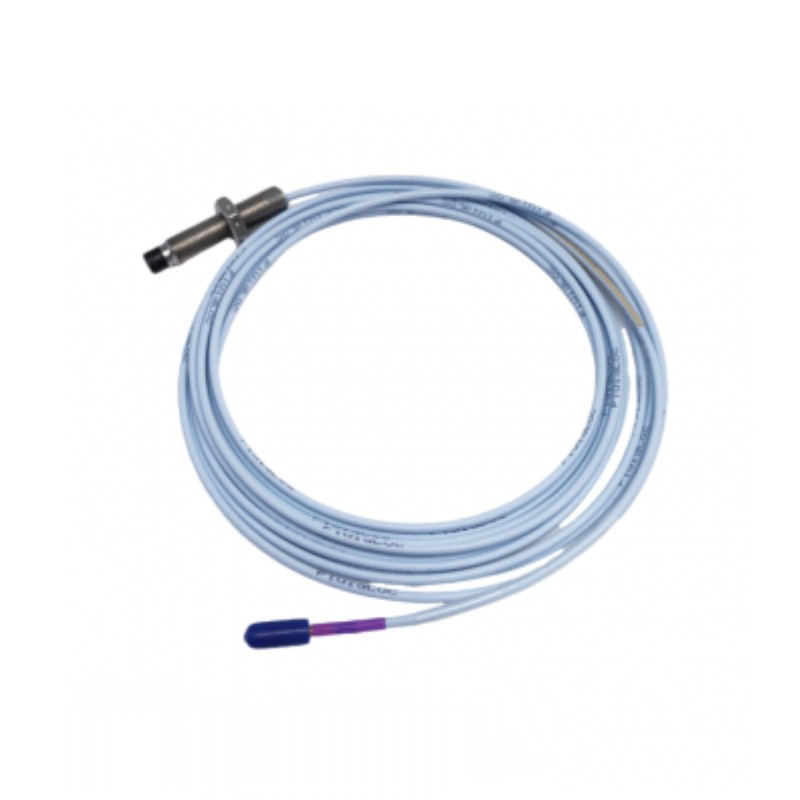

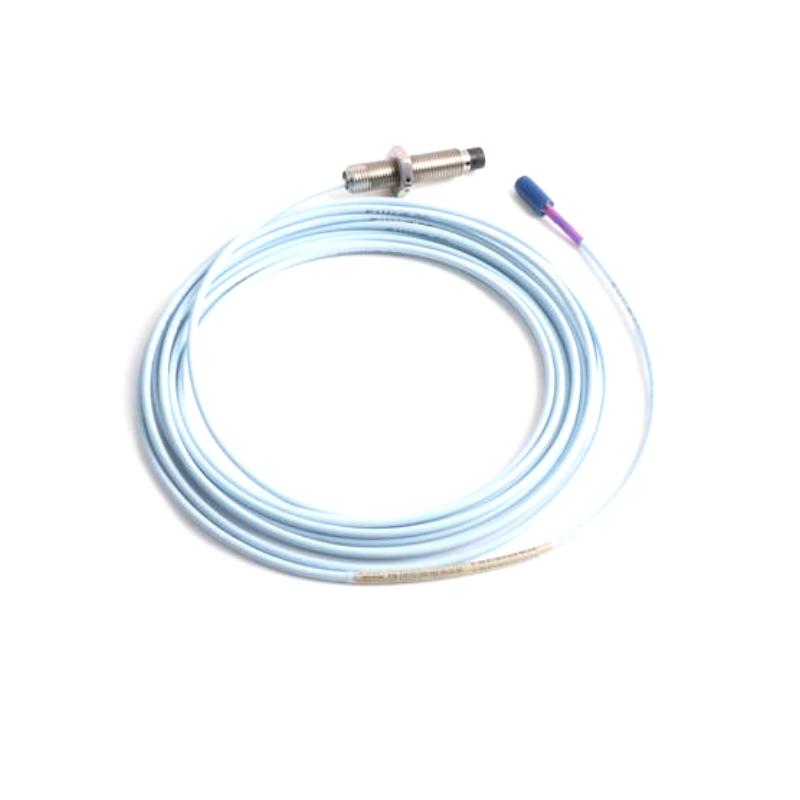

The Bently Nevada 330703-000-060-50-12-00 3300 XL 11 mm Proximity Probe is a precision non-contact sensor designed for use within the 3300 XL 11 mm Proximity Transducer System. Featuring an M14 × 1.5 threaded stainless steel body, a 60 mm case length, a 5.0 m integral FluidLoc cable, and a Miniature ClickLoc™ connector, this probe delivers reliable shaft vibration and position measurements for critical rotating machinery.
With its extended linear measurement capability compared to standard 8 mm systems, the 11 mm probe is well suited for applications requiring increased sensing range while maintaining excellent measurement stability and repeatability. It integrates seamlessly with compatible 3300 XL extension cables and Proximitor® Sensors for continuous industrial condition monitoring.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330703-000-060-50-12-00 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Probe Diameter | 11 mm |
| Thread Size | M14 × 1.5 |
| Armor | Without Armor |
| Unthreaded Length | 0 mm |
| Overall Case Length | 60 mm |
| Total Cable Length | 5.0 m (16.4 ft) |
| Connector Type | Miniature ClickLoc™ Connector |
| Cable Type | FluidLoc Cable |
| Probe Case Material | AISI 304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Measurement Principle | Eddy Current, Non-contact |
| Compatible System | 3300 XL 11 mm Proximity Transducer System |
| Operating Temperature | -51°C to +177°C |
| Agency Approval | Standard Configuration |
