Product Overview

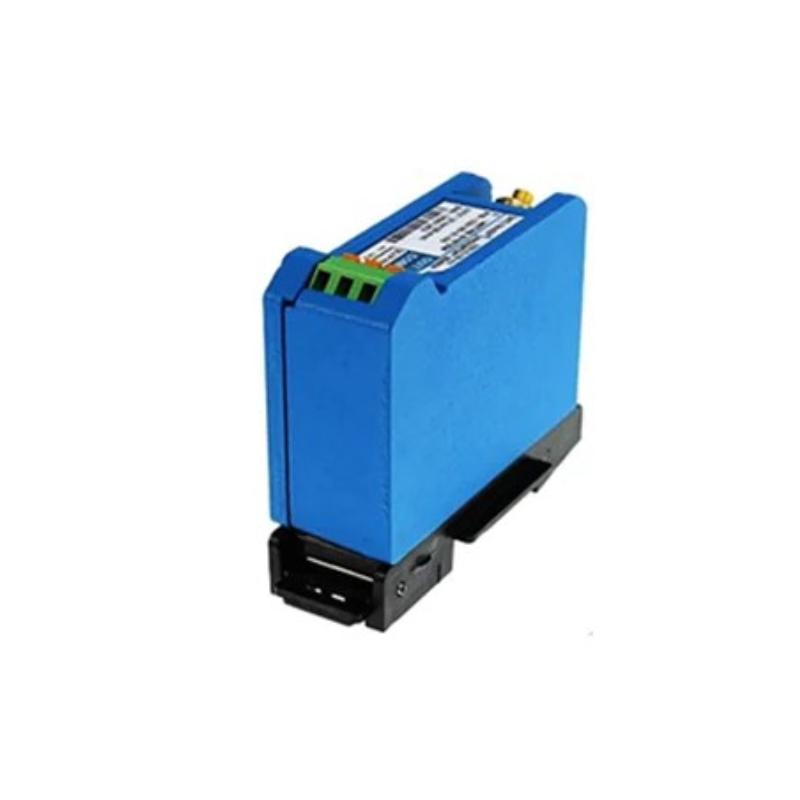

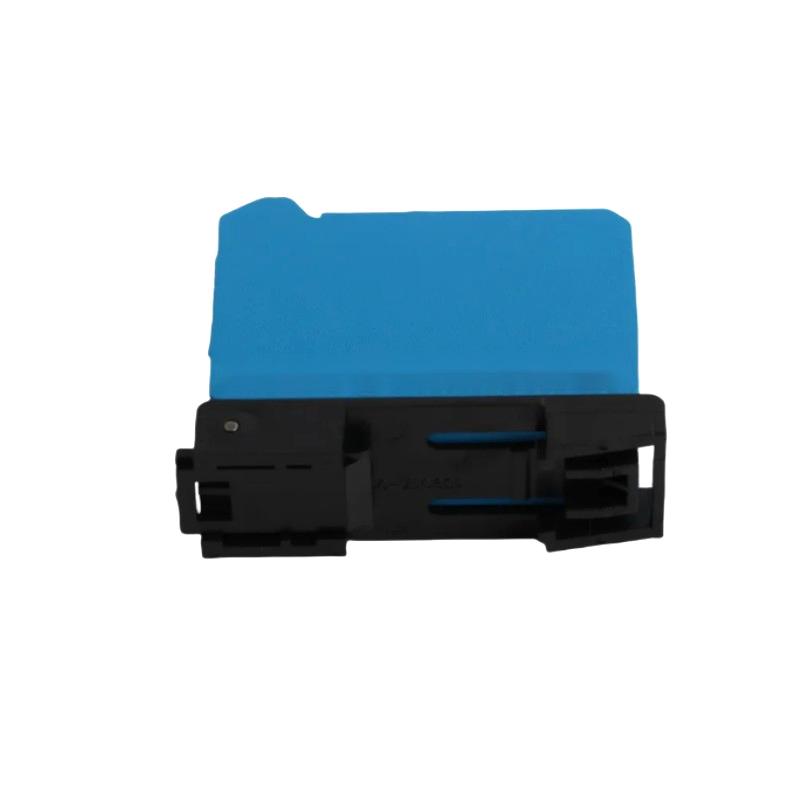

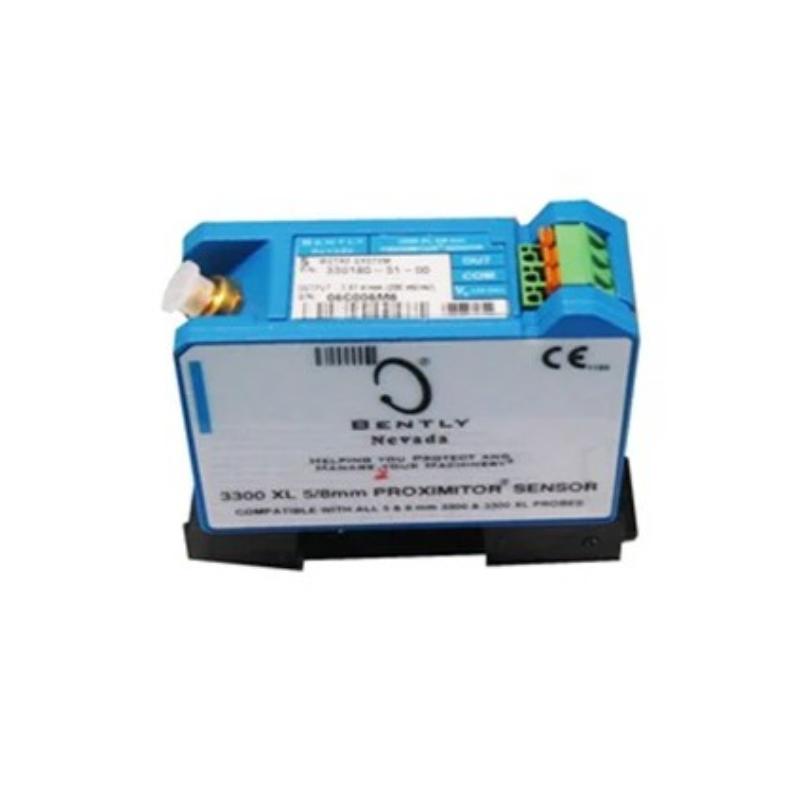

The Bently Nevada 330180-X1-00 / 285447-00 3300 XL 8mm Proximity Sensor is a high-reliability signal conditioning component designed for precision machinery monitoring within the 3300 XL eddy current measurement system. It is engineered to work seamlessly with 8mm proximity probes and extension cables, delivering stable and linearized output signals for continuous vibration and shaft position analysis.
Built for demanding industrial environments, this Proximitor sensor supports long-term operation in rotating machinery monitoring systems where consistent measurement accuracy and system stability are essential for effective equipment performance evaluation.
Technical Specifications
| Parameter | Specification |
|---|
| Model | 330180-X1-00 / 285447-00 |
| Series | Bently Nevada 3300 XL |
| System Type | 8mm Proximity Transducer System |
| Input Signal | Eddy current proximity probe |
| Output Signal | Linear voltage proportional to gap |
| Supply Voltage | -24 VDC nominal |
| Load Resistance | 10 kΩ typical |
| Frequency Response | Up to ~10 kHz (system dependent) |
| Calibration Target | AISI 4140 steel |
| Compatibility | 3300 XL 8mm probe & extension cable system |
| Mounting Style | Panel/DIN rail configuration (variant dependent) |
| Housing Material | Industrial-grade aluminum alloy |
| Operating Temperature | -51°C to +100°C (typical system range) |
| Storage Temperature | -51°C to +105°C |
Industrial Applications
This Proximitor sensor is widely used in industrial monitoring systems where accurate non-contact measurement of shaft behavior is required.
Common application areas include:
-
Gas and steam turbine monitoring
-
Centrifugal compressor condition tracking
-
Industrial pump vibration monitoring
-
Electric motor shaft displacement measurement
-
Gearbox diagnostics and performance evaluation
-
Power generation equipment monitoring
-
Oil & gas production machinery systems
-
Petrochemical processing equipment
-
Marine propulsion machinery
-
General rotating equipment condition monitoring
It is commonly implemented in predictive maintenance and condition-based monitoring systems to support equipment reliability strategies.
Key Advantages
The 330180-X1-00 / 285447-00 sensor is designed to provide stable performance in continuous industrial operation environments:
-
High-accuracy signal conditioning for eddy current probes
-
Stable long-term measurement performance
-
Strong resistance to electrical noise and interference
-
Compatible with standard 3300 XL 8mm probe systems
-
Reliable operation under wide temperature ranges
-
Designed for continuous machinery monitoring applications
-
Modular system integration for flexible installation
-
Supports accurate vibration and displacement measurement
-
Helps improve asset reliability and maintenance planning
-
Suitable for harsh industrial environments
echnical FAQs
1. What is the main function of this Proximitor sensor?
It converts eddy current probe signals into a stable voltage output for vibration and position monitoring.
2. Which probe system is it compatible with?
It is designed for the Bently Nevada 3300 XL 8mm proximity transducer system.
3. What type of measurement does it support?
It supports shaft displacement, vibration, and position measurement.
4. What is the typical power requirement?
It operates on a -24 VDC nominal supply.
5. Can it be used for continuous monitoring?
Yes, it is designed for continuous industrial machinery monitoring applications.
6. What is the output signal type?
A linear voltage signal proportional to the probe gap distance.
7. What industries use this sensor?
Power generation, oil & gas, petrochemical, marine, and manufacturing industries.
8. What materials are used in the housing?
Durable industrial aluminum alloy housing for stable operation.
9. Is it suitable for harsh environments?
Yes, it is designed for wide temperature and industrial conditions.
10. Why is this model widely used?
Because it offers stable, accurate, and repeatable performance in critical machinery monitoring systems.
