Overview

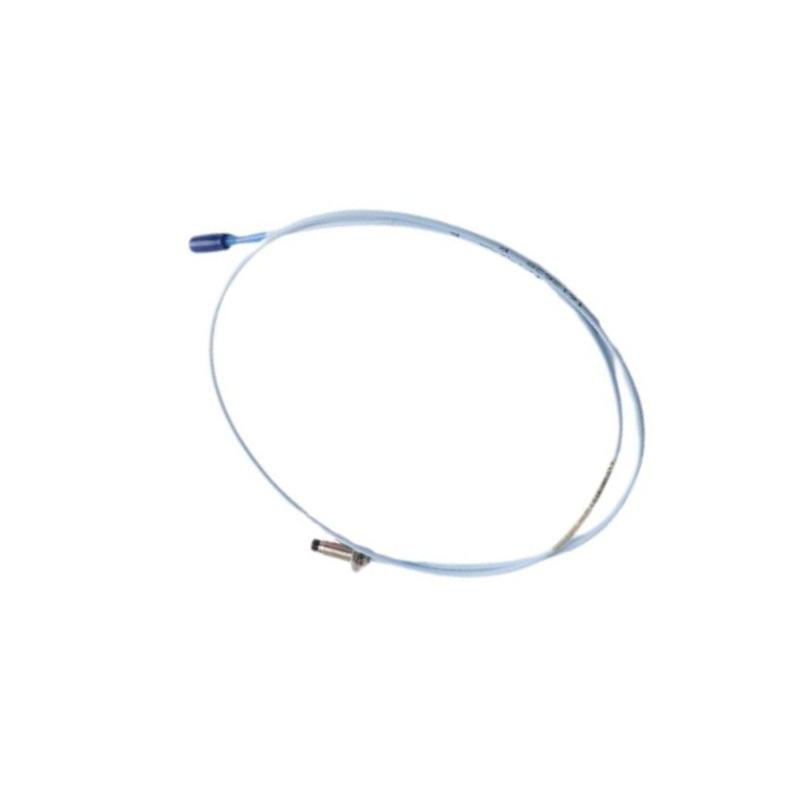

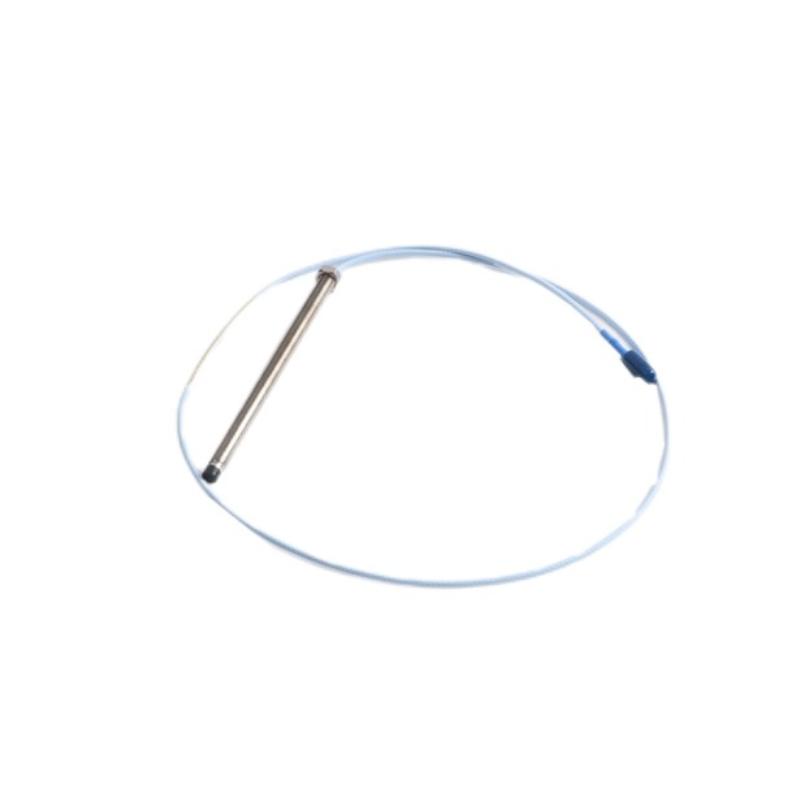

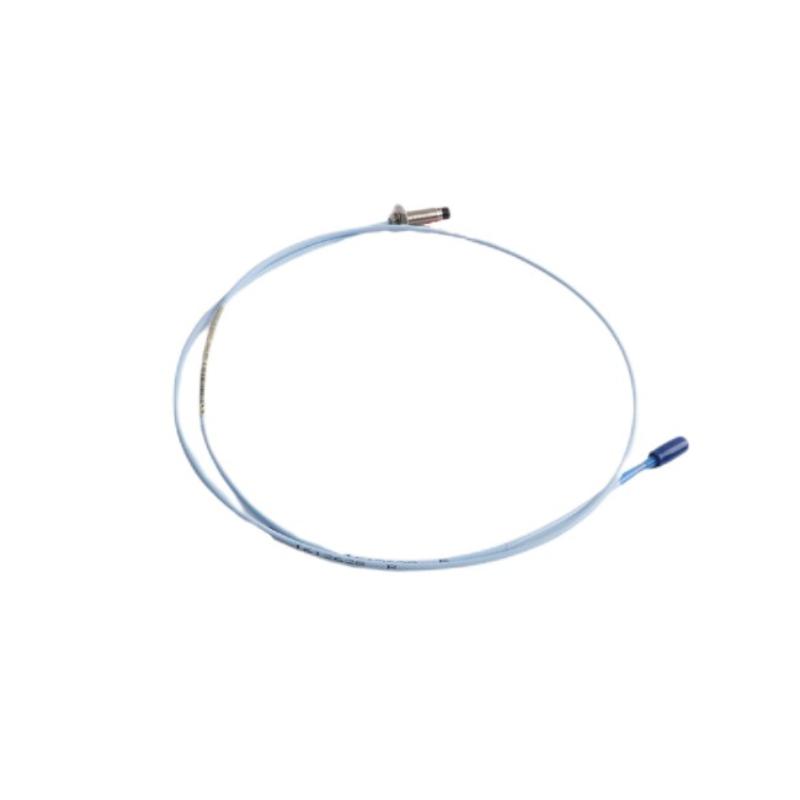

The Bently Nevada 330104-15-25-10-02-05 is a 3300 XL 8 mm metric armored eddy-current proximity probe designed for continuous, non-contact measurement of shaft vibration, shaft position, radial displacement, and rotor motion in rotating machinery. It is intended for use with a compatible 3300 XL Proximitor® Sensor and extension cable as part of the 3300 XL 8 mm Proximity Transducer System, which is designed to meet API 670 performance requirements when installed as a complete calibrated system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Eddy-Current Proximity Probe (Metric) |
| Manufacturer | Bently Nevada |
| Model | 330104-15-25-10-02-05 |
| Product Series | 3300 XL 8 mm |
| Probe Diameter | 8 mm |
| Thread Size | M10 × 1 |
| Mounting Style | Metric, armored |
| Unthreaded Length | 150 mm |
| Overall Case Length | 250 mm |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature ClickLoc® coaxial connector |
| Cable Type | Standard cable |
| Agency Approval | 05 – CSA, ATEX, IECEx approvals |
