Introduction

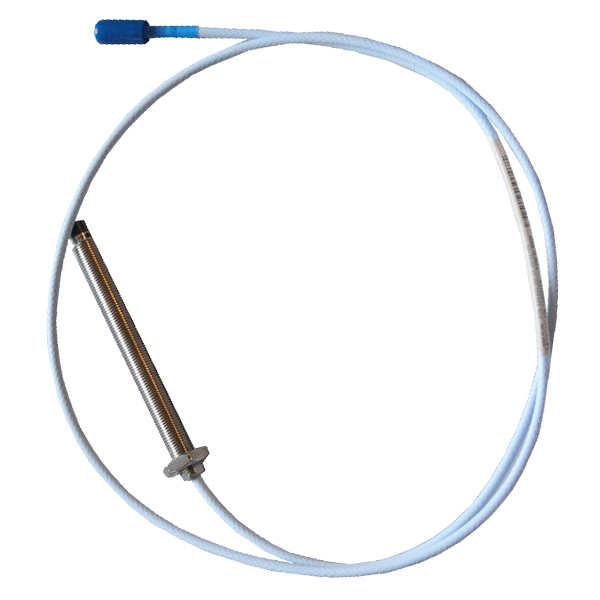

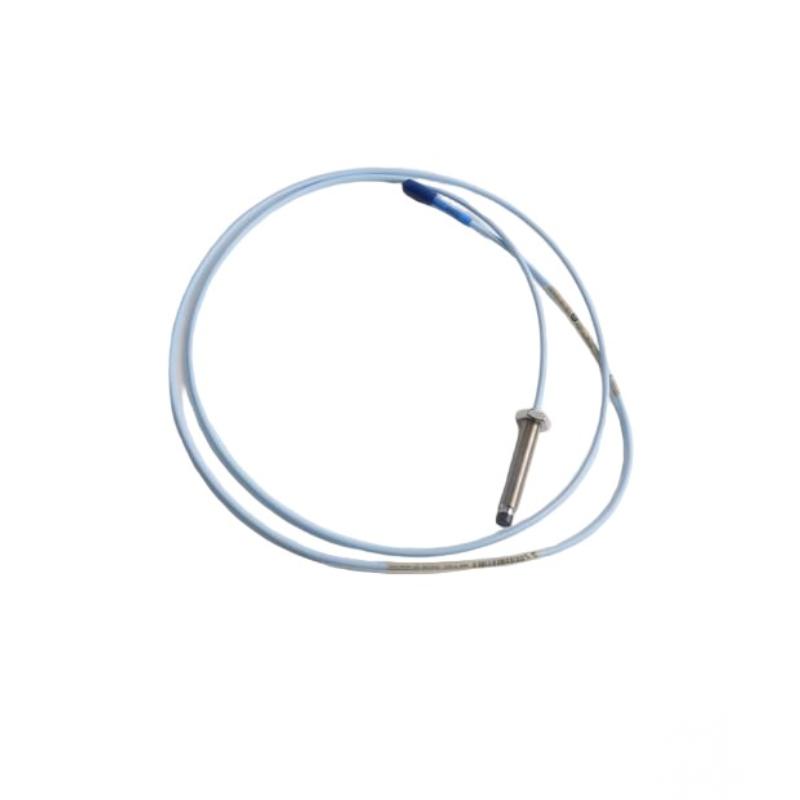

The Bently Nevada 330103-02-08-10-02-00 3300 XL 8mm Proximity Probe is a non-contact eddy current sensor designed for precise monitoring of shaft vibration, radial displacement, and axial position in rotating machinery. As part of the industry-proven 3300 XL system, it delivers highly stable and repeatable measurements in demanding industrial environments such as turbines, compressors, pumps, and other mission-critical rotating equipment.
The “-08” configuration typically indicates an extended mechanical housing design, offering improved installation flexibility and deeper reach capability in complex machinery layouts, while maintaining strong signal integrity and measurement accuracy.
Technical Specifications
| Category | Specification |
|---|---|
| Product Series | 3300 XL |
| Model Number | 330103-02-08-10-02-00 |
| Probe Type | 8 mm Eddy Current Proximity Probe |
| Measurement Principle | Non-contact electromagnetic induction |
| System Compatibility | 3300 XL Proximitor Sensor System |
| Linear Range | ~0.25 mm to 2.3 mm |
| Output Signal | Voltage proportional to gap distance |
| Frequency Response | DC to ~10 kHz |
| Operating Temperature | -52°C to +177°C |
| Case Material | Stainless steel (industrial grade) |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Connector Type | Miniature ClickLoc coaxial |
| Cable Type | Shielded coaxial (FluidLoc compatible) |
| Case Length | ~80 mm (configuration “08”) |
| Total Cable Length | ~1.0 m (configuration “10”) |
| Weight | ~0.30–0.35 kg |
