Introduction

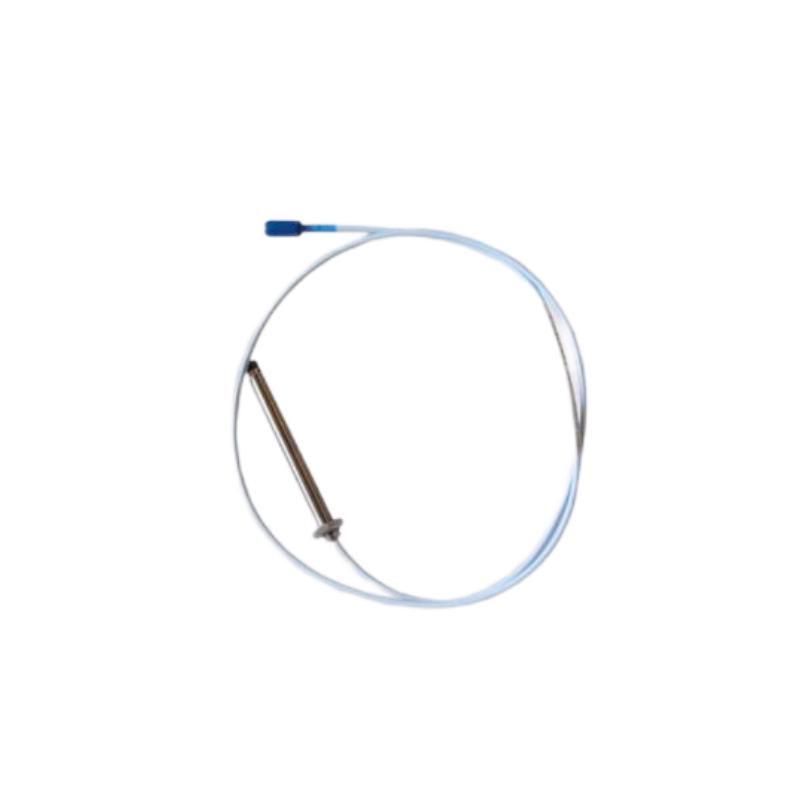

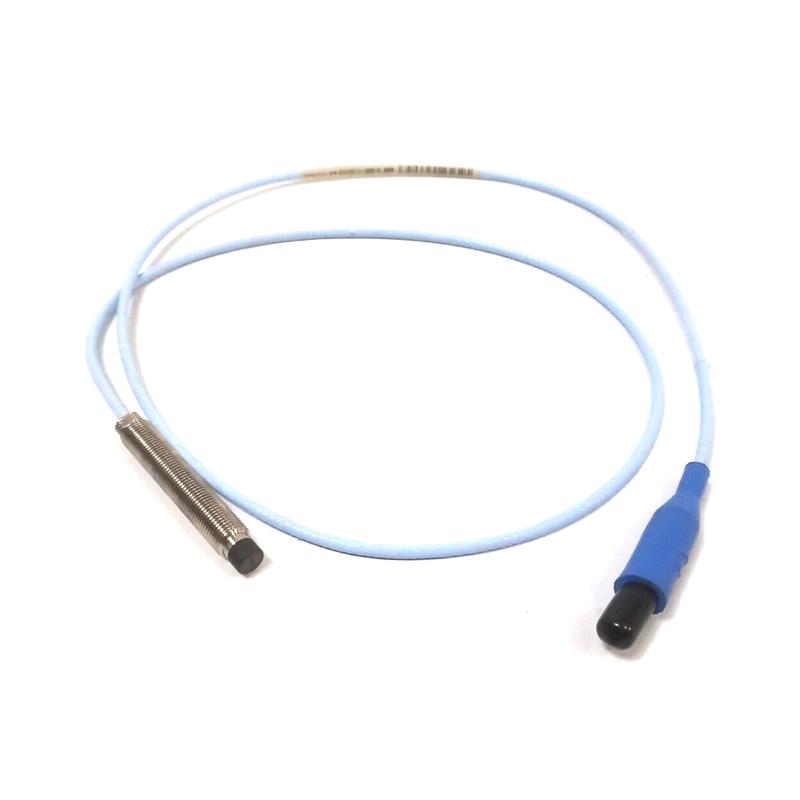

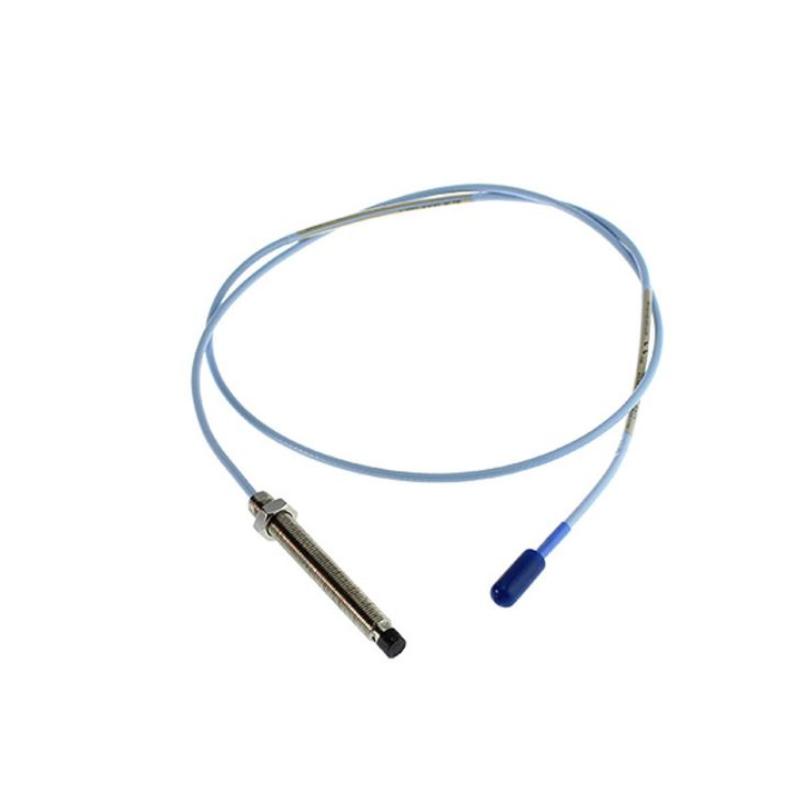

The Bently Nevada 330103-00-16-10-02-CN 3300 XL 8mm Proximity Probe is a high-performance eddy current sensor designed for continuous, non-contact measurement of shaft vibration, radial displacement, and axial position in rotating machinery. As part of the industry-standard 3300 XL system, it delivers stable, low-drift performance in demanding environments such as turbines, compressors, and large industrial pumps.
The “-16” configuration represents an extended housing design, making this probe suitable for deeper installation points or machinery layouts where additional mechanical reach is required. The “-CN” suffix indicates region-specific compliance and certification configuration for international industrial applications.
Technical Specifications
| Category | Specification |
|---|---|
| Product Series | 3300 XL |
| Model Number | 330103-00-16-10-02-CN |
| Probe Type | 8 mm Eddy Current Proximity Probe |
| Measurement Principle | Non-contact electromagnetic induction |
| System Compatibility | 3300 XL Proximitor Sensor System |
| Linear Range | ~0.25 mm to 2.3 mm |
| Output Signal | Voltage proportional to gap distance |
| Frequency Response | DC to ~10 kHz |
| Operating Temperature | -52°C to +177°C |
| Case Material | Stainless steel (industrial grade) |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Connector Type | Miniature ClickLoc coaxial |
| Cable Type | Shielded coaxial (FluidLoc compatible) |
| Case Length | ~160 mm (extended “16” housing) |
| Total Cable Length | ~1.0 m (configuration “10”) |
| Weight | ~0.30–0.35 kg |
