Introduction

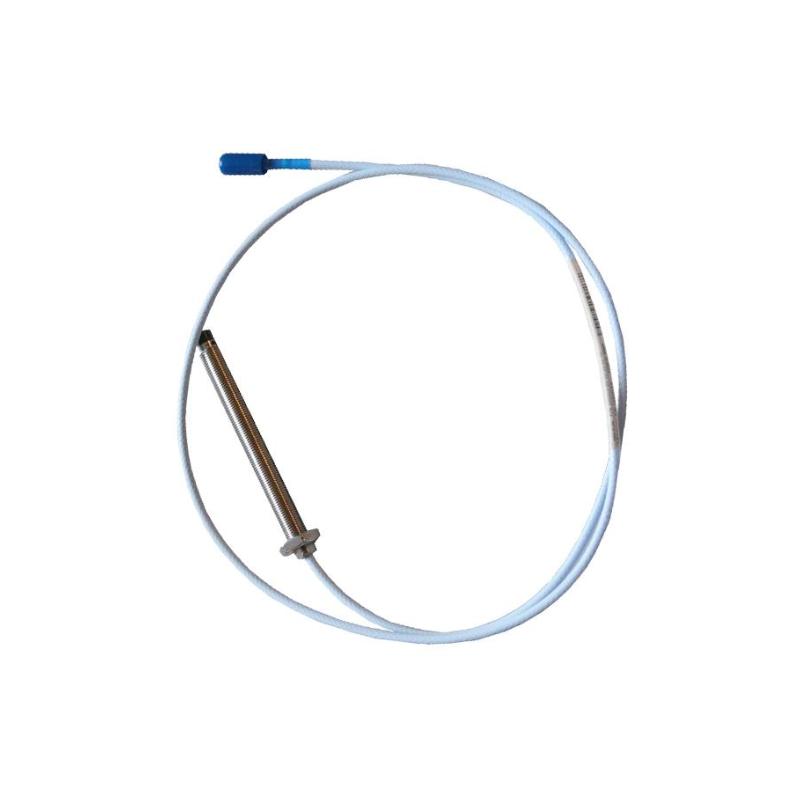

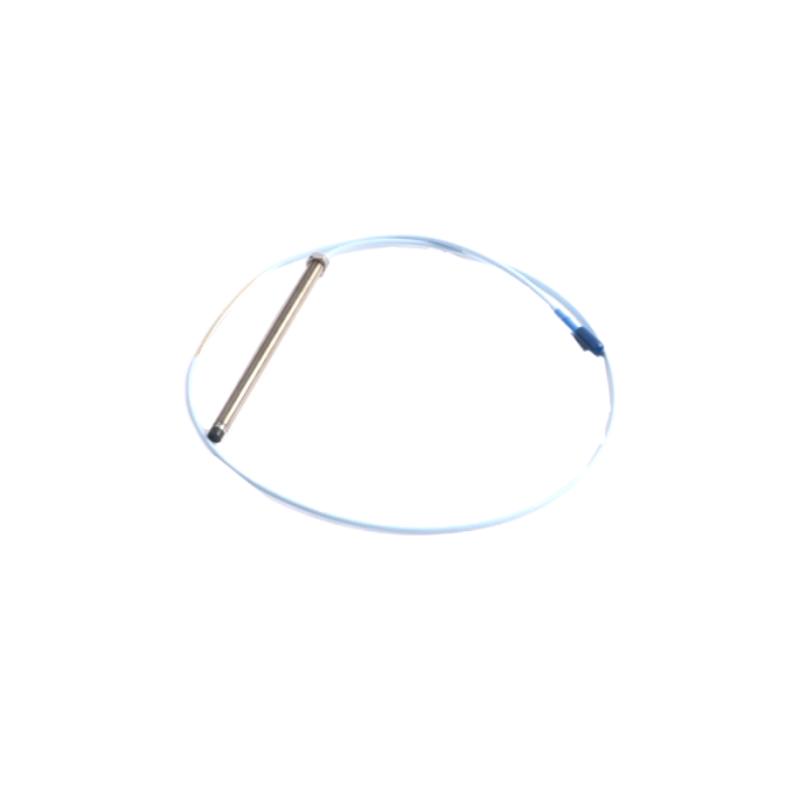

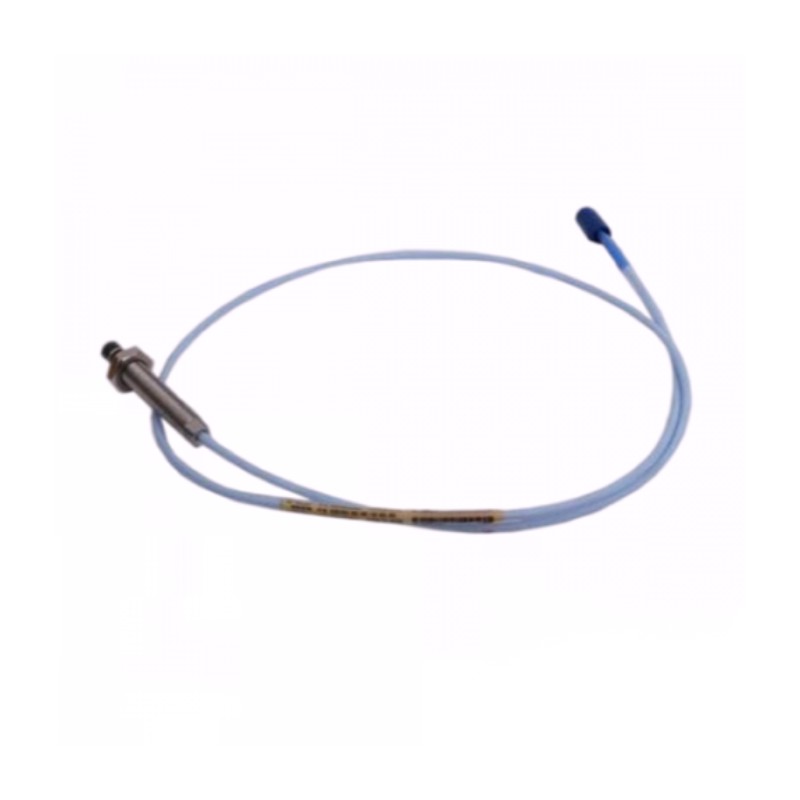

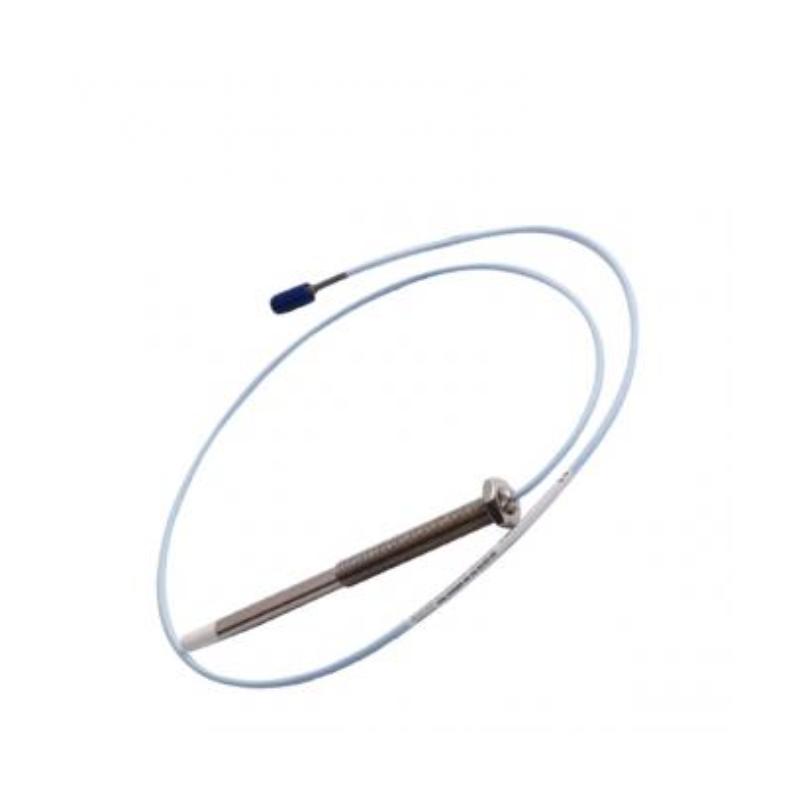

The Bently Nevada 330103-00-05-50-02-05 3300 XL 8mm Proximity Probe is a high-precision eddy current transducer designed for continuous monitoring of shaft vibration, axial displacement, and machine dynamics in critical rotating equipment. As part of the industry-proven 3300 XL series, it is engineered to deliver stable, repeatable measurements in demanding industrial environments such as turbines, compressors, and large pump systems.
This model is widely used in condition monitoring architectures where reliability, signal consistency, and long-term durability directly impact operational safety and asset performance. Its balanced configuration makes it a standard choice for mainstream industrial machinery monitoring applications.
Technical Specifications
| Category | Specification |
|---|---|
| Product Series | 3300 XL |
| Model Number | 330103-00-05-50-02-05 |
| Probe Type | 8 mm Eddy Current Proximity Probe |
| Measurement Principle | Non-contact electromagnetic induction |
| System Compatibility | 3300 XL Proximitor Sensor System |
| Linear Measurement Range | ~0.25 mm to 2.3 mm |
| Output Signal | Voltage proportional to gap distance |
| Frequency Response | DC to ~10 kHz |
| Operating Temperature | -52°C to +177°C |
| Case Material | Stainless steel (AISI 303/304) |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Connector Type | Miniature ClickLoc coaxial |
| Cable Type | Shielded coaxial (FluidLoc compatible) |
| Protection | Industrial sealed construction |
