Introduction

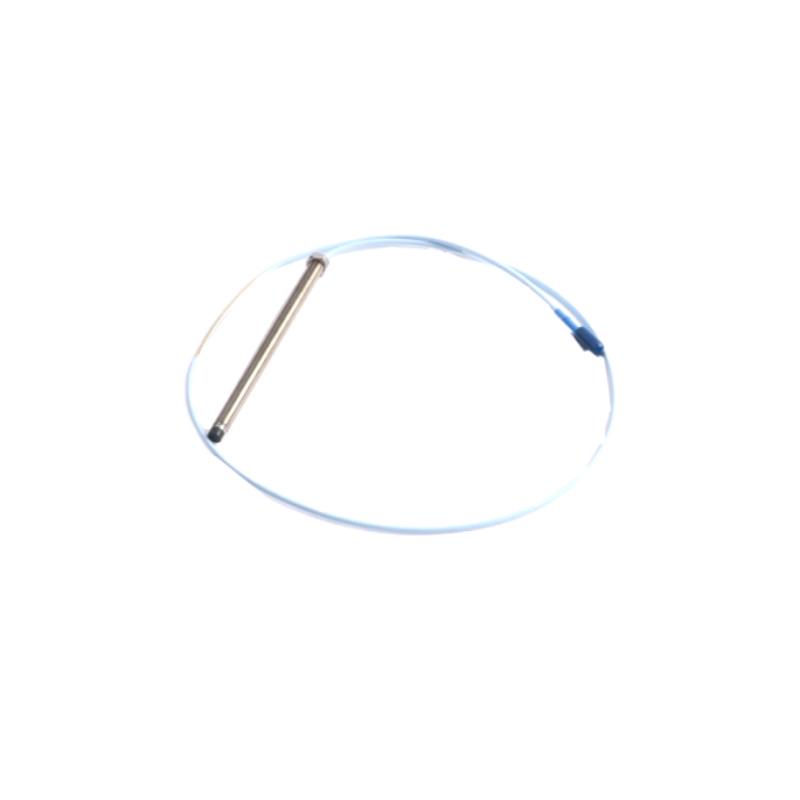

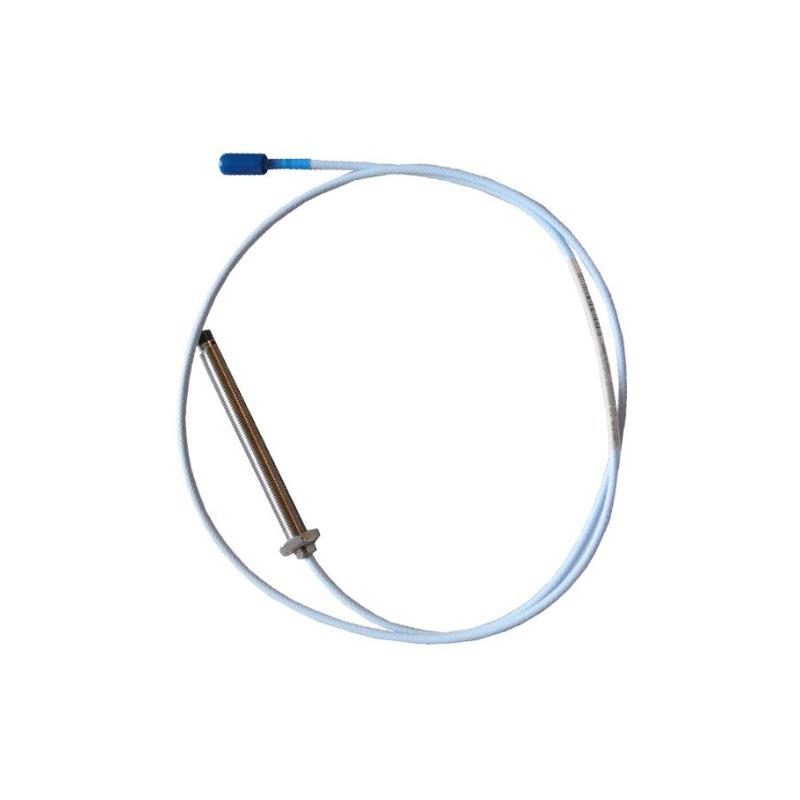

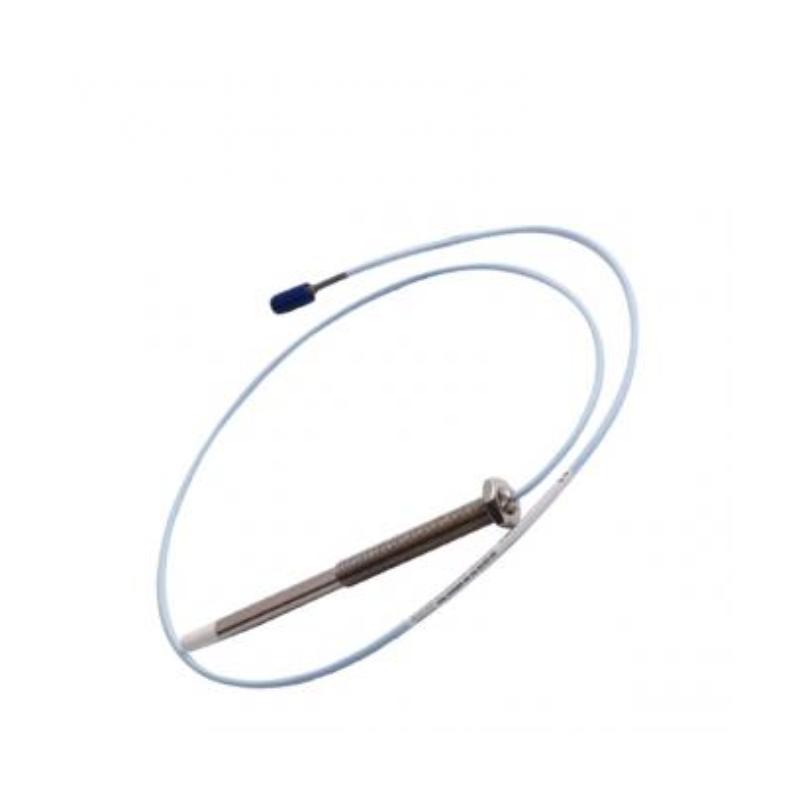

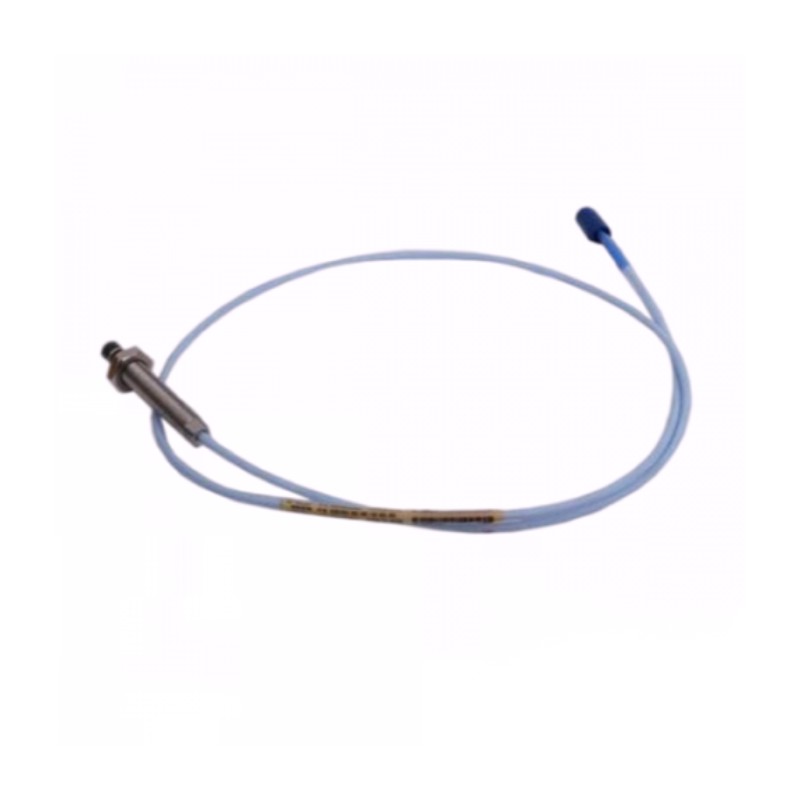

The Bently Nevada 330103-00-05-20-02-CN 3300 XL 8mm Proximity Probe is a precision eddy current transducer designed for continuous monitoring of shaft vibration, axial position, and dynamic displacement in critical rotating machinery. As part of the globally trusted 3300 XL series from Baker Hughes (Bently Nevada product line), it delivers stable and repeatable measurement performance even in extreme industrial environments.
The “CN” configuration typically indicates region-specific compliance and certification options, making this model suitable for internationally deployed machinery protection systems where standardized reliability and documentation are required.
Technical Specifications
| Category | Specification |
|---|---|
| Product Series | 3300 XL |
| Model Number | 330103-00-05-20-02-CN |
| Probe Type | 8 mm Eddy Current Proximity Probe |
| Measurement Principle | Non-contact electromagnetic displacement sensing |
| System Compatibility | 3300 XL Proximitor Sensor System |
| Linear Range | ~0.25 mm to 2.3 mm |
| Output Signal | Analog voltage proportional to gap |
| Frequency Response | DC to ~10 kHz (system dependent) |
| Operating Temperature | -52°C to +177°C |
| Case Material | Stainless steel (AISI 303/304) |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Connector Type | Miniature coaxial ClickLoc™ |
| Cable Type | Shielded coaxial / FluidLoc® compatible |
| Protection Rating | Industrial sealed design |
