Reliable Asset Monitoring Designed for Critical Industrial Machinery

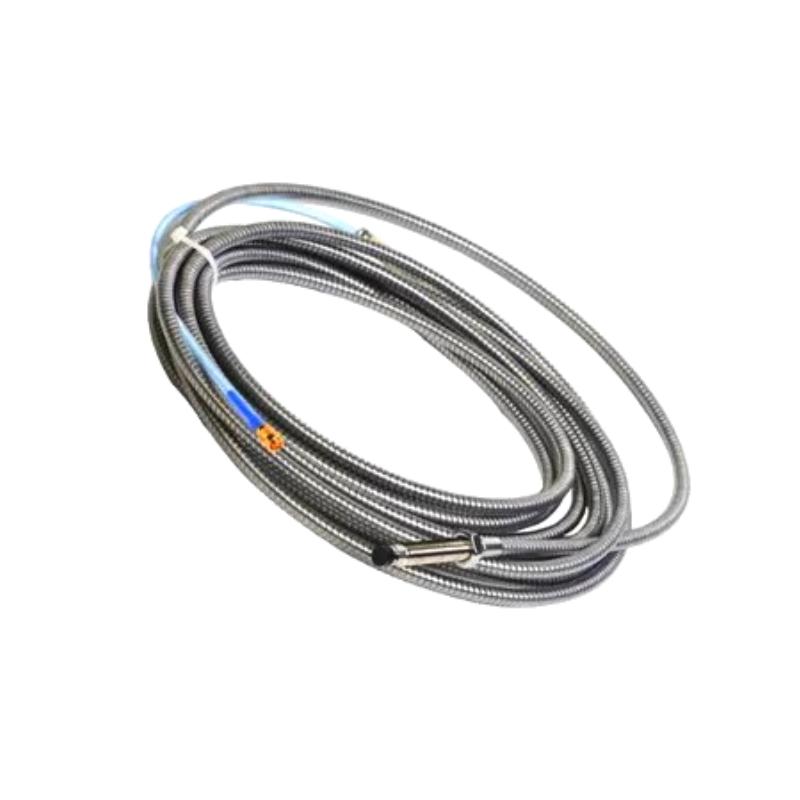

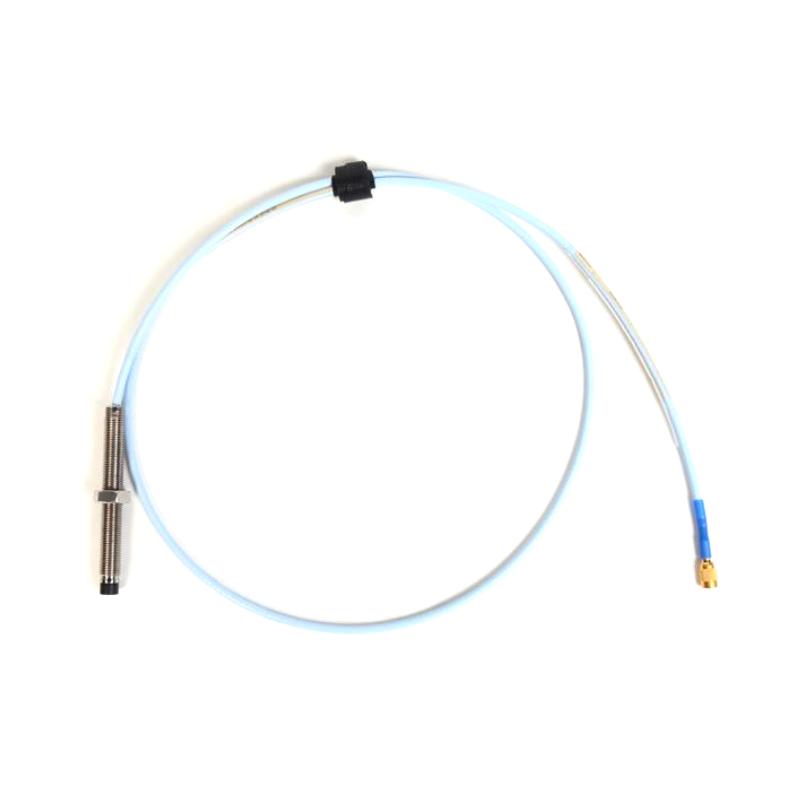

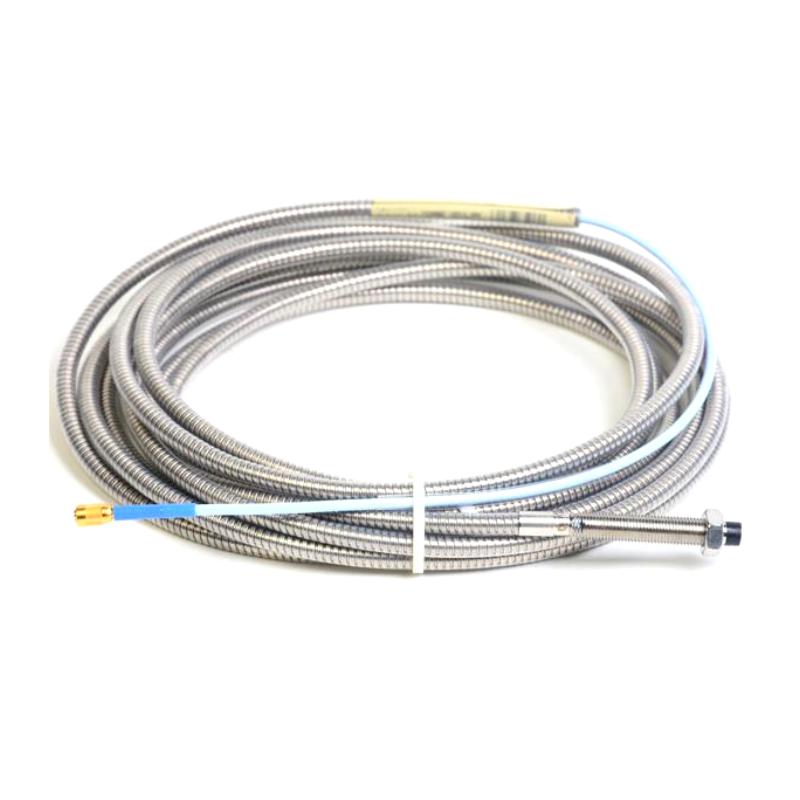

The Bently Nevada 330102-00-72-10-01-05 Proximity Probe is an advanced non-contact sensing device developed for high-precision machinery condition monitoring applications. As part of the trusted 3300 XL 8 mm series, this industrial solution provides dependable measurements for shaft vibration, radial displacement, and rotor position monitoring.
Built to support modern predictive maintenance programs, the probe delivers exceptional measurement stability while helping industrial facilities optimize equipment availability, improve operational efficiency, and extend machine service life. Its rugged design and seamless compatibility with the 3300 XL transducer ecosystem make it an excellent choice for demanding industrial environments.
Engineering Specifications and Physical Data
| Parameter | Specification |
|---|---|
| Product Name | Bently Nevada 330102-00-72-10-01-05 Proximity Probe |
| Product Series | 3300 XL 8 mm |
| Product Type | Eddy Current Proximity Probe |
| Measurement Principle | Non-contact Eddy Current Technology |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Probe Case Length | 72 mm |
| Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Housing Material | Stainless Steel |
| Operating Temperature | -52°C to +177°C |
| Linear Measurement Capability | Static and Dynamic Monitoring |
| Installation Type | Threaded Mount |
| Dimensions | Approximately 72 × 8 × 8 mm |
| Weight | Approximately 0.16 kg |
