Precision Monitoring for Critical Rotating Equipment

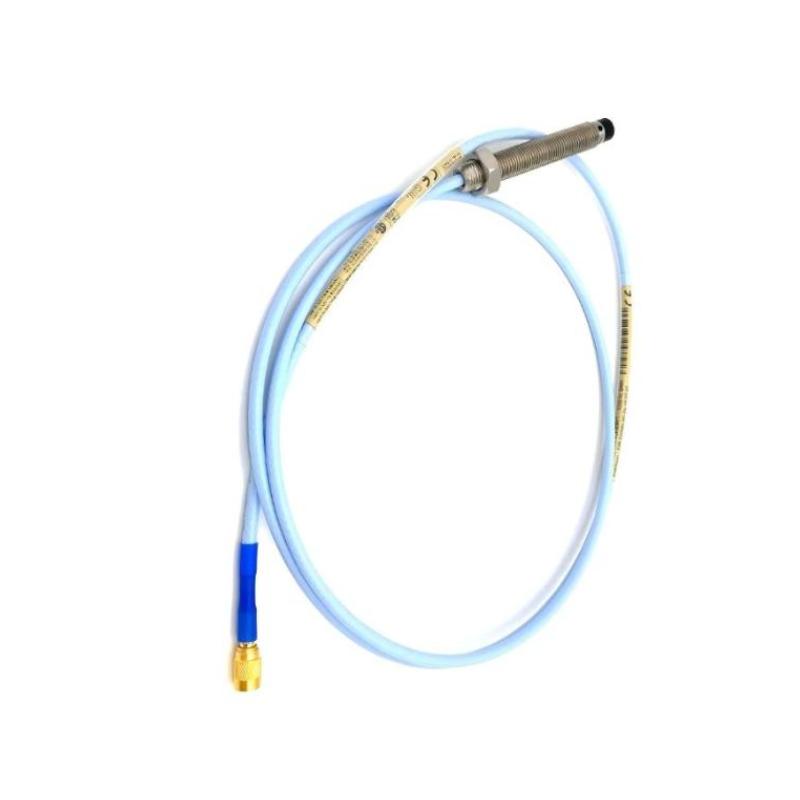

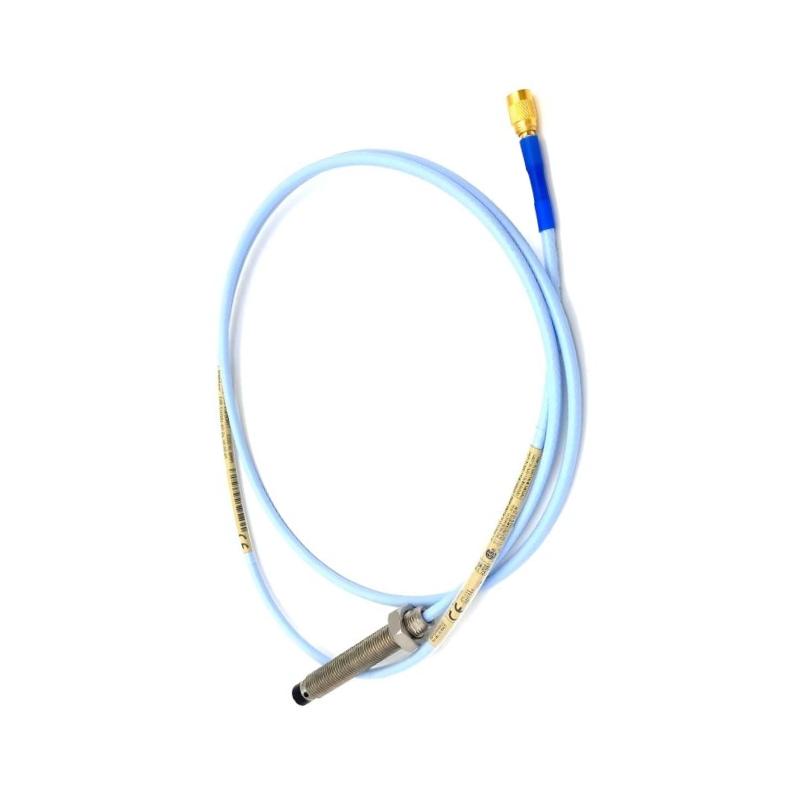

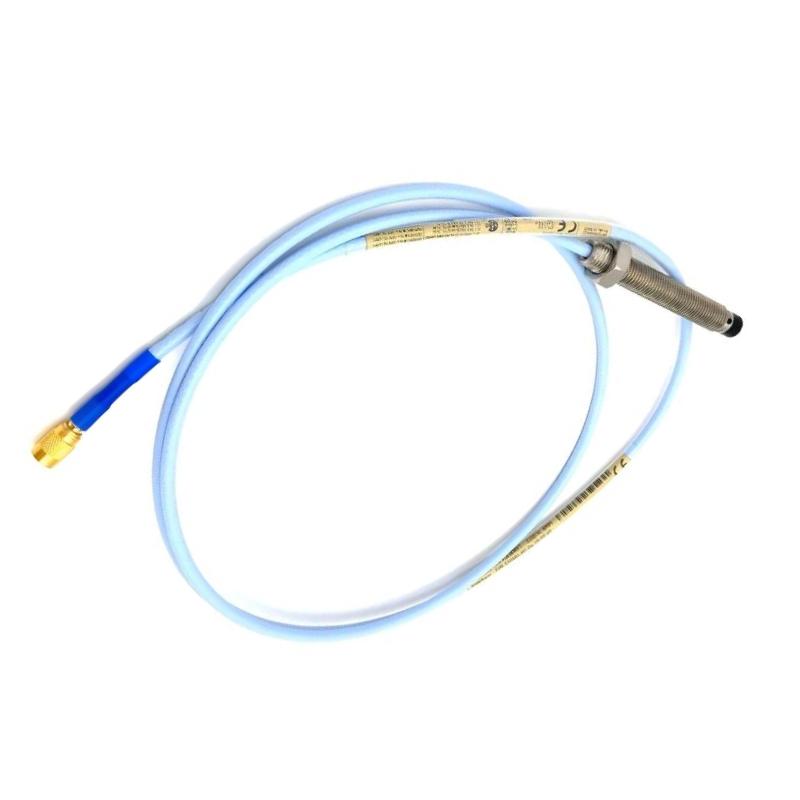

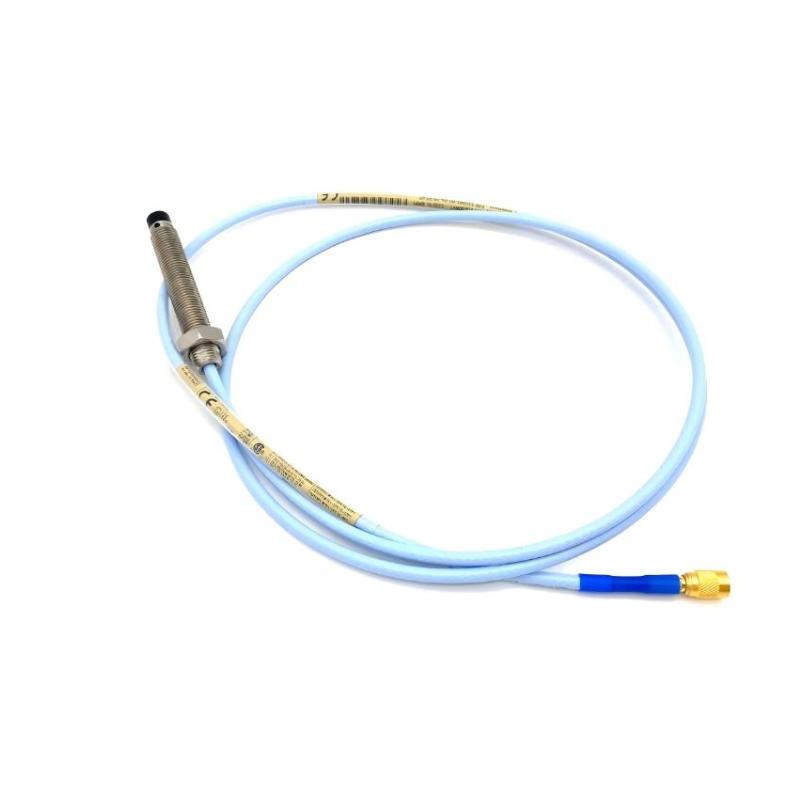

The Bently Nevada 330101-00-96-10-02-05 3300 XL 8 mm Proximity Probe is a high-performance non-contact vibration and position measurement sensor designed for demanding industrial environments. As part of the trusted 3300 XL series, this probe delivers exceptional reliability for machinery protection systems used in turbines, compressors, pumps, motors, and other critical rotating assets.
Engineered with robust stainless-steel construction and advanced eddy-current sensing technology, this proximity probe helps maintenance teams detect shaft vibration, radial displacement, axial position, and rotational speed with outstanding accuracy. Its rugged design minimizes downtime while improving equipment availability and predictive maintenance efficiency.
The 3300 XL series is widely selected by industrial professionals because of its excellent interchangeability, long operational lifespan, and compliance with industry machinery protection standards. The ClickLoc connector design also simplifies installation while ensuring secure connectivity in harsh operating environments.
Product Specifications Overview
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-96-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Technology | Eddy Current Proximity Sensor |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Cable Length | 1.0 meter (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Armor Option | Without Armor |
| Certifications | CSA, ATEX, IECEx |
| Frequency Response | Up to 10 kHz |
| Resolution | 0.1 μm |
| Operating Principle | Non-contact displacement measurement |
| Probe Material | 303/304 Stainless Steel |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Dimensions | Approx. 121.7 × 1.5 × 1.5 cm (shipping dimensions) |
| Weight | Approx. 0.14 kg |
| Country of Origin | USA |
Designed for Heavy-Duty Industrial Applications
The 330101-00-96-10-02-05 proximity probe is engineered for mission-critical machinery monitoring applications where equipment reliability directly impacts production output.
Typical application industries include:
-
Steam turbine monitoring systems
-
Gas turbine protection systems
-
Centrifugal compressors
-
Industrial pumps
-
Electric motors
-
Power generation facilities
-
Oil and gas processing plants
-
Petrochemical industries
-
Water treatment facilities
-
Heavy manufacturing plants
Its primary functions include continuous measurement of:
-
Shaft vibration
-
Axial displacement
-
Radial position
-
Keyphasor speed reference signals
-
Rotor dynamic analysis
The sensor enables maintenance engineers to identify abnormal machine behavior before costly failures occur, supporting predictive maintenance strategies and maximizing equipment uptime.
Key Benefits That Make This Probe an Industry Favorite
Exceptional Measurement Accuracy
Advanced eddy-current technology delivers highly precise shaft position and vibration monitoring.
Built for Harsh Environments
Stainless steel housing and PPS probe tip provide excellent durability and chemical resistance.
Secure ClickLoc Connection
Patented ClickLoc connectors reduce installation complexity and enhance cable retention.
Global Hazardous Area Certifications
CSA, ATEX, and IECEx approvals support worldwide industrial deployments.
Excellent Interchangeability
Compatible within the 3300 XL ecosystem, simplifying inventory management and maintenance operations.
Enhanced Mechanical Strength
The 8 mm probe construction offers superior robustness compared to smaller probe designs.
Reduced Unplanned Downtime
Early fault detection minimizes production interruptions and maintenance expenses.
Technical FAQs
Q1: What is the primary function of this proximity probe?
It measures shaft vibration, shaft position, and rotational reference signals without physically contacting the rotating surface.
Q2: Which machinery is this probe commonly used on?
It is widely used on turbines, compressors, pumps, generators, and fluid-film bearing machines.
Q3: Is this an explosion-certified device?
Yes. This configuration includes CSA, ATEX, and IECEx approvals.
Q4: What cable length does this model include?
This model includes a 1-meter cable.
Q5: What connector type does it use?
It uses a miniature coaxial ClickLoc connector.
Q6: Can it be integrated into predictive maintenance systems?
Yes. It is specifically designed for condition monitoring and predictive maintenance programs.
Q7: What material is the probe body made from?
The housing is manufactured from AISI 303 or 304 stainless steel.
Q8: Is the probe resistant to industrial environments?
Yes. It is designed to withstand vibration, oil exposure, temperature fluctuations, and harsh operating conditions.
Q9: Does this probe require contact with the shaft?
No. It is a non-contact sensor utilizing eddy-current measurement technology.
Q10: Is it compatible with other 3300 XL components?
Yes. The 3300 XL series is designed with excellent component interchangeability.
