Advanced Sensing Technology for Reliable Equipment Monitoring

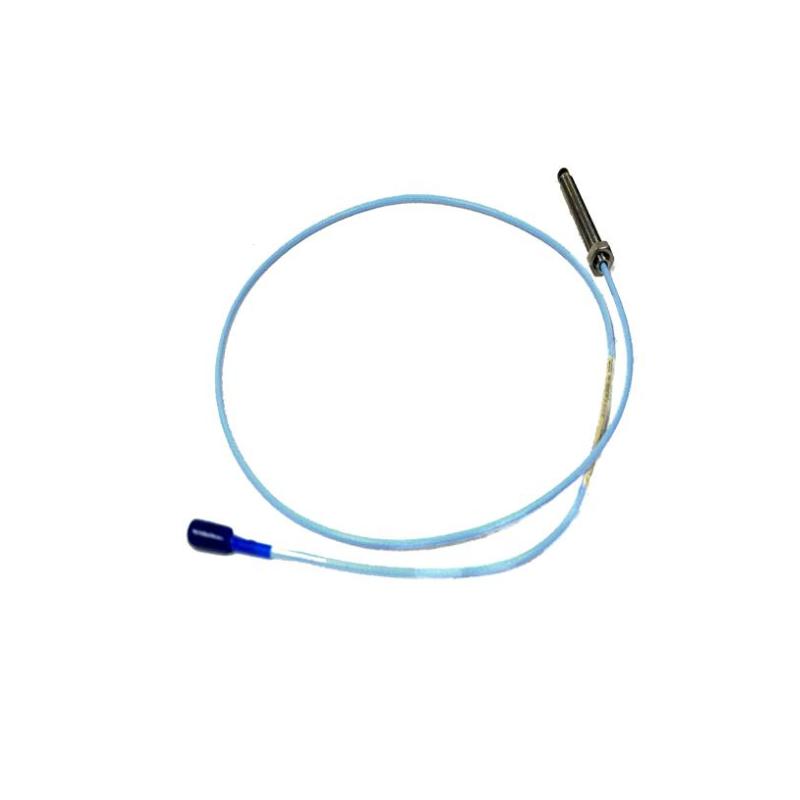

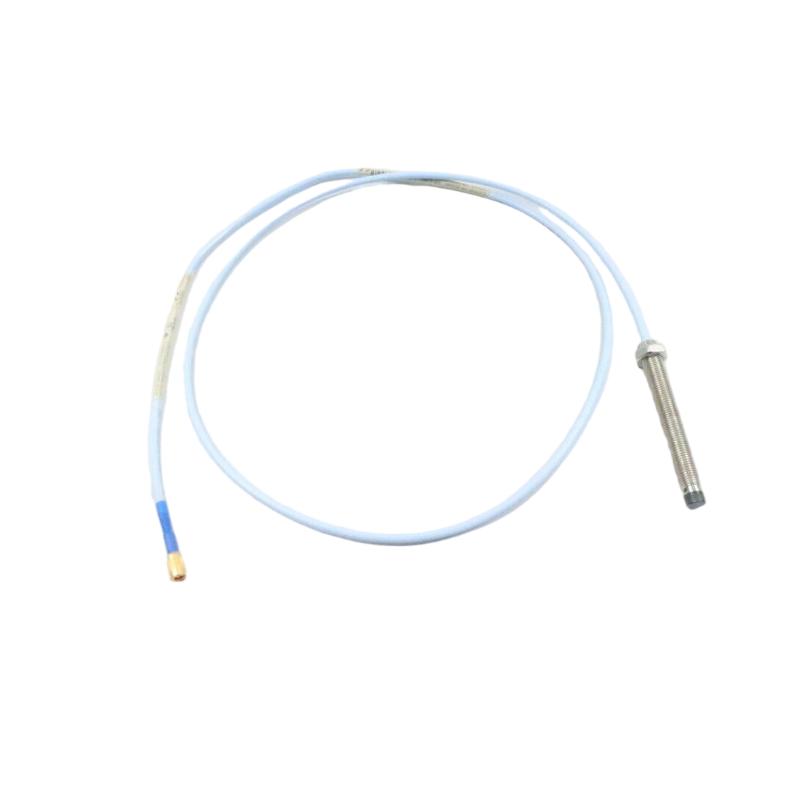

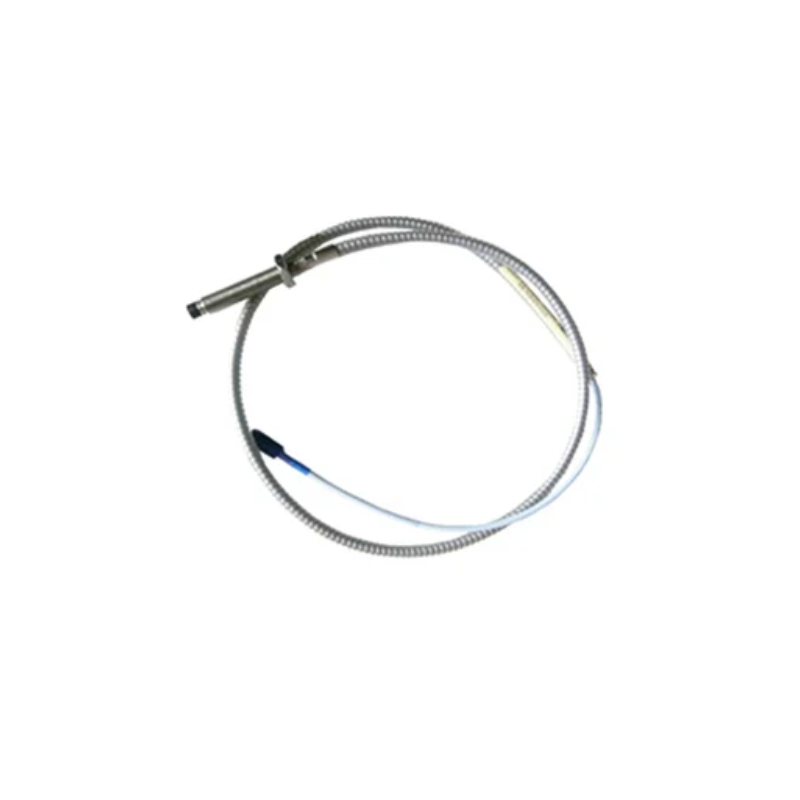

The Bently Nevada 330101-00-10-05-02-05 3300 XL 8 mm Proximity Probe is designed to provide highly accurate non-contact measurement for industrial machinery monitoring applications. As a member of the trusted 3300 XL series, this probe delivers dependable shaft displacement and vibration measurement, helping operators improve equipment performance and maintenance efficiency.
With its rugged construction, stable signal characteristics, and excellent compatibility with 3300 XL monitoring systems, the probe is well suited for continuous operation in demanding industrial environments. Its precision sensing capability supports effective equipment condition assessment and long-term operational reliability.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-10-05-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Series | 3300 XL |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.0 in |
| Total Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Cable |
| Thread Size | 3/8-24 UNF |
| Measurement Technology | Eddy Current Sensing |
| Linear Measurement Range | 2 mm (80 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Operating Temperature | -52°C to +177°C |
| Probe Tip Material | PPS Engineering Polymer |
| Probe Case Material | Stainless Steel |
| Dimensions (Approx.) | 100 × 50 × 50 mm |
| Weight (Approx.) | 0.32 kg |
Typical Applications
Turbine Monitoring
Provides precise shaft displacement and vibration measurement in steam and gas turbine systems.
Compressor Systems
Supports continuous equipment condition monitoring for improved operational consistency.
Industrial Pumps
Helps maintenance teams monitor rotating components and optimize maintenance schedules.
Power Generation Equipment
Used extensively in machinery monitoring systems where accurate measurement data is essential.
Manufacturing Facilities
Suitable for industrial automation environments focused on equipment reliability and productivity.
Advantages
High Measurement Accuracy
Delivers reliable displacement and vibration data for machinery condition assessment.
Robust Mechanical Design
Constructed with industrial-grade materials to support long-term operation.
Excellent System Compatibility
Works seamlessly with compatible Bently Nevada monitoring components.
Stable Signal Performance
Provides consistent output characteristics across a wide range of operating conditions.
Easy Installation
Compact design and standardized connections simplify integration into existing systems.
Long Service Life
Engineered for durability and dependable operation in industrial applications.
Technical FAQs
1. What is the primary purpose of the 330101-00-10-05-02-05?
It measures shaft displacement and vibration using non-contact sensing technology.
2. Which series does this probe belong to?
It is part of the Bently Nevada 3300 XL 8 mm Proximity Probe family.
3. What is the probe diameter?
The probe features an 8 mm sensing tip.
4. What is the cable length?
This model includes a 0.5-meter integrated cable.
5. What type of connector is used?
It utilizes a Miniature Coaxial ClickLoc connector.
6. Can the probe operate continuously?
Yes, it is designed for permanent installation in industrial monitoring systems.
7. What industries commonly use this product?
Power generation, manufacturing, utilities, processing facilities, and general industrial applications.
8. What parameters can it monitor?
It is commonly used for displacement, shaft position, and vibration measurement.
9. Is it compatible with other 3300 XL components?
Yes, it is designed to work with compatible 3300 XL extension cables and Proximitor sensors.
10. Why is this probe widely used?
Its combination of precision, reliability, durability, and ease of integration makes it a preferred solution for industrial monitoring systems.
