Introduction

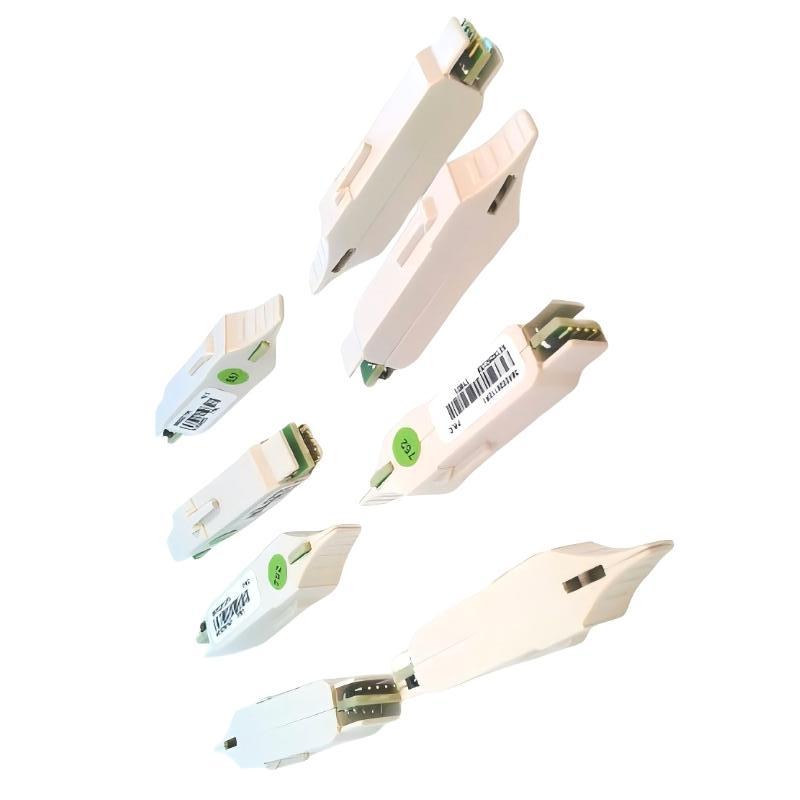

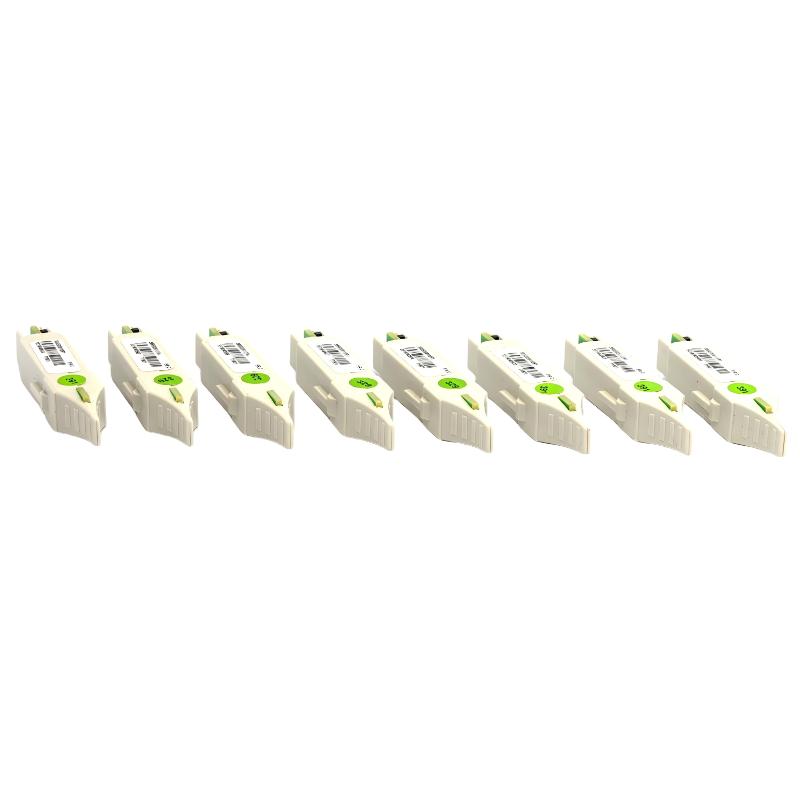

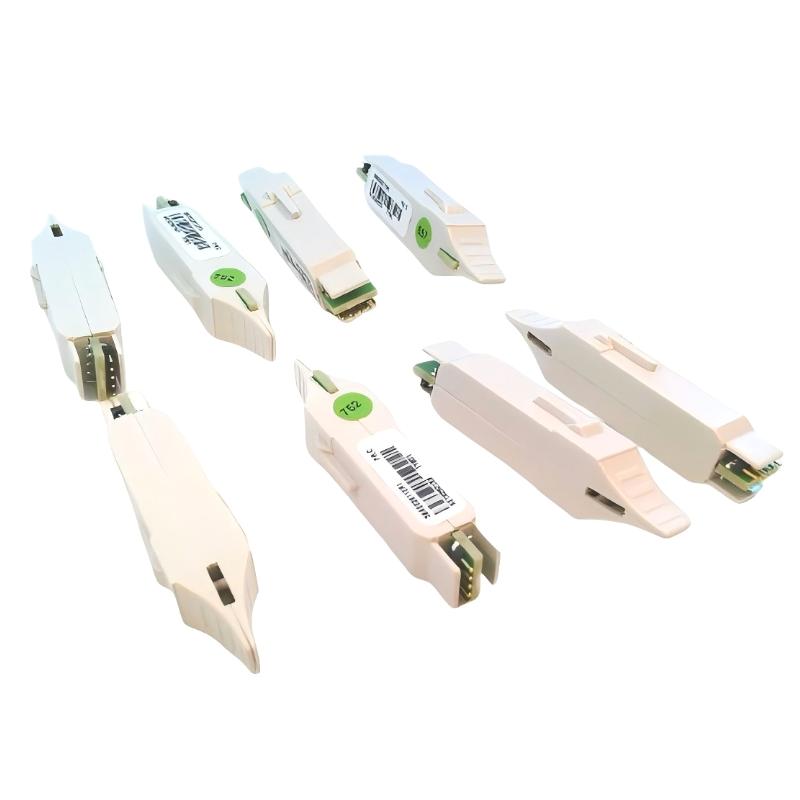

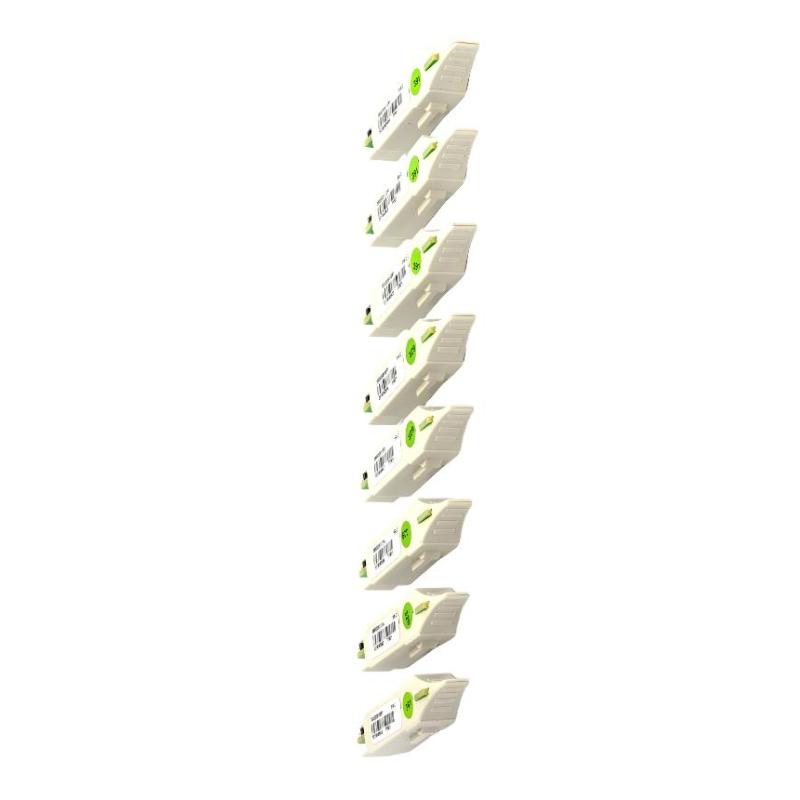

The ABB TY801K01 (3BSE023607R1) Terminal Base / Mounting Unit is an industrial termination accessory designed to support signal conditioning and safe connection of analog input modules within ABB distributed control systems (DCS), particularly the S800 I/O platform.
Rather than functioning as an active electronic module, this unit plays a structural and electrical support role—providing a stable mounting and precise signal termination interface for compatible ABB analog input modules. It is widely used in process automation environments where reliable field wiring, noise reduction, and modular maintenance are critical.
In ABB’s automation architecture, components like the TY801K01 help ensure that high-precision measurement signals remain stable from field devices all the way to control logic systems.
Technical Specifications
| Parameter | Details |
|---|
| Model | TY801K01 |
| Order Code | 3BSE023607R1 |
| Product Type | Terminal Base / Mounting Unit (Shunt Stick Assembly) |
| Manufacturer | ABB |
| System Compatibility | ABB S800 I/O / 800xA systems |
| Function | Signal termination and mounting for analog input modules |
| Supported Modules | AI845, AI880A |
| Terminal Units | TU834, TU844, TU845, TU854 |
| Resistance Configuration | 125 + 125 Ω shunt arrangement |
| Signal Type | Analog measurement signal conditioning |
| Installation Type | Plug-in / terminal unit integration |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5–95% non-condensing |
| Dimensions | ~62 mm × 15.5 mm × 11 mm |
| Weight | ~0.06 – 0.12 kg |
Applications
The ABB TY801K01 terminal base is primarily used in industrial automation systems requiring precise analog signal measurement and safe termination practices.
Typical applications include:
-
Power plant monitoring and control systems
-
Oil & gas process instrumentation
-
Chemical and petrochemical measurement systems
-
Water treatment and utility automation
-
ABB 800xA distributed control systems
-
Industrial sensor signal conditioning setups
-
Retrofit and maintenance of existing ABB S800 I/O installations
-
High-accuracy current measurement circuits
It is especially important in current measurement loops where shunt resistors are required to ensure correct signal scaling and system protection.
Advantages
The TY801K01 mounting and termination unit provides several operational benefits in industrial environments:
-
Accurate Signal Conditioning – Ensures precise current measurement via shunt configuration
-
Modular Maintenance Design – Allows fast replacement without rewiring field cables
-
High System Compatibility – Fully aligned with ABB S800 I/O ecosystem
-
Improved Electrical Stability – Reduces signal distortion and noise interference
-
Compact Integration – Saves space in dense control cabinets
-
Industrial Reliability – Designed for long-term operation in harsh environments
-
Reduced Downtime – Enables quick servicing in live industrial systems
Technical FAQs (10 Questions)
1. What is the ABB TY801K01 used for?
It is used as a terminal base and shunt stick for analog signal termination in ABB S800 I/O systems.
2. Is it an active electronic module?
No, it is a passive termination/mounting component.
3. Which ABB modules is it compatible with?
It supports AI845 and AI880A analog input modules.
4. What terminal units does it fit?
TU834, TU844, TU845, and TU854.
5. What is its main function?
It provides shunt-based signal conditioning and secure mounting.
6. What is the weight of the unit?
Approximately 0.06–0.12 kg depending on configuration.
7. Does it require power?
No, it operates passively within the signal chain.
8. What is the resistance value?
It uses a 125 + 125 ohm shunt configuration.
9. Where is it commonly used?
In industrial DCS systems such as ABB 800xA installations.
10. Is it still used in modern systems?
Yes, especially in installed ABB automation bases and maintenance environments.
