Introduction

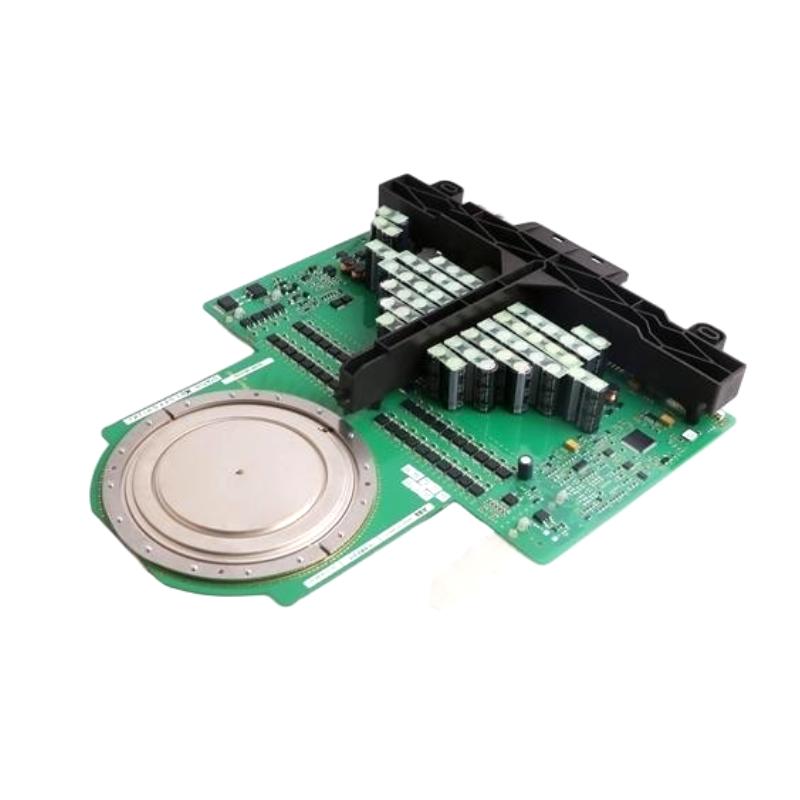

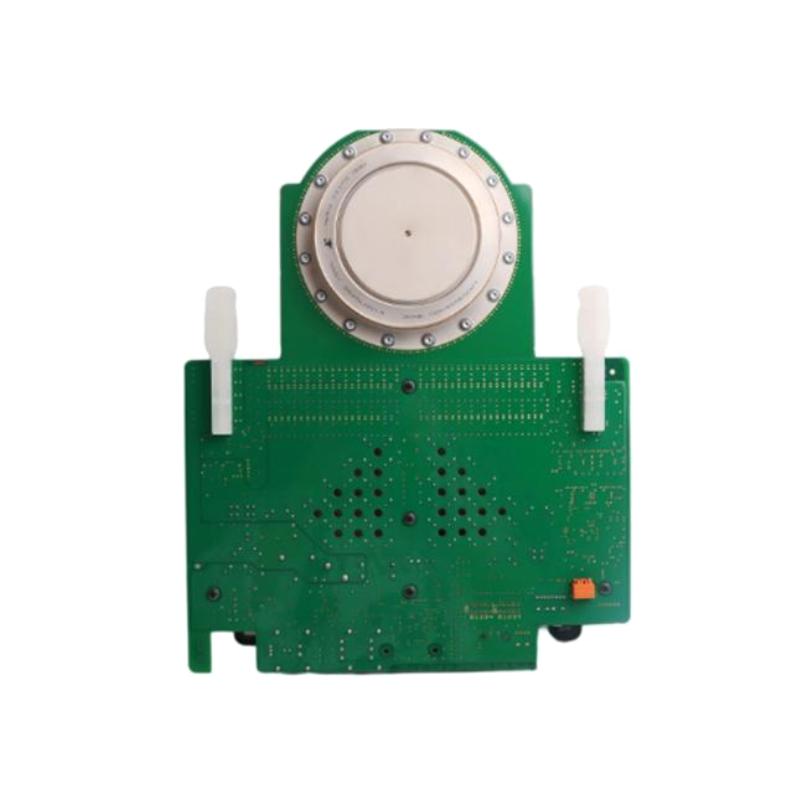

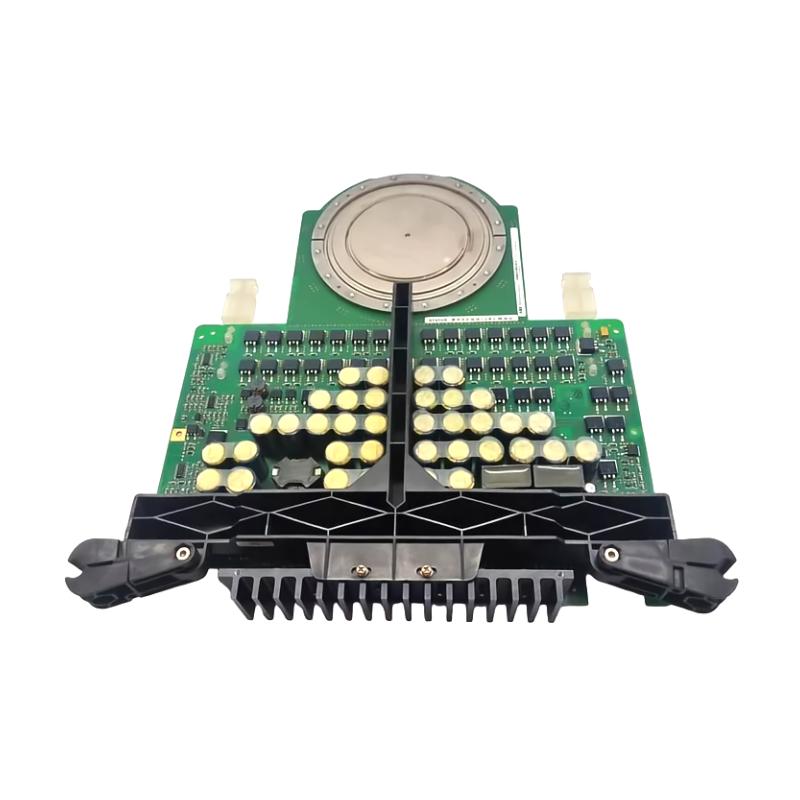

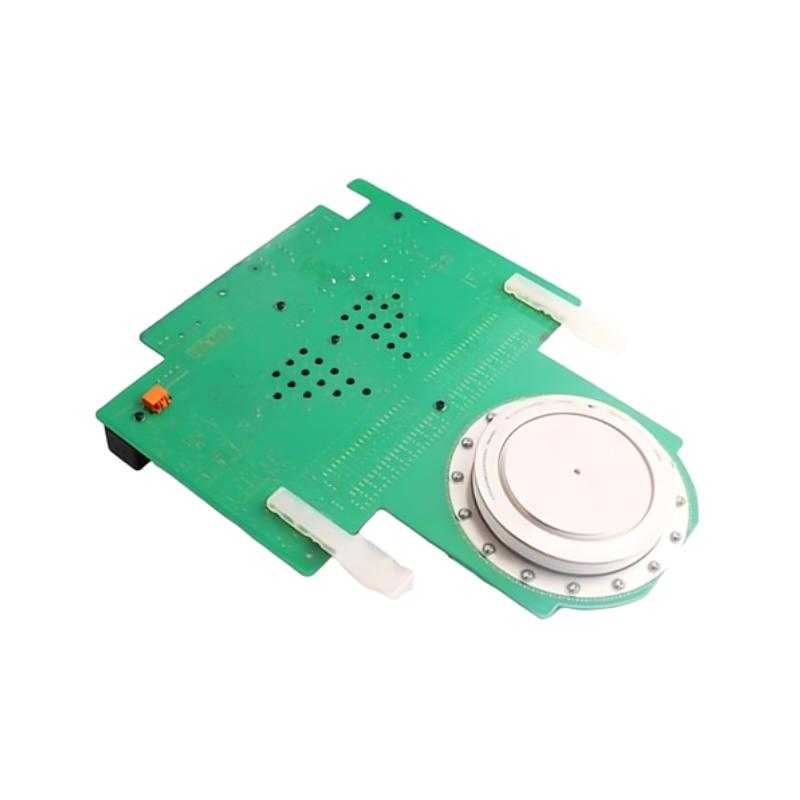

The ABB 5SHY3545L0014 3BHE023784R0001 Thyristor Module is a high-power Integrated Gate-Commutated Thyristor (IGCT) designed for medium-voltage industrial drive systems and large-scale power conversion applications. As part of ABB’s advanced power semiconductor portfolio, it is widely used in systems requiring extreme current handling, fast switching performance, and long-term operational stability.
Engineered for ABB ACS 6000 series drives and similar high-power converter platforms, this module plays a critical role in controlling megawatt-level energy flow in heavy industrial environments such as mining, metallurgy, and power generation. Its press-pack IGCT structure ensures strong thermal performance and mechanical robustness under continuous high-load operation.
Technical Specifications
| Parameter | Details |
|---|
| Model | 5SHY3545L0014 |
| Order Code | 3BHE023784R0001 |
| Product Type | IGCT Thyristor Power Module |
| Manufacturer | ABB |
| Technology | Integrated Gate-Commutated Thyristor (IGCT) |
| Application System | ABB ACS 6000 / medium-voltage drives |
| Rated Blocking Voltage | 4.5 kV |
| Rated Current | ~3,000–3,500 A (system dependent) |
| Switching Characteristics | Microsecond-level turn-on/turn-off |
| Cooling Method | Water-cooled press-pack system |
| Operating Temperature | -40°C to +125°C |
| Protection Features | Overcurrent, overvoltage, overtemperature protection |
| Package Type | Press-pack high-power semiconductor module |
| Dimensions | ~250 mm × 170 mm × 91 mm |
| Weight | ~2.8–3.3 kg |
Applications
The ABB 5SHY3545L0014 IGCT module is widely used in ultra-high-power industrial systems where energy conversion efficiency and reliability are critical.
Typical applications include:
-
Medium-voltage variable frequency drives (ACS 6000 systems)
-
High-power motor drives in mining and mineral processing
-
Steel mill rolling and electric arc furnace systems
-
Oil & gas compressor and pumping stations
-
Power generation auxiliary drive systems
-
HVDC transmission and reactive power compensation systems
-
Marine propulsion and large traction systems
-
Industrial energy conversion and grid stabilization systems
Its ability to handle extremely high current makes it a core component in megawatt-class industrial infrastructure.
Advantages
The ABB IGCT thyristor module delivers strong performance advantages in demanding high-power environments:
-
Ultra-High Power Handling – Supports kiloamp-level current flow for heavy-duty applications
-
Low Conduction Loss – Improves system efficiency and reduces thermal stress
-
Fast Switching Capability – Enables precise motor control and stable power conversion
-
High System Reliability – Designed for continuous 24/7 industrial operation
-
Press-Pack Durability – Excellent mechanical and thermal cycling endurance
-
Integrated Gate Control – Reduces external circuit complexity and improves stability
-
Fault-Tolerant Design – Strong resistance to short-circuit and overload conditions
This combination makes it a cornerstone component in ABB’s high-power drive systems.
Technical FAQs (10 Questions)
1. What is the ABB 5SHY3545L0014 module used for?
It is used for high-power switching and control in medium-voltage industrial drive systems.
2. Is this an IGCT or SCR device?
It is an IGCT (Integrated Gate-Commutated Thyristor), an advanced form of thyristor technology.
3. Which ABB systems use this module?
It is primarily used in ABB ACS 6000 medium-voltage drive systems.
4. What is its voltage rating?
Approximately 4.5 kV blocking voltage.
5. What industries use it most?
Mining, metallurgy, oil & gas, power generation, and heavy industry.
6. How is it cooled?
It uses a water-cooled press-pack system for thermal management.
7. What is its typical current capacity?
Around 3,000–3,500 A depending on operating conditions.
8. What is its weight?
Approximately 2.8–3.3 kg.
9. Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial duty cycles.
10. Does it support modern inverter systems?
Yes, it is widely used in medium-voltage inverter and converter systems.
