Stable Analog Signal Output for Industrial Control Systems

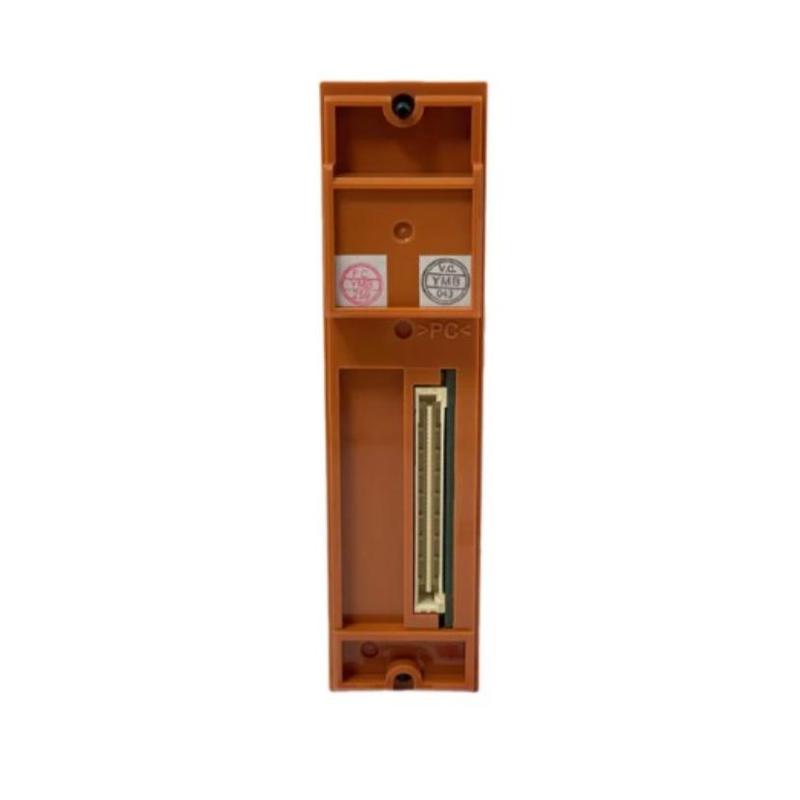

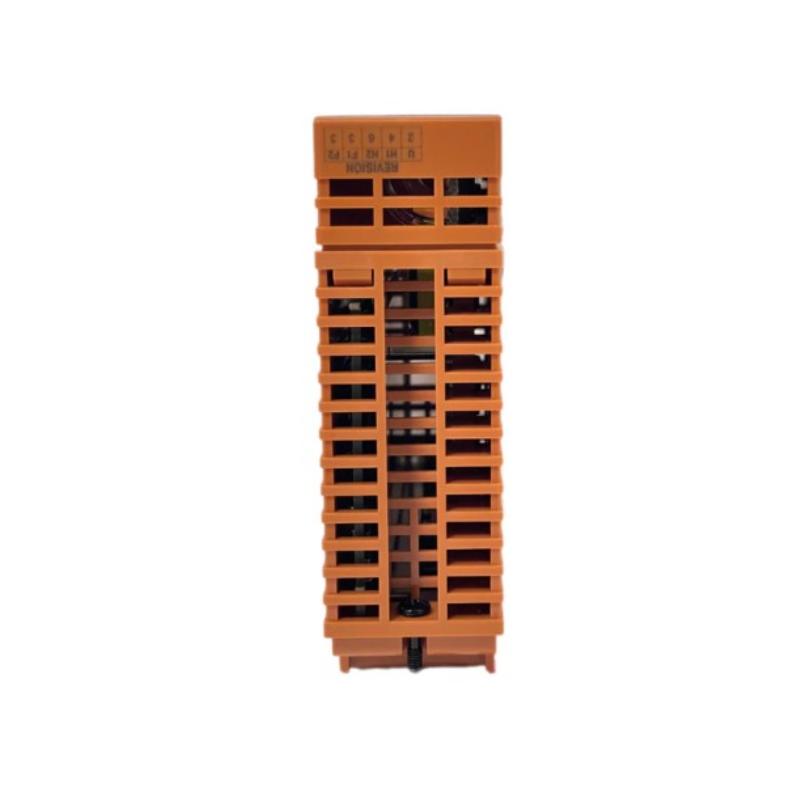

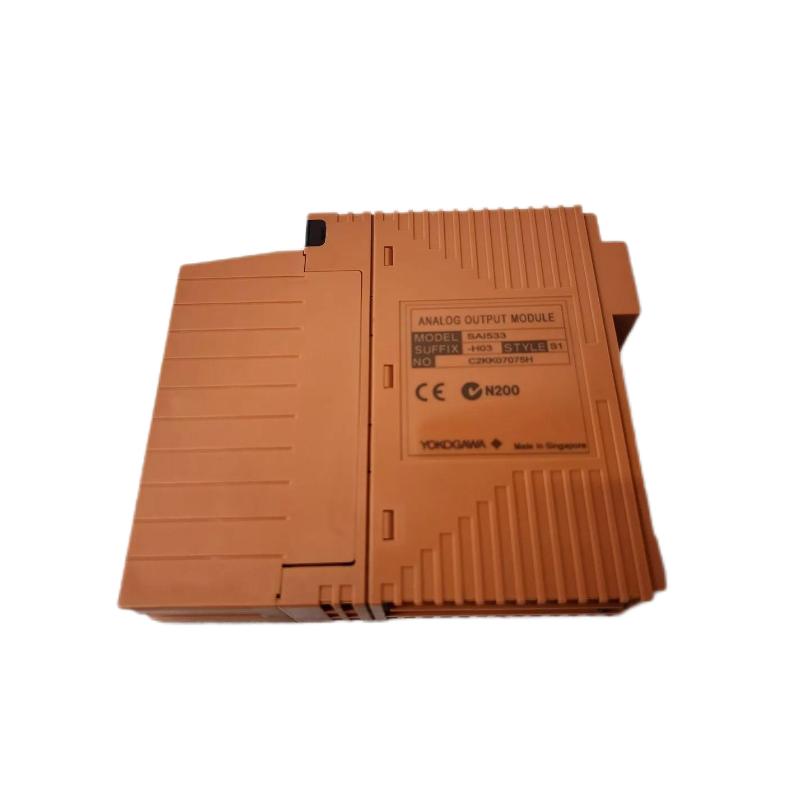

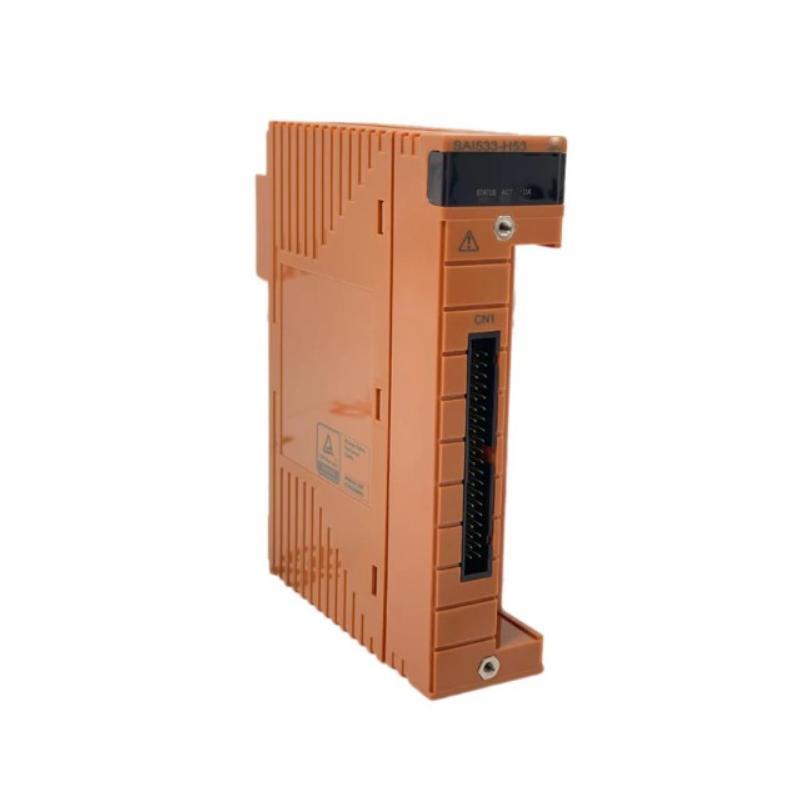

The Yokogawa SAI533 Current Output Module is designed to provide precise and stable analog current signal output for industrial automation environments. It is widely used in process control architectures where consistent signal delivery and reliable system integration are required. With multi-channel output capability and industrial-grade design, the module supports efficient field device operation and structured control system performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model Number | SAI533 |
| Product Type | Current Output Module |
| Output Channels | 8 Channels |
| Output Signal | 4–20 mA DC |
| Output Range | 1.25 to 23 mA (extended range) |
| Channel Isolation | Module-level isolation |
| Load Resistance | 230–600 Ω (rated range) |
| Accuracy | ±48 µA |
| Data Update Cycle | Approx. 40 ms |
| Temperature Drift | ±16 µA / 10°C |
| System Compatibility | Yokogawa Distributed Control Systems |
| Communication Support | HART-enabled variant available |
| Mounting Type | Rack/System Base Mount |
| Power Consumption | System dependent (low-power design) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | Approx. 107 × 130 × 32 mm |
| Weight | Approx. 0.30–0.33 kg |
