Introduction

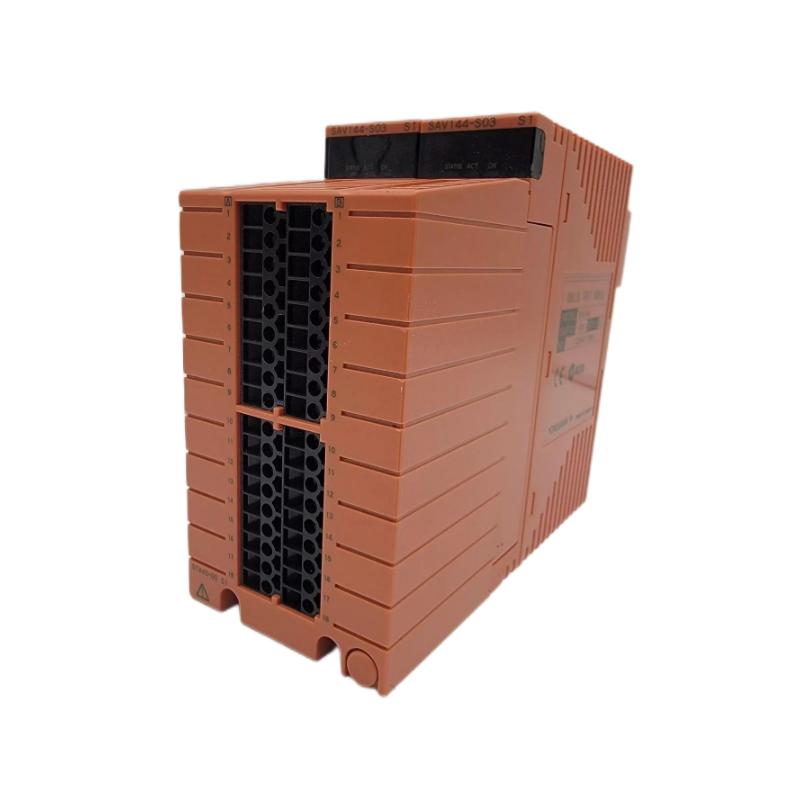

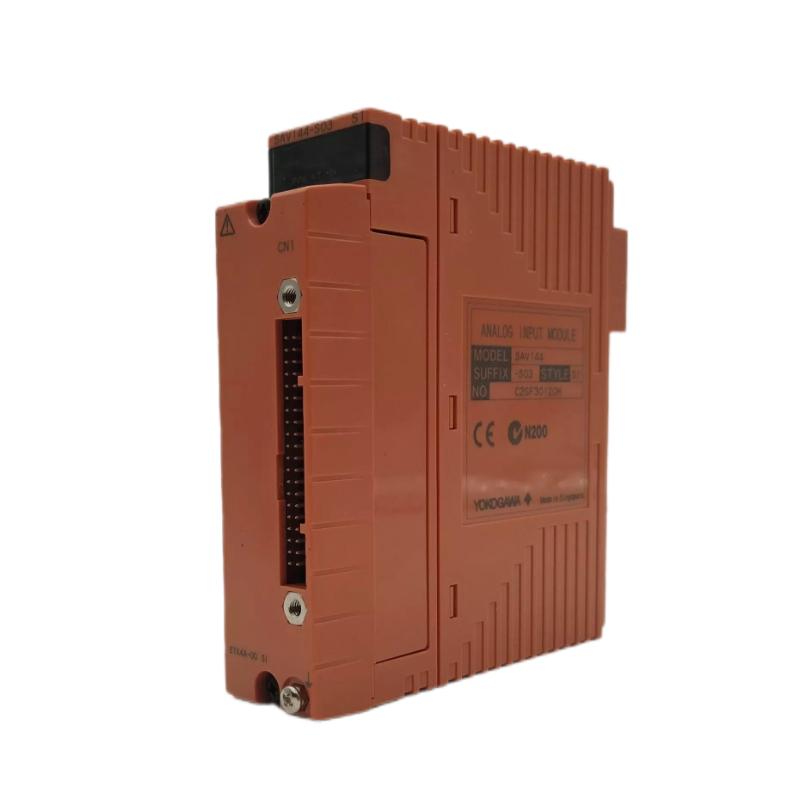

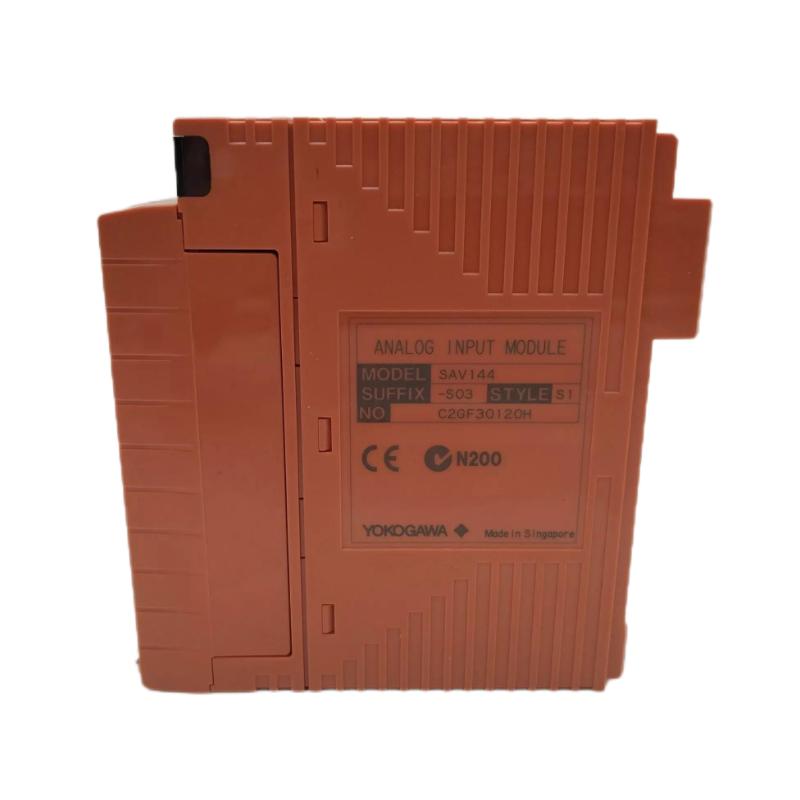

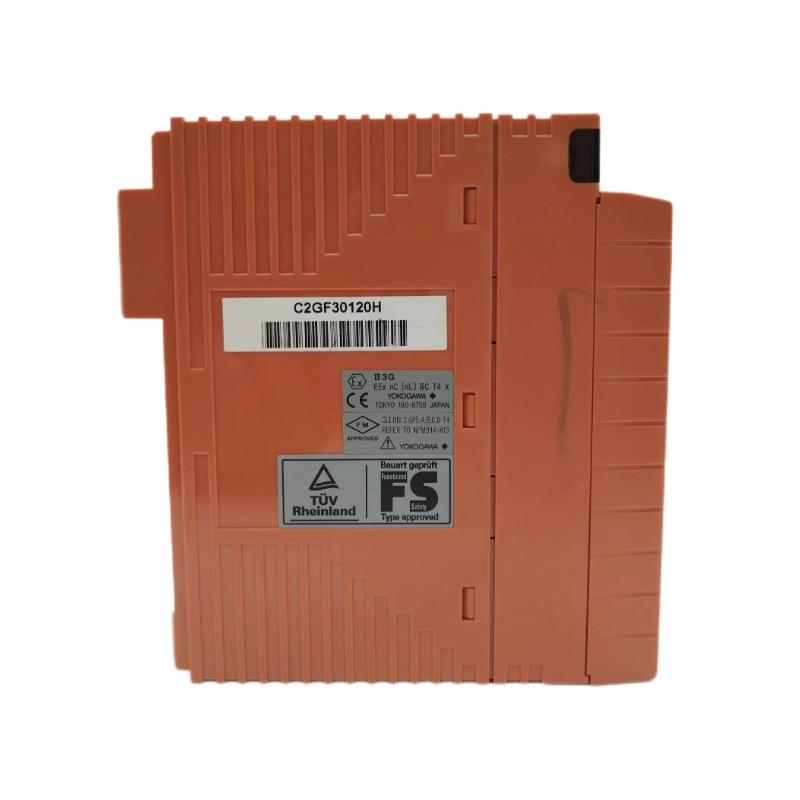

The Yokogawa SAV144 Voltage Input Module is a high-density, isolated analog input module designed for ProSafe-RS safety systems and Yokogawa distributed control architectures. It is engineered to accurately acquire voltage signals from field instrumentation and convert them into stable digital data for process monitoring and safety logic execution.
This module is widely used in mission-critical industrial environments where signal accuracy, electrical isolation, and system redundancy are essential for safe and reliable operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model Number | SAV144 |
| Product Type | Voltage Input Module |
| System Compatibility | ProSafe-RS / CENTUM VP / FCS architectures |
| Input Channels | 16 channels, individually isolated |
| Input Signal Range | 1–5 V DC / 1–10 V DC |
| Permissible Input Range | ±30 V DC |
| Input Impedance | 1 MΩ (power ON), 100 kΩ (power OFF) |
| Accuracy | ±4 mV (1–5 V), ±9 mV (1–10 V) |
| Data Update Cycle | ~40 ms |
| Temperature Drift | ±4 mV/10°C (1–5 V), ±9 mV/10°C (1–10 V) |
| Withstand Voltage | 1.5 kV AC for 1 minute |
| Maximum Current Consumption | 300 mA (5 V system), 140 mA (24 V system) |
| External Connection Types | Pressure clamp terminal / MIL connector / KS1 cable |
| Redundancy Support | Supported in dual-redundant configuration |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Weight | ~0.24–0.29 kg |
| Installation Type | FCU / ESB bus node mounting |
