Introduction

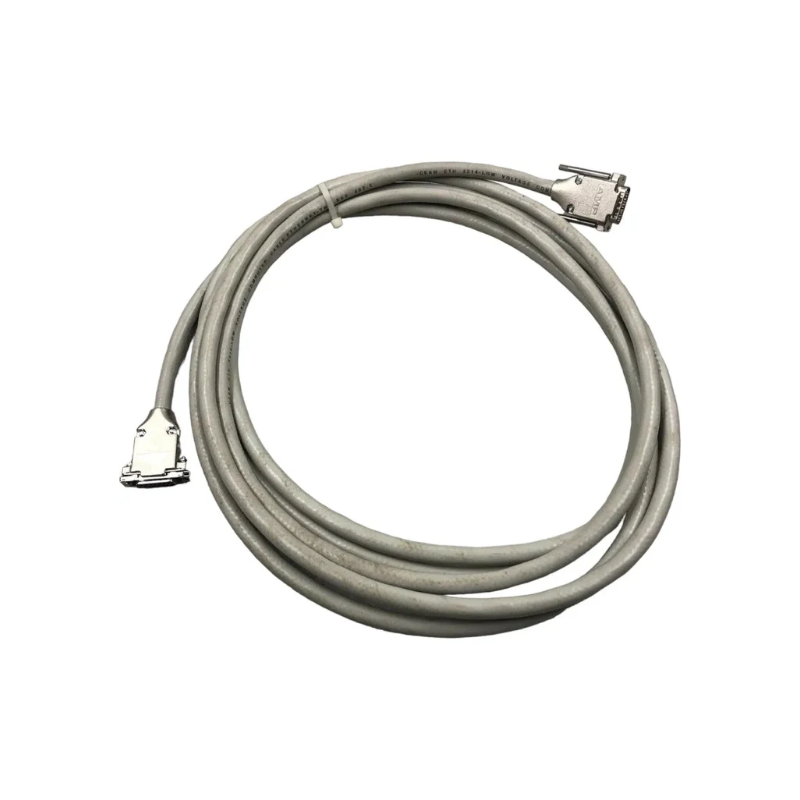

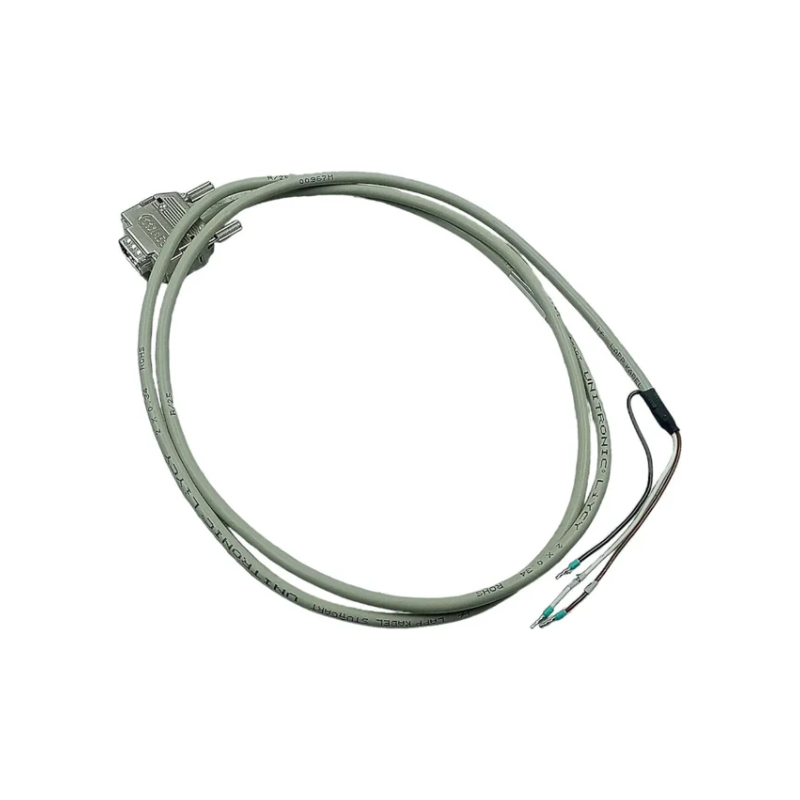

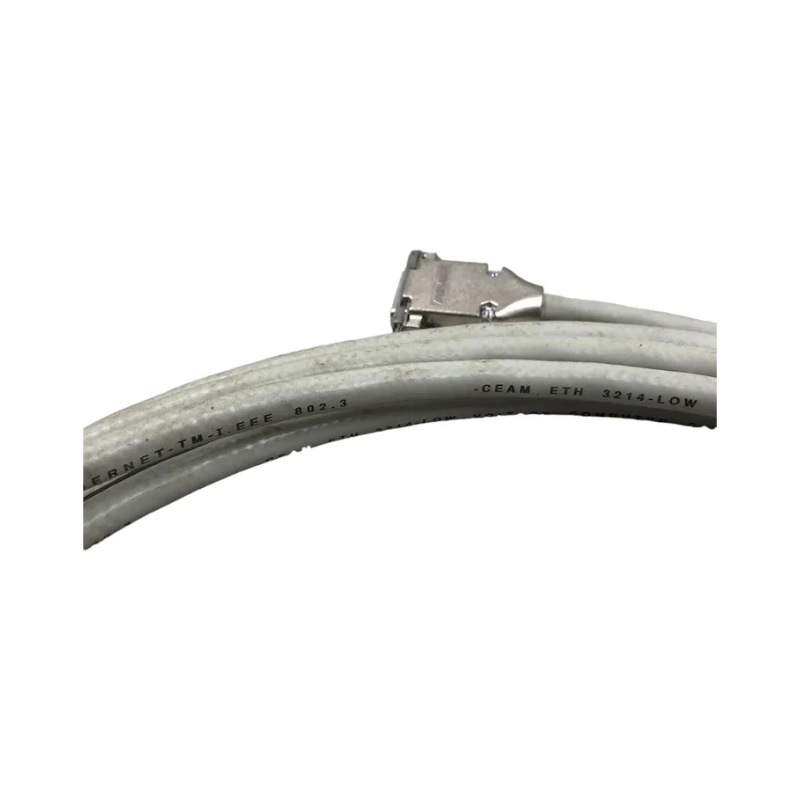

The ABB TK626V050 3BSE019210R5 Cable Assembly is a precision-engineered industrial interface cable designed for reliable signal transmission within ABB Advant OCS and related automation systems. Built for stable communication between controller boards and peripheral modules, it ensures consistent system performance in demanding industrial environments.
This cable is widely used in legacy ABB control architectures where secure, noise-resistant data transfer is essential for maintaining operational continuity in automated production systems.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model Number | TK626V050 (3BSE019210R5) |
| Product Type | Interface / Connection Cable Assembly |
| Series | ABB Advant OCS / Master System |
| Cable Length | 5 m (approx. 16 ft) |
| Connector Type | D-Sub 15-pin (socket to pin configuration) |
| Signal Type | Industrial communication / data interface |
| Operating Environment | Industrial automation control systems |
| Insulation | Shielded industrial-grade wiring |
| Operating Temperature | -20°C to +60°C (typical industrial range) |
| Mounting Method | Plug-in connection with screw-lock retention |
| Dimensions (H×W×D) | 279 mm × 279 mm × 64 mm |
| Weight | ~1.0 kg |
Applications
The ABB TK626V050 cable is typically deployed in industrial automation environments where stable communication between control components is required:
-
ABB Advant OCS control systems
-
Process automation networks
-
Industrial PLC and I/O communication links
-
Power plant control systems
-
Oil & gas monitoring infrastructure
-
Heavy manufacturing automation lines
-
Distributed control system (DCS) integration
Technical FAQs
Q1: What systems is this cable compatible with?
A: It is primarily used in ABB Advant OCS and related industrial control systems.
Q2: What is the cable length?
A: The standard length is 5 meters (approximately 16 feet).
Q3: What type of connectors are used?
A: It uses D-Sub 15-pin connectors in a socket-to-pin configuration.
Q4: Is this cable shielded?
A: Yes, it is designed with industrial shielding for EMI protection.
Q5: Can it be used in modern PLC systems?
A: It is mainly intended for ABB legacy systems, not most modern PLC platforms.
Q6: What is the approximate weight?
A: Around 1.0 kg depending on assembly variation.
Q7: Is it suitable for harsh environments?
A: Yes, it is designed for industrial-grade conditions.
Q8: Does it require special installation tools?
A: No, standard D-sub fastening screws are sufficient.
Q9: Can the cable be extended?
A: Extensions are not recommended due to signal integrity considerations.
Q10: What is its primary function?
A: It enables reliable data and signal communication between ABB control modules.
