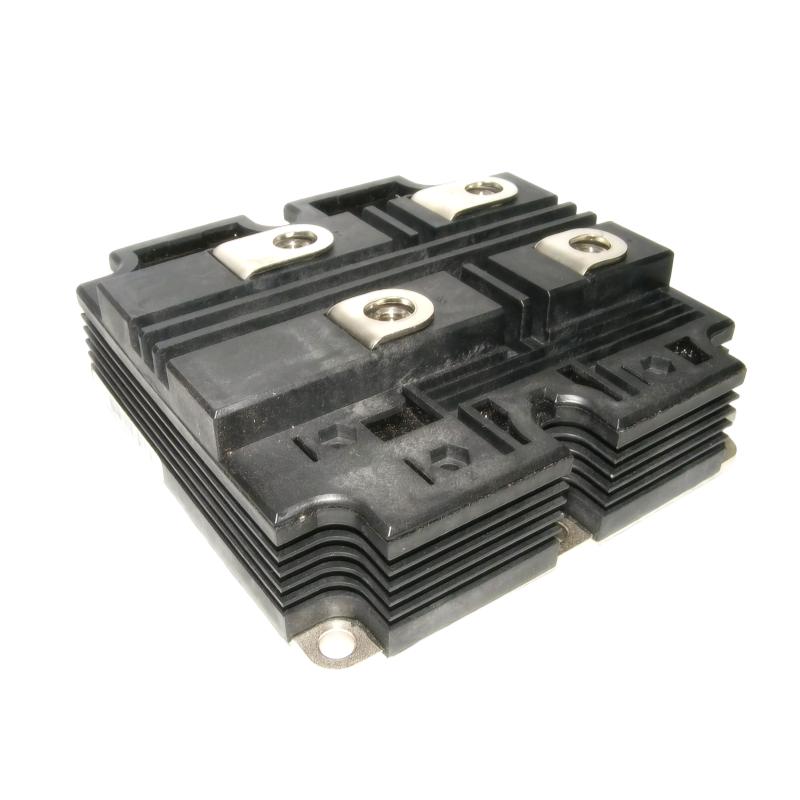

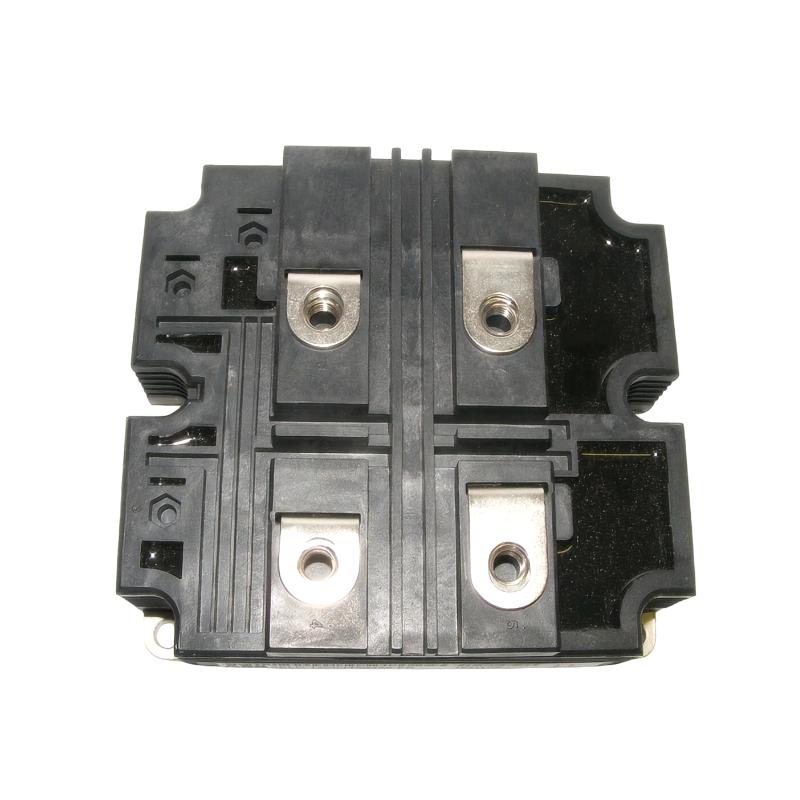

The ABB 5SLD0600J650100 HiPak Dual Diode Module is a high-performance semiconductor power module designed for industrial rectification and high-voltage energy conversion applications. Built on ABB’s HiPak platform, it delivers stable electrical performance, strong thermal handling capability, and reliable operation in high-power environments.
This module is commonly used in power conversion systems where controlled rectification, high current handling, and long-term thermal stability are essential. Its dual diode structure supports efficient current flow management in heavy-duty industrial electrical systems.
Technical Structure & Electrical Characteristics
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model Number | 5SLD0600J650100 |
| Product Type | HiPak Dual Diode Module |
| Semiconductor Structure | Dual independent diode configuration |
| Maximum Blocking Voltage | 6500 V |
| Continuous Current | 2 × 600 A |
| Surge Current Capability | Up to 6000 A (short duration) |
| Package Type | HiPak high-power module |
| Forward Voltage Drop | Approx. 3.2–4.0 V (operating range) |
| Thermal Design | High-efficiency industrial thermal baseplate |
| Mounting Type | Screw-mounted power interface |
| Operating Temperature | -40°C to +125°C |
| Storage Temperature | -40°C to +125°C |
| Mechanical Construction | High-power insulated base structure |
| Electrical Isolation | Industrial high-voltage isolation design |
| Dimensions | Approx. 250 × 140 × 95 mm |
| Weight | Approx. 0.5 kg |
Typical Industrial Applications
The ABB 5SLD0600J650100 module is widely used in high-power electrical systems requiring efficient rectification and stable energy conversion.
Common applications include:
- Industrial power converters
- High-voltage rectifier systems
- Motor drive power stages
- Energy transmission systems
- Traction and railway power systems
- Industrial rectification bridges
- Large-scale power supply units
- Heavy-duty electrical drive systems
- Renewable energy conversion systems
- High-power industrial automation equipment
Engineering Advantages & System Value
High Voltage Handling Capability
Designed to operate reliably in high-voltage industrial power environments.
Dual Diode Structure Efficiency
Supports balanced current distribution and stable rectification performance.
Strong Thermal Performance
Built with advanced thermal management design to maintain stable operation under heavy load.
Industrial-Grade Durability
Suitable for continuous operation in harsh electrical and thermal conditions.
Stable Power Conversion
Ensures consistent and efficient rectification for industrial energy systems.
High Surge Current Tolerance
Capable of handling short-duration high current spikes in demanding applications.
Reliable System Integration
Compatible with industrial power electronic assemblies and converter systems.
Technical FAQs
1. What is the main function of this module?
It is used for high-power rectification in industrial electrical systems.
2. What type of structure does it use?
It uses a dual independent diode configuration.
3. What is the maximum voltage rating?
It supports up to 6500 V blocking voltage.
4. What is the current rating?
It supports 2 × 600 A continuous current.
5. What applications use this module?
It is used in power conversion, drives, and industrial energy systems.
6. Is it suitable for continuous operation?
Yes, it is designed for long-term industrial-duty use.
7. How does it handle heat?
It uses an industrial-grade HiPak thermal structure for efficient heat dissipation.
8. Can it handle surge currents?
Yes, it supports high surge current conditions for short durations.
9. What industries use this module?
Power generation, transportation, heavy industry, and energy conversion sectors.
10. Why is this module widely used?
Because it provides stable, high-power rectification with strong thermal and electrical reliability.
