Premium Protection Solution for Critical Transformer Assets

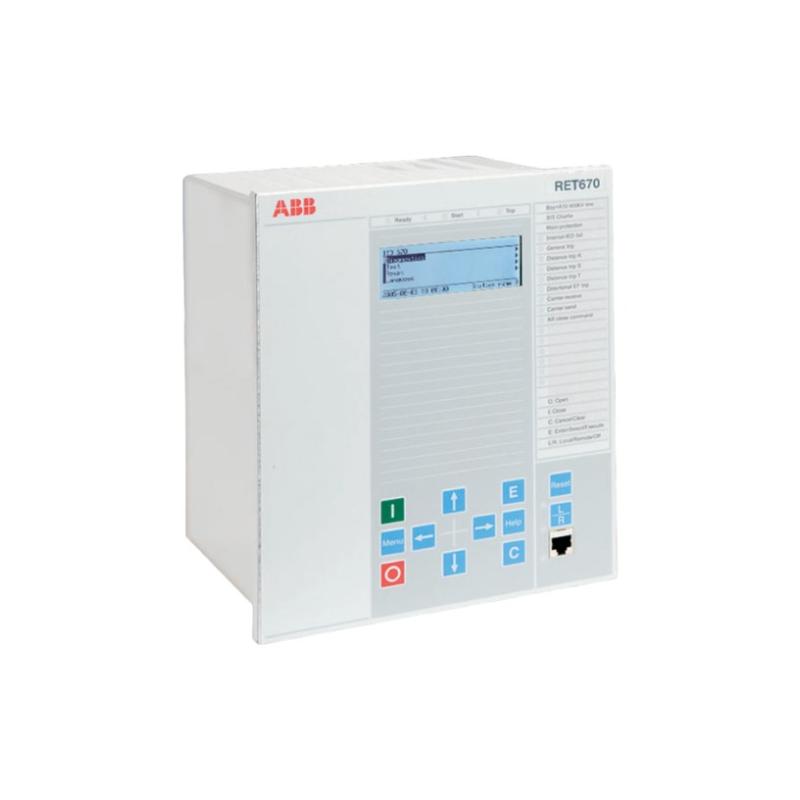

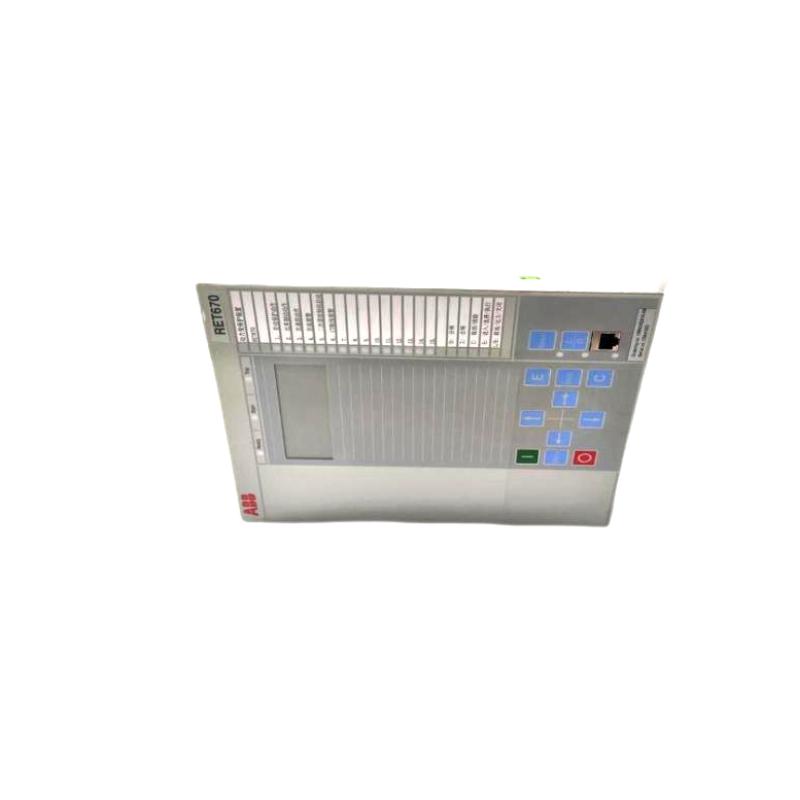

The ABB RET670 1MRK002816-AC Transformer Protection Relay is a high-performance intelligent electronic device developed for comprehensive transformer protection, monitoring, control, and automation. As a member of the advanced Relion® 670 series, this relay is engineered to protect power transformers operating in transmission networks, utility substations, industrial facilities, and power generation plants.
Designed to provide fast fault clearance, exceptional selectivity, and reliable operational performance, the RET670 helps maximize transformer availability while supporting modern digital substation architectures. Its advanced protection algorithms and flexible communication capabilities make it a preferred choice for mission-critical power applications.
Product Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model Number | RET670 1MRK002816-AC |
| Product Type | Transformer Protection Relay |
| Series | Relion® 670 Series |
| Application | Transformer Protection, Monitoring and Control |
| Rated Frequency | 50/60 Hz |
| Current Inputs | 1A or 5A Configurable |
| Auxiliary Supply Voltage | 24–250 VDC / 48–240 VAC |
| Communication Protocols | IEC 61850, Modbus, DNP3, IEC 60870-5-103 |
| Ethernet Interfaces | Dual Ethernet Ports |
| Display Type | Graphical LCD Interface |
| Protection Class | IP54 Front Panel |
| Operating Temperature | -40°C to +70°C |
| Mounting Method | Flush Mount / Rack Mount |
| Dimensions (W × H × D) | Approx. 265.9 × 223.7 × 242.1 mm |
| Weight | Approx. 10 kg |
Ideal Applications Across Power Networks
The RET670 is specifically engineered for advanced transformer protection in complex electrical systems.
Common applications include:
- Transmission substations
- Distribution substations
- Generator-transformer units
- Power generation facilities
- Renewable energy integration projects
- Industrial process plants
- Petrochemical facilities
- Mining operations
- Railway power systems
- Utility grid modernization programs
Its flexible architecture allows deployment in both conventional and digital substations while maintaining dependable protection performance.
Outstanding Benefits for Modern Protection Systems
Advanced Differential Protection Technology
Sophisticated transformer differential algorithms provide highly selective fault detection while maintaining stability during transformer energization and external disturbances.
Enhanced Operational Reliability
The relay continuously supervises transformer conditions, helping operators identify abnormal events before they develop into major failures.
Flexible Communication Architecture
Support for IEC 61850 and other industry-standard protocols enables seamless integration into modern automation and SCADA environments.
Fast Fault Detection and Isolation
High-speed processing minimizes fault-clearing times, helping reduce equipment stress and improve overall network stability.
Comprehensive Monitoring Functions
Integrated recording, diagnostics, and disturbance analysis tools support maintenance teams with valuable operational insights.
Future-Ready Digital Substation Integration
Designed for evolving power system requirements, the RET670 supports advanced automation strategies and long-term infrastructure development.
Technical FAQs
1. What is the primary purpose of the ABB RET670 1MRK002816-AC?
It provides protection, monitoring, control, and supervision for power transformers in utility and industrial power systems.
2. Which transformer types can be protected?
The relay supports protection for two-winding transformers, three-winding transformers, autotransformers, generator step-up transformers, and phase-shifting transformers.
3. Does the relay support IEC 61850 communication?
Yes. IEC 61850 is fully supported for substation automation and interoperability.
4. Can the RET670 be integrated into existing substations?
Yes. It is suitable for both retrofit projects and new substation installations.
5. What protection functions are available?
Functions typically include differential protection, restricted earth fault protection, overcurrent protection, thermal overload protection, and overexcitation protection.
6. Does the relay provide event recording?
Yes. It includes disturbance recording, event logging, and diagnostic capabilities for fault analysis.
7. Is remote monitoring supported?
Yes. Communication interfaces allow integration with remote monitoring and control systems.
8. What industries commonly use the RET670?
Utilities, power generation, mining, oil and gas, transportation, renewable energy, and heavy manufacturing industries.
9. What temperature range can the relay operate within?
The device is designed for operation between -40°C and +70°C.
10. Why is the RET670 widely used in critical power applications?
Its combination of advanced protection algorithms, robust communication capabilities, comprehensive diagnostics, and proven reliability provides excellent protection for high-value transformer assets.
