Advanced Transformer Protection for Critical Power Infrastructure

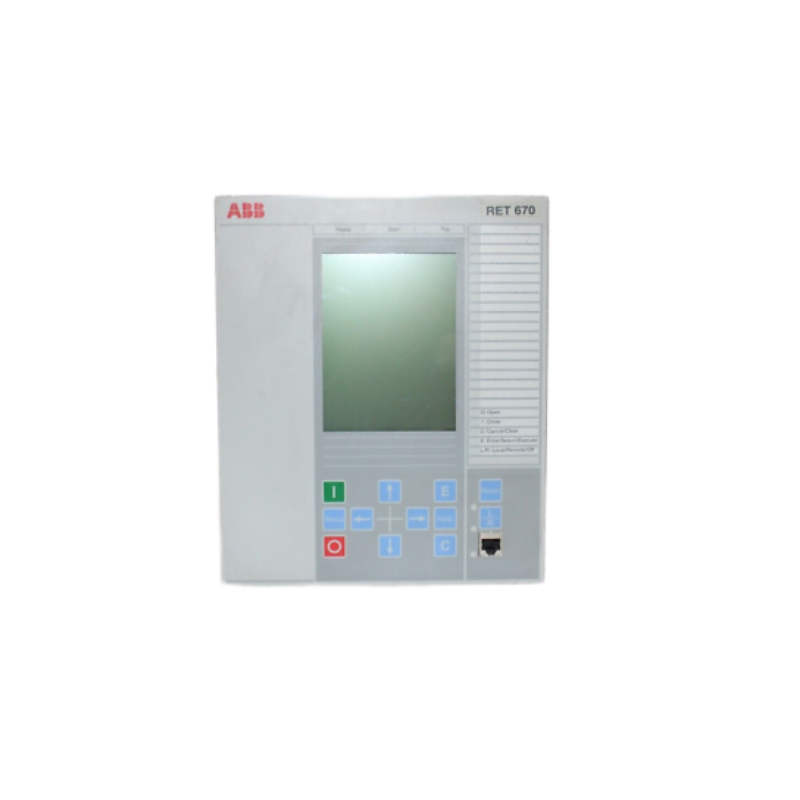

The ABB RET670 1MRK002816-AA Transformer Protection Relay is a sophisticated protection and control solution engineered for high-value power transformers in transmission, distribution, and industrial power systems. As part of ABB's renowned Relion® 670 series, this intelligent relay combines advanced differential protection, monitoring, control, and communication capabilities within a single platform.
Designed to enhance operational security and equipment availability, the RET670 delivers fast fault detection, selective tripping, and comprehensive transformer supervision. Its flexible architecture makes it suitable for both new substation projects and modernization programs where reliability and system performance are essential.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model | RET670 1MRK002816-AA |
| Product Type | Transformer Protection Relay |
| Product Family | Relion® 670 Series |
| Main Protection Functions | Differential Protection, Restricted Earth Fault, Overcurrent, Thermal Overload, Overexcitation |
| Rated Frequency | 50/60 Hz |
| CT Inputs | 1A or 5A |
| Communication Protocols | IEC 61850, Modbus, DNP3, IEC 60870-5-103 |
| Ethernet Ports | Multiple Configurable Ports |
| Mounting Type | Panel Mount / Rack Mount |
| Front Protection Rating | IP54 |
| Operating Temperature | -40°C to +70°C |
| Auxiliary Supply Range | 24–250 VDC / 48–240 VAC |
| Display | Graphical LCD with LED Indicators |
| Dimensions (H × W × D) | Approx. 254.3 × 210.1 × 242 mm |
| Weight | Approx. 10–14 kg (configuration dependent) |
Typical Application Areas
The RET670 is specifically developed for demanding transformer protection applications where fast response and dependable operation are required.
Common deployment areas include:
- Transmission substations
- Distribution substations
- Power generation facilities
- Generator-transformer units
- Industrial power networks
- Renewable energy interconnection systems
- Phase-shifting transformers
- Autotransformer protection schemes
- Utility grid modernization projects
- Critical infrastructure power systems
Its advanced protection algorithms help operators maintain network stability while protecting valuable transformer assets against internal and external faults.
Performance Benefits and Key Features
Comprehensive Transformer Protection
The relay integrates multiple transformer-specific protection functions into a single intelligent device, reducing system complexity while improving protection coverage.
Exceptional Fault Selectivity
Advanced differential protection technology enables rapid fault identification and isolation, minimizing equipment stress and reducing outage impact.
Flexible Communication Integration
Support for modern substation automation protocols simplifies integration into SCADA, DCS, and digital substation environments.
Enhanced System Visibility
Real-time measurements, event recording, disturbance monitoring, and diagnostic capabilities provide valuable operational insights.
Reliable Operation Under Challenging Conditions
The RET670 is designed to maintain accurate protection performance during transformer energization, load variations, and system disturbances.
Future-Ready Digital Architecture
Its scalable design supports evolving grid requirements and long-term asset management strategies.
Technical FAQs
1. What is the primary purpose of the ABB RET670?
The RET670 provides protection, monitoring, control, and supervision for power transformers and transformer-related applications.
2. Which transformer configurations can the relay protect?
It supports two-winding transformers, three-winding transformers, autotransformers, generator-transformer blocks, and phase-shifting transformers.
3. Does the RET670 support IEC 61850 communication?
Yes. IEC 61850 is fully supported for modern substation automation integration.
4. Can the relay be used in utility substations?
Yes. It is widely used in transmission and distribution substations worldwide.
5. What protection functions are included?
Functions typically include transformer differential protection, restricted earth fault protection, thermal overload protection, overcurrent protection, and overexcitation protection.
6. Is remote monitoring available?
Yes. Communication interfaces enable integration with remote monitoring and supervisory systems.
7. Can the relay record disturbances and events?
Yes. Advanced disturbance recording and event logging capabilities assist with system analysis and troubleshooting.
8. Does the relay support generator-transformer applications?
Yes. The RET670 is commonly used for generator step-up transformer protection schemes.
9. What industries commonly deploy this relay?
Utilities, power generation, petrochemical facilities, mining operations, manufacturing plants, and renewable energy projects.
10. Why is the RET670 considered a premium transformer protection solution?
Its combination of advanced protection algorithms, flexible communication options, comprehensive monitoring functions, and proven operational reliability makes it a preferred choice for critical transformer applications.
