Introduction

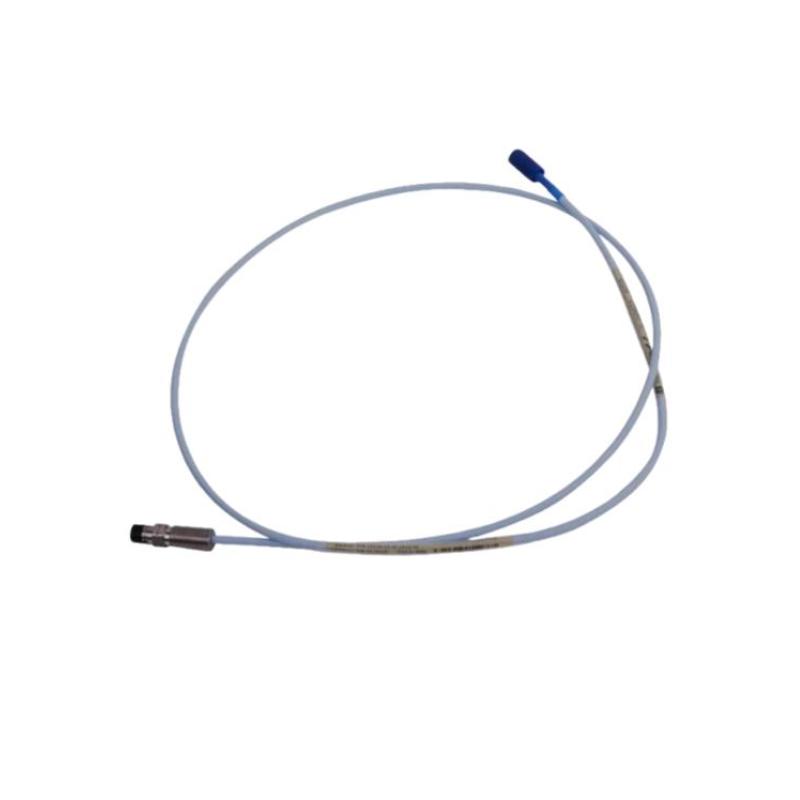

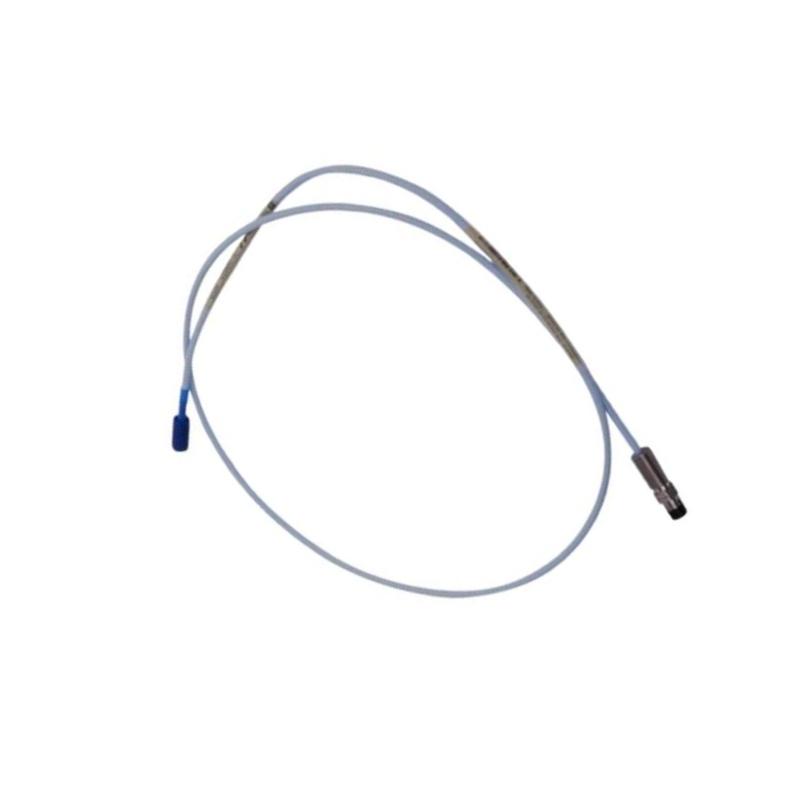

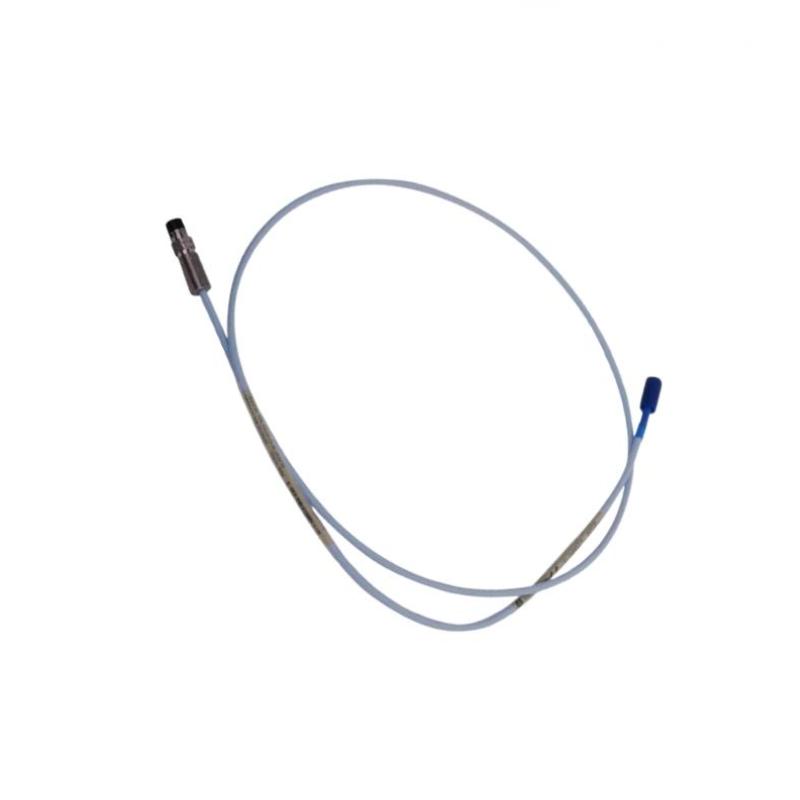

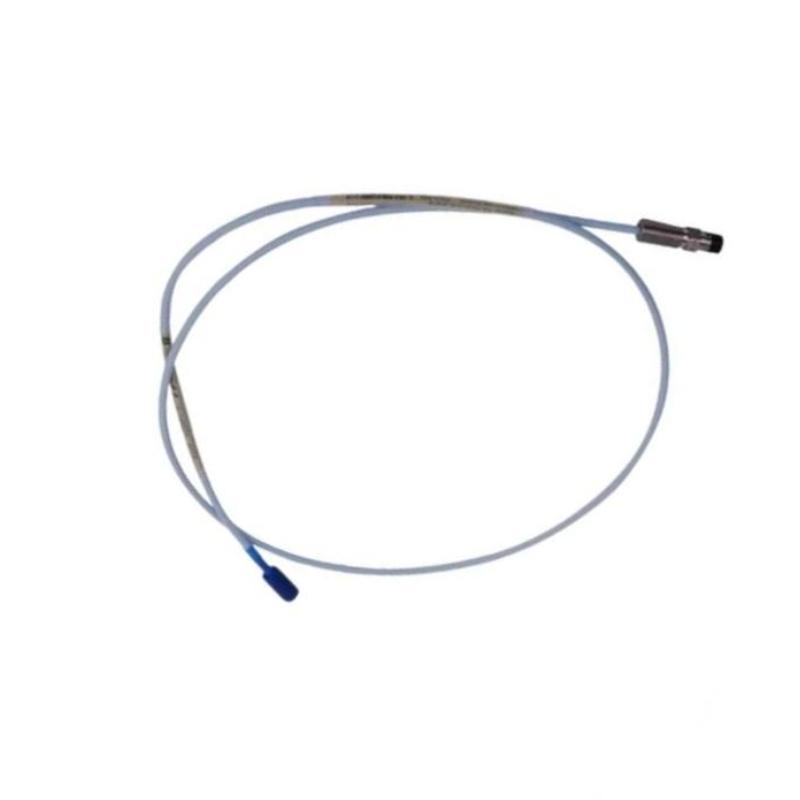

The Bently Nevada 330104-00-08-50-02-00 3300 XL 8 mm Proximity Probe is a high-precision, non-contact eddy current sensor designed for continuous monitoring of rotating machinery. As part of the 3300 XL series, this probe delivers reliable shaft vibration and position measurement, enabling early detection of machinery issues and supporting predictive maintenance strategies.
Engineered for industrial environments, it provides stable signal performance under vibration, high temperature, and electrical noise. The 3300 XL platform ensures compatibility, interchangeability, and long-term operational reliability, making this probe ideal for turbines, compressors, pumps, and generators.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330104-00-08-50-02-00 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Case Length | 80 mm |
| Total Cable Length | 5.0 m |
| Connector Type | Miniature coaxial ClickLoc™ |
| Thread Type | M10 × 1 (Metric) |
| Probe Body Material | Stainless Steel (AISI 303/304) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Cable Type | Industrial triaxial 75Ω |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +125°C |
| Hazardous Area Rating | CSA / ATEX / IECEx approved |
| Weight | 2.0 kg (with cable) |
