Bently Nevada 330104-00-08-50-01-05 3300 XL 8 mm Proximity Probe (Metric)

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

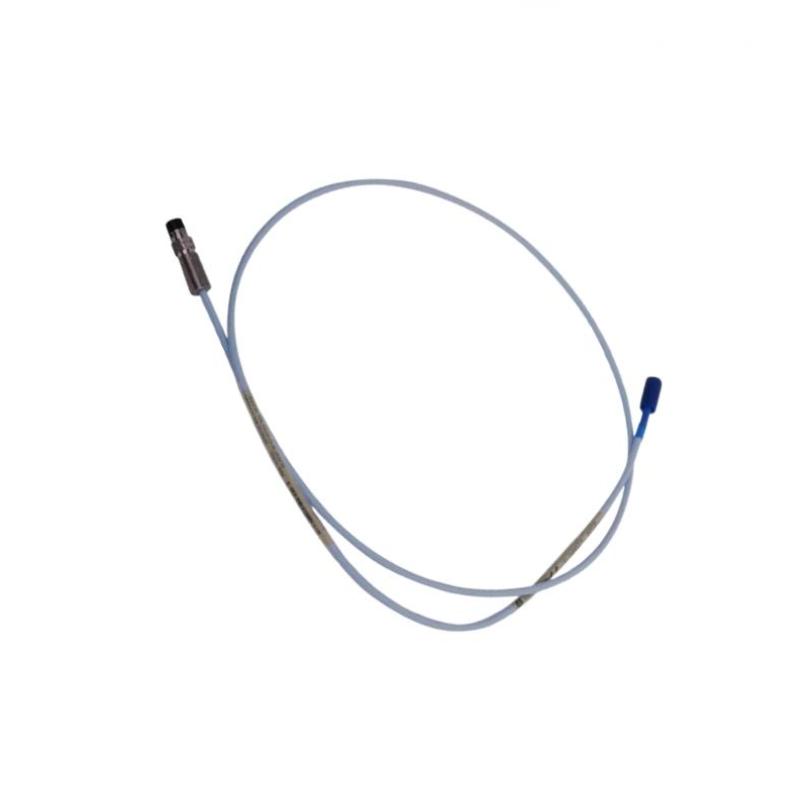

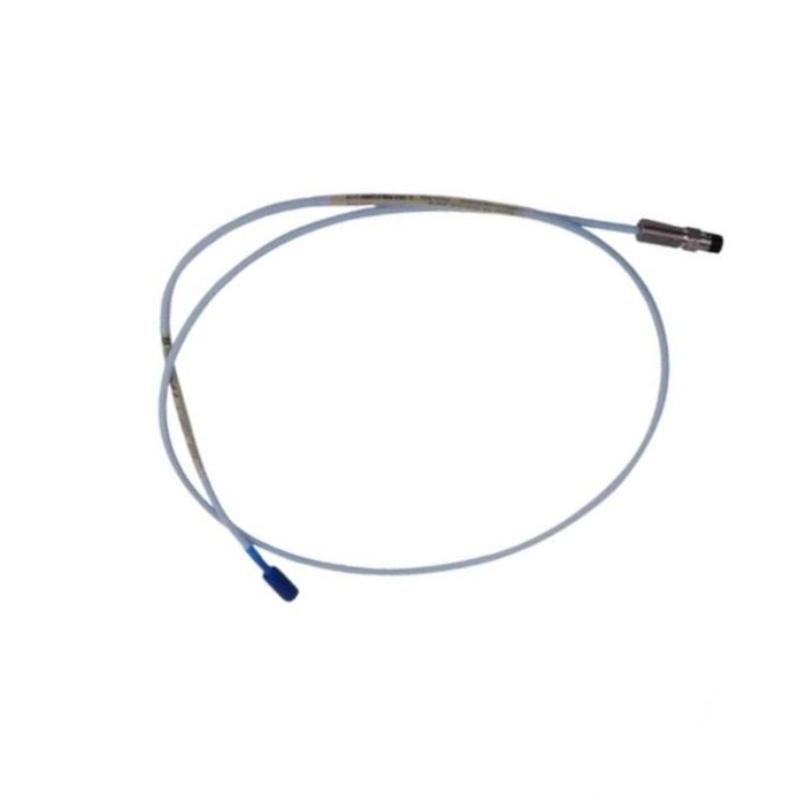

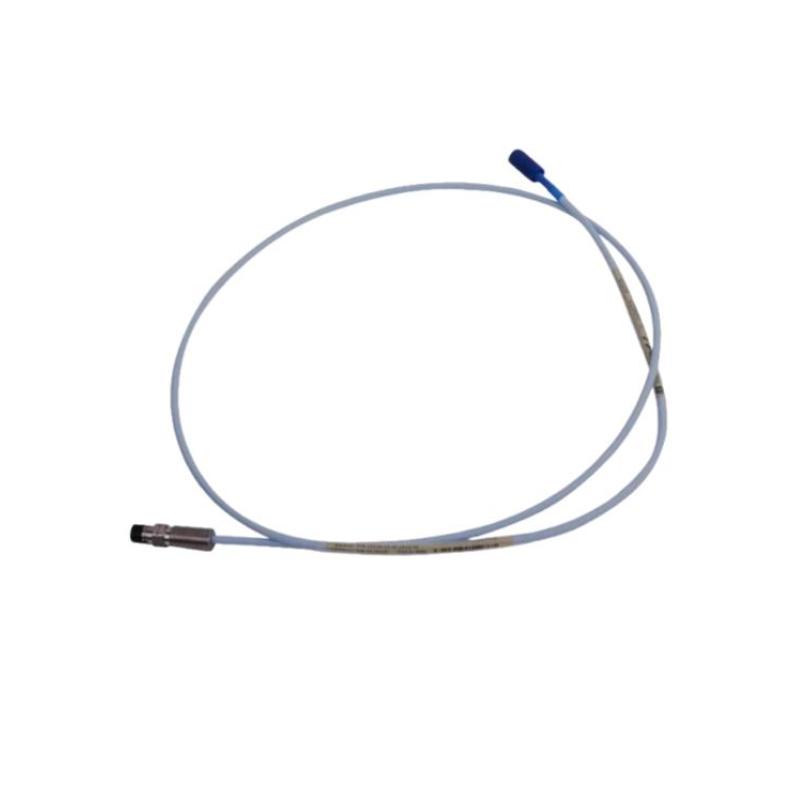

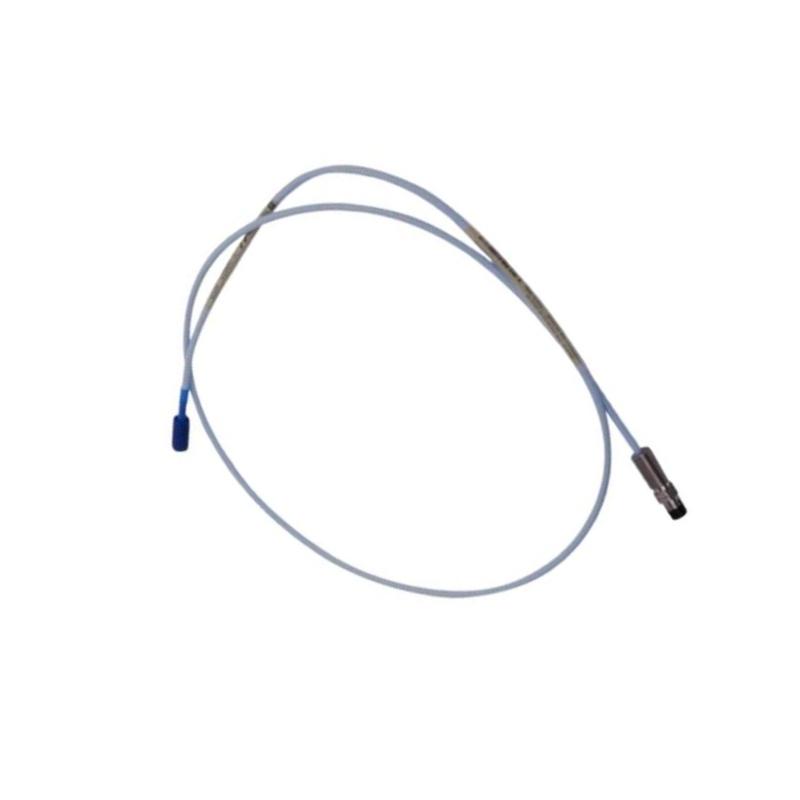

Bently Nevada 330104-00-08-50-01-05 3300 XL 8 mm Proximity Probe (Metric)

Name: Bently Nevada 330104-00-08-50-01-05 3300 XL 8 mm Proximity Probe (Metric)
Brand: Bently Nevada PLC
SKU: 8745
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330104-00-08-50-01-05
Product Origin:USA
Product Dimensions:Total Length:5.0 meters
Product Weight:1.65kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The Bently Nevada 330104-00-08-50-01-05 3300 XL 8 mm Proximity Probe (Metric) is a premium non-contact sensing solution developed for continuous machinery condition monitoring and protection. As a member of the industry-proven 3300 XL series, this probe delivers highly accurate shaft vibration and position measurements for critical rotating assets operating in demanding industrial environments.

Its rugged stainless-steel construction, extended cable configuration, and hazardous-area certifications make it an excellent choice for power generation facilities, petrochemical plants, offshore platforms, and heavy manufacturing operations where reliability and uptime are essential. The 3300 XL system is widely recognized for its stability, interchangeability, and compliance with industry machinery monitoring standards.

Technical Specifications

Parameter	Specification
Model Number	330104-00-08-50-01-05
Product Series	3300 XL 8 mm Proximity Probe
Probe Diameter	8 mm
Thread Type	M10 × 1 (Metric)
Unthreaded Length	0 mm
Overall Case Length	80 mm
Total Length	5.0 m (16.4 ft)
Connector Type	Miniature coaxial ClickLoc™ connector with connector protector
Cable Type	Standard industrial cable
Probe Case Material	AISI 303/304 Stainless Steel
Probe Tip Material	Polyphenylene Sulfide (PPS)
Measurement Technology	Eddy Current Non-Contact Sensing
System Compatibility	3300 XL Proximitor Sensor System
Hazardous Area Approvals	CSA / ATEX / IECEx
Approximate Weight	1.6–2.0 kg
Country of Origin	USA

Typical Applications

The 330104-00-08-50-01-05 is designed for precision monitoring of rotating equipment, including:

Steam turbine vibration monitoring
Gas turbine shaft position measurement
Compressor rotor displacement detection
Industrial pump condition monitoring
Generator shaft movement analysis
Machinery protection systems
Predictive maintenance programs
Process industry asset reliability projects

Its 5-meter cable configuration provides installation flexibility where the probe location and monitoring electronics are separated by longer distances.

Key Benefits

Exceptional measurement stability for critical machinery
Proven 3300 XL platform trusted worldwide
Durable stainless-steel construction for harsh environments
Long cable configuration supports flexible installation layouts
Hazardous-area certifications for industrial applications
High resistance to vibration, temperature variations, and industrial interference
Supports early fault detection and reduced maintenance costs
Fully compatible with 3300 XL transducer system architecture

Frequently Asked Questions

1. What is the primary function of this probe?

It measures shaft vibration and shaft position using non-contact eddy current technology.

2. What is the probe diameter?

The sensing tip diameter is 8 mm.

3. What thread type does this model use?

It features an M10 × 1 metric thread.

4. What is the total cable length?

The total length is 5.0 meters.

5. Which connector is included?

A miniature coaxial ClickLoc™ connector with connector protector.

6. Is this probe suitable for hazardous environments?

Yes. The model includes CSA, ATEX, and IECEx approvals.

7. What material is used for the probe housing?

AISI 303/304 stainless steel.

8. Can it monitor both vibration and position?

Yes. It supports dynamic vibration and static displacement measurements.

9. What monitoring system is it designed for?

The Bently Nevada 3300 XL Proximitor Sensor system.

10. Why is the 3300 XL series widely used?

Because of its accuracy, interchangeability, long-term reliability, and compliance with machinery protection requirements.
