Introduction

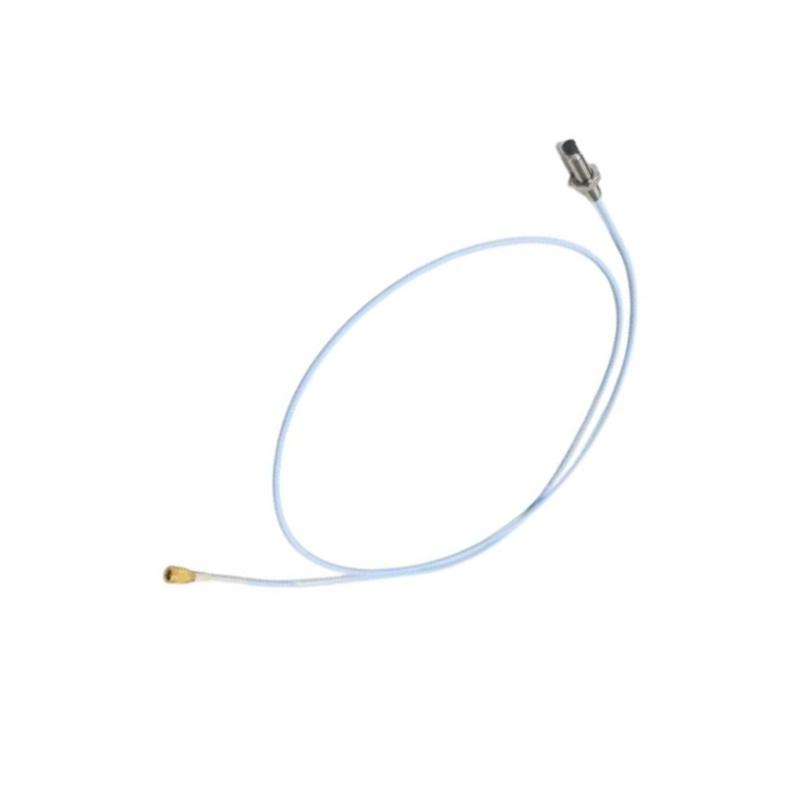

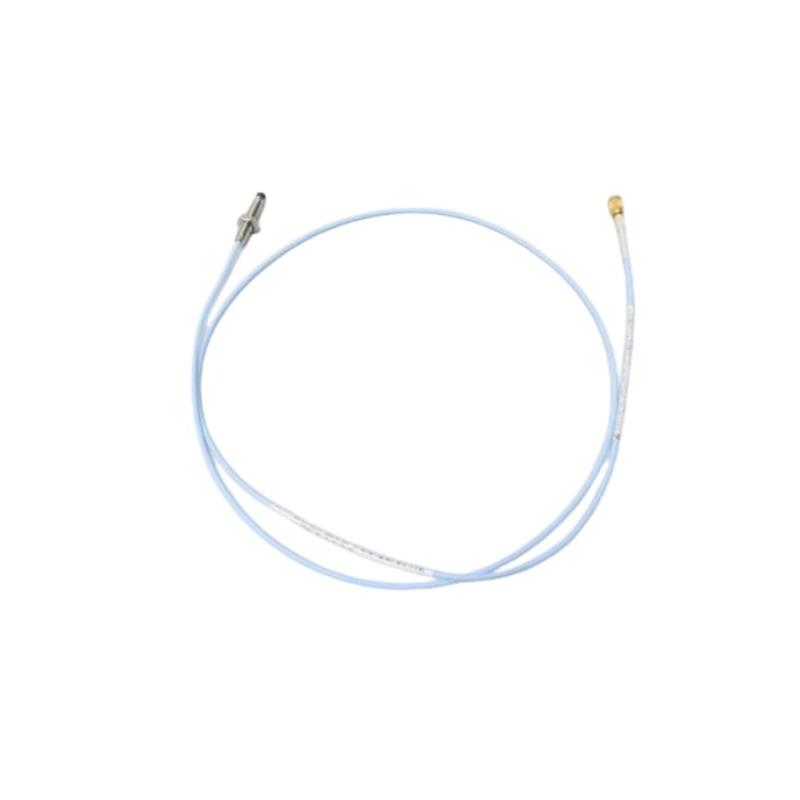

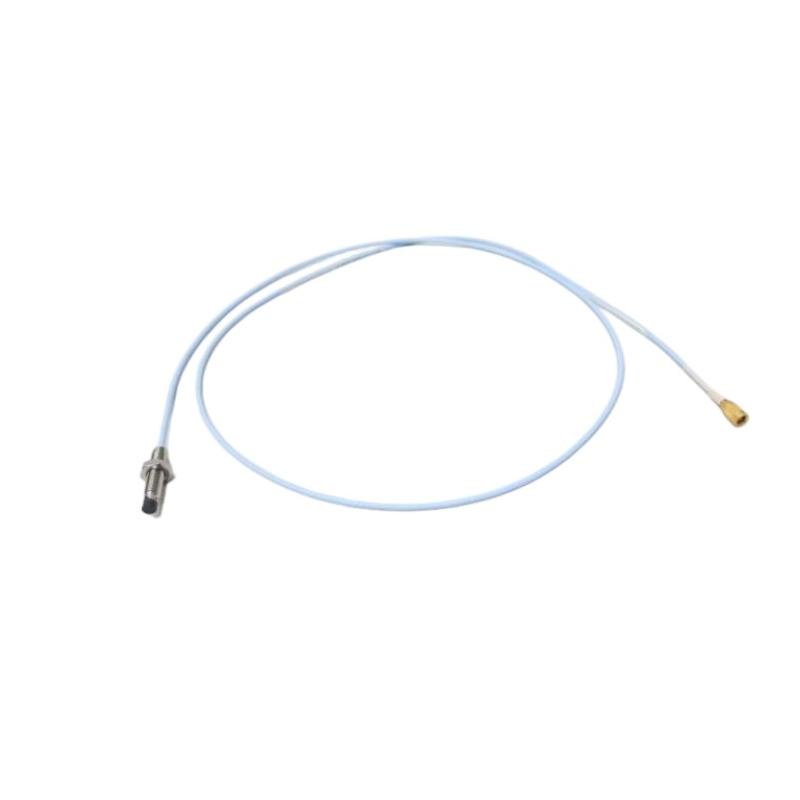

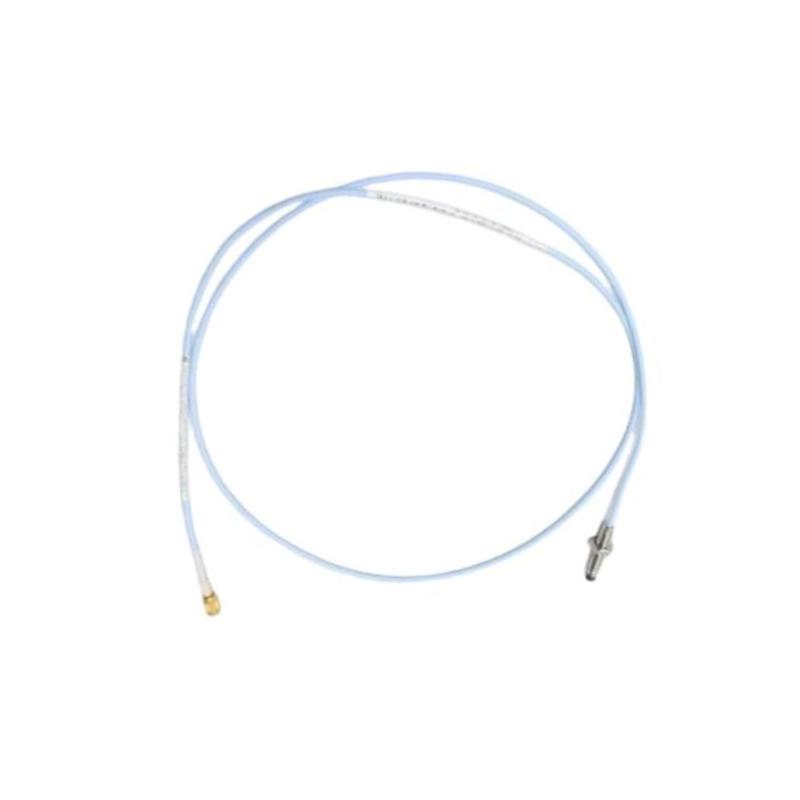

The Bently Nevada 330104-00-08-10-12-00 3300 XL 8 mm Proximity Probe is a precision-engineered sensor designed for reliable, non-contact measurement of shaft vibration and position in critical rotating machinery. Part of the trusted 3300 XL platform, this probe ensures continuous operational insight, enabling early detection of machinery issues and supporting predictive maintenance strategies.
With its robust construction and industrial-grade materials, it excels in challenging environments including turbines, compressors, pumps, and generators. Its metric configuration and standardized interface make installation straightforward while maintaining high measurement accuracy.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330104-00-08-10-12-00 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Case Length | 80 mm |
| Total Cable Length | 12.0 m |
| Connector Type | Miniature coaxial ClickLoc™ |
| Thread Type | M10 × 1 (Metric) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Body Material | Stainless Steel (AISI 303/304) |
| Cable Type | 75Ω triaxial industrial cable |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +125°C |
| Weight | 3.2 kg (with full cable) |
