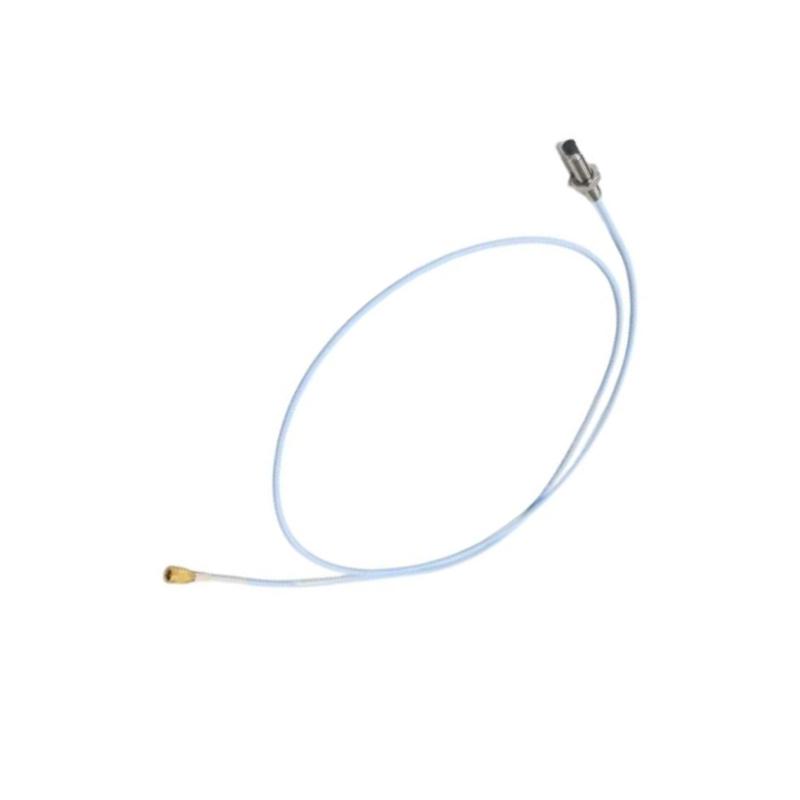

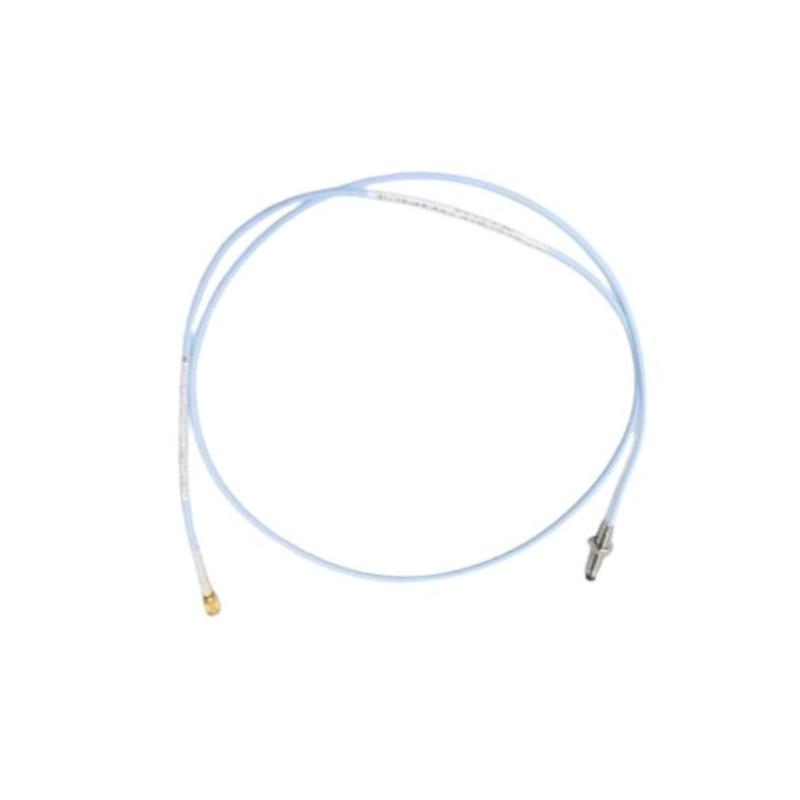

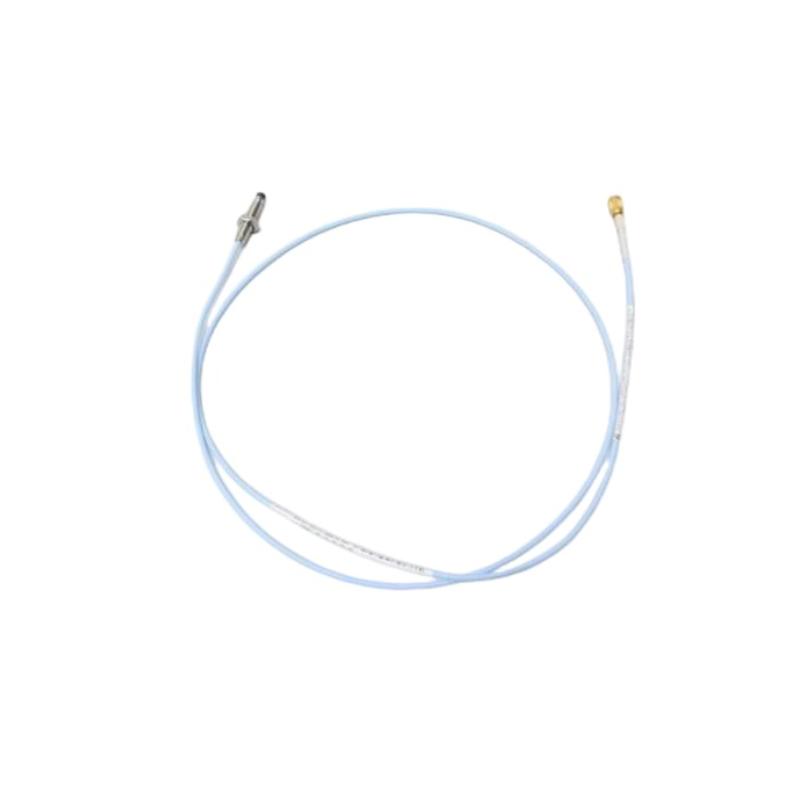

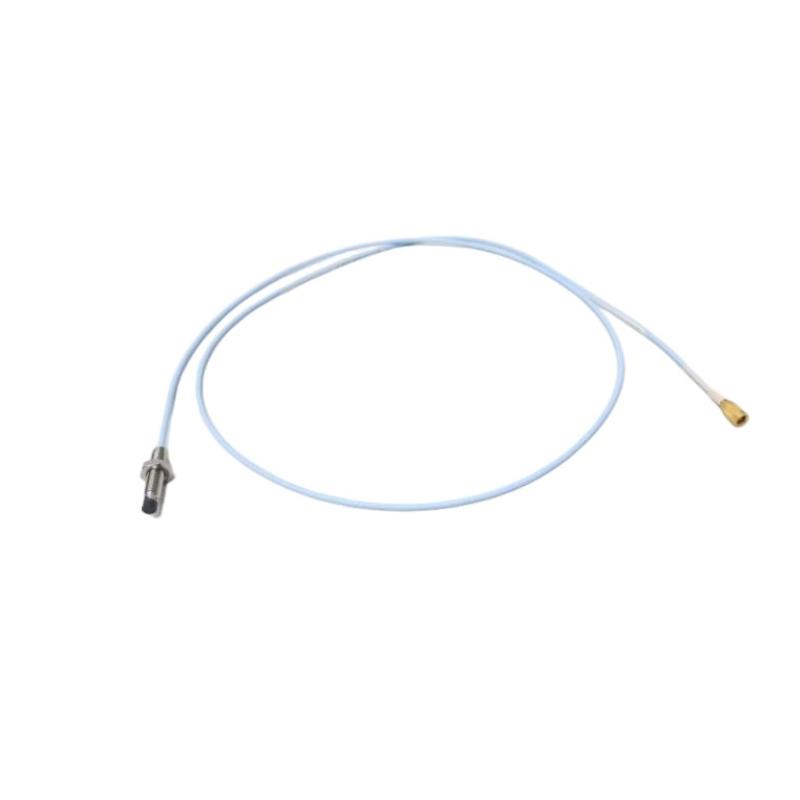

Bently Nevada 330104-00-08-10-02-05 3300 XL 8 mm Proximity Probe
Introduction
The Bently Nevada 330104-00-08-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current sensor designed for continuous monitoring of shaft vibration and position in critical rotating machinery. As part of the established 3300 XL proximity transducer platform, it provides stable, repeatable measurements that support predictive maintenance strategies in demanding industrial environments.
Built for reliability rather than complexity, this probe is widely used in turbines, compressors, pumps, and generators where even small changes in shaft behavior must be detected early to protect equipment integrity and operational uptime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330104-00-08-10-02-05 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Case Length | 80 mm |
| Total Cable Length | 1.0 m |
| Connector Type | Miniature coaxial ClickLoc™ |
| Thread Type | M10 × 1 (Metric configuration) |
| Probe Body Material | Stainless Steel (AISI 303/304) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Cable Type | Industrial triaxial 75Ω |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +125°C |
| Weight | 0.323 kg |
