Introduction

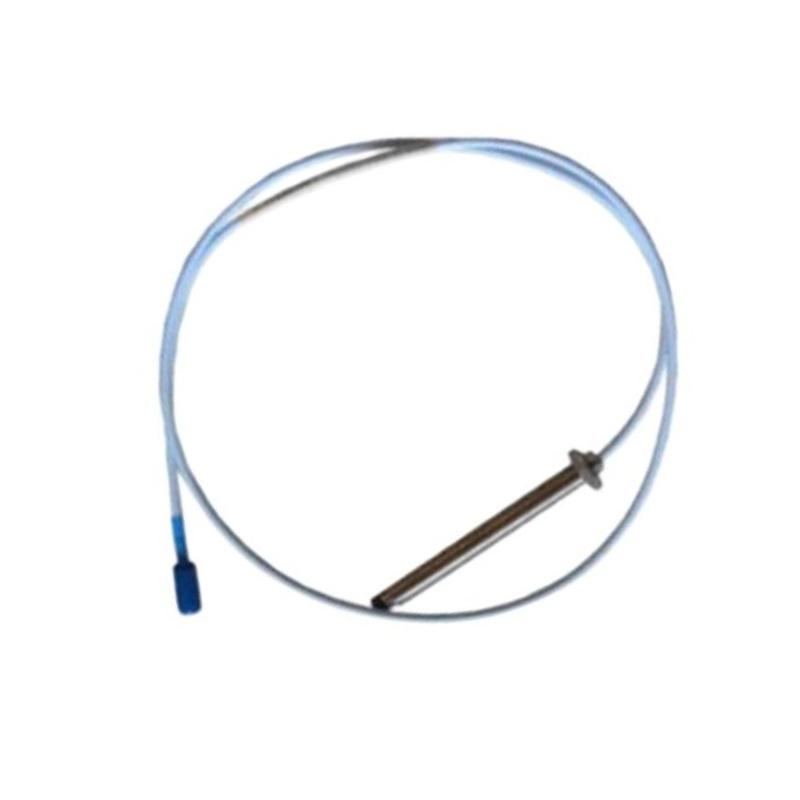

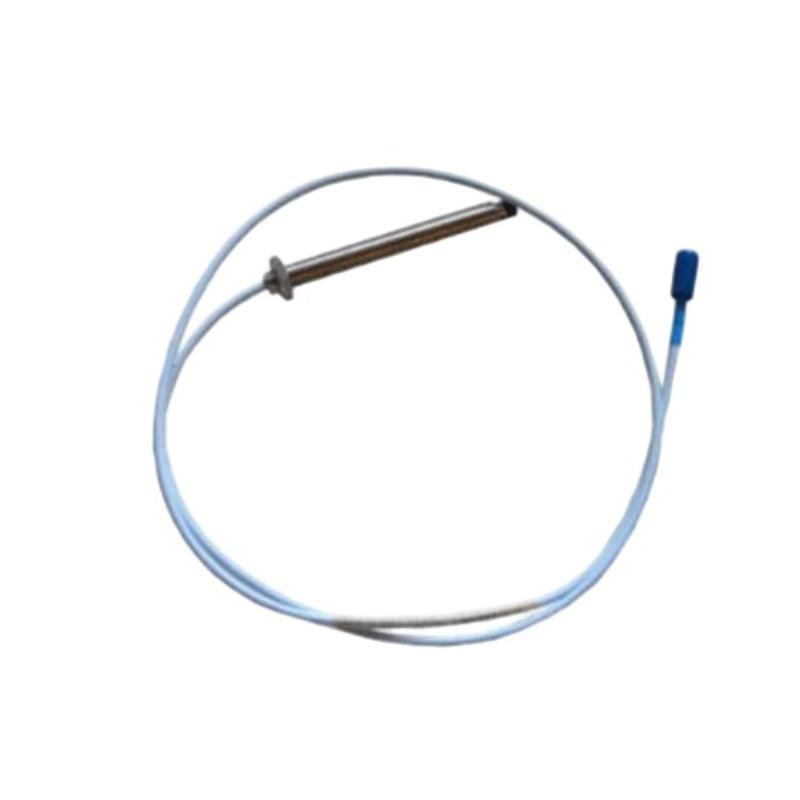

The Bently Nevada 330104-00-08-10-02-00 3300 XL 8 mm Proximity Probe (Metric) is a high-precision eddy current sensing device designed for continuous monitoring of shaft vibration and position in rotating machinery. As part of the trusted 3300 XL series, it delivers stable and repeatable performance in demanding industrial environments such as turbines, compressors, and critical pump systems.
Engineered for long-term operational reliability, this metric-configured probe ensures consistent signal integrity even in high-temperature, high-vibration, and electrically noisy conditions, making it a strong foundation for predictive maintenance and asset protection strategies.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330104-00-08-10-02-00 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Case Length | 80 mm |
| Total Cable Length | 1.0 m |
| Connector Type | Miniature coaxial ClickLoc™ |
| Thread Type | M10 × 1 (Metric) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Body Material | Stainless Steel (AISI 303/304) |
| Cable Type | 75Ω triaxial industrial cable |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +125°C |
| Output Type | Eddy current displacement signal |
| Weight | 0.323 kg |
