Introduction

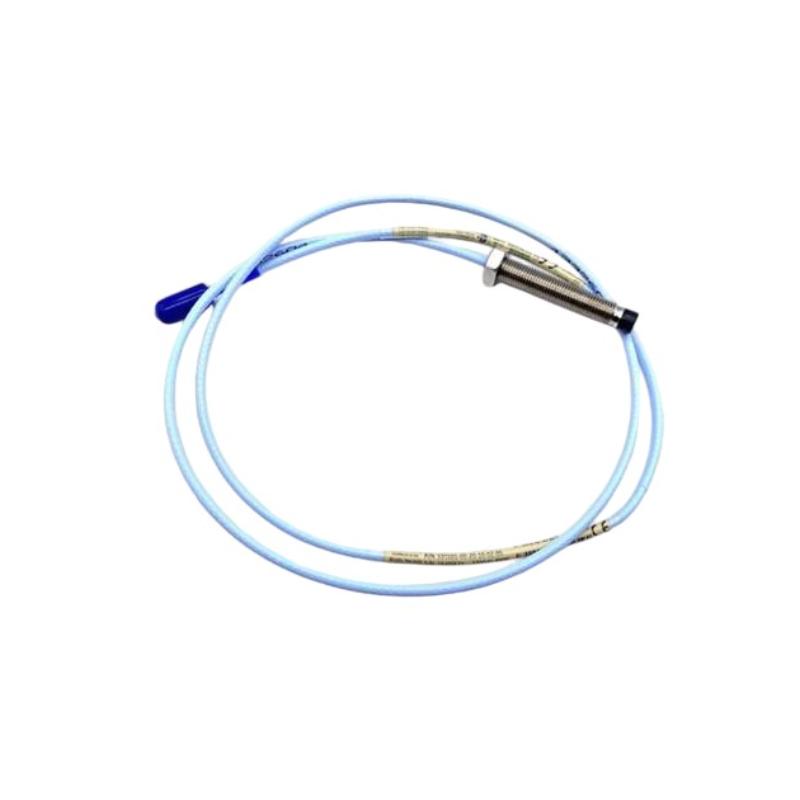

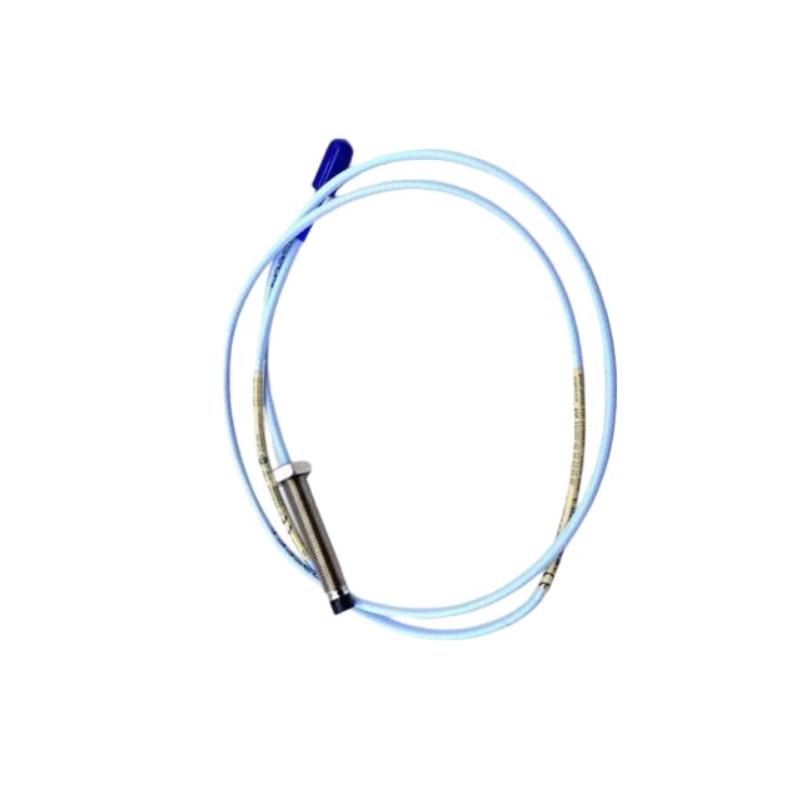

The Bently Nevada 330104-02-08-05-01-00 3300 XL 8 mm Proximity Probe is engineered for precision shaft monitoring in high-value rotating machinery where reliability is non-negotiable. As part of the trusted 3300 XL platform, this probe delivers stable, repeatable non-contact measurement of vibration and axial position in turbines, compressors, pumps, and generators.
Built for demanding industrial environments, it combines rugged mechanical design with high electrical stability, making it a dependable choice for predictive maintenance systems that require continuous accuracy under harsh operating conditions.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 330104-02-08-05-01-00 |
| Probe Diameter | 8 mm |
| Case Length | 80 mm |
| Unthreaded Length | 0 mm |
| Total Cable Length | 0.5 m (typical configuration) |
| Connector Type | Miniature coaxial ClickLoc™ |
| Thread Type | M10 × 1 |
| Case Material | Stainless Steel (AISI 303/304) |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Output Type | Eddy current displacement signal |
| Operating Temperature | -52°C to +177°C |
| Power Requirement | -17.5 VDC to -26 VDC |
| Weight | 0.32 kg |
