Precision Non-Contact Measurement for Rotating Machinery Monitoring

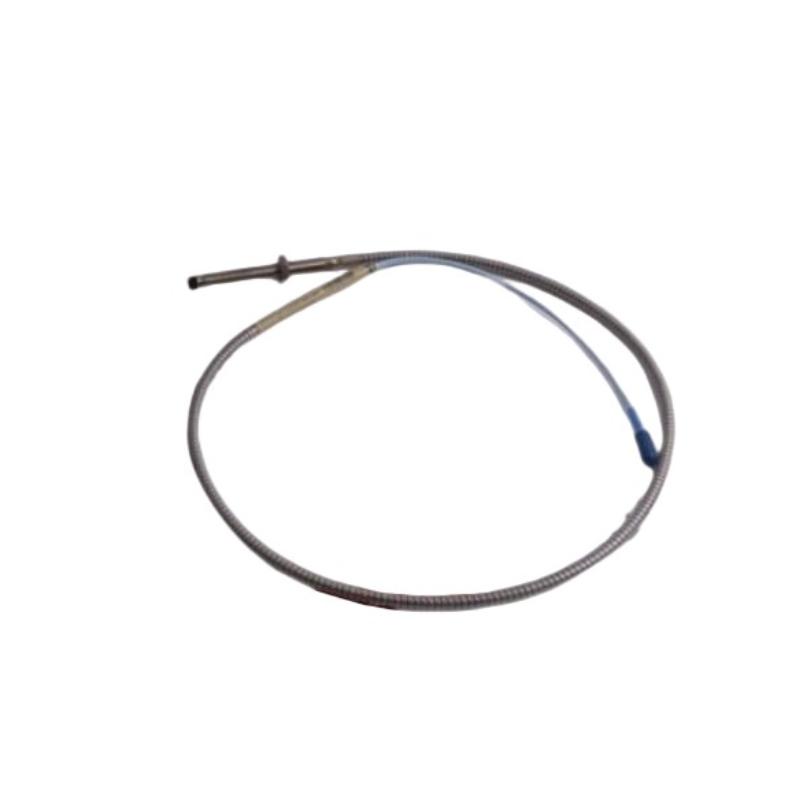

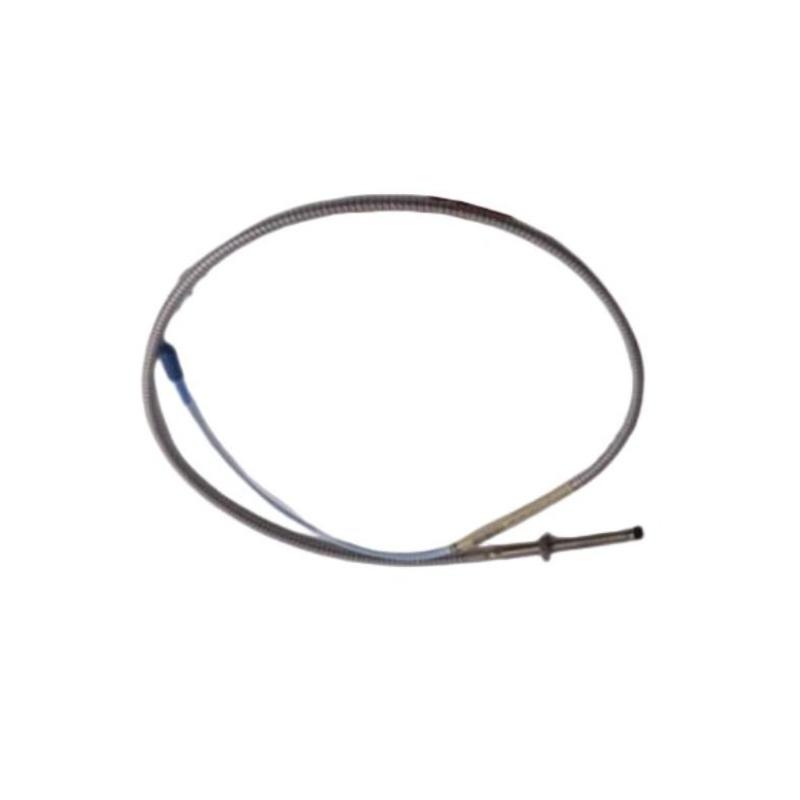

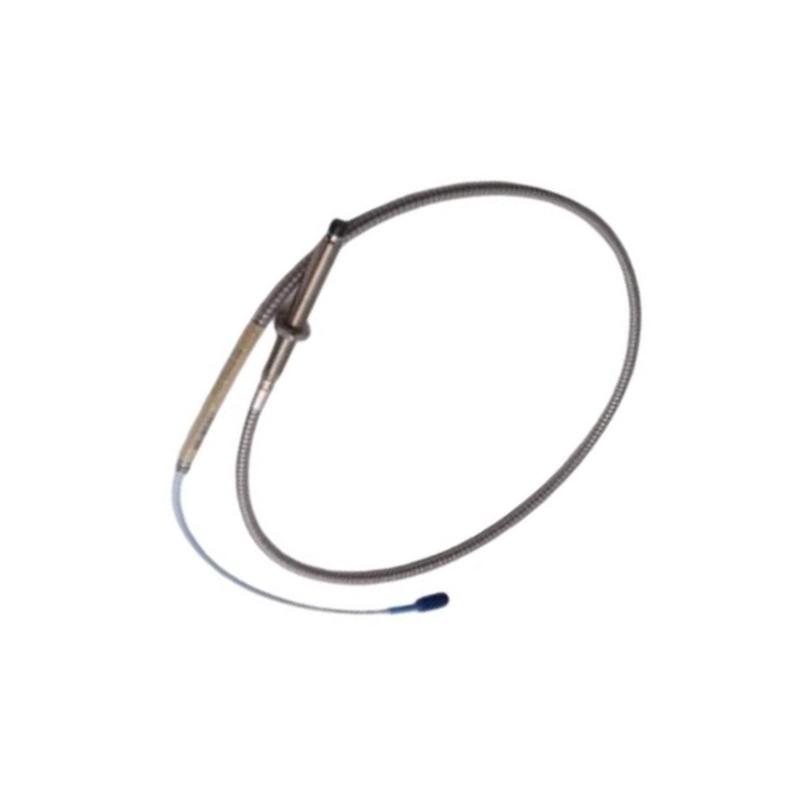

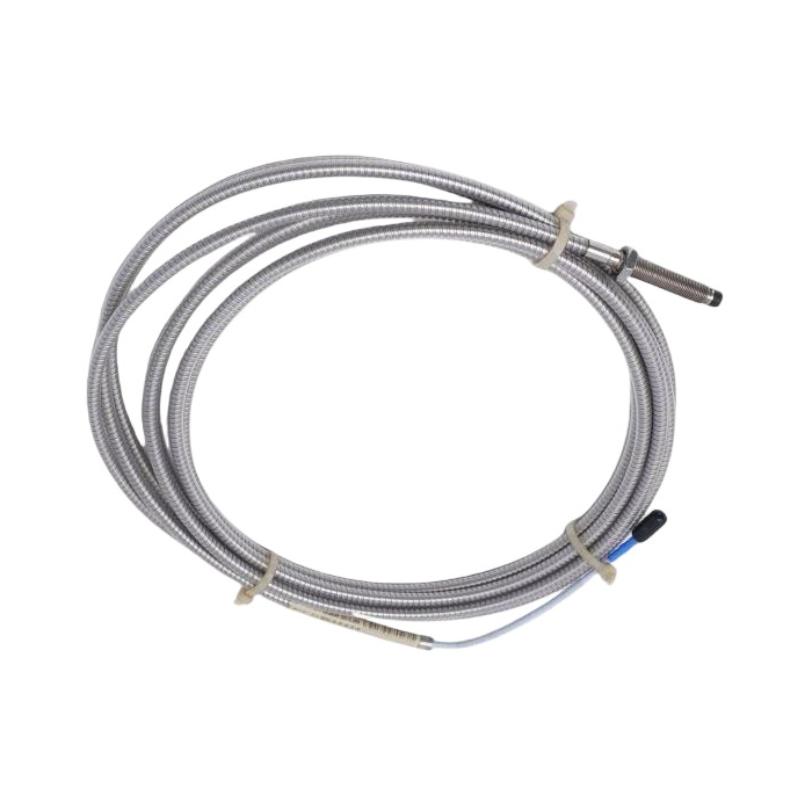

The Bently Nevada 330104-01-06-10-02-00 3300 XL 8 mm Proximity Probe is designed for high-accuracy shaft position and vibration measurement in industrial rotating equipment. As part of the 3300 XL series, it supports continuous condition monitoring of critical machinery, helping operators maintain stable and efficient equipment performance.
This probe is widely used in conjunction with Bently Nevada 3300 XL monitoring systems, providing consistent signal output and reliable performance in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330104-01-06-10-02-00 |
| Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy current non-contact sensing |
| System Compatibility | 3300 XL Proximitor System |
| Probe Diameter | 8 mm |
| Output Type | Voltage signal proportional to gap distance |
| Linear Measurement Range | Approx. 2 mm (typical for 8 mm system) |
| Recommended Operating Gap | 1.27 mm |
| Operating Temperature | -40°C to +125°C |
| Storage Temperature | -50°C to +125°C |
| Cable Type | Coaxial probe cable with integrated connector system |
| Country of Origin | USA |
