Precision Vibration Monitoring for Critical Rotating Equipment

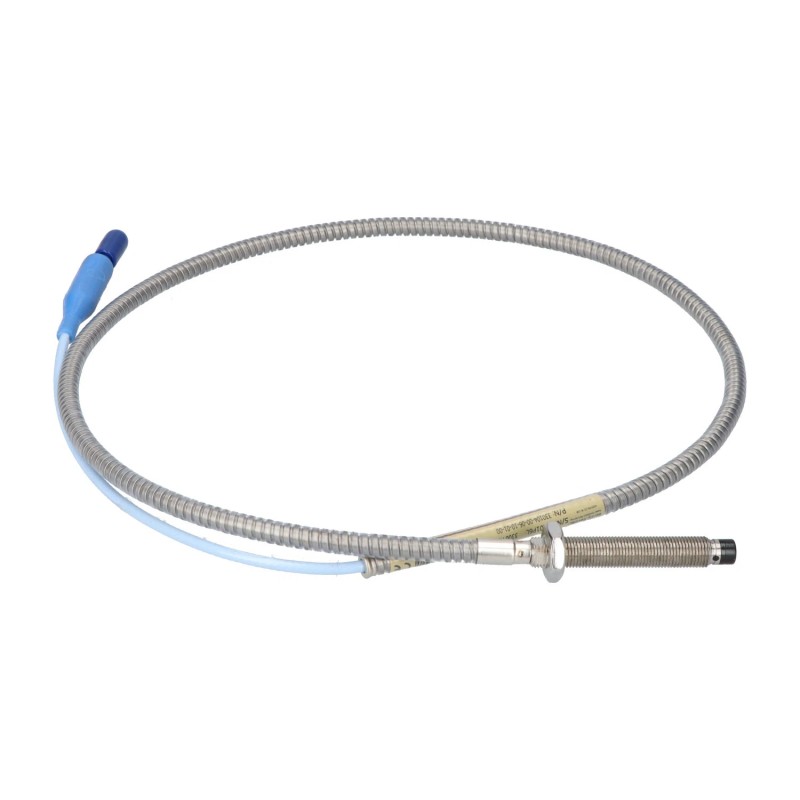

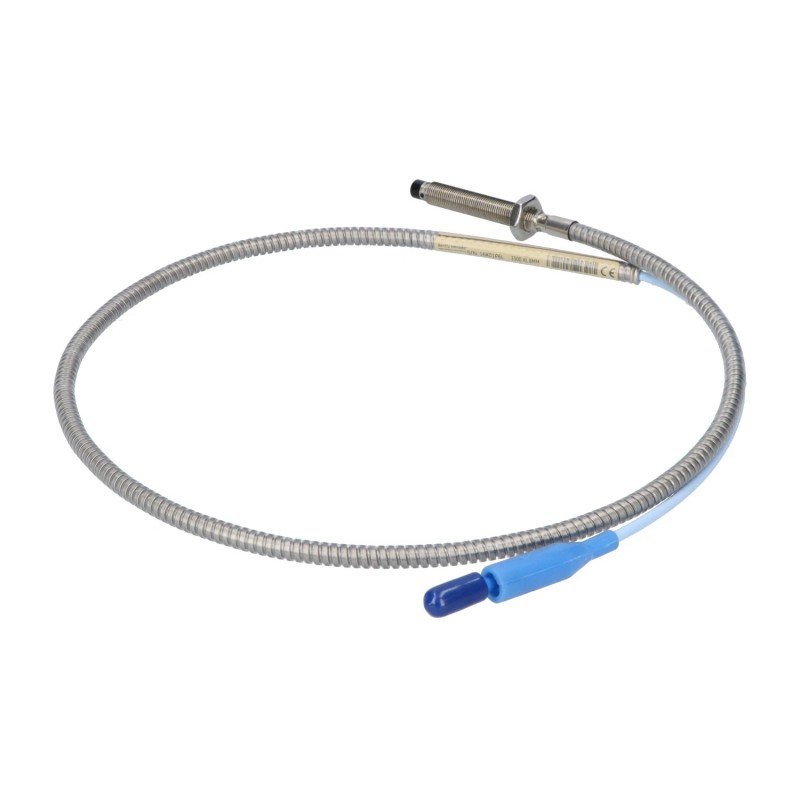

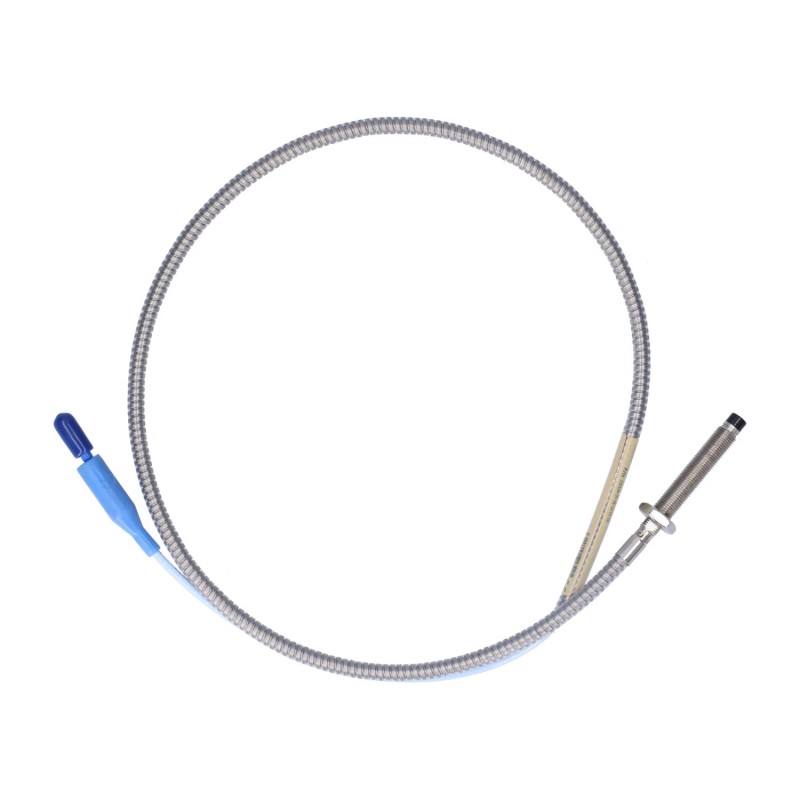

The Bently Nevada 3300 XL 8 mm Proximity Probe (part number 330104-00-07-10-02-00) is an industry-leading sensor designed for high-accuracy measurement of shaft vibration and position in rotating machinery. As part of the 3300 XL series, it is engineered to deliver robust performance in demanding industrial environments, providing real-time data essential for predictive maintenance, condition monitoring, and protection of critical assets.
With a rugged design and reliable sensing capabilities, the 3300 XL Proximity Probe helps prevent unplanned downtime, extend equipment life, and optimize operational efficiency across power generation, oil & gas, and manufacturing industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model / Part Number | 330104-00-07-10-02-00 |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Probe Type | Proximity / Eddy Current Sensor |
| Tip Style | Flat or standard tip (series dependent) |
| Cable Length | 2 m standard (custom lengths available) |
| Measuring Range | ±1 mm (typical) |
| Linearity | ≤ ±1% of full-scale |
| Frequency Response | DC to 20 kHz |
| Operating Temperature | -40°C to +120°C |
| Housing Material | Stainless Steel |
| Electrical Interface | Coaxial cable output |
| Excitation Voltage | 8–14 V DC (per system specification) |
| Maximum Shaft Speed | Compatible with up to 50,000 RPM |
| Dimensions | Probe: 8 mm diameter × 76 mm length (tip included) |
| Weight | Approx. 0.12 kg |
| Environmental Protection | IP65 (probe tip), vibration-resistant |
