High-Precision Multi-Range Analog Input with Industrial Isolation for Advanced Process Control

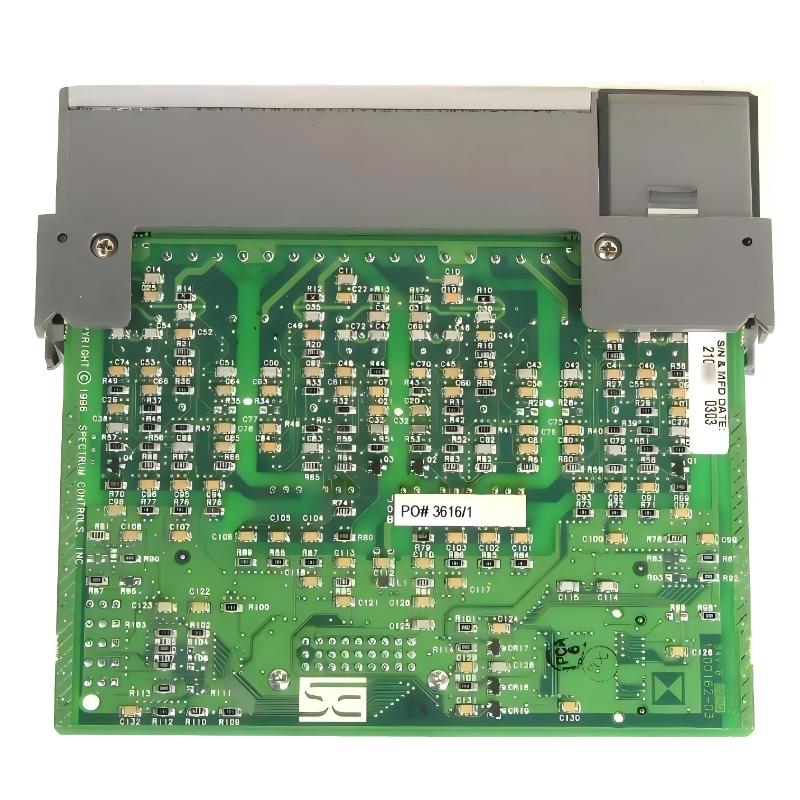

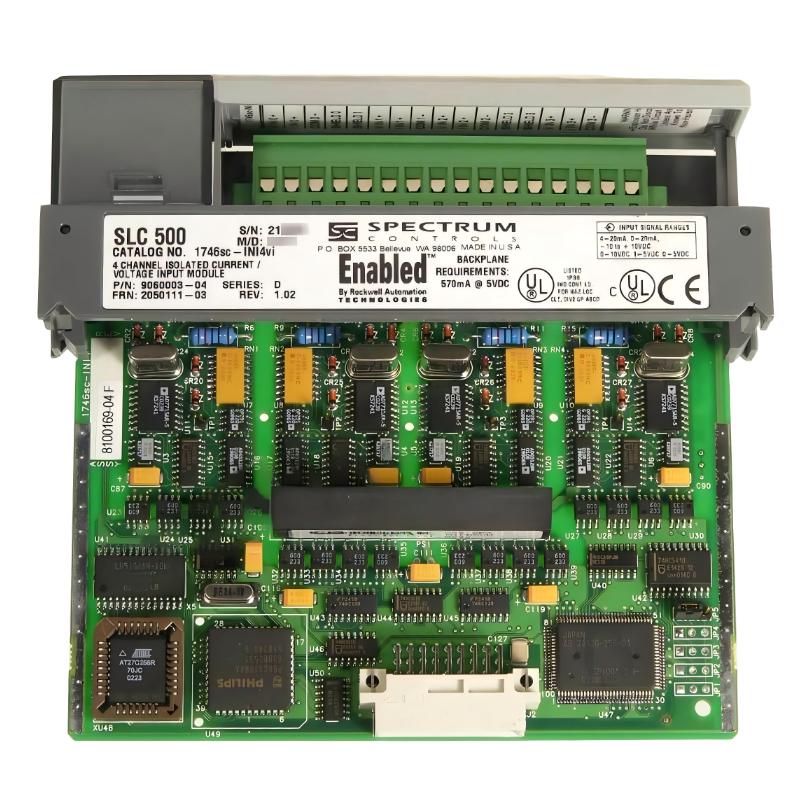

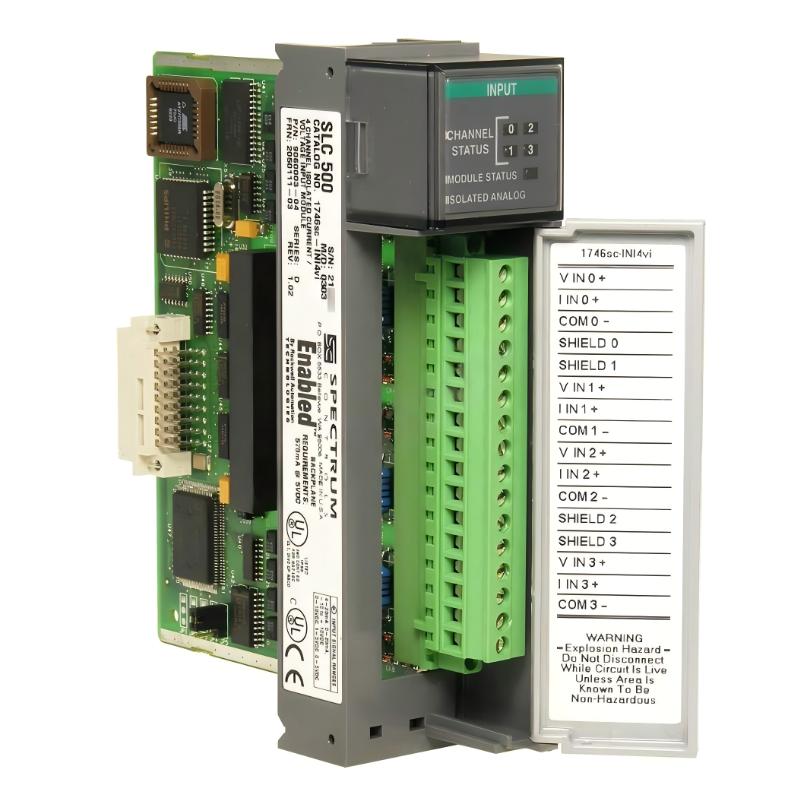

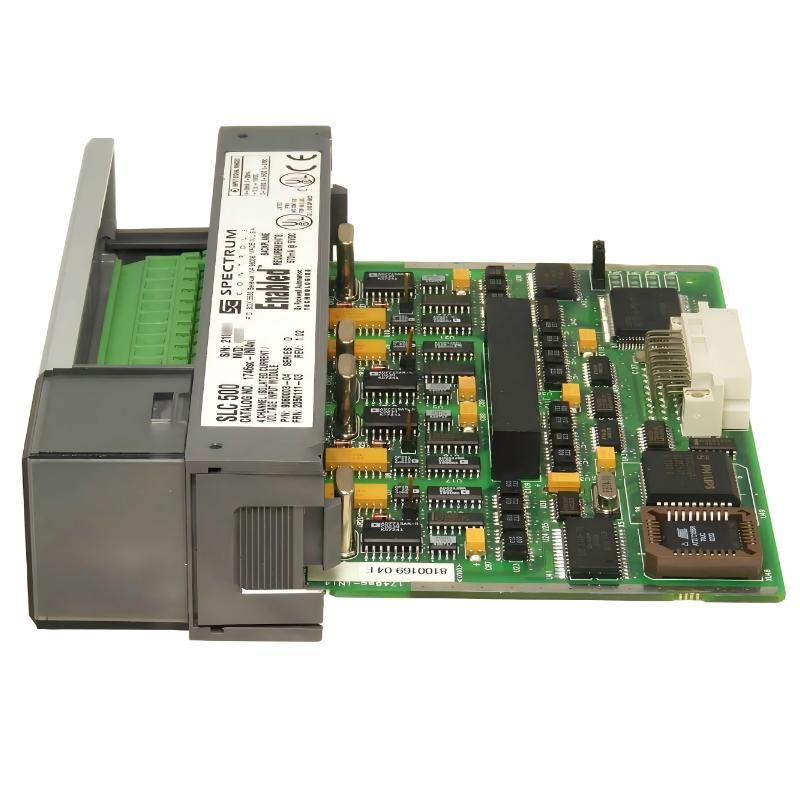

The Allen Bradley 1746SC-INI4VI SLC 500 Isolated Analog Input Module is a high-performance specialty I/O module designed for precise analog signal acquisition in demanding industrial automation environments. Built for the SLC 500 platform, this module delivers four fully isolated analog input channels with flexible voltage and current measurement capabilities, making it ideal for complex process monitoring and control applications.
Engineered for high accuracy and strong electrical noise immunity, the 1746SC-INI4VI is widely used in systems requiring stable signal acquisition from transmitters, sensors, and instrumentation devices. Its channel-to-channel isolation architecture enhances reliability in electrically noisy environments, ensuring consistent measurement integrity across all inputs.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Spectrum Controls / Allen Bradley Compatible |
| Model Number | 1746SC-INI4VI |
| Module Type | Isolated Analog Input Module |
| Product Family | SLC 500 Specialty I/O |
| Input Channels | 4 Isolated Analog Inputs |
| Input Types | Voltage and Current (Configurable per channel) |
| Voltage Ranges | 0–5 V, 1–5 V, 0–10 V, -10 to +10 V |
| Current Ranges | 0–20 mA, 4–20 mA |
| Resolution | 16-bit High Resolution |
| Channel Isolation | Up to 750 VDC Channel-to-Channel Isolation |
| Input Impedance | High impedance voltage / precision current input |
| Update Time | Fast configurable scan rates per channel |
| Filtering Options | Selectable digital filtering for noise reduction |
| Calibration | Auto-calibrated, temperature compensated design |
| Backplane Current Draw | Approx. 400–550 mA @ 5 V DC (depending on configuration) |
| Data Format | SLC-compatible scaling formats (NI4-compatible option) |
| Mounting Type | SLC 500 Chassis Slot Module |
| Operating Temperature | 0°C to +60°C |
Industrial Applications
The 1746SC-INI4VI module is widely deployed in process and industrial automation systems requiring precise analog measurement and electrical isolation.
Typical applications include:
-
Process control and monitoring systems
-
Pressure, flow, and level transmitter interfaces
-
Chemical and petrochemical automation systems
-
Water and wastewater treatment plants
-
Energy and utility monitoring systems
-
Industrial furnace and temperature control systems
-
Batch processing and mixing systems
-
OEM machine instrumentation integration
-
High-noise industrial environments with long cable runs
-
Data acquisition systems for production optimization
Its isolated input design makes it particularly effective in environments where ground loops and electrical interference can affect measurement accuracy.
Engineering Advantages
High-Resolution Signal Accuracy
Provides 16-bit resolution for precise analog signal interpretation in demanding control applications.
Multi-Range Flexibility
Each channel can independently support voltage or current inputs, reducing the need for multiple dedicated modules.
Strong Electrical Isolation
Up to 750 V channel-to-channel isolation improves system safety and minimizes signal distortion in noisy environments.
Industrial Noise Immunity
Built-in filtering and signal conditioning help maintain stable readings even in electrically harsh environments.
Channel Independence
Each input channel is individually configurable, enabling mixed-signal acquisition within a single module.
Temperature-Stable Performance
Automatic compensation helps maintain measurement consistency under varying environmental conditions.
Compact SLC Integration
Single-slot design optimizes control cabinet space while expanding analog input capacity.
Technical FAQs
1. What is the primary function of the 1746SC-INI4VI module?
It provides four isolated analog input channels for voltage and current signal measurement in SLC 500 systems.
2. How many input channels does it support?
It supports 4 fully isolated analog input channels.
3. What signal types does it accept?
It supports voltage (0–10 V, ±10 V, etc.) and current (0–20 mA, 4–20 mA) signals.
4. What is the resolution of the module?
It provides 16-bit high-resolution analog measurement.
5. Are the input channels isolated?
Yes, each channel features up to 750 VDC isolation.
6. Can each channel use different input types?
Yes, each channel can be independently configured for voltage or current input.
7. What is the main advantage over standard analog modules?
It eliminates external isolation hardware while improving signal accuracy and noise resistance.
8. Is it suitable for noisy industrial environments?
Yes, its isolation and filtering design make it highly suitable for electrically noisy conditions.
9. What is the backplane power requirement?
It typically requires between 400–550 mA from the SLC 500 backplane.
10. What is the key benefit of the 1746SC-INI4VI?
It combines high-resolution analog measurement with strong channel isolation and flexible multi-range input support.
