High-Isolation Signal Integrity for Precision Industrial Input Monitoring

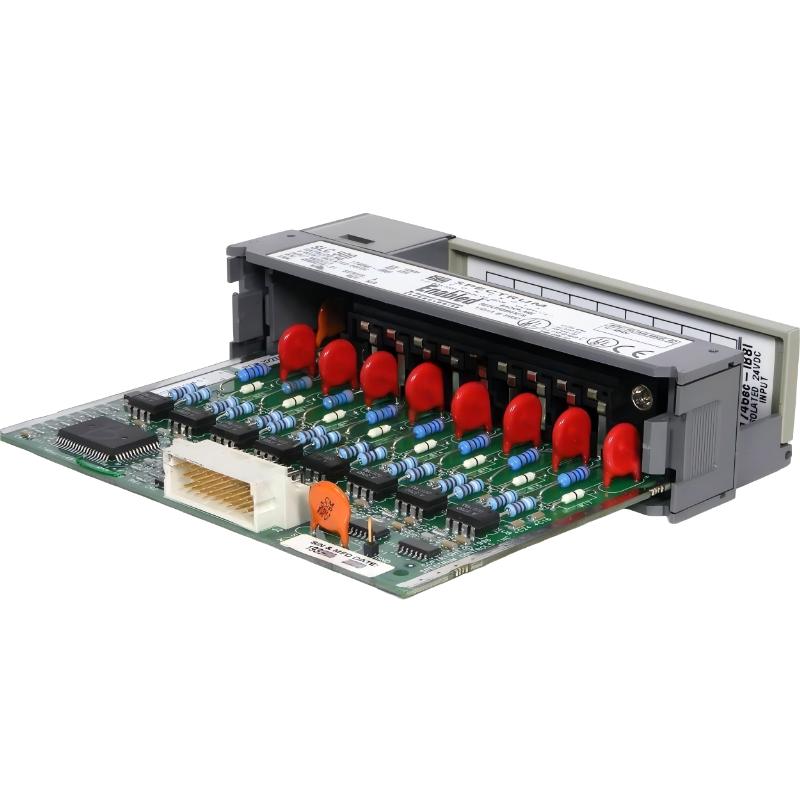

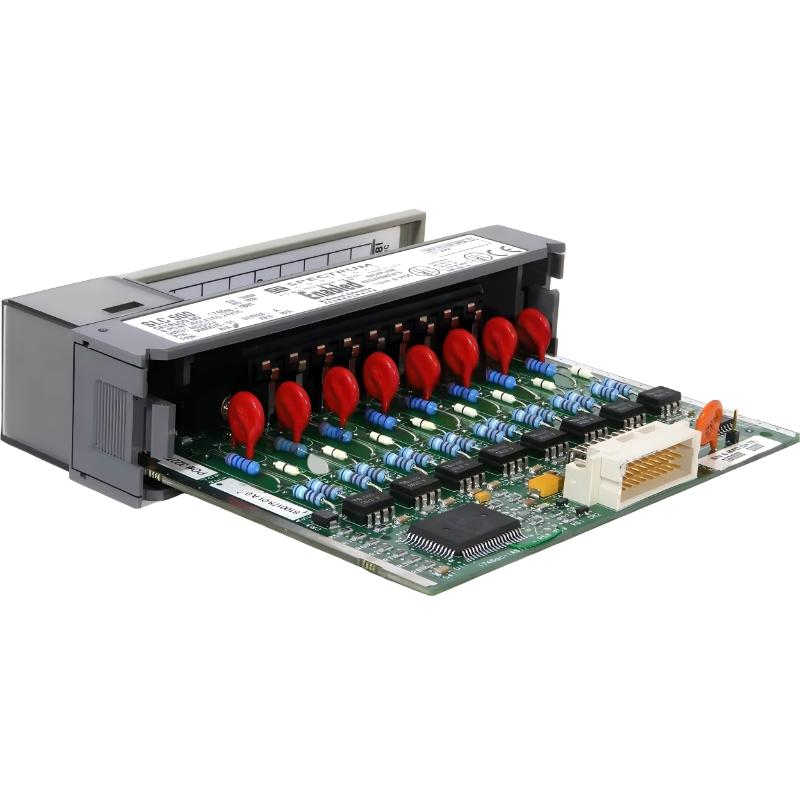

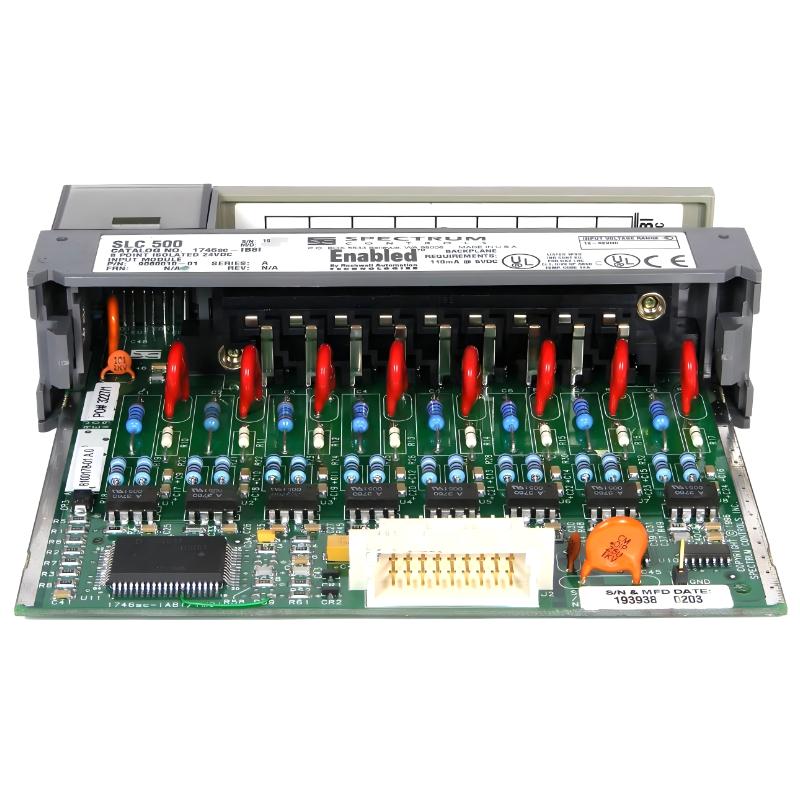

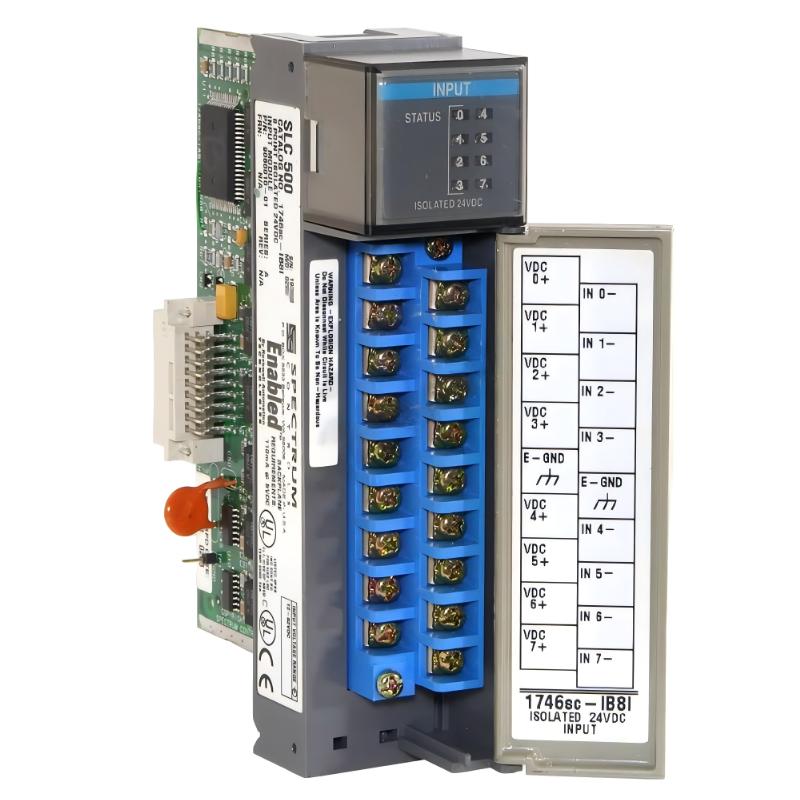

The Allen Bradley 1746SC-IB8I SLC 500 Isolated DC Input Module is a high-reliability specialty I/O module designed to enhance signal integrity in demanding industrial automation environments. Built for SLC 500 systems, this module provides eight fully isolated input channels, allowing each field signal to be independently processed with improved electrical separation and noise resistance.
Engineered for applications where signal clarity and system protection are critical, the 1746SC-IB8I is widely used in control systems involving mixed field devices, relay contacts, and industrial sensors. Its isolated architecture makes it especially valuable in environments with electrical interference, long cable runs, or multiple power sources.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Spectrum Controls / Allen Bradley Compatible |
| Model Number | 1746SC-IB8I |
| Module Type | Isolated DC Input Module |
| Product Family | SLC 500 Specialty I/O |
| Input Channels | 8 Independently Isolated Inputs |
| Input Voltage Range | 12–32 V DC |
| Nominal Input Voltage | 24 V DC |
| Input Configuration | 1 Point per Common (Fully Isolated Channels) |
| Input Current | Approx. 12 mA per point |
| Off-State Current | ≤ 1.8 mA |
| Isolation Rating | Up to 1500 V Input-to-Input Isolation |
| Input Type | Sink / Source Compatible (Field Configurable) |
| Signal Filtering | Industrial Noise Filtering |
| Backplane Current Draw | Approx. 150–200 mA @ 5 V DC |
| Power Dissipation | Approx. 3–6 W |
| Mounting Type | SLC 500 Chassis Slot Module |
| Operating Temperature | 0°C to +60°C |
Industrial Applications
The 1746SC-IB8I module is widely used in automation systems requiring robust electrical isolation and reliable input detection.
Typical applications include:
-
Industrial control panels with mixed voltage sources
-
Motor starter and relay monitoring systems
-
Process automation and batch control systems
-
Water and wastewater treatment facilities
-
Power distribution monitoring systems
-
Heavy machinery control interfaces
-
Packaging and production automation lines
-
Safety and interlock signal monitoring
-
OEM machine control systems
-
Distributed industrial I/O architectures
Its isolated channel design allows engineers to integrate multiple field devices without signal interference concerns.
Engineering Advantages
Fully Isolated Input Channels
Each input channel operates independently, reducing cross-interference and improving system stability in complex wiring environments.
High Electrical Noise Immunity
Designed for industrial environments with high electromagnetic interference, ensuring clean and stable signal detection.
Flexible Field Device Compatibility
Supports a wide range of input devices including switches, sensors, relay contacts, and control outputs.
Strong System Protection Design
1500 V isolation helps protect PLC backplane components from field-side electrical disturbances.
Multi-Source Wiring Flexibility
Independent commons per channel allow mixed wiring configurations across different field circuits.
Compact Industrial Integration
Single-slot SLC 500 form factor helps optimize control cabinet space while maintaining advanced functionality.
Reliable Long-Term Operation
Built for continuous industrial use in demanding automation and process control environments.
Technical FAQs
1. What is the main function of the 1746SC-IB8I module?
It provides eight individually isolated DC input channels for SLC 500 automation systems.
2. How many input channels does it support?
It supports 8 isolated input channels.
3. What voltage range does it accept?
It operates within a 12–32 V DC input range.
4. Are all channels electrically isolated?
Yes, each channel is individually isolated with its own common.
5. What is the typical input voltage?
The nominal input voltage is 24 V DC.
6. What is the isolation rating?
It provides up to 1500 V input-to-input isolation.
7. What types of devices can it connect to?
It supports switches, sensors, relay contacts, and industrial control signals.
8. Does it support both sinking and sourcing inputs?
Yes, it is designed for flexible field wiring configurations.
9. What is the backplane power requirement?
It typically draws around 150–200 mA from the SLC 500 backplane.
10. What is the key advantage of this module?
It delivers high-level electrical isolation per channel, improving signal reliability in complex industrial environments.
