High-Speed Industrial Counting and Flow Measurement for Precision Automation

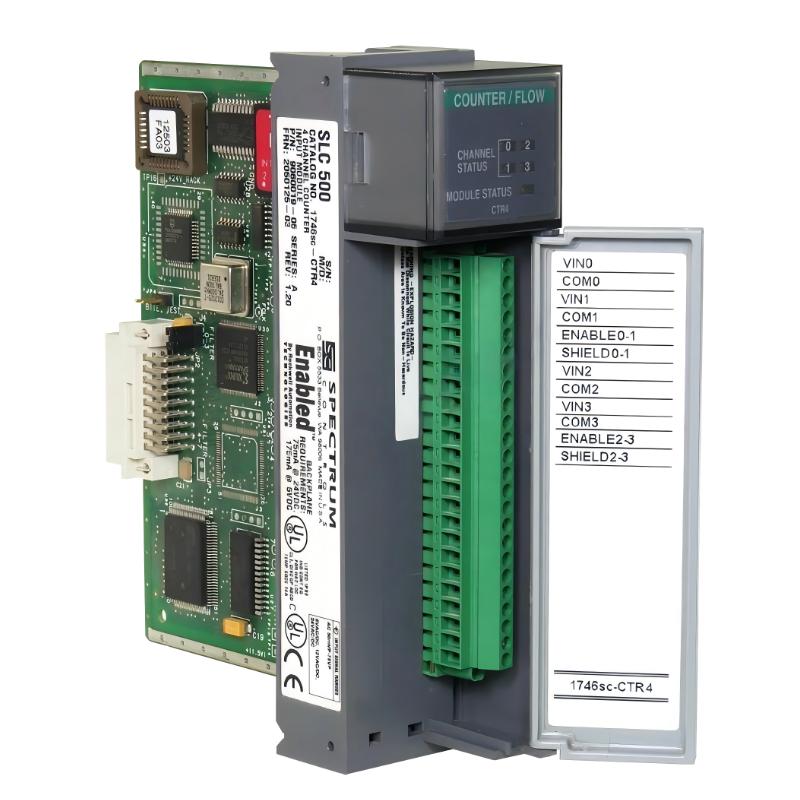

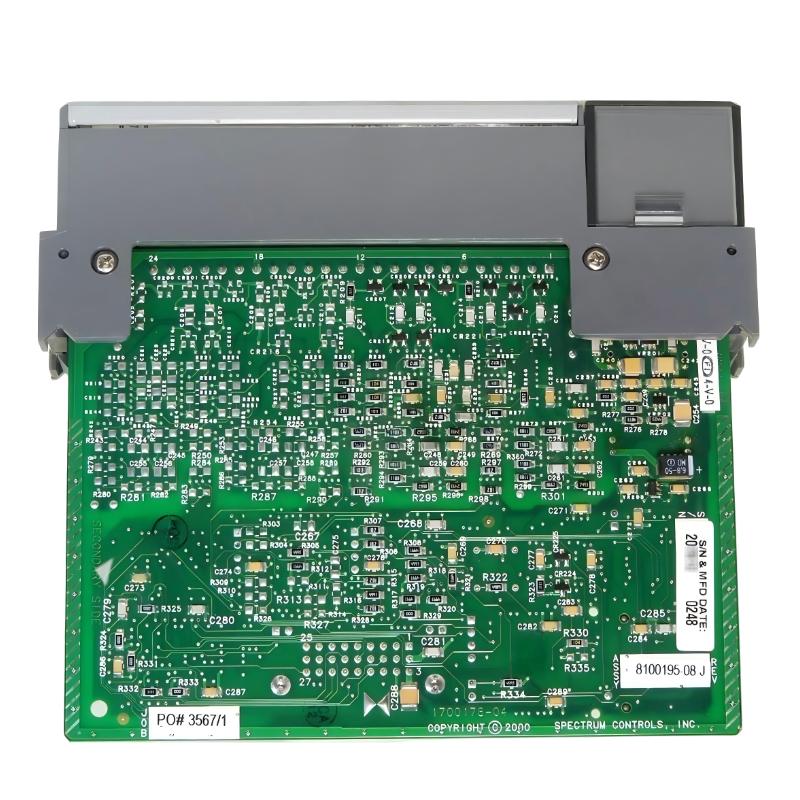

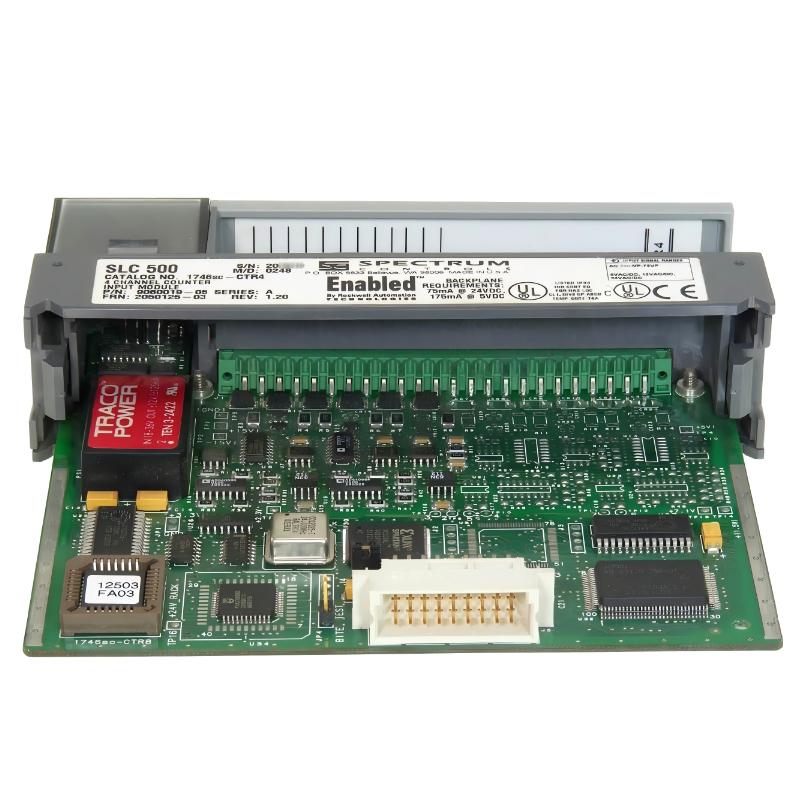

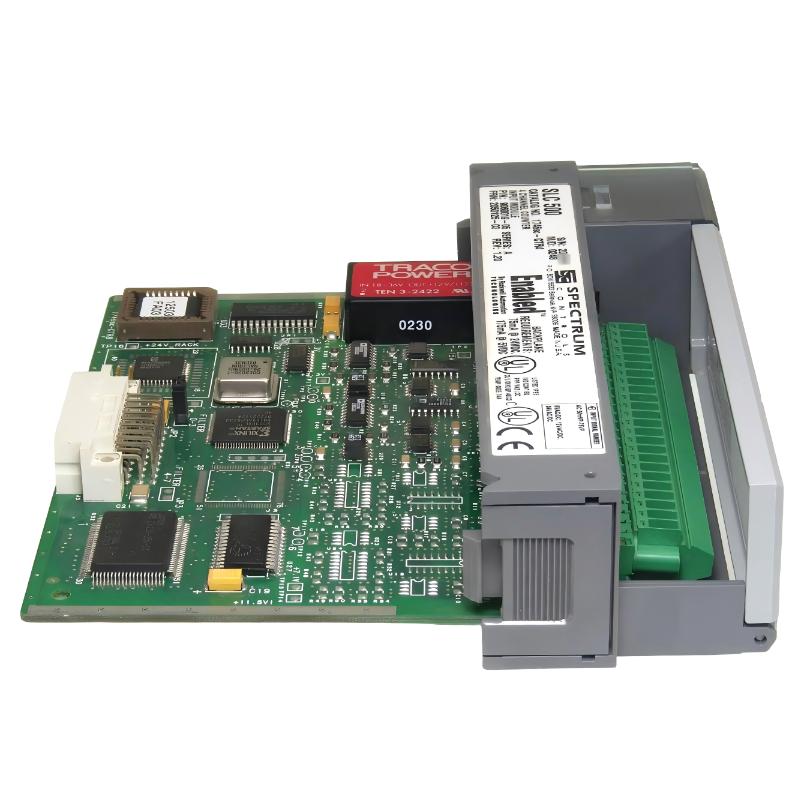

The Allen Bradley 1746SC-CTR4 SLC 500 Counter Module is a high-performance specialty input module designed for advanced counting, flow measurement, and encoder-based applications within SLC 500 automation systems. Developed as a Spectrum Controls enhanced I/O solution, it provides precise high-speed signal processing for demanding industrial environments where accuracy and responsiveness are critical.
With multi-channel flexibility and support for high-frequency input signals, the 1746SC-CTR4 is widely used in production lines, packaging systems, and process control applications that require accurate event tracking, flow monitoring, and motion-related measurement.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Allen Bradley / Spectrum Controls |
| Model Number | 1746SC-CTR4 |
| Module Type | Counter / Flow Meter Input Module |
| Product Family | SLC 500 Specialty I/O |
| Input Channels | 4 Channels |
| Input Modes | Counter, Flow Meter, Quadrature Encoder |
| Input Signal Types | AC / DC Compatible |
| Input Voltage Range | 5 V DC, 12 V DC, 24 V DC / AC variable signal input |
| Input Frequency | Up to 50 kHz |
| Counting Accuracy | ±1 Count |
| Maximum Count Value | Up to ±8,388,608 (High Range Mode) |
| Channel Configuration | Single-ended / up-down / quadrature modes |
| Filter Options | 15 kHz / 30 kHz / 50 kHz selectable filtering |
| Backplane Current Draw | Approx. 225 mA @ 5 V DC |
| Isolation | Channel-to-backplane industrial isolation |
| Data Update Time | Approx. 4 ms per channel |
| Mounting Type | SLC 500 Chassis Slot Module |
| Operating Temperature | 0°C to +60°C |
Industrial Applications
The 1746SC-CTR4 module is engineered for precision signal processing in high-speed industrial environments.
Common applications include:
-
High-speed production line counting systems
-
Bottling and filling machine flow measurement
-
Packaging automation systems
-
Conveyor speed and position tracking
-
Rotary encoder-based motion monitoring
-
Industrial batching and dosing systems
-
Material handling and sorting equipment
-
Process flow monitoring in utilities
-
OEM machine control systems
-
Energy and production efficiency tracking
Its ability to process fast pulse signals makes it especially valuable in automation systems requiring real-time measurement accuracy.
Key Engineering Advantages
High-Speed Signal Processing
Supports up to 50 kHz input frequency, enabling precise detection of fast-moving industrial signals.
Multi-Mode Flexibility
Configurable for counter, flow meter, and quadrature encoder applications, reducing the need for multiple specialized modules.
High Measurement Accuracy
Designed for ±1 count precision, ensuring dependable industrial measurement performance.
Flexible Input Compatibility
Accepts a wide range of AC and DC input signals, improving integration flexibility across diverse field devices.
Advanced Filtering Options
Selectable digital and analog filters help stabilize signal interpretation in electrically noisy environments.
Compact High-Density Design
Single-slot architecture helps optimize control cabinet space while maintaining advanced functionality.
Strong Industrial Integration
Seamlessly works within SLC 500 architectures for reliable distributed control system performance.
Technical FAQs
1. What is the primary function of the 1746SC-CTR4 module?
It performs high-speed counting, flow measurement, and encoder signal processing for SLC 500 systems.
2. How many input channels does it support?
The module supports 4 input channels.
3. What is the maximum input frequency?
It supports input signals up to 50 kHz.
4. Can it work with both AC and DC signals?
Yes, it supports both AC and DC input signal types depending on configuration.
5. What is the typical counting accuracy?
It provides ±1 count accuracy for industrial measurement applications.
6. What types of applications is it used for?
It is commonly used in flow measurement, packaging, and high-speed production counting systems.
7. Does it support quadrature encoders?
Yes, it supports quadrature encoder input modes for motion and position tracking.
8. What is the backplane power requirement?
It draws approximately 225 mA from the SLC 500 backplane.
9. Is signal filtering available?
Yes, selectable filtering options help improve signal stability and reduce noise.
10. What is the main advantage of this module?
It combines high-speed counting capability with flexible multi-mode input processing in a compact SLC 500 design.
