Introduction – Stable Backplane Power Foundation for VersaMax Systems

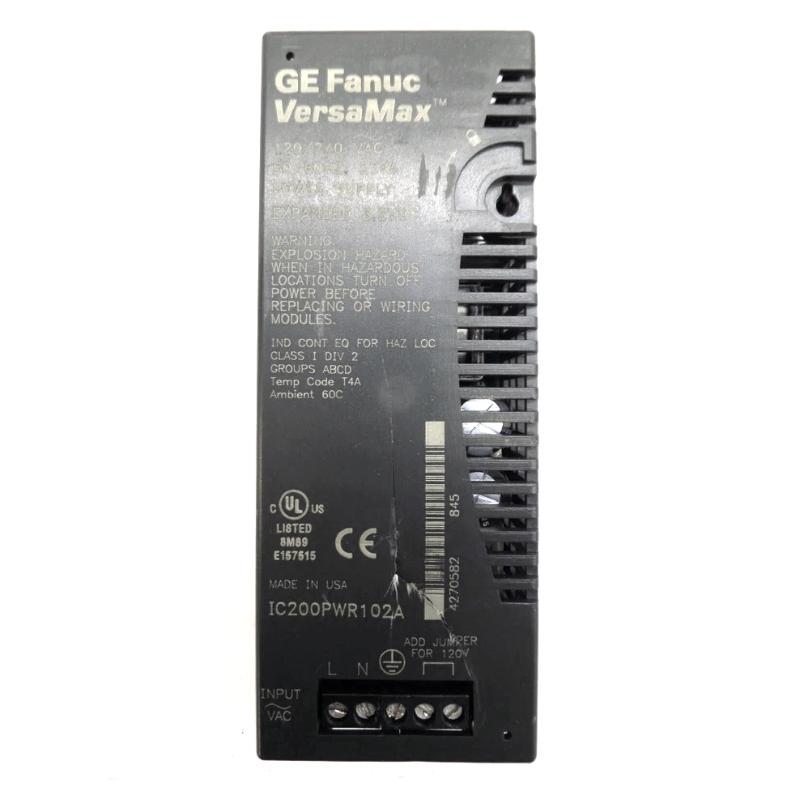

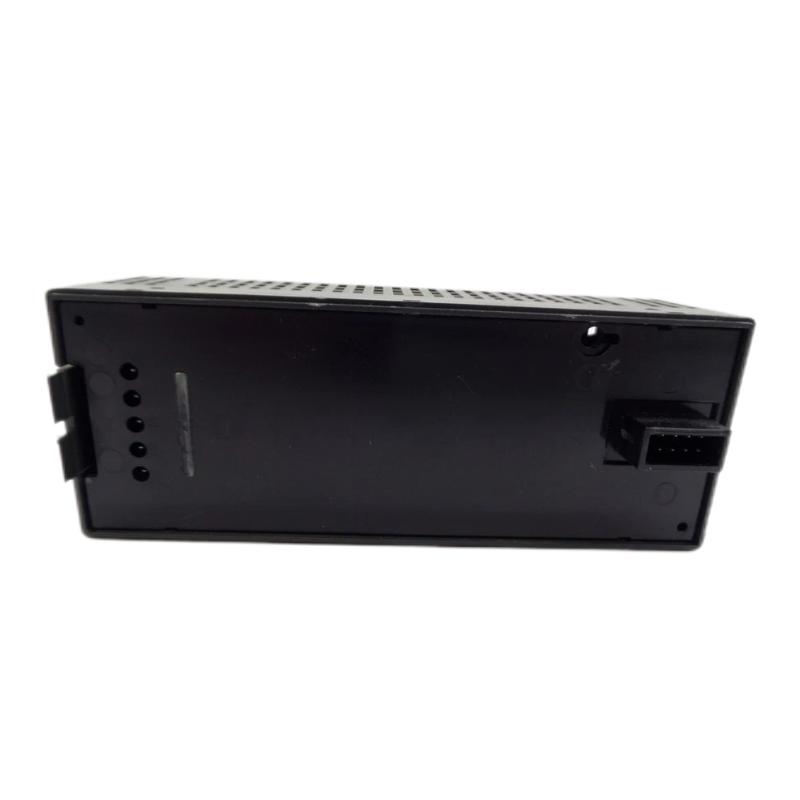

The GE IC200PWR102 VersaMax Power Supply is a key expanded power module designed to provide stable backplane power for VersaMax PLC systems. It delivers regulated 5 V DC and 3.3 V DC power to CPU, I/O, and communication modules, ensuring consistent system operation in distributed automation environments.
Built for industrial reliability, this module supports both main and auxiliary power configurations, making it suitable for compact PLC stations as well as larger modular control racks. Its AC input design and protected DC output architecture help maintain stable performance in demanding industrial conditions.
——
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | GE (Emerson Automation / GE Fanuc legacy) |
| Model Number | IC200PWR102 |
| Product Type | Expanded Power Supply Module |
| Platform | VersaMax I/O System |
| Input Voltage Range | 85–132 V AC / 176–264 V AC |
| Nominal Input | 120 / 240 V AC |
| Input Frequency | 47–63 Hz |
| Input Power | ~27 VA |
| Output Voltages | 5 V DC, 3.3 V DC |
| Max Output Current | 1.5 A total (approx. 1.0 A on 3.3 V rail) |
| Protection Features | Overload, short-circuit, reverse polarity protection |
| Holdup Time | ~20 ms |
| Power Distribution | VersaMax backplane supply |
| Installation Type | DIN rail / VersaMax power carrier |
Applications in Industrial Systems
The IC200PWR102 module is widely used as the primary or auxiliary power source in VersaMax automation systems.
Typical applications include:
-
PLC rack power supply systems
-
Industrial automation control panels
-
Manufacturing production systems
-
Water and wastewater treatment control
-
Oil and gas auxiliary control systems
-
Power generation monitoring systems
-
Material handling and conveyor systems
-
Building automation infrastructures
-
Remote I/O stations
-
Distributed control system (DCS) architectures
Its dual-voltage AC input capability makes it suitable for global industrial installations.
Core Engineering Advantages
Stable Dual-Rail DC Output
Provides both 5 V DC and 3.3 V DC outputs, ensuring proper operation of CPU and I/O modules within the VersaMax system.
Wide AC Input Compatibility
Supports both 120 V and 240 V AC systems, allowing flexible deployment across industrial regions.
Industrial Protection Design
Includes overload and short-circuit protection to safeguard downstream PLC components.
Reliable Backplane Power Distribution
Ensures consistent energy delivery across all connected VersaMax modules in the rack.
Compact Modular Design
Space-efficient construction allows integration into compact PLC assemblies and control panels.
Auxiliary Power Capability
Can be used as either a primary or supplemental power source depending on system architecture.
Stable Operation in Continuous Duty
Designed for long-term industrial use with consistent output stability under load conditions.
Technical FAQs
1. What is the main function of the IC200PWR102 module?
It supplies regulated DC power to the VersaMax backplane for PLC system operation.
2. What outputs does it provide?
It provides 5 V DC and 3.3 V DC outputs.
3. What input voltage does it support?
It supports 120 V AC and 240 V AC configurations.
4. Can it be used as a main power supply?
Yes, it can serve as both a primary and auxiliary power supply.
5. What is the total output current?
Approximately 1.5 A total across output rails.
6. Does it include protection features?
Yes, it includes overload and short-circuit protection.
7. What is the installation method?
It installs on a VersaMax rack or DIN rail carrier system.
8. What is the holdup time?
Approximately 20 milliseconds under normal operating conditions.
9. What system is it compatible with?
It is designed for GE VersaMax PLC systems.
10. What is the main benefit of this module?
It ensures stable and reliable power distribution for all VersaMax control modules.
