Introduction – High-Density Output Control Built for Demanding PLC Environments

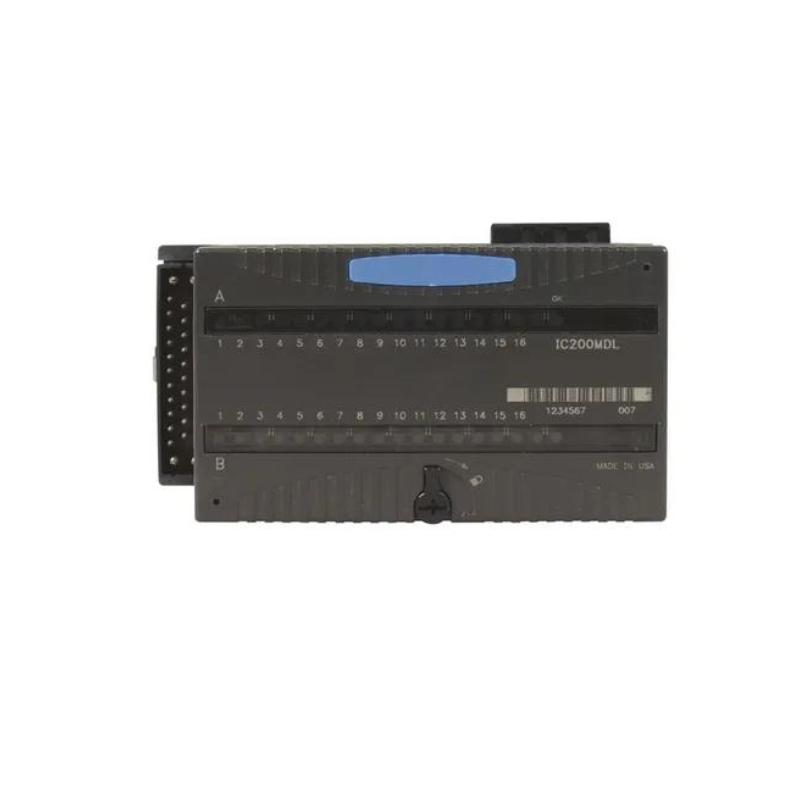

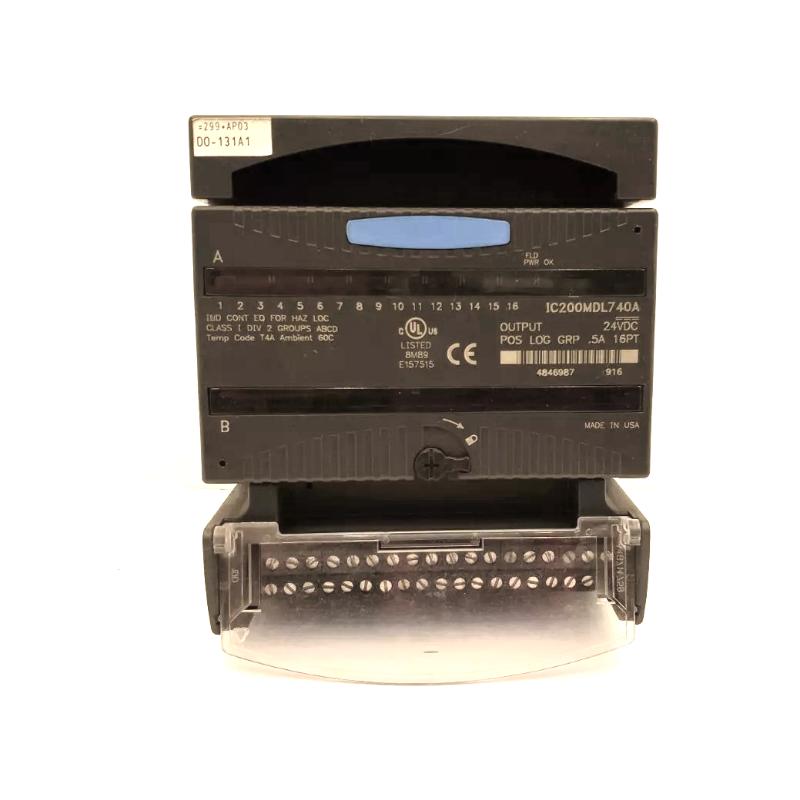

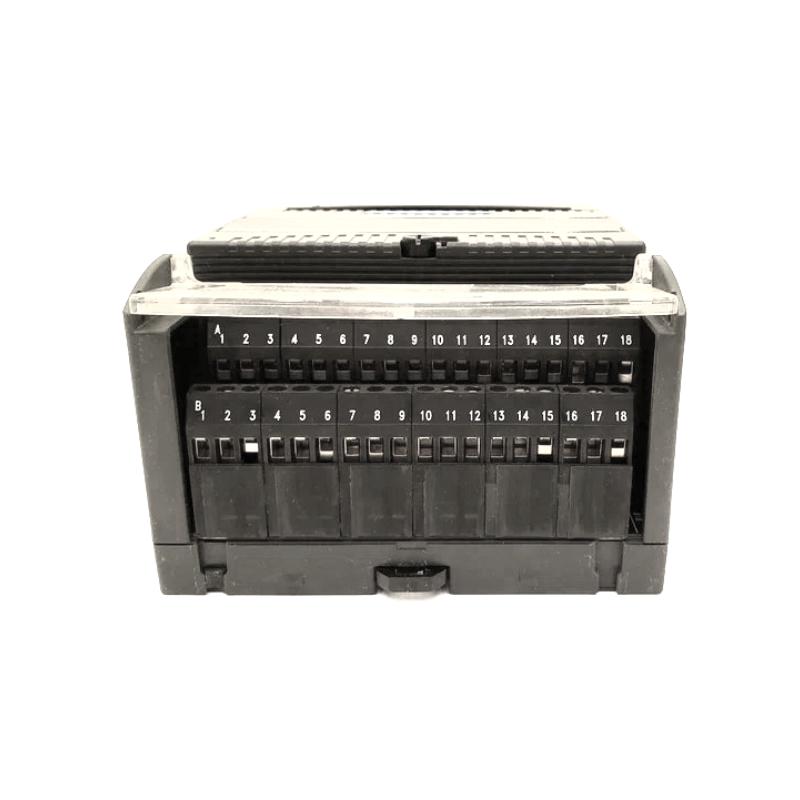

The GE IC200MDL742 VersaMax Discrete Output Module is engineered for high-density digital output control within the VersaMax distributed I/O architecture. It delivers reliable switching performance for field devices such as solenoids, relays, indicators, and industrial actuators, making it a strong fit for compact automation systems that require both scalability and stable output behavior.
Designed with a focus on speed, protection, and wiring efficiency, this module supports 32 output points in a dual-group structure. Its fast response time and robust electrical safeguards make it suitable for continuous industrial operation where consistent load control is essential.
——
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | GE (Emerson / GE Fanuc legacy) |
| Model Number | IC200MDL742 |
| Product Type | Discrete Output Module |
| Platform | VersaMax I/O System |
| Output Channels | 32 points |
| Output Type | Sourcing (Positive Logic) |
| Grouping | 2 groups of 16 outputs |
| Output Voltage Range | 18–30 V DC (24 V DC nominal) |
| Output Current | 0.5 A per point |
| Inrush Current | Up to 2.0 A for 100 ms |
| Switching Response | ~0.5 ms ON / OFF |
| Protection Features | Short-circuit, overcurrent, free-wheeling diodes |
| Backplane Power | 5 V DC via VersaMax rack |
| Backplane Consumption | ~150 mA |
| Isolation | Group-to-group isolation (industrial rating) |
| Diagnostics | Per-point LED + module status indicators |
| Mounting Type | VersaMax base unit / DIN rail system |
Industrial Applications
The IC200MDL742 is widely used in automation environments where multiple discrete outputs must be controlled with precision and reliability.
Typical applications include:
-
Industrial production lines
-
Packaging and labeling systems
-
Conveyor and material handling equipment
-
Water and wastewater treatment plants
-
Power plant auxiliary control systems
-
Oil and gas automation systems
-
Machine-level control panels
-
Building and infrastructure automation
-
Remote distributed I/O stations
-
General-purpose PLC control systems
Its 32-point structure makes it particularly effective in mid-to-large scale control applications requiring compact output density.
Core Engineering Advantages
High-Density 32-Point Output Design
Supports a large number of output channels in a single module, reducing rack space and simplifying system architecture.
Fast Industrial Switching Performance
With millisecond-level response, it ensures precise timing control for actuators and switching devices.
Strong Load Handling Capability
Each channel supports up to 0.5 A with short-term inrush tolerance, suitable for inductive industrial loads.
Built-In Output Protection
Integrated short-circuit and overcurrent protection improves system stability and reduces downtime risk.
Clear Diagnostic Visibility
LED indicators for each channel provide immediate status feedback for faster troubleshooting.
Flexible System Integration
Designed for seamless compatibility with GE VersaMax I/O systems and distributed architectures.
Group Isolation Design
Output grouping enhances electrical stability and helps manage field-side power distribution efficiently.
Technical FAQs
1. What is the main function of the IC200MDL742 module?
It provides 32-channel digital output control for VersaMax PLC systems.
2. How many outputs does it support?
It supports 32 discrete outputs arranged in two groups of 16.
3. What is the output type?
It uses sourcing (positive logic) DC outputs.
4. What is the operating voltage range?
It operates from 18–30 V DC, typically 24 V DC.
5. How much current does each output support?
Each output supports up to 0.5 A continuous load.
6. Can it handle inductive loads?
Yes, it includes protection for inductive switching such as solenoids and relays.
7. What is the switching speed?
Approximately 0.5 milliseconds for ON/OFF transitions.
8. How is the module powered?
It is powered through the VersaMax backplane at 5 V DC.
9. Does it include diagnostics?
Yes, each output has an LED status indicator plus module-level diagnostics.
10. What is the main benefit of this module?
It provides high-density, fast, and protected digital output control in a compact PLC format.
