Introduction – High-Precision DC Signal Acquisition for Distributed Control

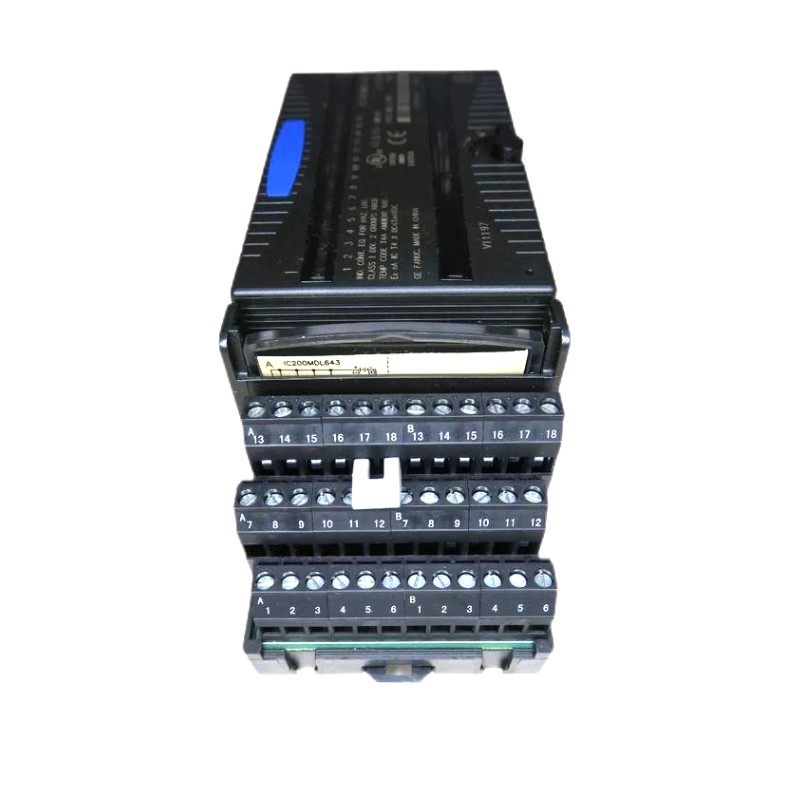

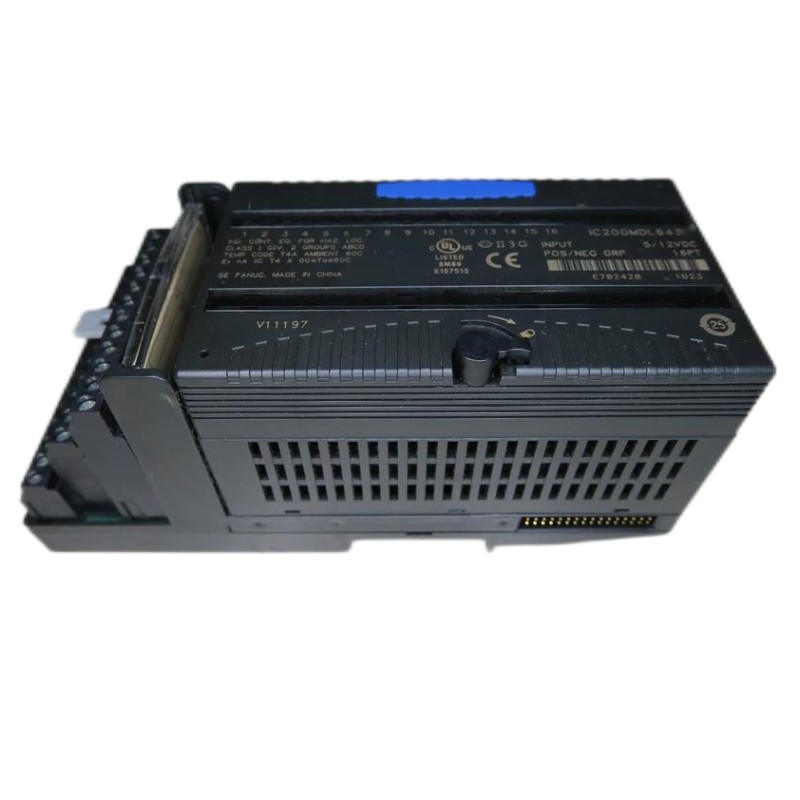

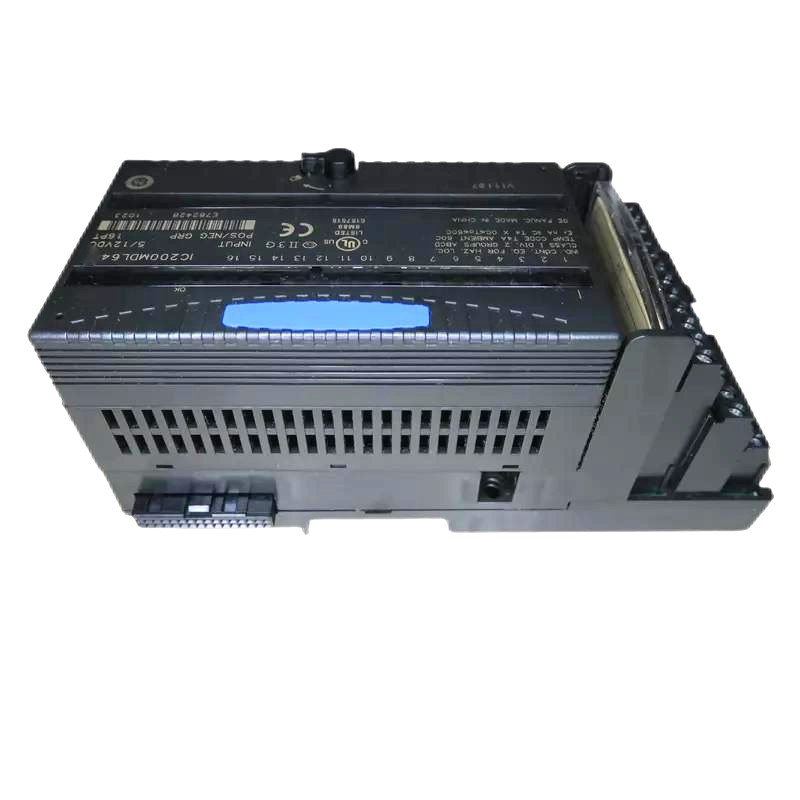

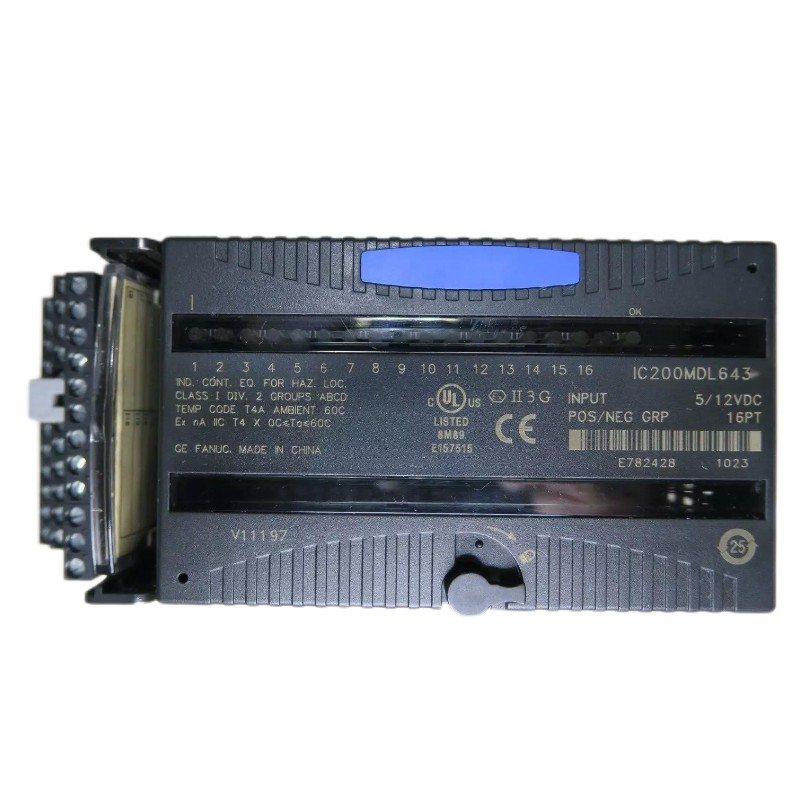

The GE IC200MDL643 VersaMax Discrete Input Module is designed for industrial automation systems within the VersaMax I/O platform, delivering reliable 16-point DC digital input handling for distributed control applications. It is widely used in environments where stable signal acquisition, electrical isolation, and flexible logic configuration are required.
This module is engineered to capture field device signals such as switches, sensors, and control contacts while maintaining strong noise immunity and consistent response performance. Its dual-group architecture and configurable logic behavior make it a practical choice for compact PLC-based systems and modular I/O expansions.
——
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | GE (Emerson / GE Fanuc legacy) |
| Model Number | IC200MDL643 |
| Product Type | Discrete Input Module |
| Platform | VersaMax I/O System |
| Input Channels | 16 points (2 groups of 8) |
| Input Voltage Range | 0–15 V DC (5/12 V DC nominal) |
| Logic Type | Positive / Negative logic configurable |
| Input Current | ~1.8 mA at 5 V DC, ~4.9 mA at 12 V DC |
| Input Impedance | ~2.4 kΩ typical |
| On-State Voltage | +4.2 to +15 V DC |
| Off-State Voltage | 0 to +2.6 V DC |
| Backplane Power | 5 V DC via rack backplane |
| Backplane Current | Approx. 70 mA max |
| Isolation | Optical isolation, 250 VAC continuous (up to 1500 VAC withstand) |
| Response Time | ~0.25 ms base response (filter selectable) |
| Filtering Options | 0 ms / 1 ms / 7 ms configurable |
| Status Indicators | Individual channel LEDs + OK LED |
| Mounting Type | VersaMax base / DIN rail system |
Applications in Industrial Automation
The IC200MDL643 module is widely applied in distributed automation systems where compact high-speed digital input acquisition is required.
Typical applications include:
-
Industrial production line monitoring
-
Machine control systems
-
Power plant auxiliary signal acquisition
-
Oil and gas field instrumentation systems
-
Water treatment control panels
-
Conveyor and material handling systems
-
Packaging automation equipment
-
Infrastructure monitoring systems
-
Remote I/O expansion nodes
-
General PLC-based control systems
Its flexible logic configuration allows adaptation to different wiring standards and field device requirements.
Key Engineering Advantages
High-Density 16-Point Input Design
Supports multiple field signals in a compact module, reducing rack space requirements and simplifying system layout.
Fast Response Performance
With a base response time of approximately 0.25 ms, it supports real-time industrial signal detection.
Flexible Logic Configuration
Supports both positive and negative logic, allowing compatibility with a wide range of field devices.
Strong Electrical Isolation
Optical isolation helps protect control systems from field-side electrical disturbances and noise.
Configurable Input Filtering
Adjustable filtering improves signal stability in environments with switching noise or contact bounce.
LED-Based Diagnostics
Individual channel indicators simplify troubleshooting and system status monitoring.
VersaMax System Compatibility
Designed specifically for GE VersaMax architecture, ensuring seamless integration and reliable operation.
Technical FAQs
1. What is the main function of the IC200MDL643 module?
It collects and processes 16-channel DC digital input signals in VersaMax PLC systems.
2. How many input points does it support?
It supports 16 inputs divided into two groups of 8.
3. What voltage range does it accept?
It supports 0–15 V DC nominal 5/12 V DC signals.
4. Does it support both logic types?
Yes, it supports both positive and negative logic configurations.
5. What is the response time of the module?
Approximately 0.25 ms, with selectable filtering options.
6. Is the module isolated?
Yes, it provides optical isolation between field inputs and system logic.
7. How is it powered?
It is powered through the VersaMax backplane (5 V DC).
8. Does it include diagnostic indicators?
Yes, each input point has an LED plus a module status LED.
9. What system is it compatible with?
It is designed for the GE VersaMax I/O platform.
10. What is the main advantage of this module?
It provides fast, flexible, and isolated high-density digital input handling for industrial automation.
