Industrial Dual-Function I/O Design for Reliable Field Control

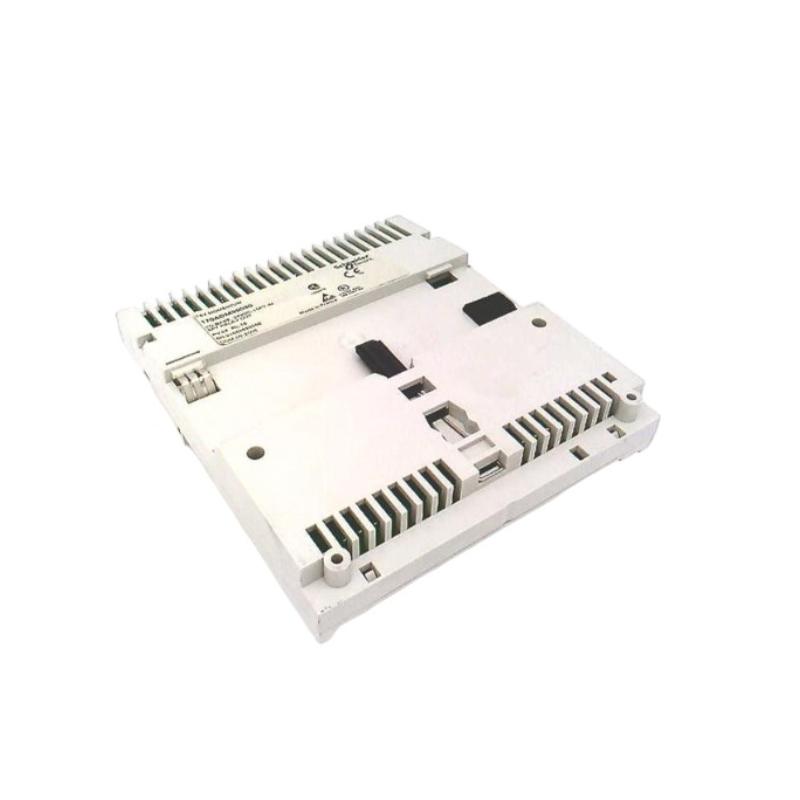

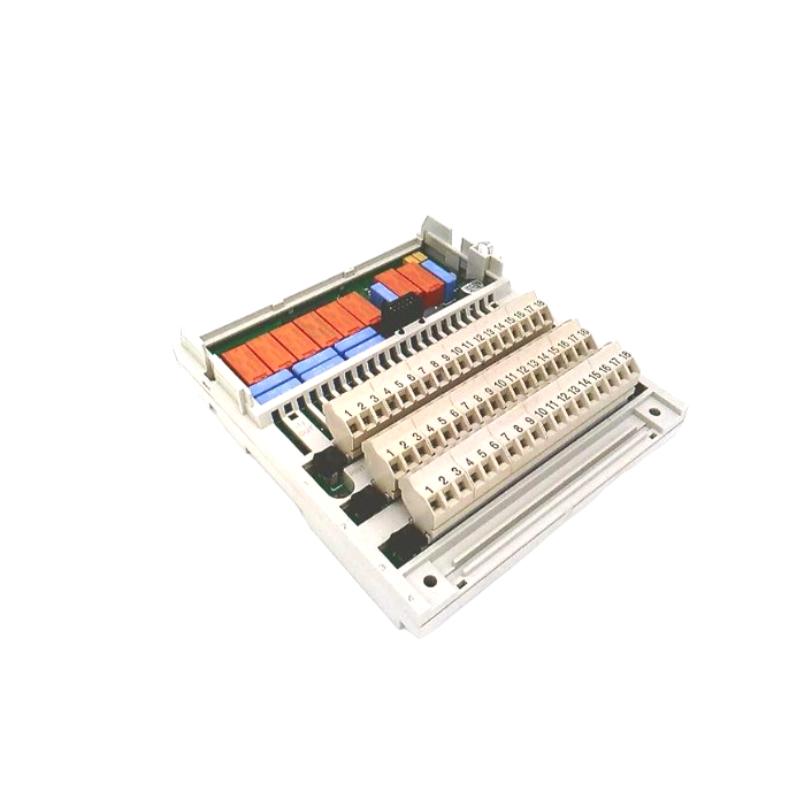

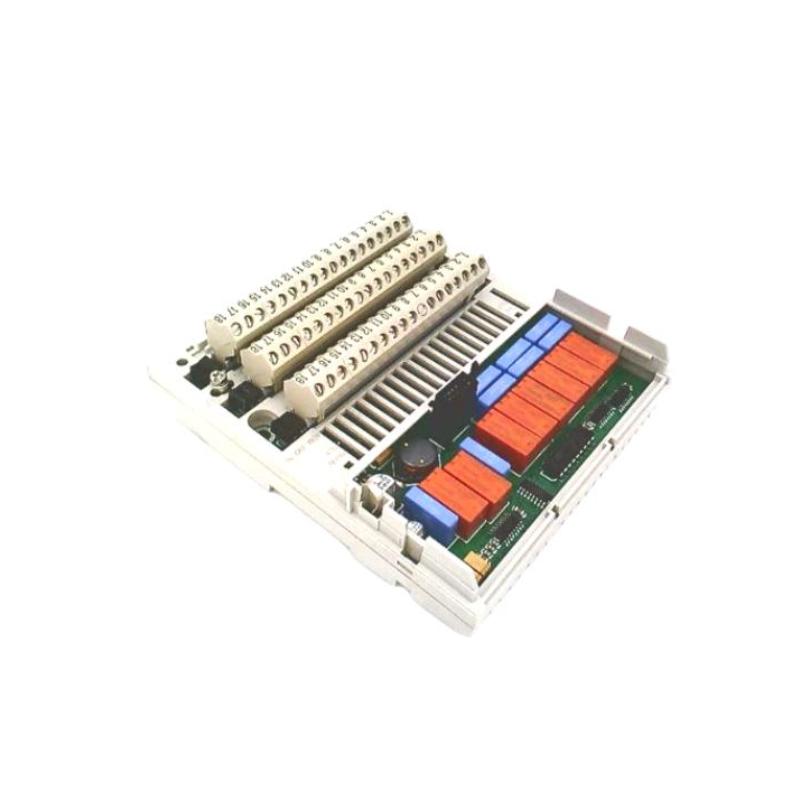

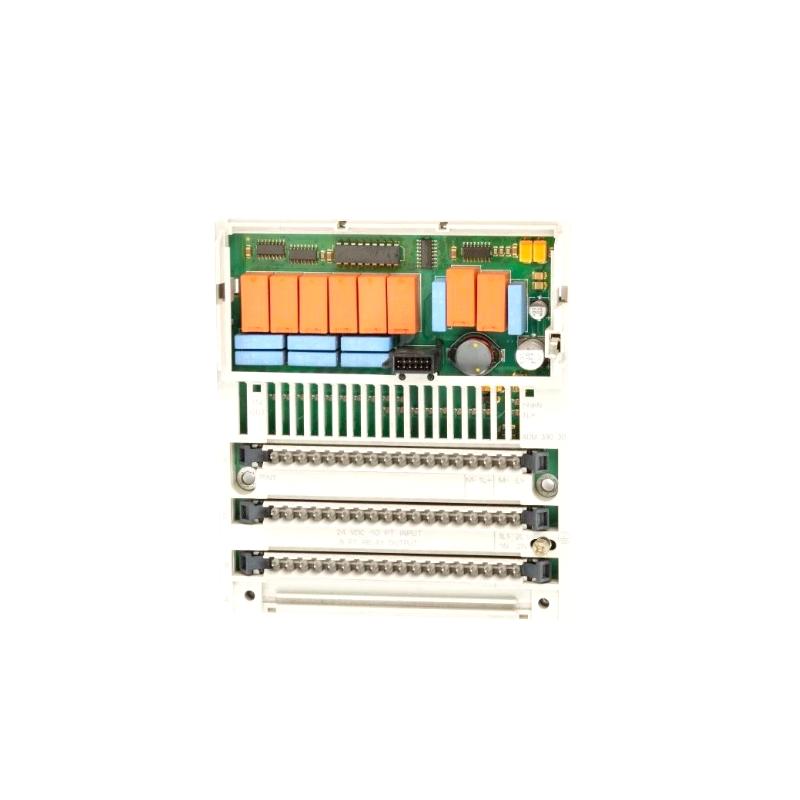

The Schneider Electric 170ADM39030C Discrete Input/Output Module is designed for Modicon Momentum automation systems, combining digital input monitoring and relay output control in a single compact module. It is built to support stable signal handling between field devices and PLC systems, making it a practical choice for distributed control environments where flexibility and reliability are essential.
With a mixed I/O structure and industrial relay-based outputs, the module is widely used in applications requiring both signal acquisition and actuator control within a unified hardware footprint. Its design supports consistent operation in demanding industrial environments while maintaining straightforward integration within Momentum rack architectures.
——
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Schneider Electric |
| Model Number | 170ADM39030C |
| Module Type | Discrete Input/Output Module |
| Platform | Modicon Momentum |
| Digital Inputs | 10 points |
| Input Type | IEC 1131-2 Type 1, positive logic |
| Input Voltage Range | 20–115 V AC/DC |
| Digital Outputs | 8 relay outputs |
| Output Type | Normally open relay |
| Output Voltage Range | 20–115 V DC/AC (application dependent) |
| Rated Supply Voltage | 24 V DC |
| Power Consumption | Approx. 5.5–8.5 W |
| Isolation | Up to 500 V AC (bus to field) |
| Response Time | Input: ~2 ms, Output: ~10 ms |
| Mounting Type | Modicon Momentum base unit |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
Applications in Industrial Systems
The 170ADM39030C module is commonly used in automation systems where both monitoring and switching functions are required within a compact I/O structure.
Typical applications include:
-
Industrial machinery control systems
-
Packaging and conveyor automation lines
-
Building automation and infrastructure systems
-
Water and wastewater treatment facilities
-
Energy distribution and monitoring systems
-
Material handling equipment
-
Light process automation systems
-
Remote I/O expansion panels
-
Utility control cabinets
-
General-purpose PLC-based automation systems
Its combined input/output design helps reduce hardware complexity while maintaining functional flexibility across control applications.
Key Engineering Advantages
Integrated Input and Relay Output Design
The module combines 10 digital inputs and 8 relay outputs, reducing the need for separate I/O hardware and simplifying cabinet architecture.
Wide Input Voltage Compatibility
Supports a broad AC/DC input range, allowing flexible connection to various field devices and sensors.
Relay-Based Output Reliability
Relay outputs provide electrical isolation and stable switching for industrial load control applications.
Compact Industrial Form Factor
Its slim design supports high-density installation in Modicon Momentum racks, optimizing panel space usage.
Stable System Integration
Designed specifically for Momentum platforms, ensuring consistent behavior within distributed control systems.
Maintenance-Friendly Structure
Clear channel grouping improves troubleshooting efficiency and reduces downtime during servicing.
Industrial-Grade Operation
Built for continuous use in automation environments with stable performance under typical industrial conditions.
Technical FAQs
1. What is the main function of the 170ADM39030C module?
It provides combined digital input monitoring and relay output control for Modicon Momentum systems.
2. How many inputs and outputs does it support?
It supports 10 digital inputs and 8 relay outputs.
3. What type of inputs does it accept?
It accepts AC or DC signals in the 20–115 V range.
4. What type of outputs does it use?
It uses normally open relay outputs.
5. Is the module suitable for industrial environments?
Yes, it is designed for industrial automation applications.
6. What system platform is it used with?
It is used with the Modicon Momentum PLC platform.
7. Does it require external power?
Yes, it operates on a 24 V DC system supply.
8. Can it handle mixed signal types?
Yes, it supports both AC/DC inputs and relay outputs.
9. What is the installation method?
It is installed on a Modicon Momentum rack base.
10. What is the main advantage of this module?
It reduces system complexity by combining input and output functions in one device.
