Compact Discrete Control Solution for Distributed Automation Systems

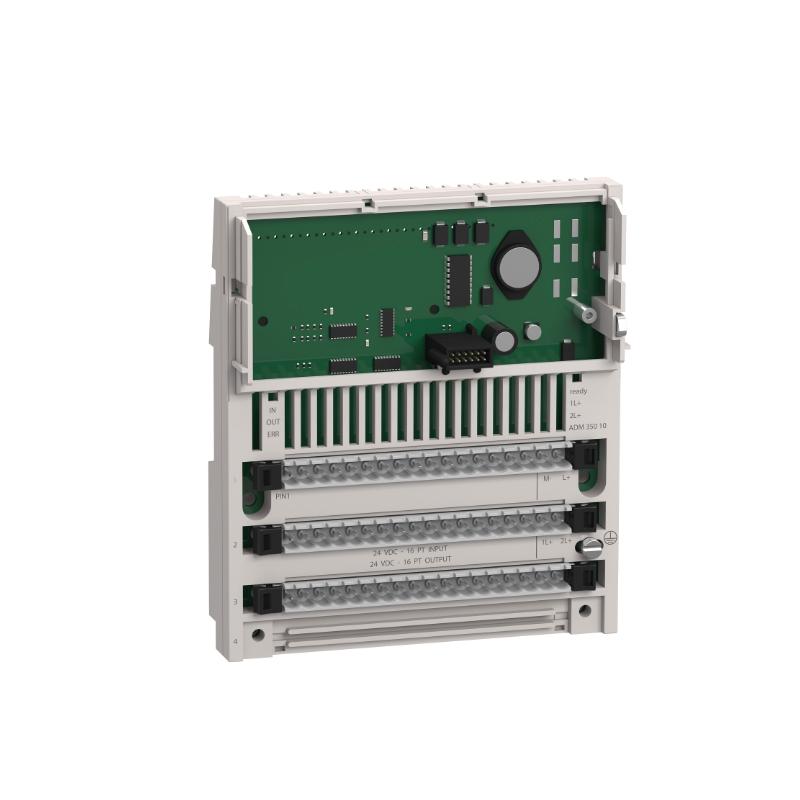

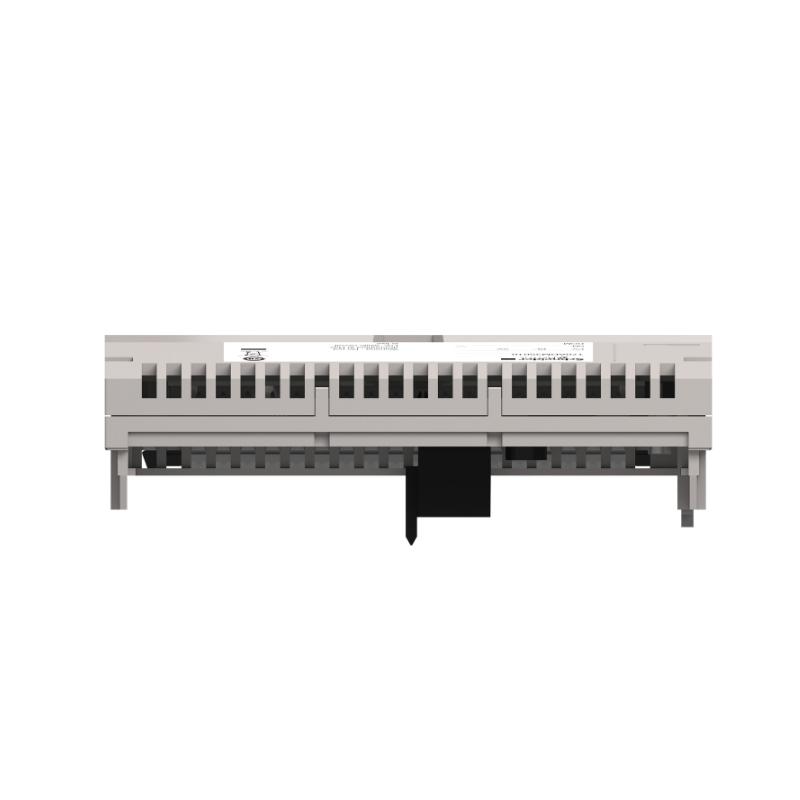

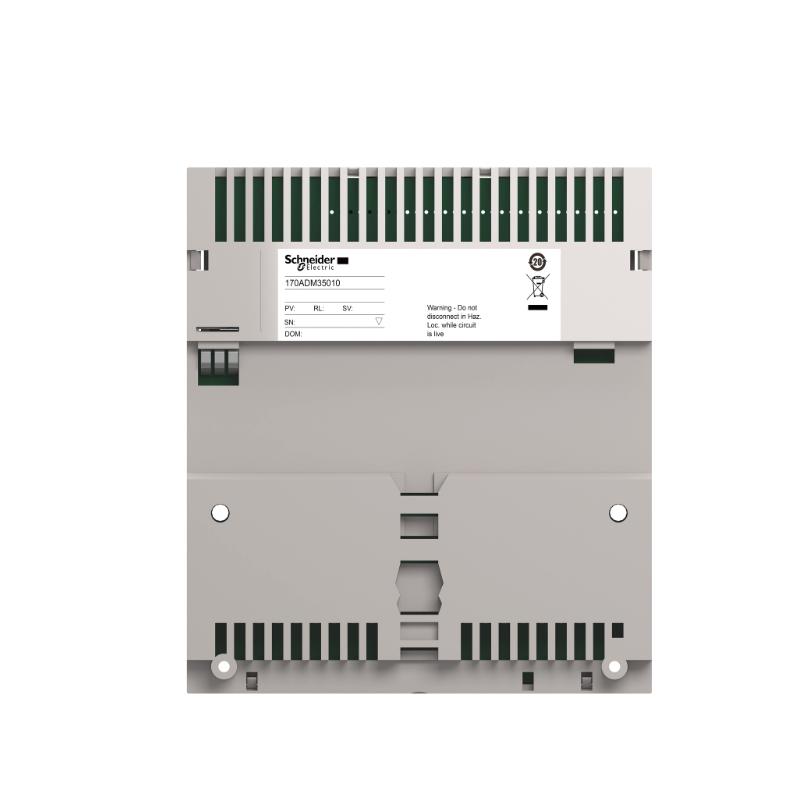

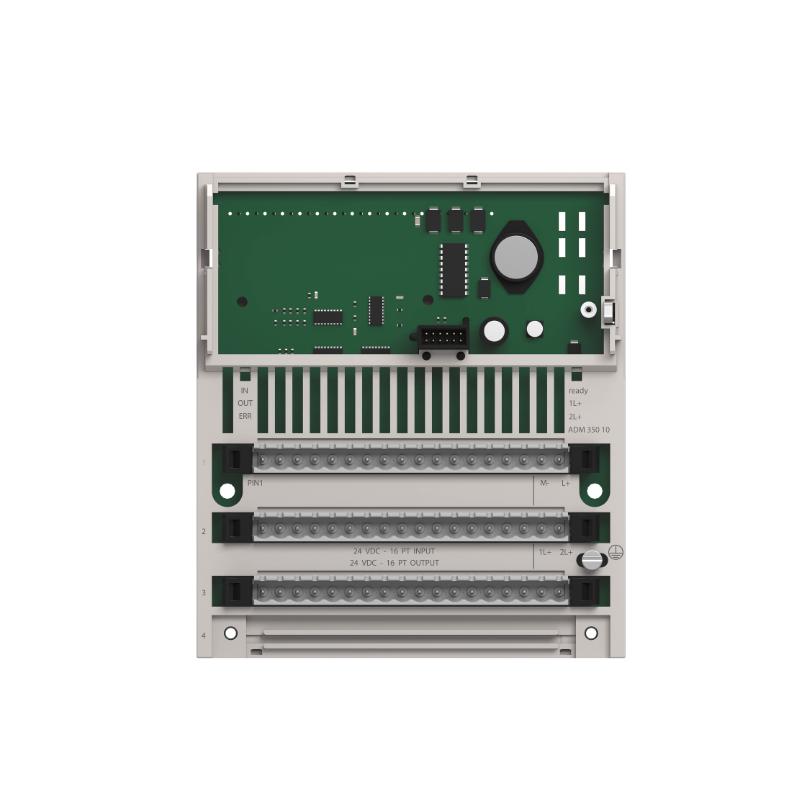

The Schneider Electric 170ADM35010 Discrete I/O Module is designed for use within the Modicon Momentum automation platform, providing a balanced combination of digital input and output handling in a compact industrial form factor. It supports reliable signal exchange between field devices and control systems, helping maintain stable operation in distributed automation architectures.
Built for industrial environments, the module integrates solid-state switching technology with structured I/O grouping, allowing efficient control of actuators and monitoring of field signals. Its design supports flexible installation and straightforward system integration, making it suitable for both new automation setups and system expansion projects.
——
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Schneider Electric |
| Model Number | 170ADM35010 |
| Product Type | Discrete I/O Module |
| Platform | Modicon Momentum |
| Input Channels | 16 Digital Inputs |
| Output Channels | 16 Digital Outputs |
| Output Type | Solid-State Switching |
| Input Voltage Range | 3–30 V DC |
| Rated Supply Voltage | 24 V DC |
| Output Logic | Positive (Sink Type) |
| Output Current Capacity | Up to 0.5 A per point (group limits apply) |
| Power Consumption | Approx. 6–8 W |
| Isolation | Up to 500 V AC (channel to bus) |
| Response Time | Sub-millisecond switching performance (model dependent) |
| Installation Type | DIN Rail / Panel Mount |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
Industrial Applications
The 170ADM35010 module is widely used in distributed control systems where compact and efficient discrete I/O handling is required.
Typical applications include:
- Manufacturing automation systems
- Packaging and material handling lines
- Industrial machine control systems
- Energy management systems
- Infrastructure automation networks
- Water treatment and utility systems
- Food and beverage production lines
- Light process automation applications
- Conveyor and assembly systems
- Remote I/O expansion architectures
Its balanced 16-input / 16-output structure supports flexible deployment in modular control environments.
Core Engineering Advantages
Balanced I/O Configuration
The module provides an equal number of inputs and outputs, supporting efficient system design without excessive hardware expansion.
Solid-State Switching Performance
Solid-state output design supports stable switching behavior and reduces mechanical wear compared to relay-based alternatives.
Compact Industrial Design
Its slim form factor allows high-density installation within control cabinets, supporting space-efficient system layouts.
Flexible Installation Options
The module supports both DIN rail and panel mounting, making it adaptable to different control panel standards.
Stable System Integration
Designed for Modicon Momentum platforms, it integrates smoothly into distributed automation architectures.
Consistent Signal Handling
Reliable input/output processing supports stable communication between field devices and controllers.
Long-Term Operational Suitability
Industrial-grade construction supports extended use in continuous operation environments.
Technical FAQs
1. What is the main function of the 170ADM35010 module?
It manages digital input and output signals between field devices and the Modicon Momentum control system.
2. How many I/O points does it support?
It supports 16 digital inputs and 16 digital outputs.
3. What type of outputs does it use?
It uses solid-state switching outputs designed for DC load control.
4. What is the operating voltage?
The module operates with a 24 V DC supply system.
5. Is it suitable for industrial environments?
Yes, it is designed for industrial automation and distributed control applications.
6. Can it be used in system expansion projects?
Yes, it is commonly used for modular I/O expansion in existing systems.
7. What mounting methods are supported?
It supports DIN rail and panel mounting configurations.
8. Does it support fast switching?
Yes, it provides fast response suitable for discrete control applications.
9. What industries commonly use this module?
Manufacturing, utilities, infrastructure, and light process industries.
10. What is the main benefit of this module?
It provides compact, reliable discrete I/O control for distributed automation systems.
