Industrial-Grade Vibration Monitoring for Regulated Applications

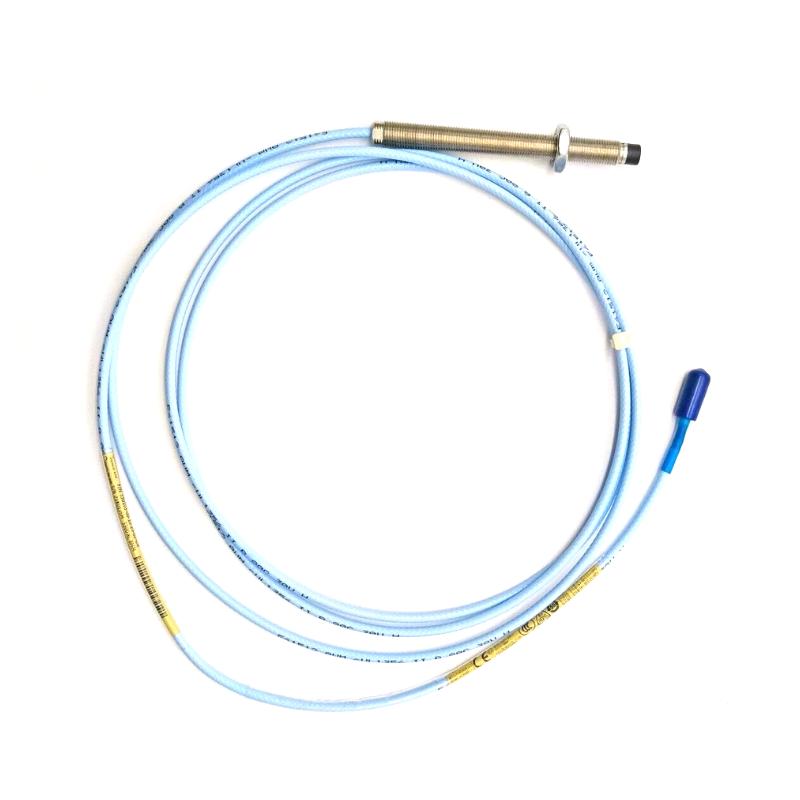

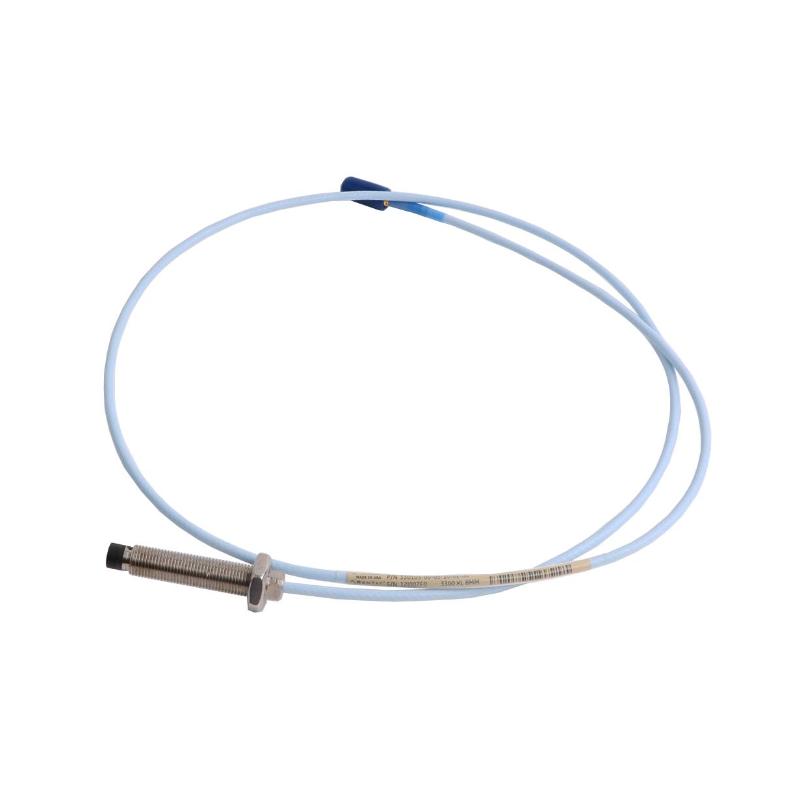

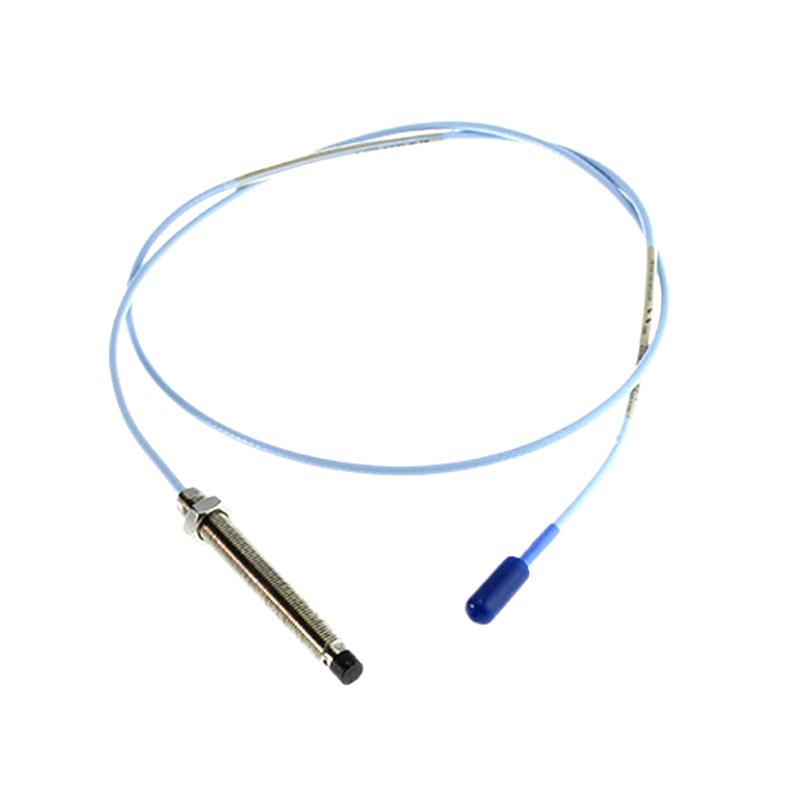

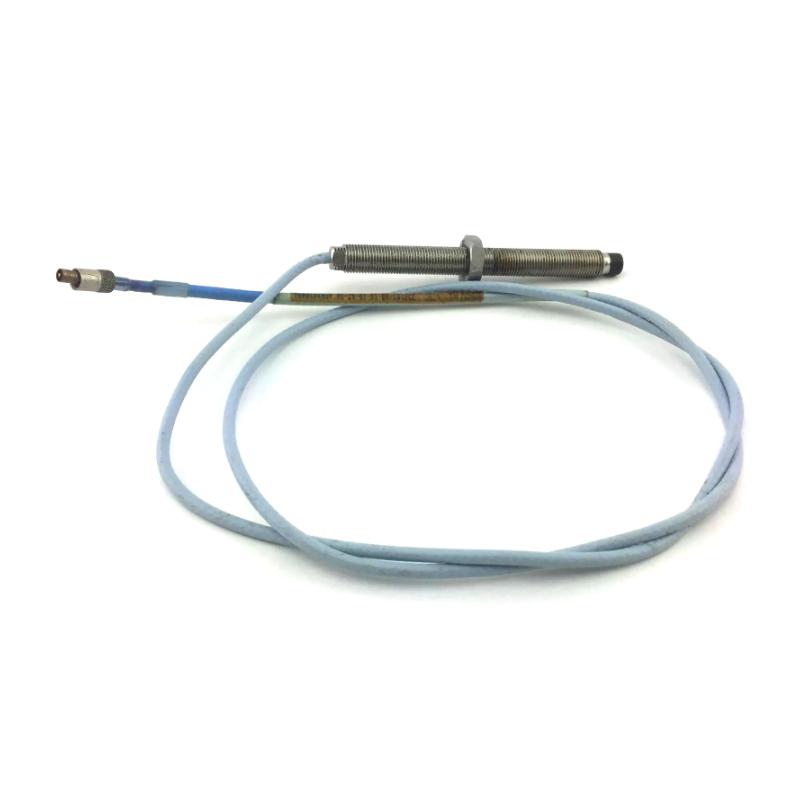

The Bently Nevada 330104-00-07-10-01-CN 3300 XL 8 mm Proximity Probe is a precision eddy-current sensing device designed for continuous monitoring of shaft vibration and radial displacement in rotating machinery. As part of the 3300 XL proximity transducer system, the “CN” suffix typically indicates a configuration intended for region-specific approvals and compliance requirements, making it suitable for internationally regulated industrial installations.
This probe is widely deployed in turbines, compressors, pumps, and other mission-critical rotating assets where accurate, stable, and long-term vibration measurement is essential for operational safety and predictive maintenance strategies. It is engineered to maintain signal integrity even in electrically noisy and mechanically demanding environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330104-00-07-10-01-CN |
| Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy Current Sensing |
| Measured Variable | Shaft vibration / radial displacement |
| Probe Diameter | 8 mm |
| Thread Standard | M10 × 1 (typical 3300 XL metric configuration) |
| System Configuration | Probe + extension cable + proximitor sensor |
| Cable Type | Low-noise industrial coaxial cable |
| Connector Type | Miniature coaxial ClickLoc connector |
| Case Length Option | ~70 mm (suffix-dependent configuration) |
| Total Cable Length | ~1.0 m system variant |
| Operating Temperature | -40°C to +85°C |
| Housing Material | Stainless steel |
| Weight | ~0.32 kg (probe-only configuration) |
| Application Environment | Industrial rotating machinery monitoring systems |
