Intelligent Flame Safeguard Control for Industrial Combustion Systems

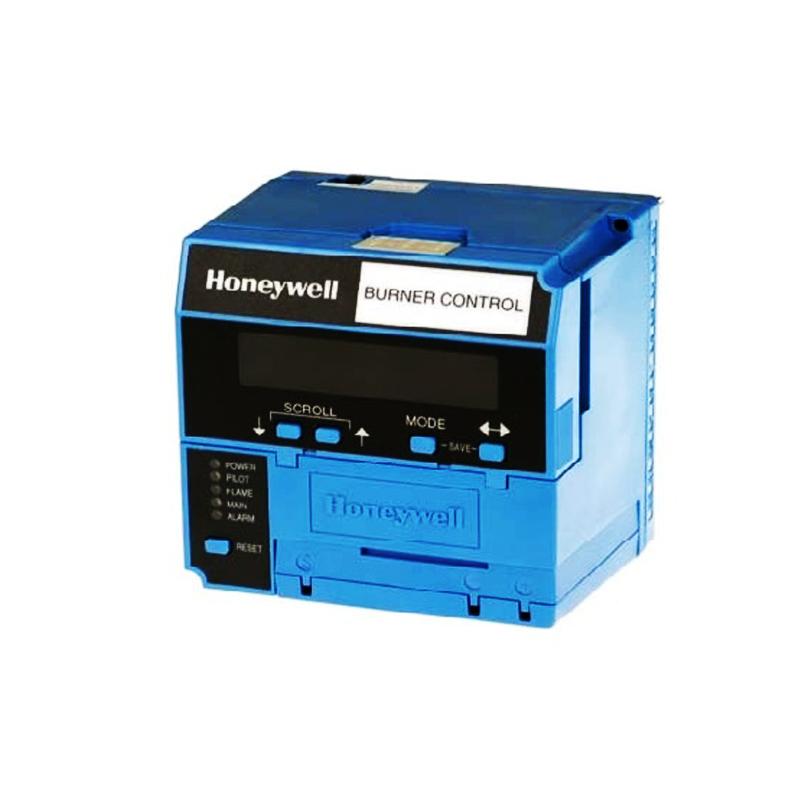

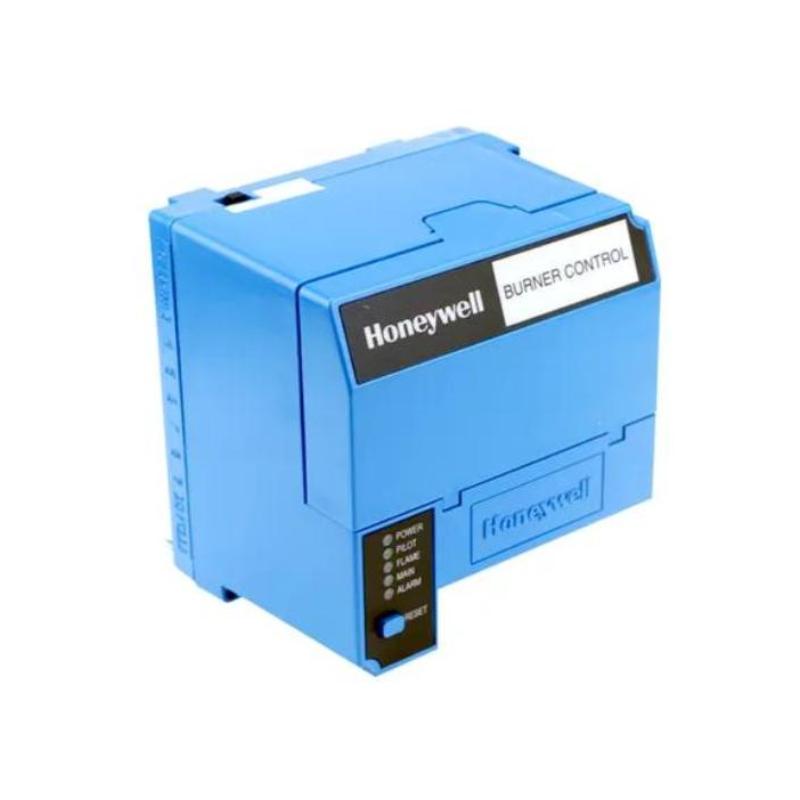

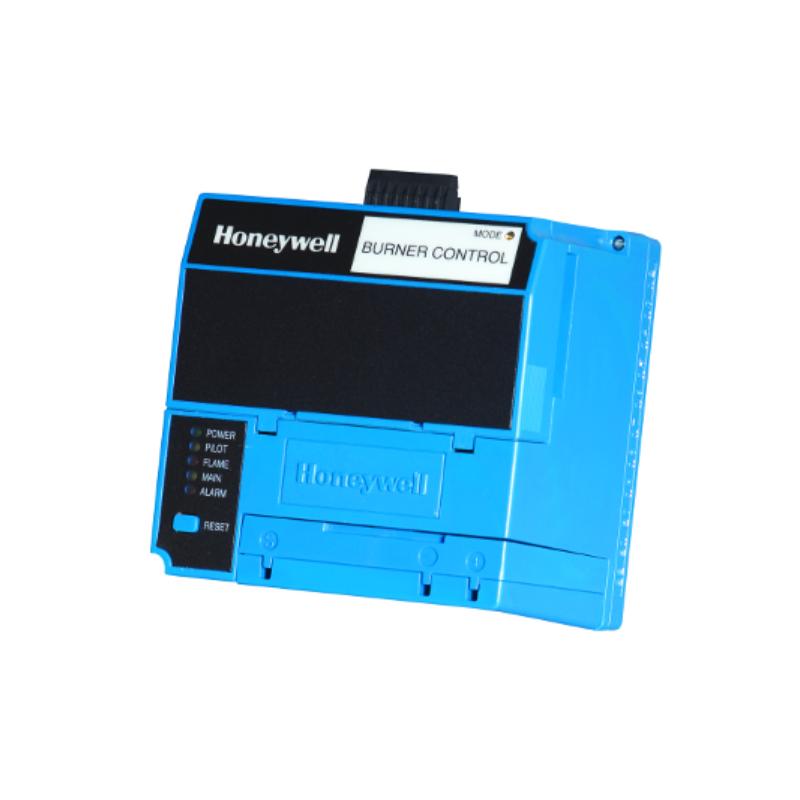

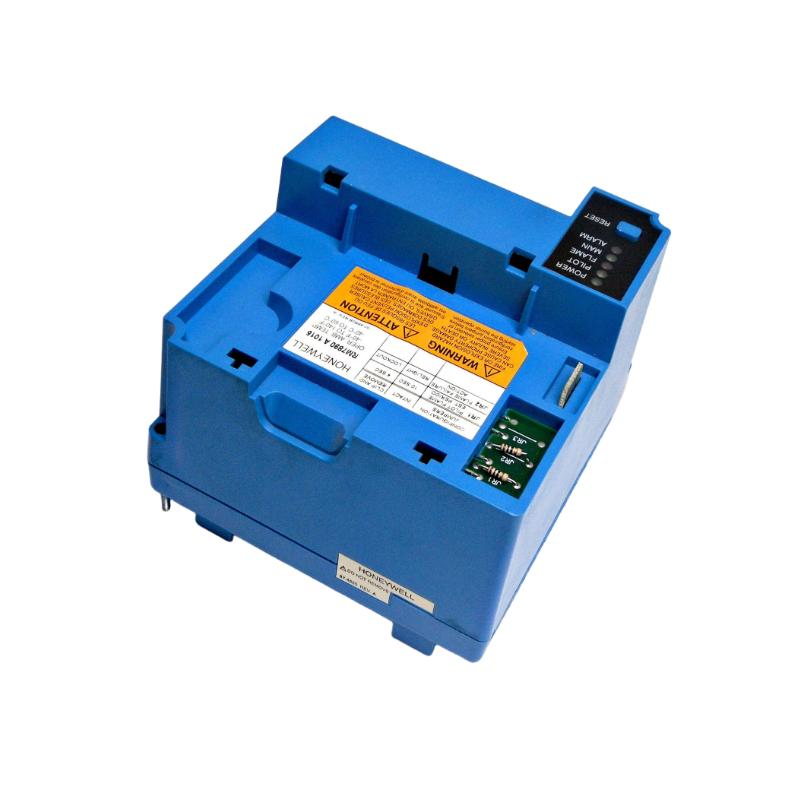

The Honeywell RM7830A1029 Burner Module is a microprocessor-based flame safeguard and burner sequencing controller engineered for industrial combustion applications. As part of the trusted Honeywell 7800 Series platform, this module delivers advanced burner management functionality with integrated flame supervision, operational diagnostics, and dependable safety monitoring for automatically fired gas, oil, and combination-fuel burners.
Designed for demanding industrial environments, the RM7830A1029 supports stable burner operation through programmable flame establishing periods, selectable airflow verification, and built-in fault history retention. Its modular architecture simplifies installation and maintenance while helping operators improve combustion efficiency, operational reliability, and system uptime in boilers, furnaces, kilns, ovens, and thermal processing systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model Number | RM7830A1029 |
| Product Type | Burner Module |
| Series | Honeywell 7800 Series |
| Control Type | Microprocessor-Based Burner Control |
| Application | Industrial Burner Management |
| Fuel Compatibility | Gas, Oil, Combination Fuel Burners |
| Voltage Rating | 120 VAC (+10% / -15%) |
| Frequency | 50/60 Hz |
| Flame Establishing Period – Pilot | 3 sec or 5 sec |
| Flame Establishing Period – Main | 3 sec, 5 sec, or Intermittent |
| Post Purge Timing | 30 Seconds |
| Pilot Type | Interrupted Pilot |
| Airflow Check | User Selectable |
| Early Spark Termination | Yes, 5 Seconds |
| Diagnostic Features | Self-Diagnostics and Fault History |
| Memory Type | Non-Volatile Memory |
| Operating Temperature | -40°C to +60°C |
| Mounting Style | Plug-In Modular Installation |
| Compatible Subbases | Q7800A / Q7800B |
| Dimensions | Approx. 127 × 127 × 133 mm |
| Weight | Approx. 0.7 kg |
