Reliable Processor Interface for Distributed Control Systems

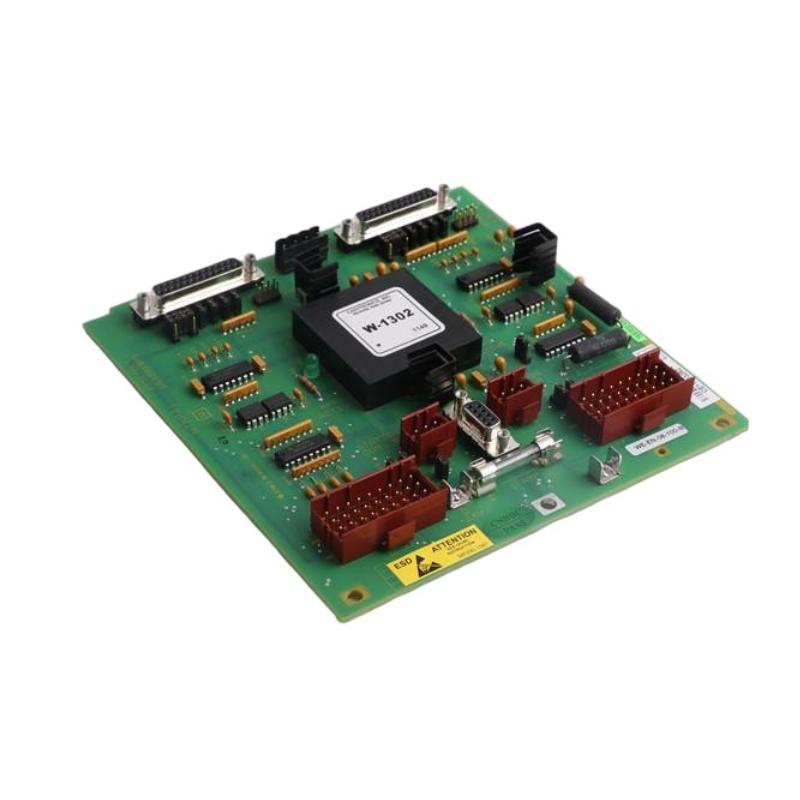

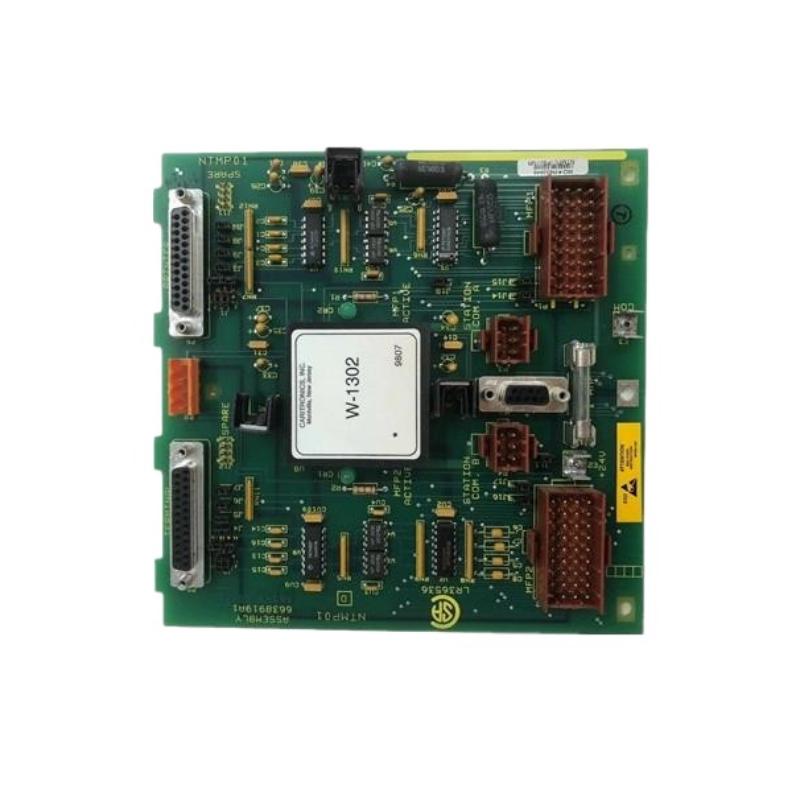

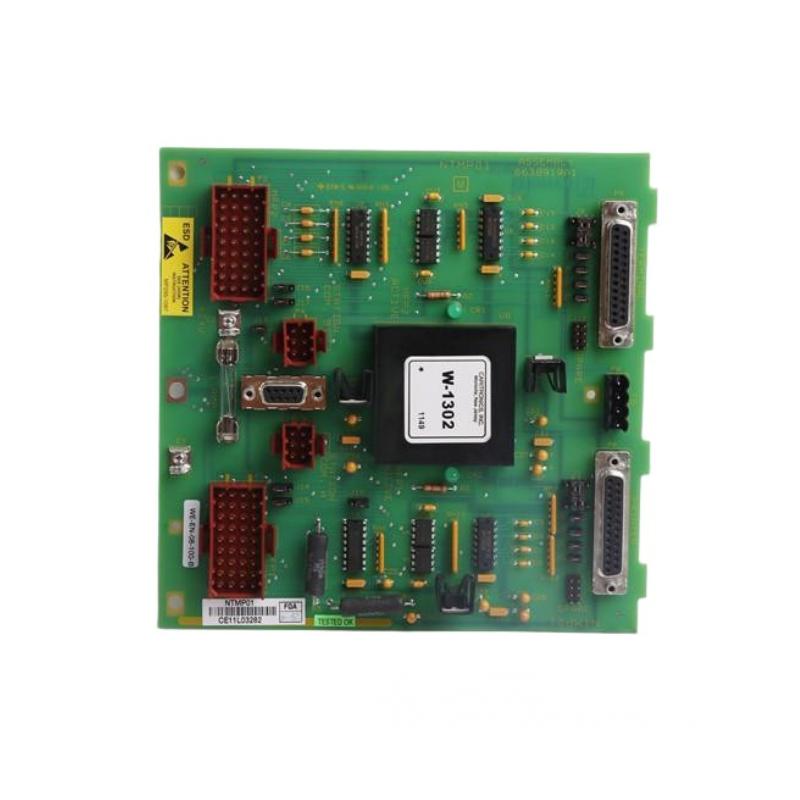

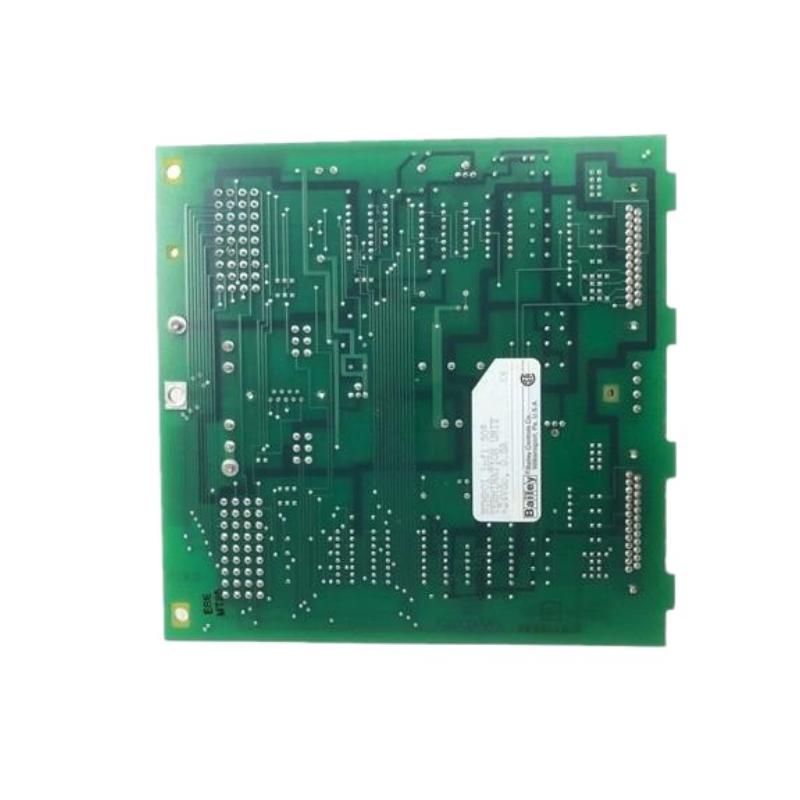

The ABB Bailey NTMP01 Multi-function Processor Terminal Unit is designed to support stable communication and structured signal termination within ABB Bailey INFI 90 and related distributed control system architectures. It serves as a dedicated interface point for multi-function processor modules, enabling organized connectivity between control processors and external communication networks.
Built for industrial automation environments, the NTMP01 focuses on consistent data handling, simplified system integration, and dependable long-term operation. Its compact design and robust electrical architecture make it suitable for continuous-duty applications in process control systems where communication accuracy and operational stability are essential. The module is widely used in legacy ABB Bailey infrastructures to support efficient processor interfacing and maintain smooth system coordination across industrial operations.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB Bailey |
| Model Number | NTMP01 |
| Product Type | Multi-function Processor Terminal Unit |
| System Compatibility | ABB Bailey INFI 90 / Net 90 |
| Communication Interface | Dual RS-232-C Ports / RS-485 (configurable option) |
| Control Link | Station Serial Communication Link |
| Mounting Type | Field Termination Panel Mount |
| Signal Function | Processor Communication Interface |
| Operating Voltage | 24 VDC (system dependent) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 90% Non-Condensing |
| Dimensions | 180 × 45 × 165 mm |
| Weight | Approx. 0.3 kg |
| Installation Environment | Industrial Control Cabinets |
| Application Category | Distributed Control System Processor Interface |
