Introduction

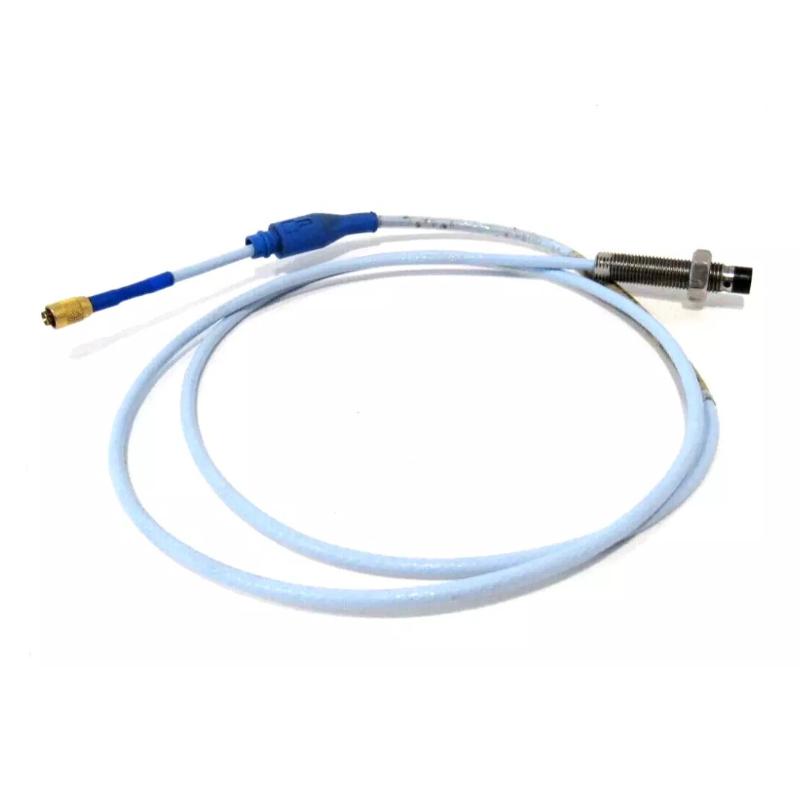

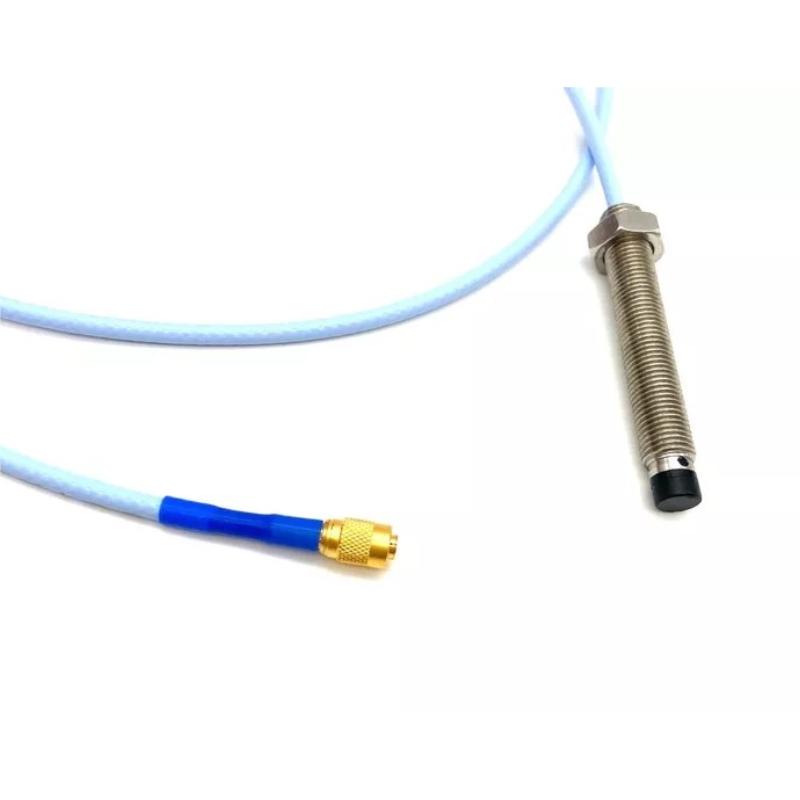

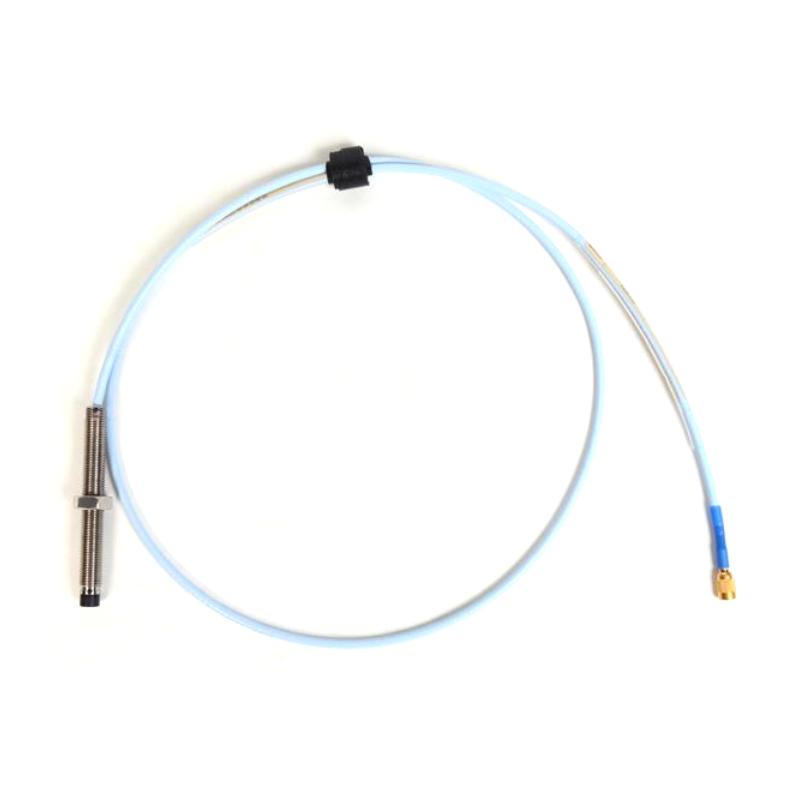

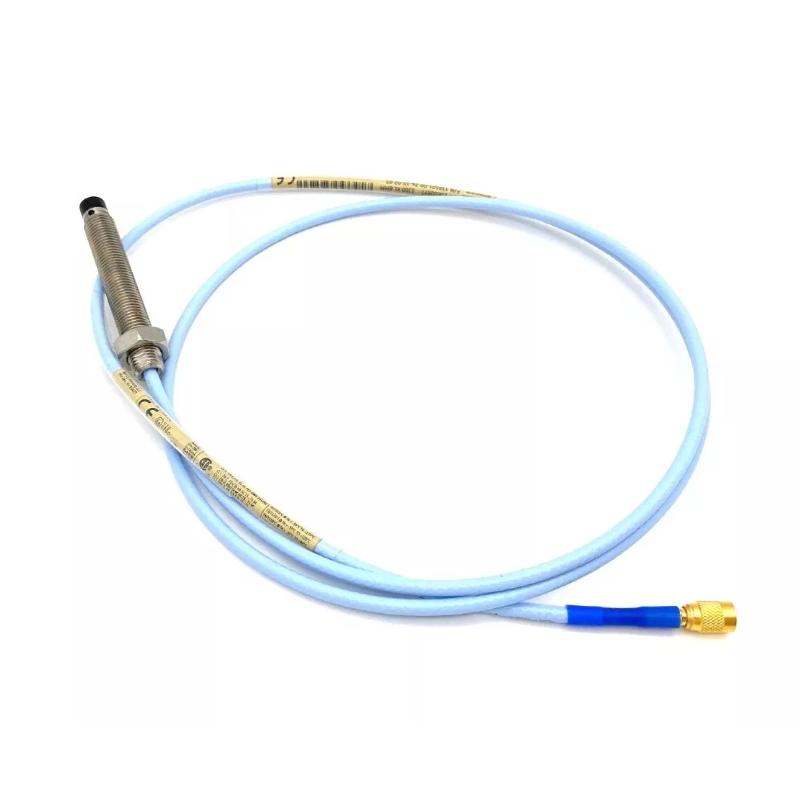

The Bently Nevada 330103-08-13-10-02-CN 3300 XL 8 mm Proximity Probe is a high-reliability eddy current sensor designed for precision measurement of shaft vibration and radial displacement in rotating machinery. As part of the 3300 XL proximity transducer system, it is engineered to deliver stable, noise-resistant performance in demanding industrial environments such as turbines, compressors, and heavy-duty rotating equipment.
The “CN” suffix indicates a configuration aligned with China regulatory and agency approval requirements, making this model suitable for installations where regional compliance and certification are required while maintaining full 3300 XL system compatibility.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | 3300 XL 8 mm |
| Model | 330103-08-13-10-02-CN |
| Probe Type | Eddy current proximity probe |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 |
| Unthreaded Length Option | 08 (approx. 80 mm) |
| Case Length Option | 13 (approx. 130 mm) |
| Total Cable Length | 1.0 m (system standard) |
| Connector Type | Miniature coaxial ClickLoc™ |
| Cable Type | Low-noise triaxial coaxial cable |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Body Material | Stainless steel (AISI 303/304) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Sensitivity | ~7.87 V/mm (system dependent) |
| Linear Measurement Range | 0.25 mm – 2.0 mm |
| Weight | Approx. 0.323 kg |
