Precision Shaft Monitoring for High-Reliability Industrial Assets

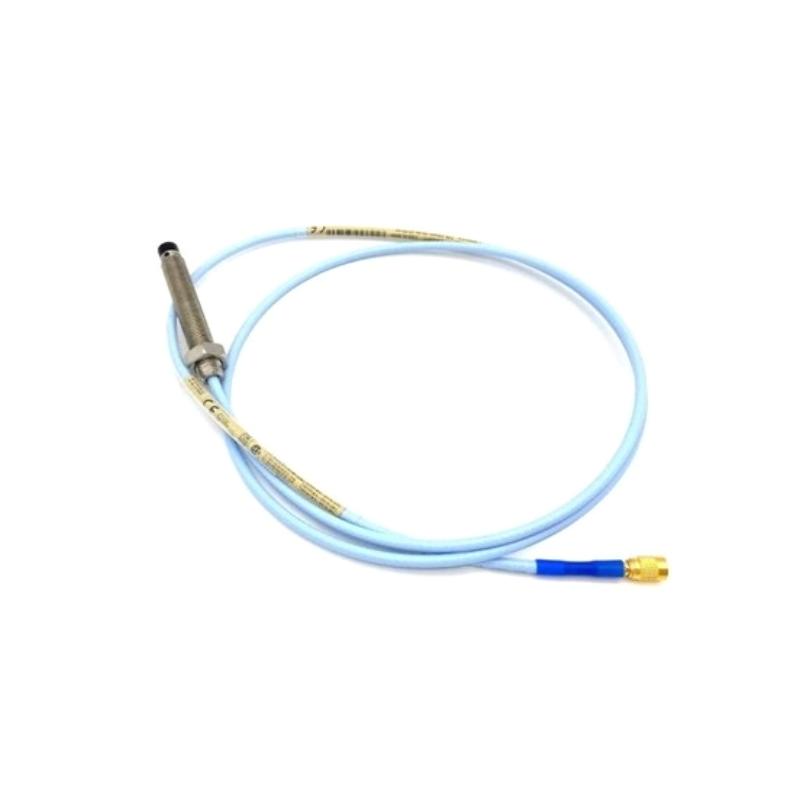

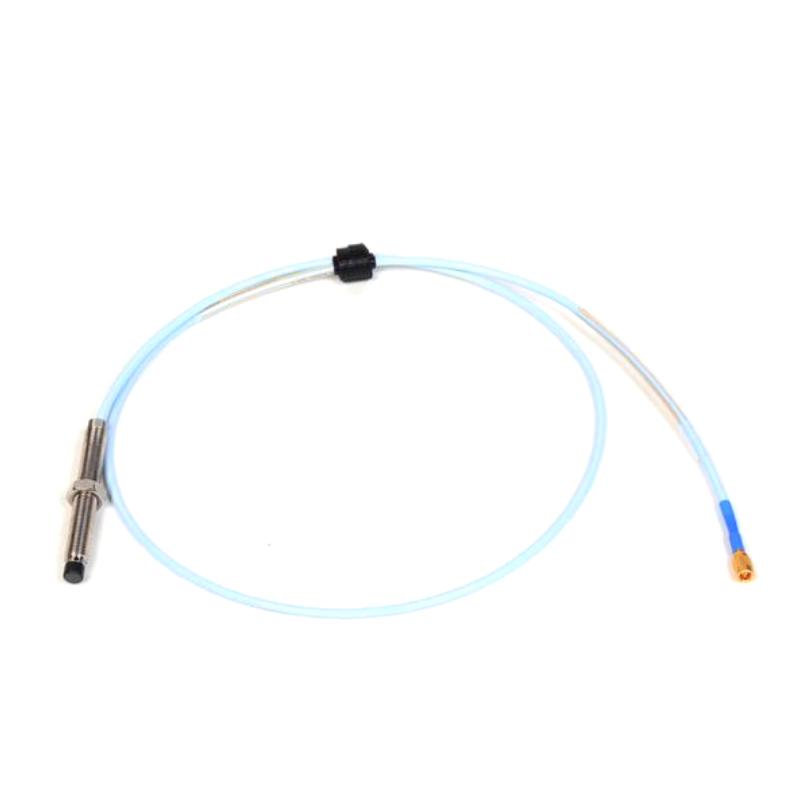

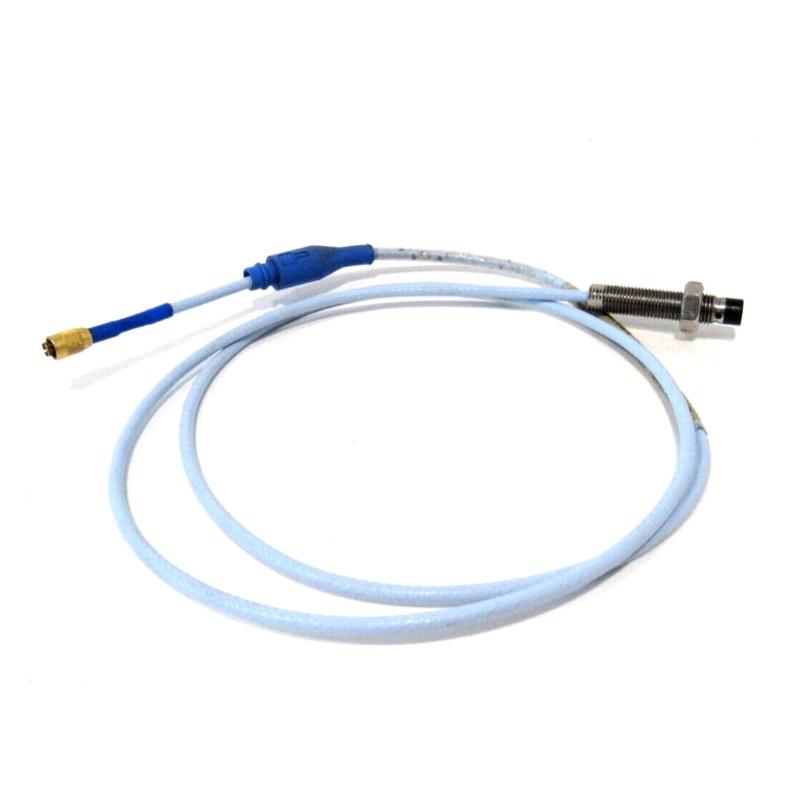

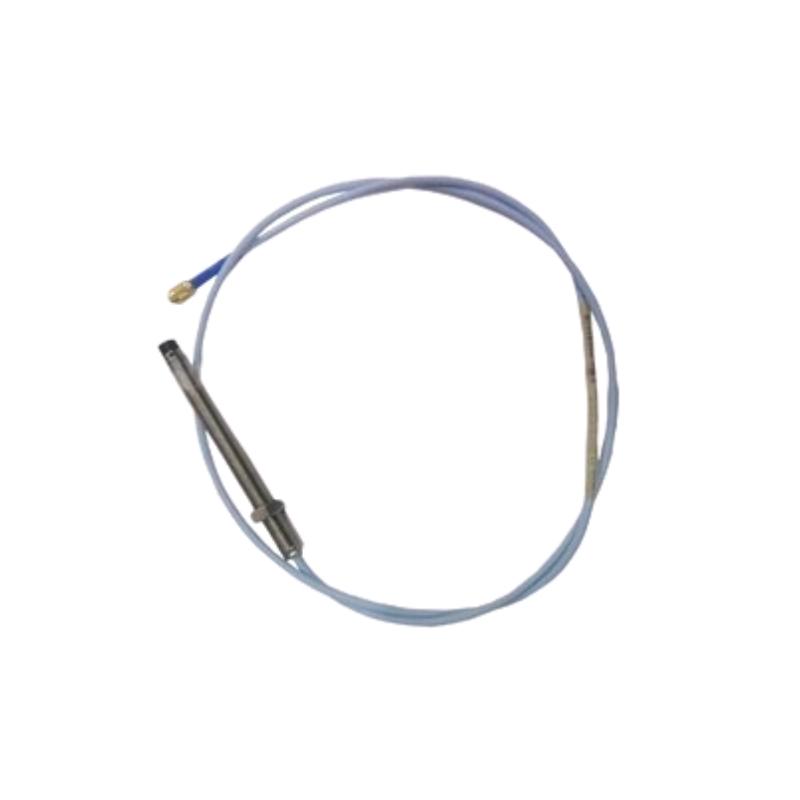

The Bently Nevada 330103-06-10-10-02-00 3300 XL 8 mm Proximity Probe is designed for accurate, stable, and continuous monitoring of shaft vibration and displacement in rotating machinery systems. Built on the proven 3300 XL platform, this probe uses advanced eddy current sensing technology to deliver consistent measurement performance in demanding industrial environments.
It is widely applied in condition monitoring systems where early detection of mechanical variation is essential for improving equipment reliability and operational continuity. The compact 8 mm probe structure and rugged stainless-steel housing ensure dependable performance across long-term industrial use cases, including power generation, petrochemical plants, and heavy machinery operations.
Technical Specifications
| Specification Item | Details |
|---|
| Manufacturer | Bently Nevada |
| Series | 3300 XL |
| Model | 330103-06-10-10-02-00 |
| Probe Type | 8 mm Proximity Probe |
| Measurement Method | Eddy Current (non-contact) |
| Probe Diameter | 8 mm |
| Unthreaded Length | 60 mm |
| Overall Case Length | 100 mm |
| Total System Length | 1.0 m |
| Thread Type | M10 × 1 |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | Standard industrial cable |
| Linear Measurement Range | Up to approx. 2 mm |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -40°C to +177°C (typical for 3300 XL family) |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| System Compatibility | 3300 XL Proximitor Sensor systems |
| Installation | Non-contact vibration / position measurement |
Industrial Applications
The 330103-06-10-10-02-00 probe is used in machinery protection systems where continuous vibration and shaft position monitoring are required.
Typical applications include:
-
Steam and gas turbines
-
Centrifugal compressors
-
Industrial pumps and pump skids
-
Electric motors and generators
-
Gearbox monitoring systems
-
Petrochemical processing equipment
-
Power plant rotating machinery
-
Heavy manufacturing systems
-
Offshore and marine rotating assets
-
Predictive maintenance platforms
Its non-contact measurement method reduces mechanical wear while maintaining high accuracy in dynamic operating conditions.
Product Advantages
Stable Measurement Performance
Provides reliable vibration and displacement signals even under variable industrial operating conditions.
Industrial-Grade Durability
Designed with stainless steel housing and robust cable construction for long service life.
Maintenance Optimization Support
Helps detect early-stage mechanical changes, supporting structured maintenance planning.
Flexible Installation Design
Compact 8 mm probe size allows use in space-constrained machinery setups.
System Compatibility
Fully compatible with Bently Nevada 3300 XL monitoring and protection systems.
Long-Term Operational Reliability
Engineered for continuous-duty industrial environments requiring stable signal output.
Technical FAQs
1. What is the function of this proximity probe?
It measures shaft vibration, displacement, and relative position in rotating machinery.
2. What sensing technology is used?
It uses eddy current non-contact sensing technology.
3. Which system is it compatible with?
It is compatible with Bently Nevada 3300 XL monitoring systems.
4. What does 8 mm refer to?
It refers to the probe tip diameter used for measurement.
5. Is it suitable for continuous operation?
Yes, it is designed for long-term industrial monitoring use.
6. What is the operating temperature range?
Typically -40°C to +177°C depending on system configuration.
7. What materials are used?
Stainless steel housing with PPS probe tip material.
8. Can it be used in predictive maintenance systems?
Yes, it is widely used in condition monitoring applications.
9. What connector type does it use?
It uses a miniature coaxial ClickLoc connector.
10. What industries use this probe?
Power generation, petrochemical, manufacturing, and heavy industrial sectors.
