Advanced Machinery Protection for Continuous Industrial Operations

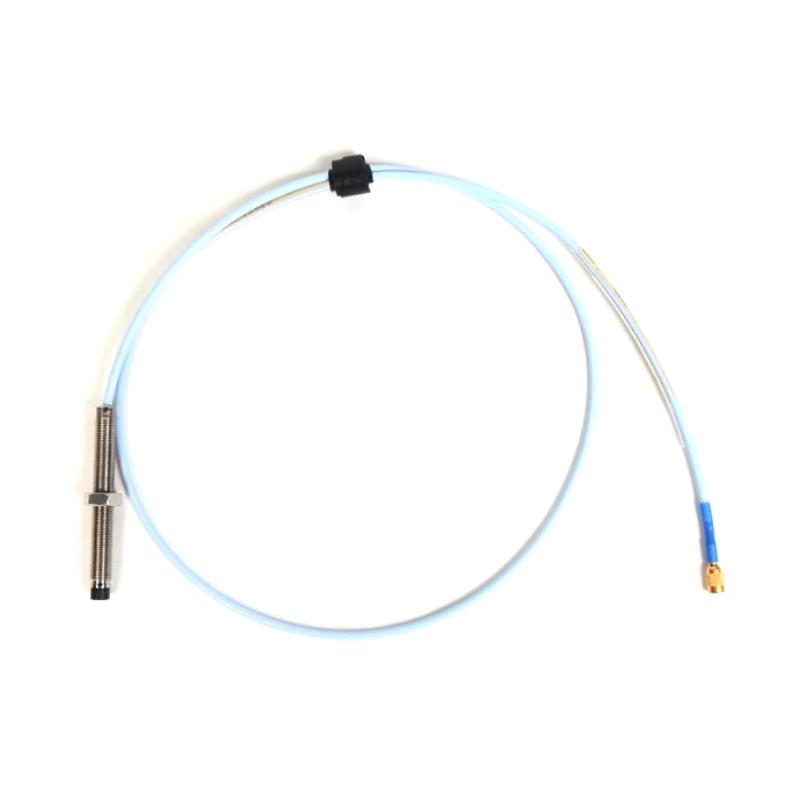

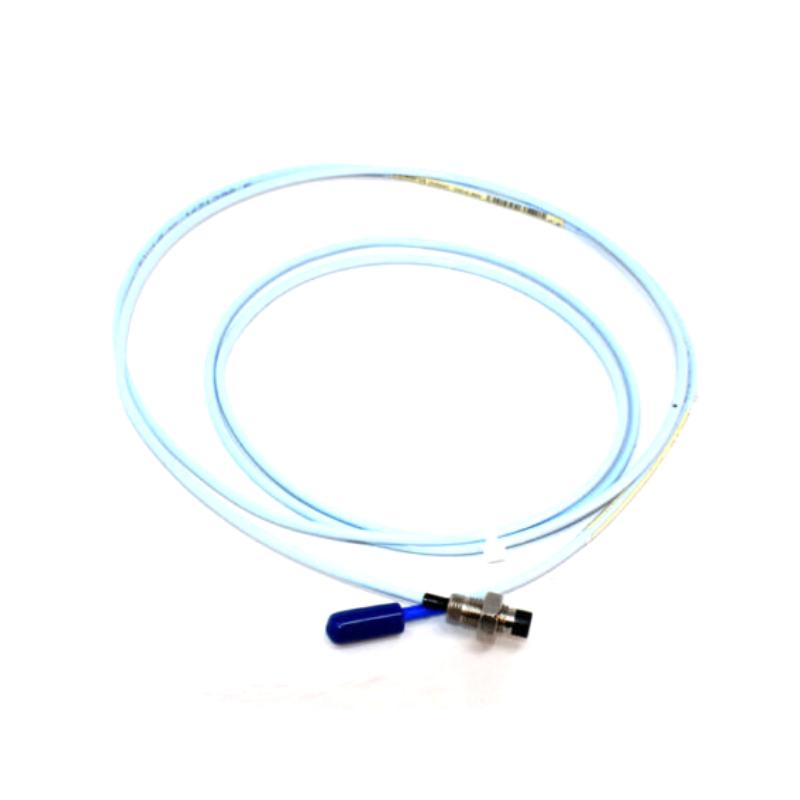

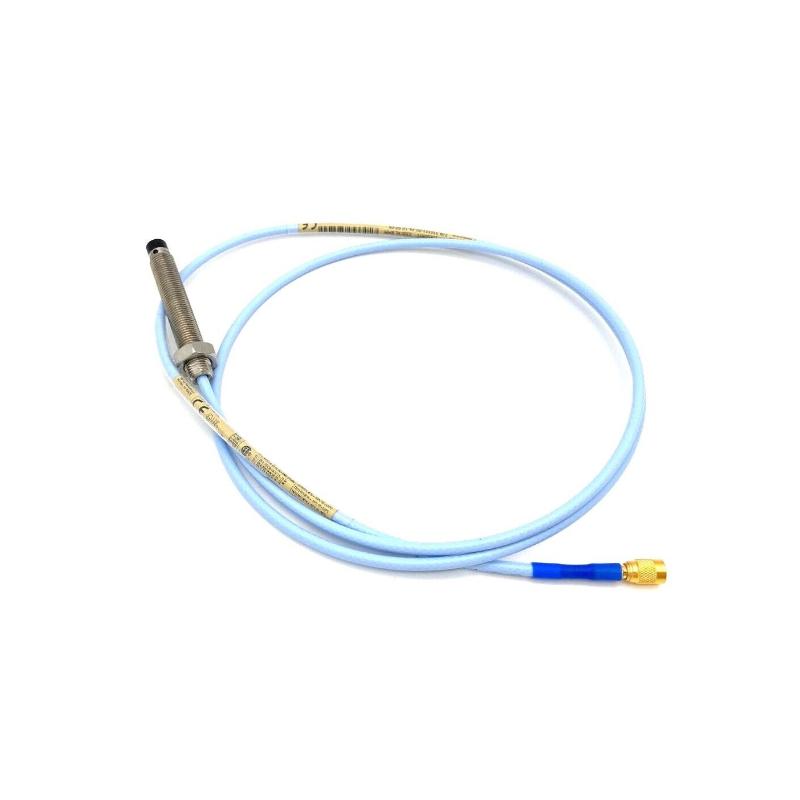

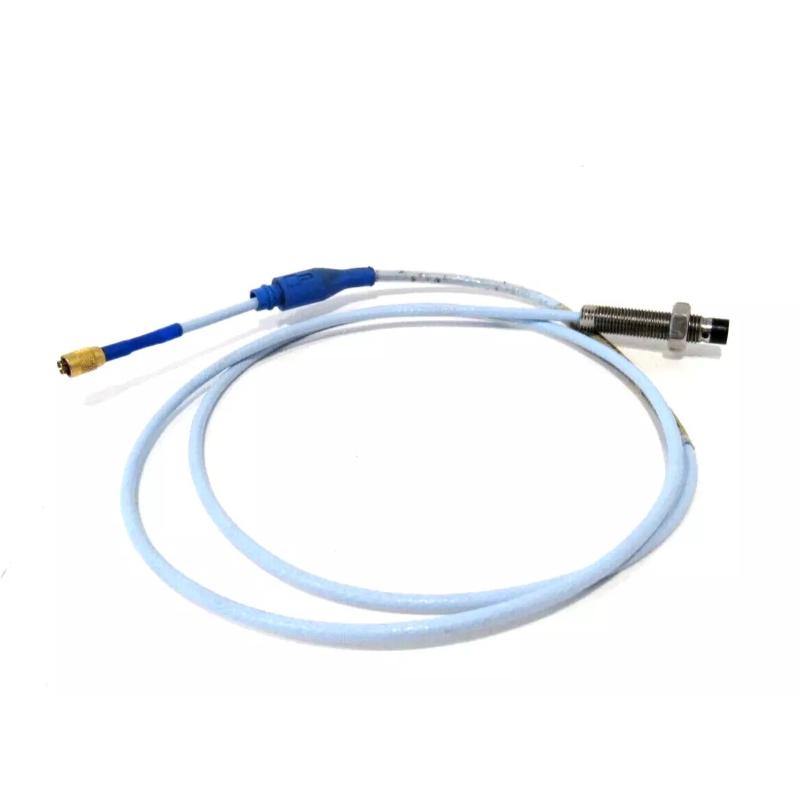

The Bently Nevada 330103-05-15-10-02-00 3300 XL 8 mm Proximity Probe is designed for accurate shaft vibration and displacement monitoring in high-performance rotating equipment. Engineered with advanced eddy current sensing technology, this industrial-grade probe provides stable signal transmission, dependable long-term operation, and precise measurement performance across demanding industrial applications.
As part of the trusted 3300 XL transducer family, this model supports predictive maintenance strategies and continuous machinery condition monitoring programs. Its robust stainless steel construction, compact probe configuration, and reliable sensing capability make it an ideal solution for critical equipment protection systems in power generation, manufacturing, and process industries.
Product Specifications & Technical Configuration
| Technical Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-05-15-10-02-00 |
| Product Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Sensing Technology | Eddy Current |
| Probe Diameter | 8 mm |
| Unthreaded Length | 50 mm |
| Overall Case Length | 150 mm |
| Total System Length | 1.0 meter |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Configuration | Industrial standard cable |
| Housing Material | Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 2 mm |
| Frequency Response | DC to 10 kHz |
| Thread Specification | M10 × 1 |
| Operating Temperature | -35°C to +177°C |
| Installation Type | Non-contact vibration monitoring |
| Compatible Systems | Bently Nevada 3300 XL Monitoring Systems |
| Manufacturing Origin | USA |
Industrial Application Scenarios
The 330103-05-15-10-02-00 proximity probe is widely implemented in industrial machinery monitoring systems where continuous vibration analysis and shaft position monitoring are essential for operational reliability.
Typical application areas include:
-
Steam turbine monitoring systems
-
Gas turbine protection equipment
-
Compressor vibration analysis
-
Industrial pump monitoring
-
Electric motor condition supervision
-
Gearbox performance diagnostics
-
Petrochemical processing facilities
-
Power generation plants
-
Manufacturing automation systems
-
Continuous equipment health monitoring
Its non-contact sensing structure helps reduce mechanical wear while maintaining highly accurate monitoring performance in continuous-duty industrial environments.
Product Advantages & Operational Benefits
High-Precision Signal Performance
The advanced sensing design delivers stable and repeatable vibration measurements for critical rotating machinery.
Rugged Industrial Construction
Built with stainless steel housing and durable cable materials for dependable long-term operation.
Optimized Predictive Maintenance Support
Helps maintenance teams identify equipment performance changes early to improve maintenance scheduling and operational efficiency.
Flexible Installation Capability
The compact 8 mm probe structure and extended body length support installation in restricted industrial environments.
Excellent Monitoring System Compatibility
Fully compatible with Bently Nevada 3300 XL monitoring platforms and associated machinery protection systems.
Reliable Continuous Operation
Engineered for demanding industrial applications requiring long-term measurement stability and dependable monitoring performance.
Technical FAQs
1. What is the main function of this proximity probe?
It measures shaft vibration, displacement, and relative position in rotating industrial machinery.
2. Which monitoring systems are compatible with this model?
The probe is compatible with Bently Nevada 3300 XL monitoring systems.
3. What sensing technology is used?
The model uses non-contact eddy current sensing technology.
4. What does the 8 mm specification indicate?
It refers to the diameter of the probe tip used for vibration monitoring applications.
5. Is this probe suitable for continuous industrial operation?
Yes. It is designed for long-term continuous monitoring applications in industrial environments.
6. What is the operating temperature range?
The probe supports operation from -35°C to +177°C.
7. What materials are used in the probe construction?
The housing is made from stainless steel, while the probe tip uses PPS material.
8. Can this model support predictive maintenance systems?
Yes. It is commonly integrated into machinery health monitoring and reliability programs.
9. What connector type does the probe use?
The probe includes a miniature coaxial ClickLoc connector for secure installation.
10. Which industries commonly use this product?
Power generation, petrochemical, manufacturing, and heavy industrial sectors commonly deploy this model.
