Precision Monitoring Solution for Compact Industrial Installations

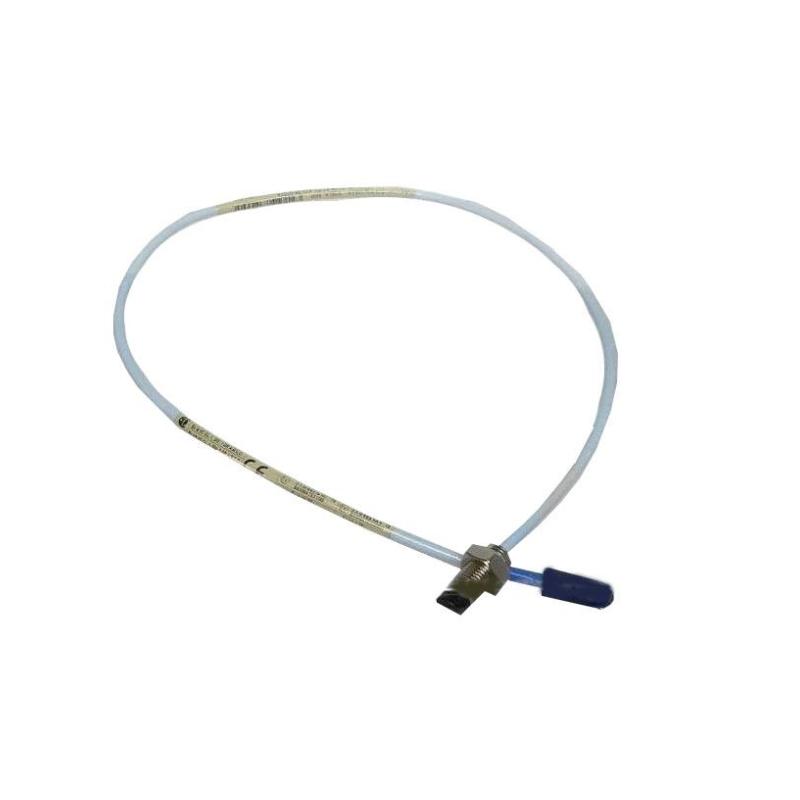

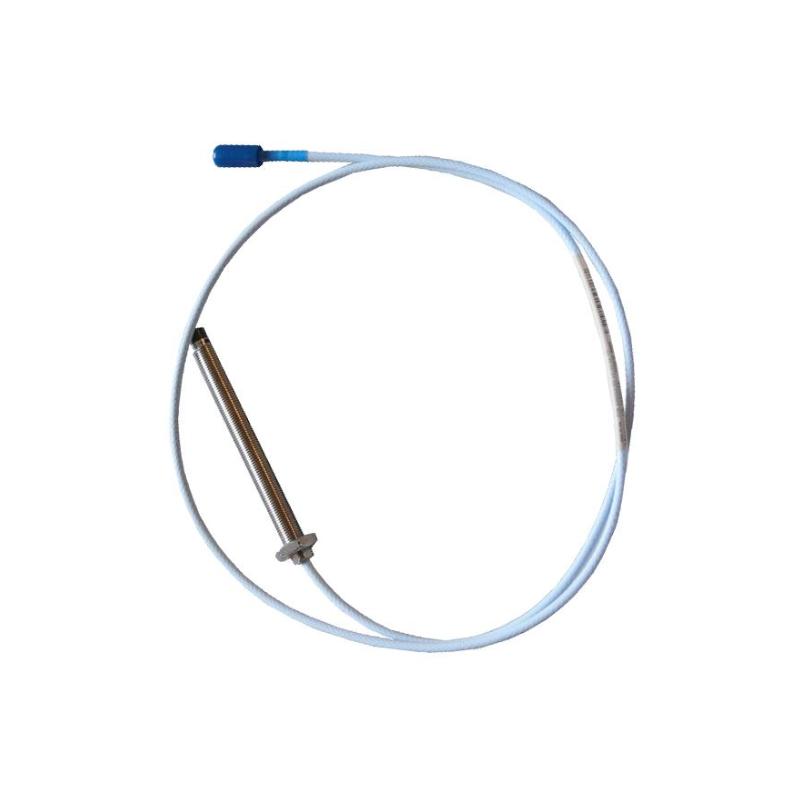

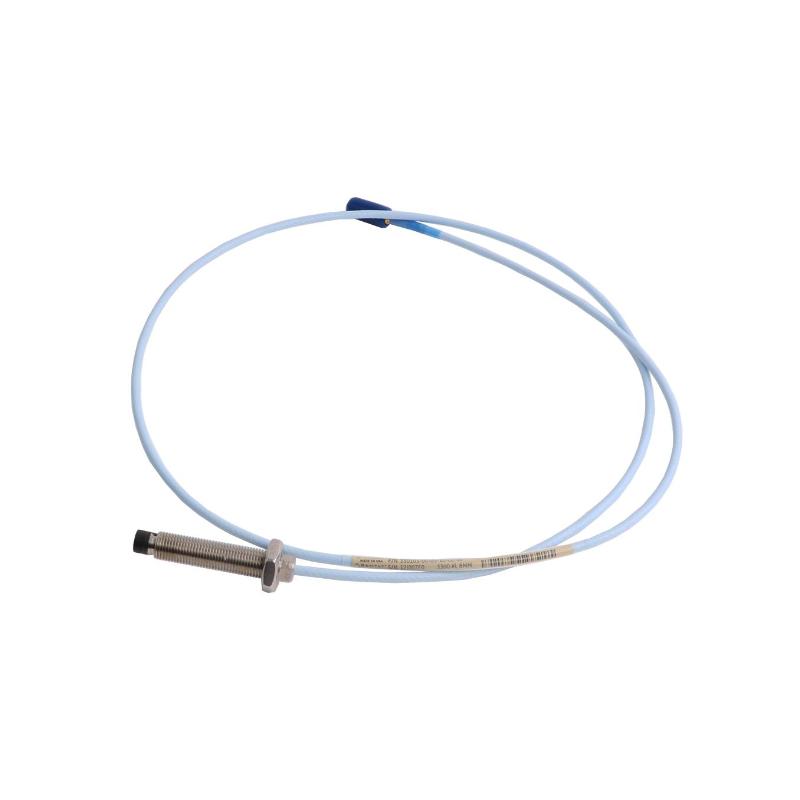

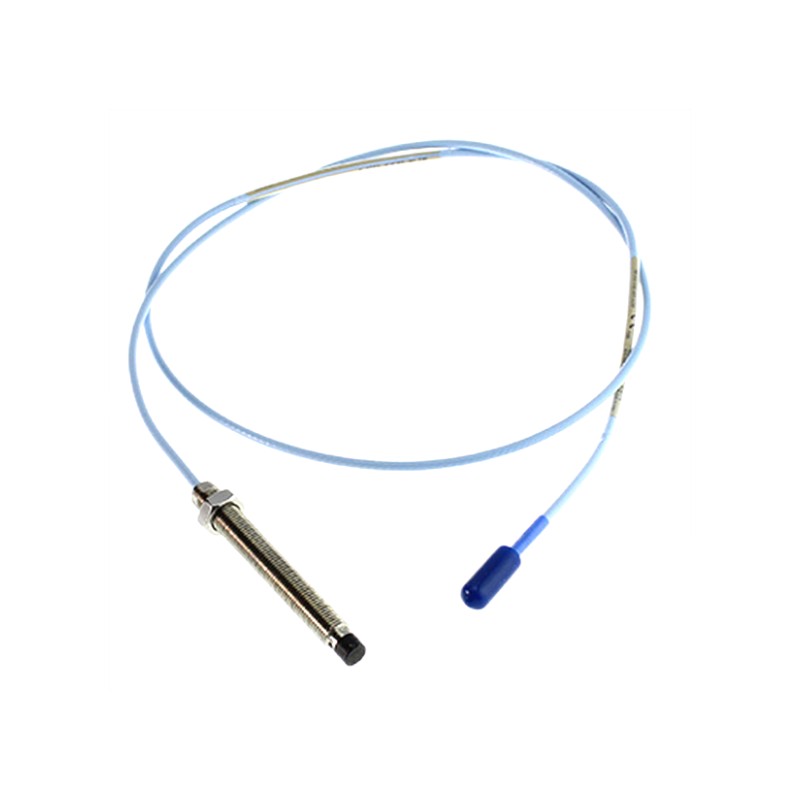

The Bently Nevada 330103-01-04-10-02-05 8 mm Proximity Probe is designed for accurate non-contact vibration and shaft displacement monitoring in rotating machinery applications. As a member of the trusted 3300 XL series, this probe combines compact mechanical design, dependable signal stability, and durable industrial construction for continuous monitoring performance in demanding environments.
Its optimized 40 mm case configuration and reliable sensing capability make it an excellent choice for installations with limited mounting space while still delivering the measurement precision required for advanced machinery protection systems. The probe supports predictive maintenance strategies that help improve equipment reliability and reduce unexpected downtime.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-01-04-10-02-05 |
| Product Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 |
| Unthreaded Length | 25 mm |
| Probe Case Length | 40 mm |
| Total Cable Length | 1.0 meter (3.3 feet) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Configuration | Standard industrial cable |
| Housing Material | Stainless Steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Sensitivity | 200 mV/mil |
| Frequency Response | 0 – 10 kHz |
| System Linearity | ±1% Full Scale |
| Recommended Gap Setting | Approx. 1.27 mm |
| Operating Temperature Range | -52°C to +177°C |
| Environmental Protection | Industrial sealed construction |
| Mounting Style | Threaded installation |
| Approximate Net Weight | 0.31 kg |
| Estimated Shipping Weight | 1.4 kg |
| Manufacturing Origin | USA |
Industrial Application Areas
The 3300 XL 8 mm proximity probe is widely used in machinery protection systems where precise vibration and shaft position monitoring are critical to operational reliability.
Common applications include:
-
Steam turbine condition monitoring
-
Industrial compressor systems
-
Electric motor vibration analysis
-
Centrifugal pump monitoring
-
Gearbox diagnostics
-
Fan and blower monitoring systems
-
Petrochemical processing equipment
-
Power generation machinery
-
Heavy manufacturing equipment
-
Automated process industries
Its compact body design makes it particularly effective for machinery installations with restricted mounting access.
Key Product Advantages
Compact Mechanical Design
The 40 mm probe case provides installation flexibility in applications with limited available space.
Reliable Measurement Accuracy
Designed to deliver stable and precise vibration monitoring for critical rotating equipment.
Industrial-Grade Durability
Constructed from corrosion-resistant stainless steel materials for long-term operation in demanding environments.
Stable Signal Performance
Engineered for dependable signal transmission under continuous vibration and temperature fluctuations.
Predictive Maintenance Support
Helps maintenance teams identify imbalance, shaft movement, and bearing wear before major failures occur.
Trusted 3300 XL Technology
Part of the globally recognized Bently Nevada 3300 XL monitoring platform used extensively in critical industrial applications.
Technical FAQs
1. What is the primary function of this proximity probe?
It is used for non-contact monitoring of shaft vibration, displacement, and rotor position in rotating machinery.
2. What does the “04” option represent?
The “04” designation indicates a 40 mm probe case length.
3. What cable length is included with this model?
This version includes a 1.0 meter cable assembly.
4. Is this probe suitable for compact installation environments?
Yes, the compact probe design is ideal for applications with limited mounting space.
5. Which monitoring systems are compatible with this probe?
It is compatible with Bently Nevada 3300 XL transducer and machinery protection systems.
6. Does the probe require physical contact with the shaft?
No. The probe uses non-contact eddy current sensing technology.
7. Which industries commonly use this probe?
Power generation, petrochemical, oil & gas, manufacturing, mining, and heavy industrial sectors commonly deploy this model.
8. What material is used for the probe body?
The housing is manufactured from industrial-grade stainless steel.
9. Why is vibration monitoring important for rotating equipment?
It helps detect developing mechanical problems early, improving equipment reliability and reducing maintenance downtime.
10. What makes the 3300 XL series widely preferred?
The series is known for reliable performance, high measurement accuracy, and long-term industrial durability.
