Precision Monitoring Built for Critical Rotating Equipment

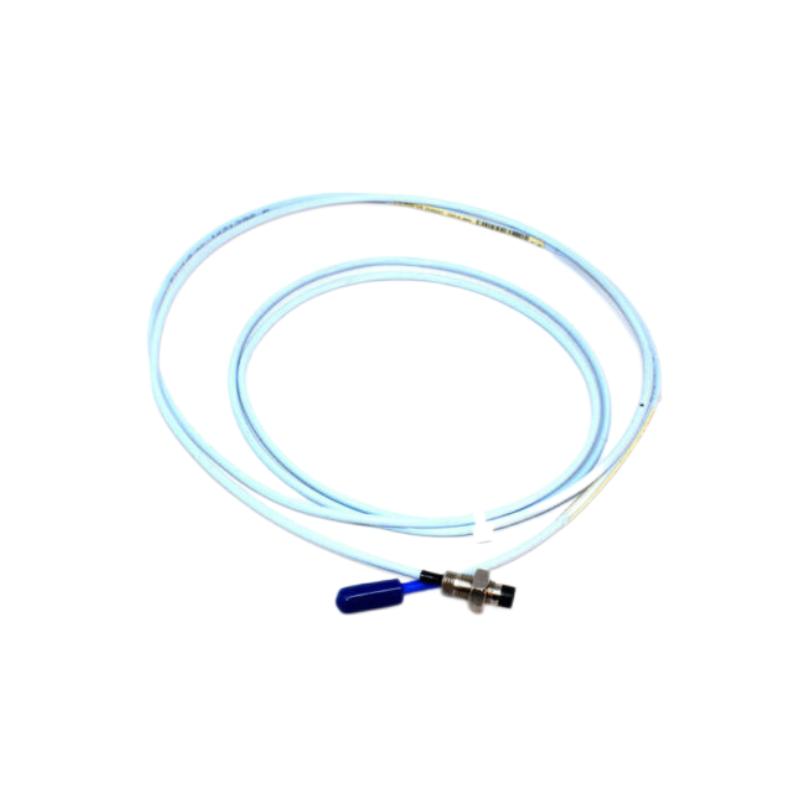

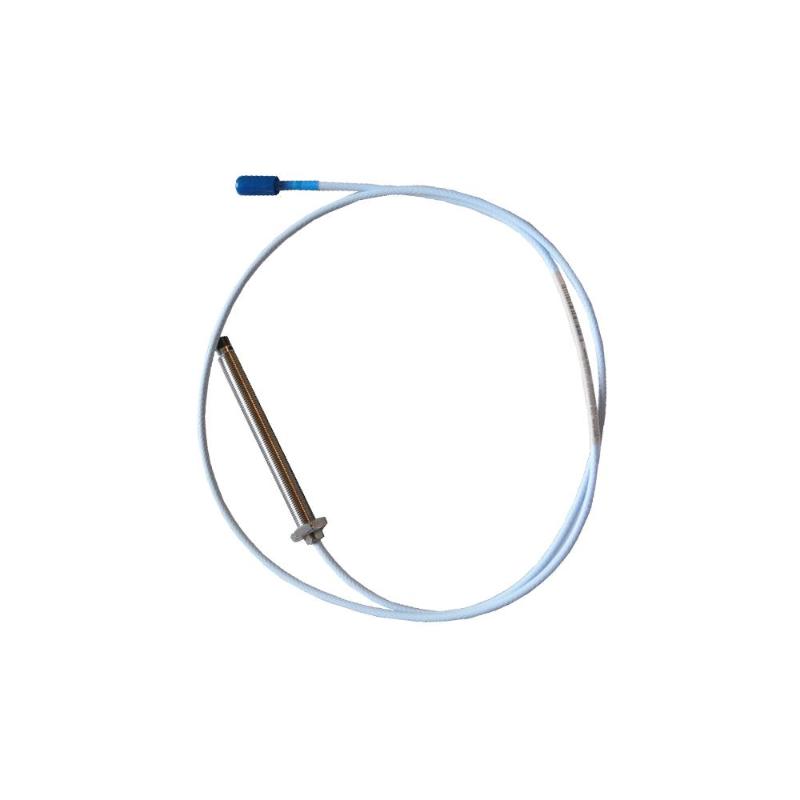

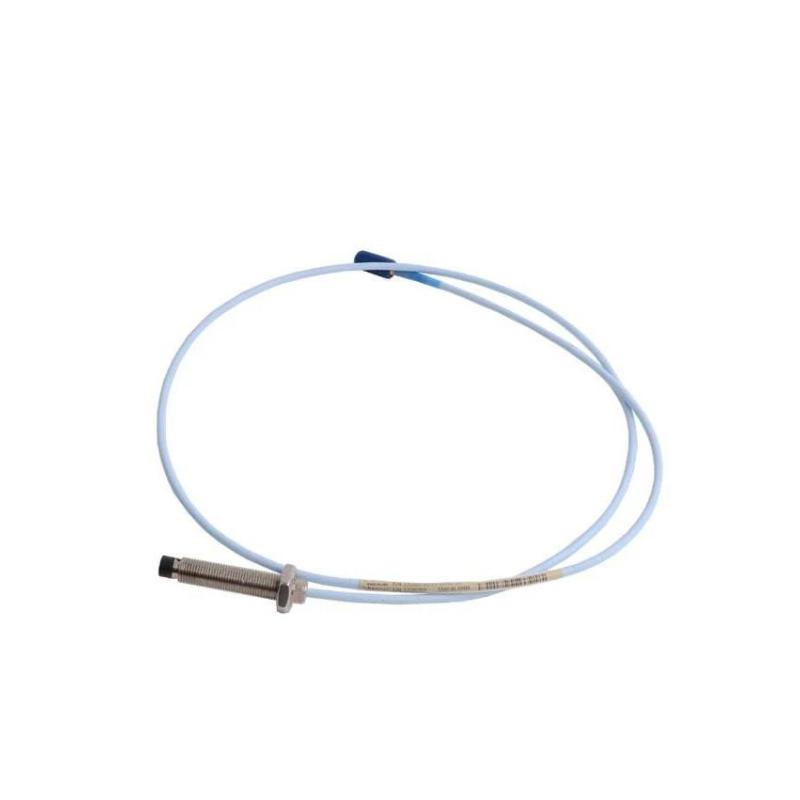

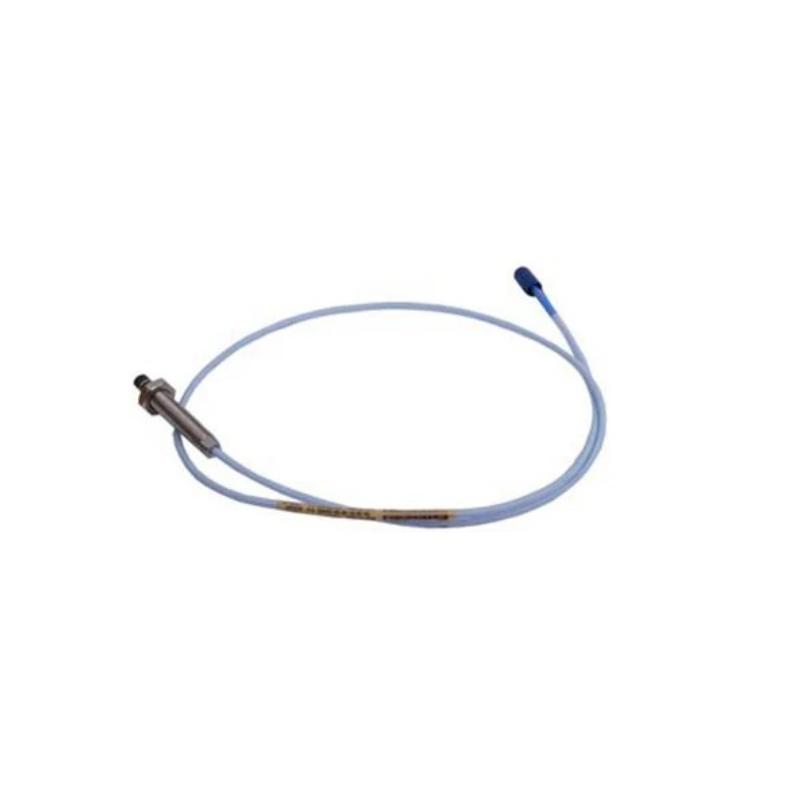

The Bently Nevada 330103-00-10-10-11-05 3300 XL 8 mm Proximity Probe is engineered for highly accurate vibration and shaft displacement monitoring in demanding industrial environments. Designed as part of the trusted 3300 XL series, this probe delivers dependable non-contact measurement performance for turbines, compressors, pumps, and other high-speed rotating machinery.
Its rugged stainless-steel construction, FluidLoc cable configuration, and advanced eddy current sensing technology make it a preferred solution for facilities that require long-term operational stability and precise machine protection. The compact 8 mm probe design also supports easy installation in space-sensitive monitoring systems.
Technical Profile
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-10-10-11-05 |
| Product Series | 3300 XL |
| Module Type | 8 mm Proximity Probe |
| Sensing Technology | Eddy Current |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0 mm |
| Overall Case Length | 100 mm |
| Total Length | 1.0 meter (3.3 ft) |
| Connector Type | Miniature ClickLoc Coaxial Connector |
| Cable Type | FluidLoc Cable |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Operating Temperature | -52°C to +177°C |
| Measurement Capability | Vibration & Position Monitoring |
| Output Type | Dynamic & Static Signal Measurement |
| Protection Design | Industrial Sealed Construction |
| Dimensions | Approx. 100 mm probe body length |
| Weight | Approx. 0.323 kg |
Typical Industrial Applications
The 330103-00-10-10-11-05 proximity probe is widely deployed across industries where rotating equipment reliability is mission-critical.
Common Applications Include
-
Steam and gas turbine monitoring
-
Centrifugal compressor protection
-
Pump shaft vibration analysis
-
Motor condition monitoring
-
Power generation systems
-
Oil & gas processing facilities
-
Petrochemical rotating machinery
-
High-speed manufacturing equipment
Its stable signal transmission and precise gap measurement capabilities help maintenance teams improve predictive maintenance strategies while minimizing unplanned downtime.
Key Benefits and Operational Strengths
High Measurement Accuracy
Designed for precise shaft vibration and displacement monitoring, enabling reliable machinery diagnostics under continuous operation.
Rugged Industrial Construction
The stainless-steel housing and PPS probe tip provide excellent durability in harsh industrial conditions.
Excellent Signal Stability
The FluidLoc cable design enhances signal integrity, especially in environments exposed to vibration, oil mist, and temperature fluctuations.
Flexible System Compatibility
Compatible with Bently Nevada 3300 XL transducer systems for seamless integration into machine protection architectures.
Compact and Efficient Design
The slim 8 mm probe body simplifies installation in confined machinery spaces without sacrificing performance.
Long-Term Reliability
Built for continuous industrial service with dependable monitoring consistency over extended operational cycles.
Technical FAQs
1. What is the primary function of this proximity probe?
It measures shaft vibration, displacement, and position in rotating machinery using non-contact eddy current sensing technology.
2. Which systems is this probe compatible with?
It is designed for use within the Bently Nevada 3300 XL transducer system platform.
3. What industries commonly use this probe?
Power generation, petrochemical, oil & gas, heavy manufacturing, and industrial processing sectors frequently use this model.
4. Does the probe support continuous operation?
Yes. It is engineered for continuous industrial monitoring applications.
5. What cable configuration does this model use?
This version features a FluidLoc cable with a miniature ClickLoc connector.
6. Is the probe suitable for harsh environments?
Yes. The stainless-steel housing and industrial-grade sealing support operation in demanding environments.
7. What is the total cable length?
The total assembled length is 1.0 meter (3.3 feet).
8. Can it monitor both vibration and position?
Yes. The probe supports both dynamic vibration monitoring and static position measurement.
9. What material is used for the probe tip?
The probe tip is manufactured from durable Polyphenylene Sulfide (PPS).
10. Why is the 3300 XL series widely used?
The series is recognized for measurement stability, installation flexibility, and long-term reliability in critical machinery monitoring systems.
