High-Resolution Machinery Monitoring for Demanding Industrial Applications

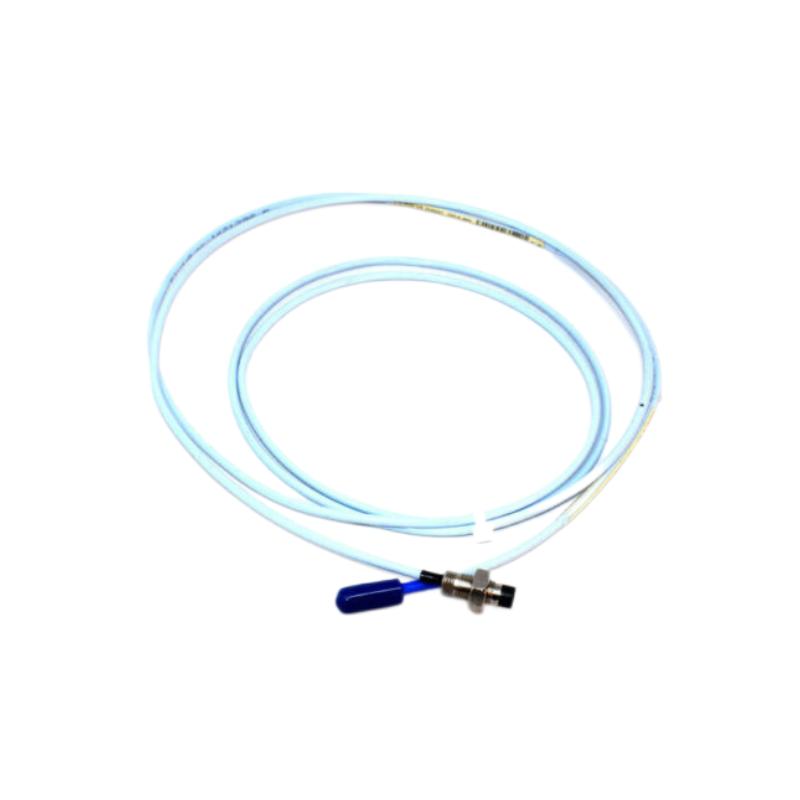

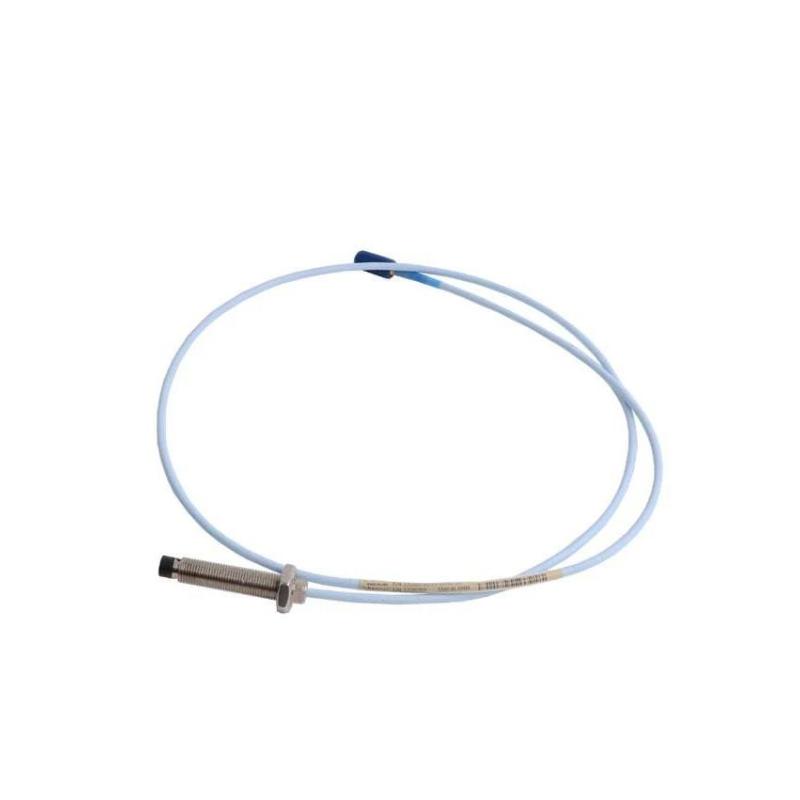

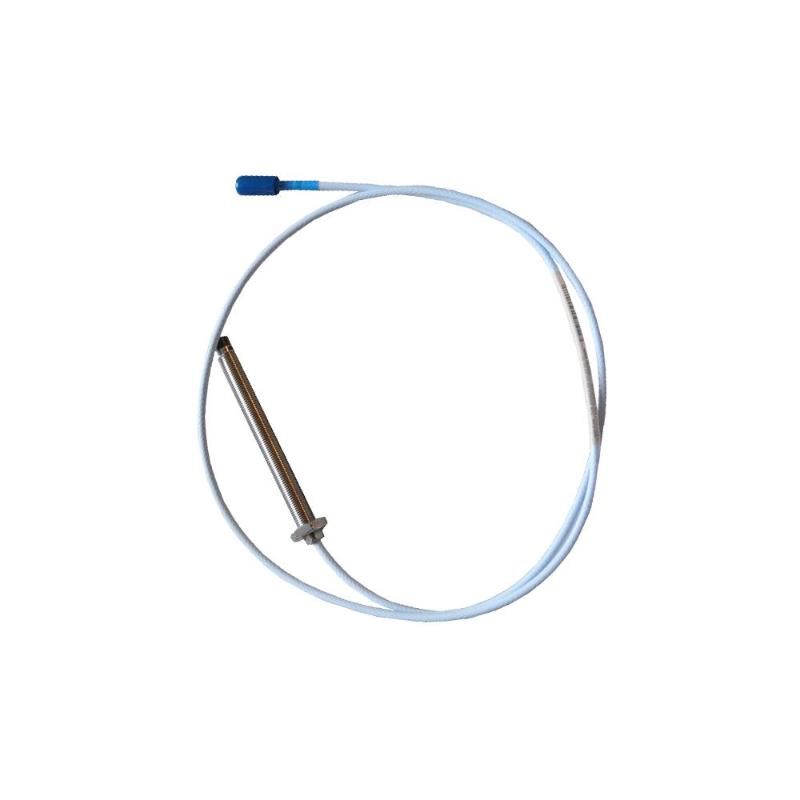

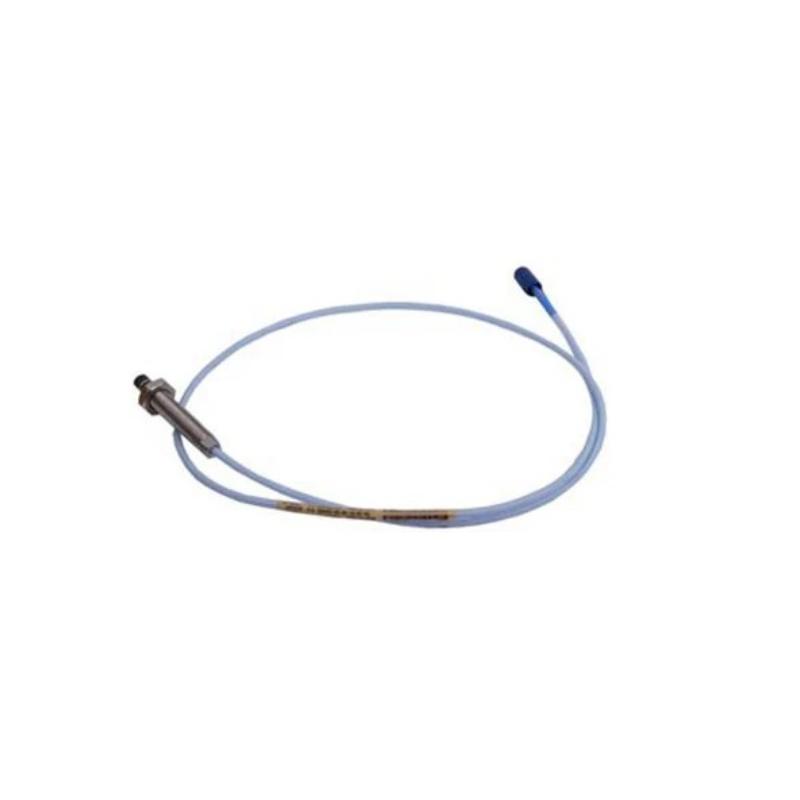

The Bently Nevada 330103-00-10-05-01-00 3300 XL 8 mm Proximity Probe (Metric) is a precision eddy current sensor designed for non-contact measurement of shaft vibration and displacement in rotating machinery. As part of the proven 3300 XL transducer system, it delivers stable signal output and long-term measurement consistency for critical asset protection and condition monitoring systems in industrial environments.
This configuration is commonly selected for applications requiring a compact system cable layout combined with high measurement accuracy, making it suitable for turbines, compressors, pumps, and motor-driven equipment operating under continuous load conditions.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-10-05-01-00 |
| Product Series | 3300 XL |
| Probe Type | 8 mm Proximity Probe (Metric) |
| Measurement Principle | Eddy current non-contact sensing |
| Thread Type | Metric (M10 × 1 typical for 8 mm probes) |
| Case Length | 100 mm configuration (code “10”) |
| Total Cable Length | 0.5 m (code “05”) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Industrial shielded coaxial cable |
| Probe Material | Stainless steel (industrial grade) |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Monitoring Function | Shaft vibration & radial/axial displacement |
| System Compatibility | Bently Nevada 3300 XL Proximitor systems |
| Approx. Weight | ~0.32–0.35 kg |
Industrial Applications
This probe is widely used in rotating machinery protection and condition monitoring systems where measurement stability is critical:
-
Steam turbine vibration monitoring
-
Gas turbine protection systems
-
Centrifugal compressor diagnostics
-
Industrial pump condition monitoring
-
High-speed motor vibration analysis
-
Petrochemical processing equipment
-
Oil & gas rotating machinery
-
Power generation facilities
Its compact cable configuration makes it suitable for installations where short-distance routing and simplified wiring architecture are preferred.
Key Advantages
Stable Non-Contact Measurement Performance
Delivers accurate shaft vibration and displacement data using proven eddy current sensing technology for reliable diagnostics.
Compact Cable Architecture
The 0.5 m cable configuration supports tight installation spaces and reduces routing complexity in dense machinery layouts.
Industrial-Grade Mechanical Strength
Stainless steel housing and rugged cable design ensure durability under vibration, temperature variation, and continuous operation.
Predictive Maintenance Enablement
Supports early detection of imbalance, misalignment, and bearing wear, improving maintenance planning and asset reliability.
Seamless System Integration
Fully compatible with Bently Nevada 3300 XL monitoring architecture, ensuring consistent signal processing and system reliability.
Technical FAQs
1. What does this probe measure?
It measures shaft vibration and displacement without physical contact using eddy current technology.
2. What technology is used?
Eddy current-based non-contact sensing technology.
3. What does the “10” code represent?
It typically indicates a 100 mm case length configuration within the 3300 XL coding structure.
4. What does the “05” code represent?
It represents a 0.5 m integrated cable length configuration.
5. What systems is it compatible with?
It is designed for Bently Nevada 3300 XL Proximitor-based monitoring systems.
6. What machinery is it used on?
Turbines, compressors, pumps, and industrial motors.
7. Can it operate continuously?
Yes, it is designed for continuous-duty industrial monitoring applications.
8. Is it suitable for harsh environments?
Yes, it is engineered for vibration, heat, and demanding industrial conditions.
9. Does it support predictive maintenance?
Yes, it enables early fault detection for condition-based maintenance strategies.
10. Why is the 3300 XL series widely used?
Because it provides proven long-term stability, accuracy, and industrial reliability.
