Advanced Non-Contact Vibration Monitoring for Industrial Machinery

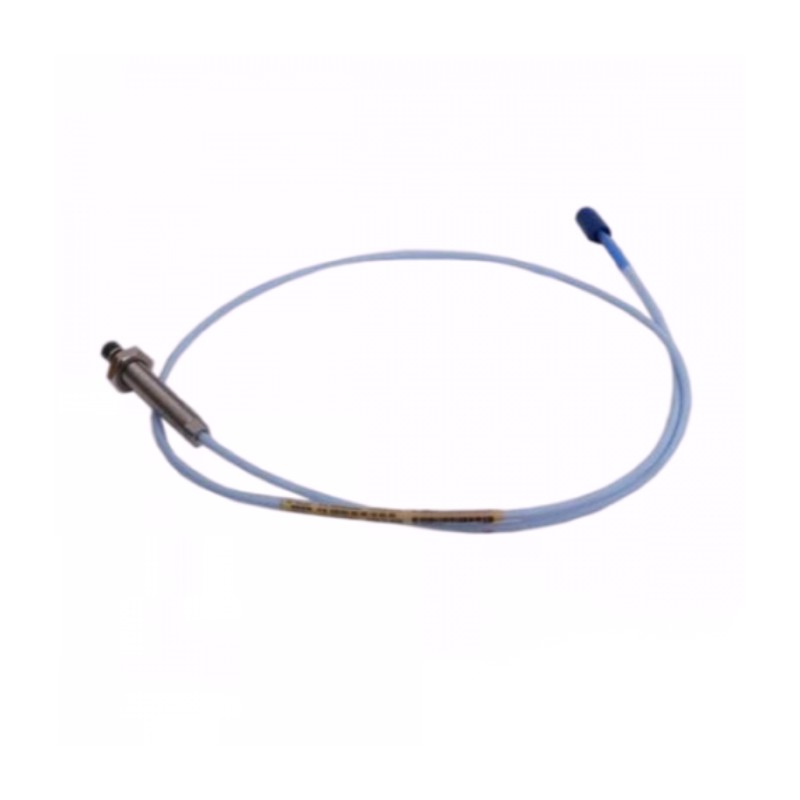

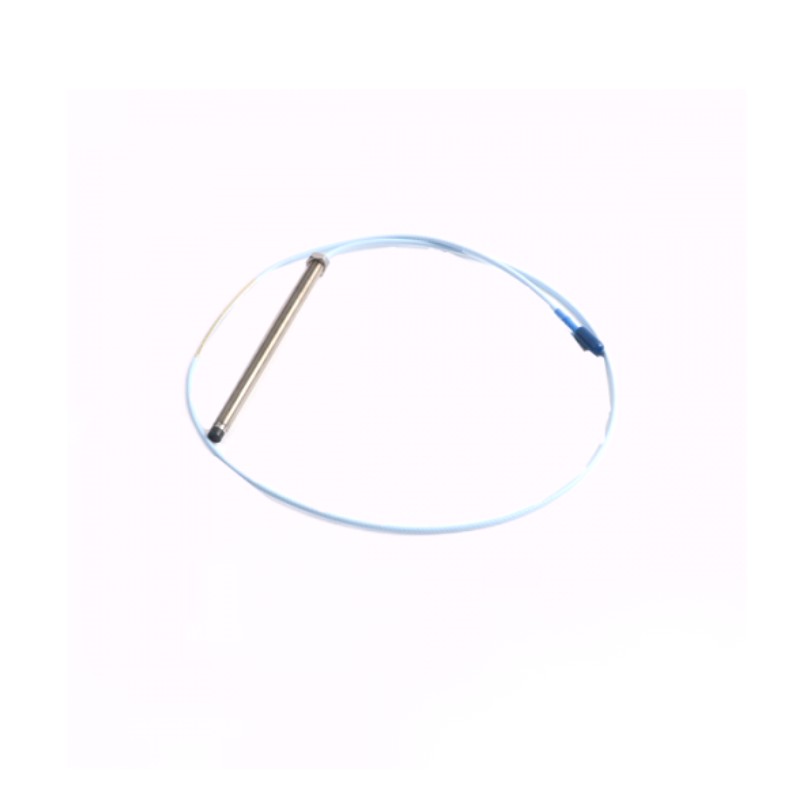

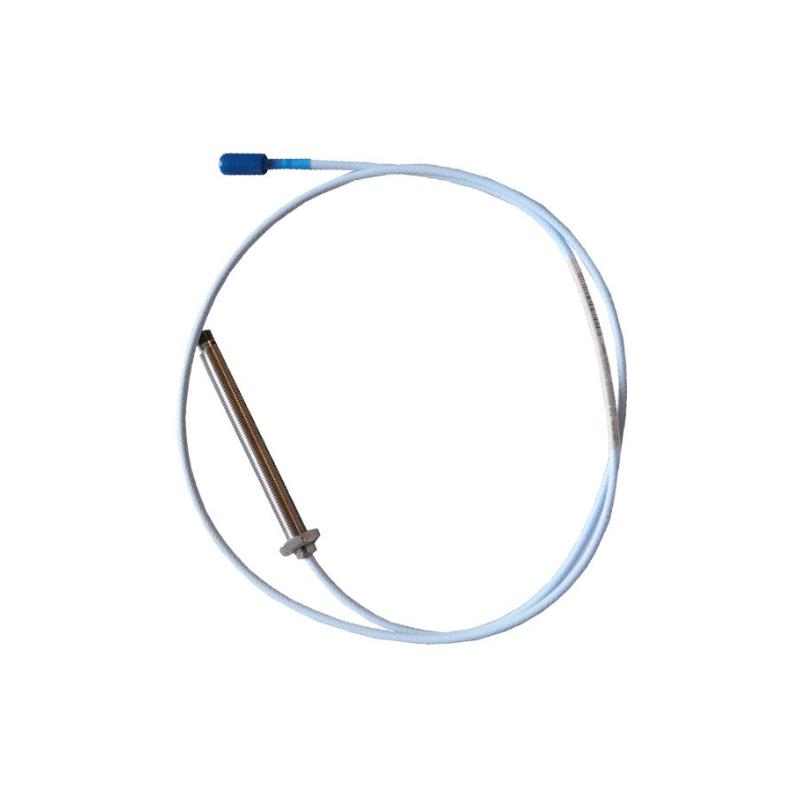

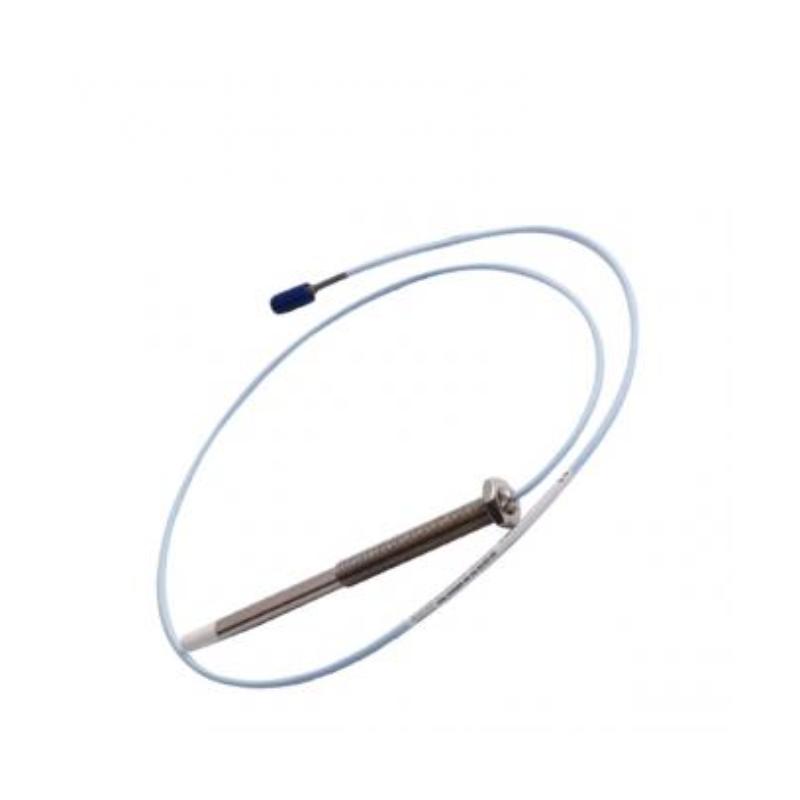

The Bently Nevada 330103-00-07-10-01-05 3300 XL 8 mm Proximity Probe is engineered to provide precise shaft vibration and displacement measurements for critical rotating equipment in demanding industrial environments. As part of the proven 3300 XL monitoring platform, this probe combines high-performance eddy current sensing technology with rugged industrial construction for dependable long-term operation.
Designed with a 70 mm case length and 1.0-meter cable assembly, this model delivers stable signal transmission, excellent environmental resistance, and seamless integration with Bently Nevada monitoring systems. It is widely used in machinery protection applications where operational reliability, predictive maintenance, and continuous equipment monitoring are essential.
Technical Specifications & Product Details
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-07-10-01-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 70 mm |
| Total Cable Length | 1.0 meter (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc connector with connector protector |
| Cable Type | Standard industrial cable |
| Sensing Technology | Eddy Current Non-Contact Measurement |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Housing Material | AISI 303/304 Stainless Steel |
| Typical Sensitivity | 200 mV/mil |
| Frequency Response | DC to 10 kHz |
| Operating Temperature Range | –52°C to +177°C |
| Agency Approval Option | Multiple approvals |
| Mounting Method | Direct threaded mounting |
| Approximate Dimensions | 220 × 60 × 18 mm |
| Approximate Weight | 0.323 kg |
Typical Industrial Applications
The 330103-00-07-10-01-05 proximity probe is designed for continuous machinery condition monitoring in heavy industrial applications where precise vibration analysis is required.
Typical application areas include:
-
Steam turbine monitoring systems
-
Gas compressor protection
-
Industrial motor diagnostics
-
Centrifugal pump vibration analysis
-
Generator shaft displacement monitoring
-
Petrochemical rotating equipment
-
Oil & gas production systems
-
Power generation facilities
-
Industrial gearbox monitoring
Its reliable signal performance and compact cable configuration make it suitable for installations requiring stable operation in high-vibration industrial environments.
Key Product Advantages
Precision Monitoring Performance
The advanced eddy current sensing system provides highly accurate shaft displacement and vibration measurements for critical machinery diagnostics.
Rugged Industrial Durability
Constructed with stainless-steel housing and a durable PPS probe tip, the probe is engineered for long-term operation in harsh industrial conditions.
Stable Signal Integrity
The ClickLoc connector design helps maintain reliable electrical connections and stable signal transmission during continuous operation.
Flexible Installation Capability
The 1.0-meter cable configuration supports efficient routing and integration within machinery protection systems.
Supports Predictive Maintenance Programs
Continuous monitoring allows maintenance teams to detect early-stage mechanical issues, helping reduce unexpected downtime and maintenance costs.
Technical FAQs
1. What is the primary function of the 330103-00-07-10-01-05 probe?
It measures shaft vibration, displacement, and position in rotating machinery using non-contact eddy current sensing technology.
2. What is the cable length of this model?
This model includes a 1.0-meter integrated cable assembly.
3. Which industries commonly use this probe?
Power generation, petrochemical processing, oil & gas, and industrial manufacturing sectors widely use this model.
4. What sensing technology does the probe use?
The probe uses advanced eddy current non-contact measurement technology.
5. What thread type does the probe feature?
It features an M10 × 1 threaded housing configuration.
6. Is this probe compatible with 3300 XL systems?
Yes. It is designed for use with Bently Nevada 3300 XL Proximitor sensors and extension cable systems.
7. What material is used for the probe housing?
The housing is manufactured from AISI 303/304 stainless steel for enhanced industrial durability.
8. Can the probe operate in demanding industrial environments?
Yes. The probe is engineered for operation in environments with vibration, oil exposure, and elevated temperatures.
9. What is the benefit of non-contact vibration monitoring?
Non-contact sensing minimizes mechanical wear while enabling accurate real-time machinery condition analysis.
10. What does the “05” approval option indicate?
The “05” option represents multiple agency approvals for broader industrial compliance requirements.
