Trusted Non-Contact Monitoring Solution for Industrial Rotating Equipment

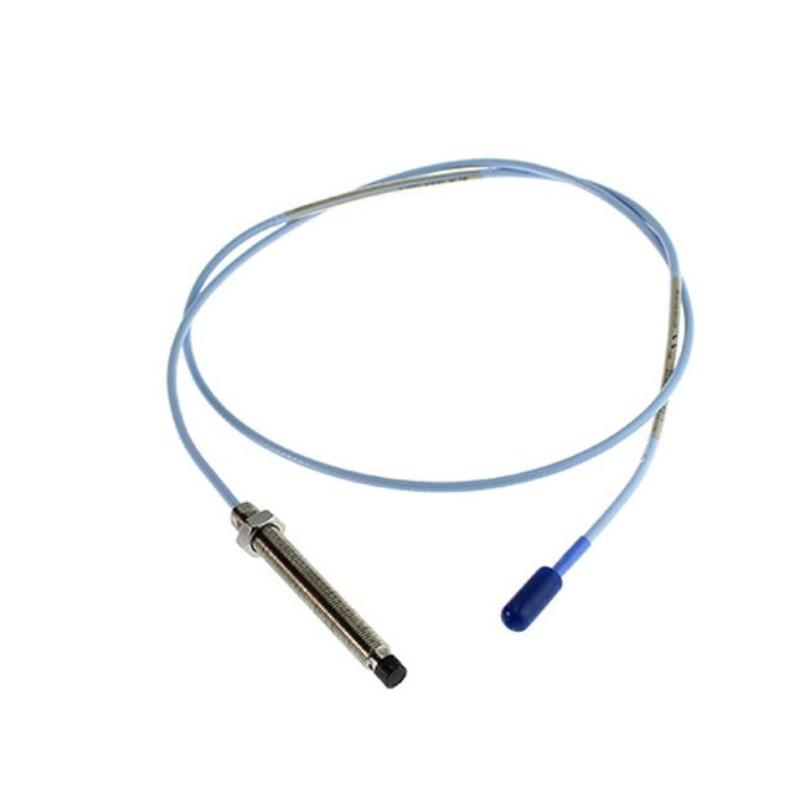

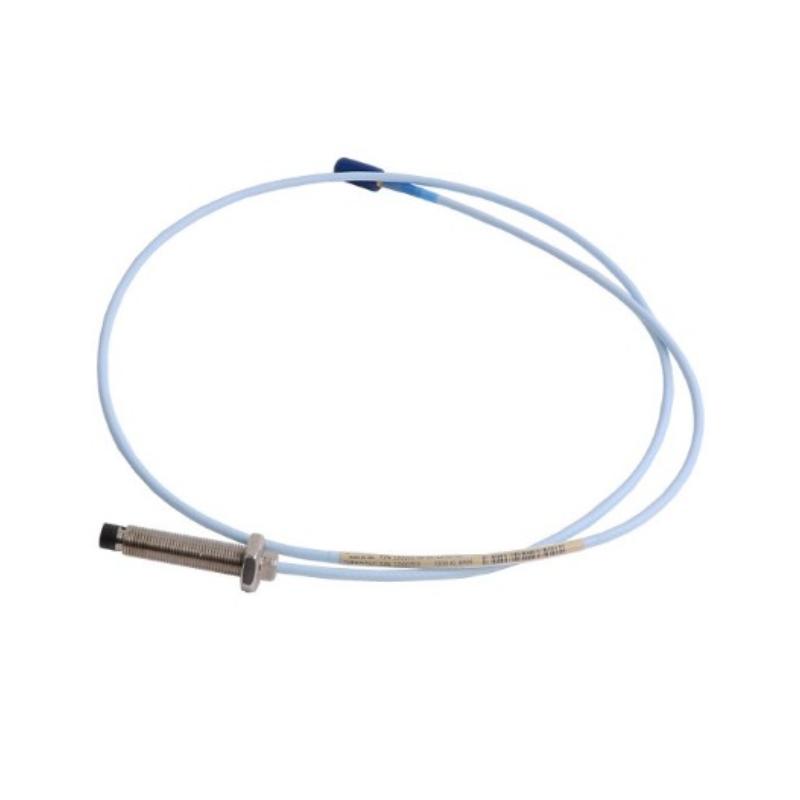

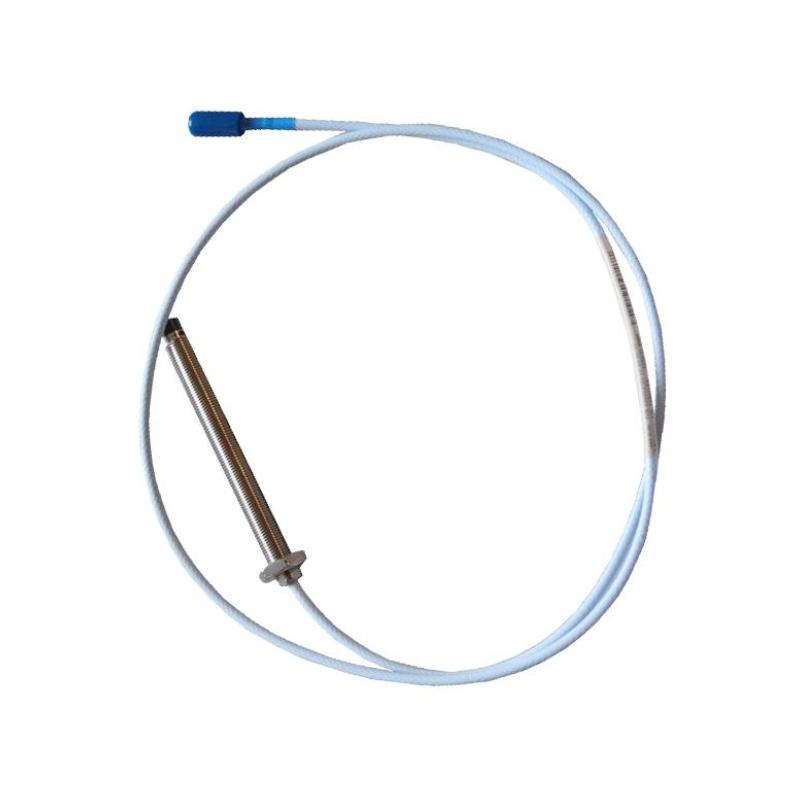

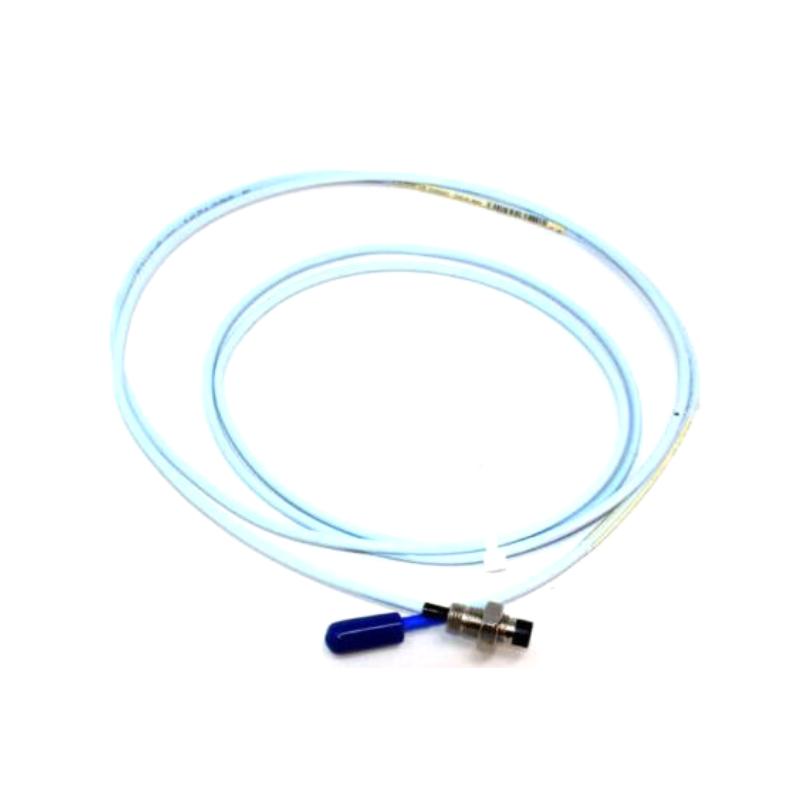

The Bently Nevada 330103-00-07-05-02-00 3300 XL 8 mm Proximity Probe is engineered to provide accurate shaft vibration and displacement monitoring for critical industrial machinery. Designed as part of the globally recognized 3300 XL series, this probe combines advanced eddy current sensing technology with durable industrial construction to deliver reliable long-term performance in demanding operating environments.
Featuring a 70 mm case length and 0.5-meter cable configuration, this model is ideal for machinery protection systems where compact installation and stable signal transmission are essential. Its precision monitoring capability supports predictive maintenance strategies that help improve operational efficiency, reduce unplanned downtime, and extend equipment service life.
Product Technical Specifications
| Technical Item | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-07-05-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 70 mm |
| Total Cable Length | 0.5 meter (1.6 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Style | Standard industrial cable |
| Sensing Technology | Eddy Current Non-Contact Measurement |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Frequency Response | DC to 10 kHz |
| Typical Sensitivity | 200 mV/mil |
| Operating Temperature Range | –52°C to +177°C |
| Mounting Configuration | Direct threaded installation |
| Approximate Dimensions | 51 × 203 × 330 mm |
| Approximate Weight | 0.32 – 1.50 kg |
Application Industries & Usage Scenarios
The 330103-00-07-05-02-00 proximity probe is widely used in industrial machinery monitoring systems requiring precise non-contact vibration analysis and shaft position measurement.
Common applications include:
-
Steam turbine monitoring systems
-
Gas compressor vibration protection
-
Industrial motor diagnostics
-
Centrifugal pump condition monitoring
-
Generator shaft displacement measurement
-
Petrochemical processing equipment
-
Oil & gas rotating machinery
-
Power generation facilities
-
Heavy-duty gearbox monitoring
Its compact cable configuration makes it especially suitable for installations where space optimization and short cable routing are required.
Product Performance Advantages
Highly Accurate Vibration Detection
The advanced 3300 XL sensing platform delivers precise shaft movement and displacement measurements for critical machinery diagnostics.
Compact and Flexible Installation
The short 0.5-meter cable configuration simplifies installation in confined industrial equipment layouts.
Durable Industrial Construction
Built with stainless-steel housing and a rugged PPS probe tip, the probe is designed for long-term reliability in harsh operating conditions.
Excellent Signal Stability
The probe maintains consistent monitoring performance during continuous operation in vibration-intensive environments.
Supports Predictive Maintenance Programs
Continuous machinery monitoring helps maintenance teams identify early-stage equipment issues before costly failures occur.
Technical FAQs
1. What is the primary purpose of the 330103-00-07-05-02-00 probe?
It is designed to measure shaft vibration, displacement, and position in rotating machinery using non-contact eddy current sensing technology.
2. What is the cable length of this model?
This model includes a 0.5-meter integrated cable.
3. What type of machinery commonly uses this probe?
The probe is commonly installed on turbines, compressors, pumps, generators, and industrial motors.
4. What thread type does the probe use?
It features an M10 × 1 threaded housing configuration.
5. Is this probe compatible with 3300 XL systems?
Yes. It is fully compatible with Bently Nevada 3300 XL Proximitor sensors and extension system components.
6. What material is used for the probe housing?
The housing is manufactured from AISI 303/304 stainless steel for improved industrial durability.
7. What sensing technology does the probe use?
The probe operates using eddy current non-contact sensing technology.
8. Can this probe operate in harsh industrial environments?
Yes. It is engineered for continuous operation in environments with vibration, oil exposure, and elevated temperatures.
9. Why is non-contact monitoring beneficial?
Non-contact measurement minimizes mechanical wear while enabling accurate real-time machinery condition monitoring.
10. Is the probe suitable for predictive maintenance systems?
Yes. The probe supports advanced predictive maintenance strategies that improve operational reliability and maintenance efficiency.
