Engineered for Continuous Machinery Protection and Precision Monitoring

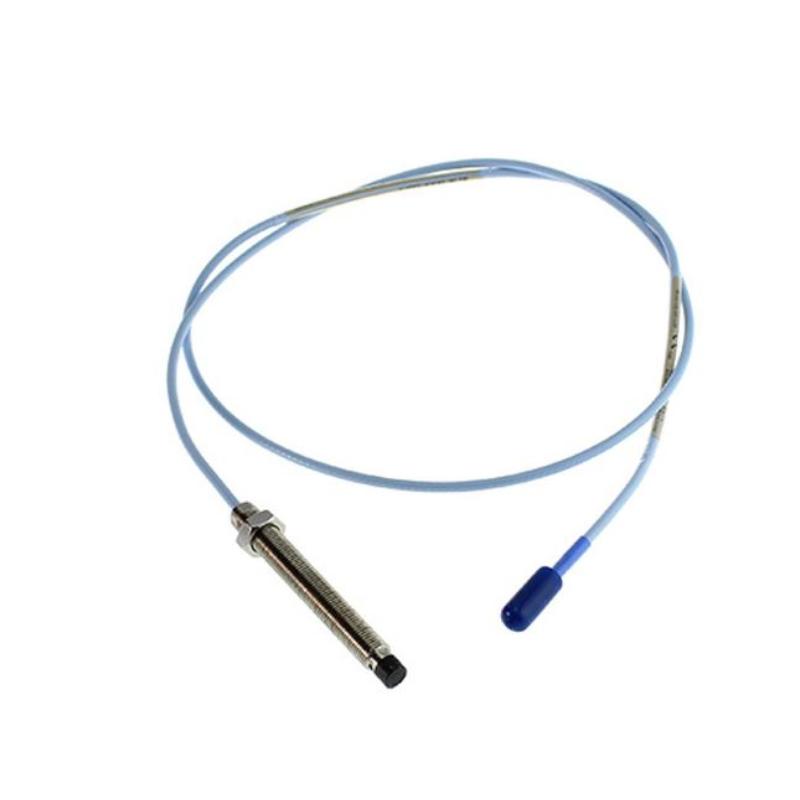

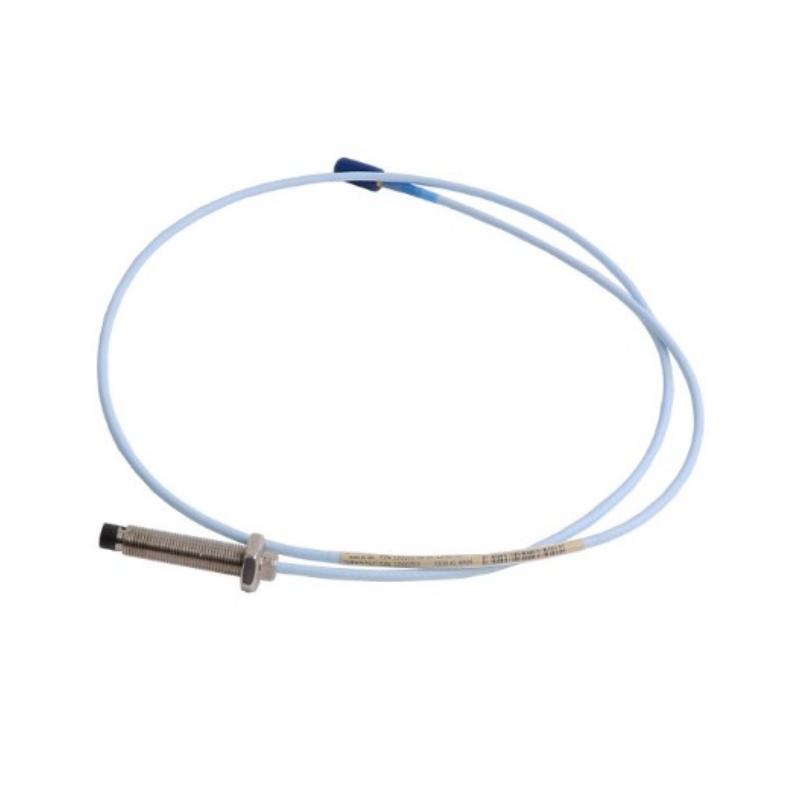

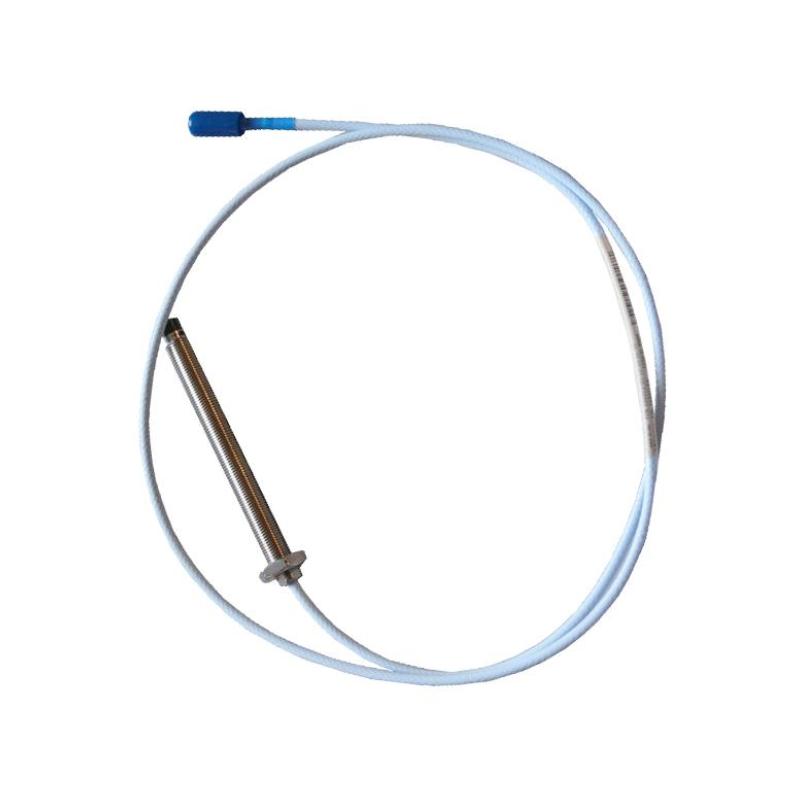

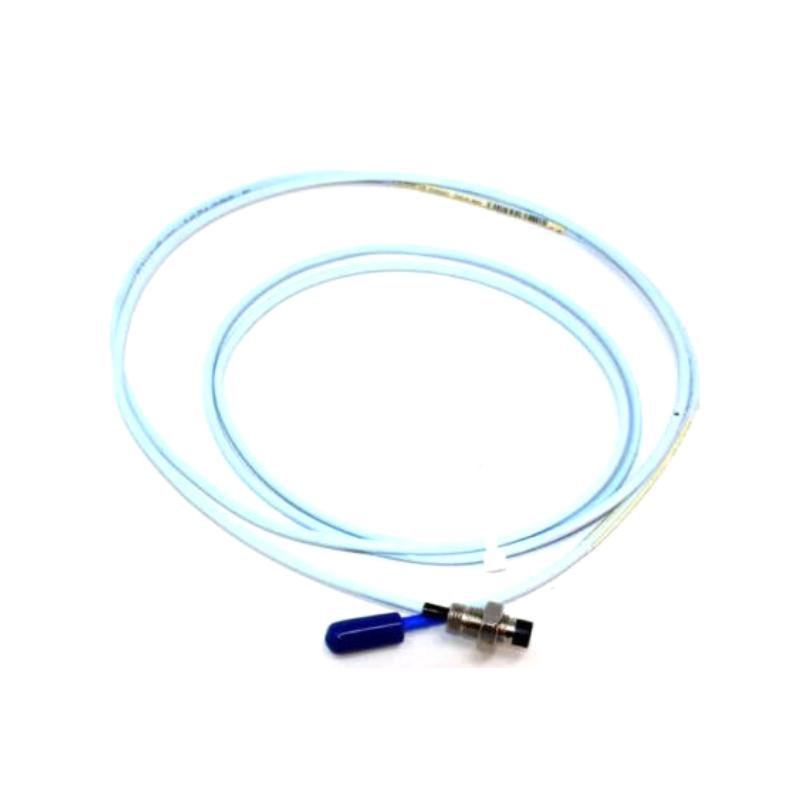

The Bently Nevada 330103-00-06-90-02-00 3300 XL 8mm Eddy Current Probe is a high-performance non-contact sensing solution developed for accurate shaft vibration and displacement monitoring in industrial rotating equipment. Designed within the renowned 3300 XL series, this probe delivers exceptional measurement stability, rugged durability, and dependable long-term operation in demanding process environments.
Featuring a 9-meter cable configuration, this model is particularly suitable for large machinery installations where extended routing flexibility is required. Its advanced eddy current technology enables highly responsive monitoring for critical assets including turbines, compressors, motors, pumps, and generators, helping facilities strengthen predictive maintenance programs and improve operational reliability.
Technical Characteristics & Mechanical Data
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Product Model | 330103-00-06-90-02-00 |
| Product Type | 3300 XL 8mm Eddy Current Probe |
| Probe Diameter | 8 mm |
| Housing Thread | M10 × 1 |
| Unthreaded Length | 0 mm |
| Probe Case Length | 60 mm |
| Cable Length | 9.0 meters (29.5 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Style | Standard industrial cable |
| Sensing Method | Eddy Current Non-Contact Technology |
| Output Sensitivity | 200 mV/mil |
| Frequency Response | DC to 10 kHz |
| Housing Material | Corrosion-resistant stainless steel |
| Probe Tip Material | High-performance PPS |
| Operating Temperature Range | –52°C to +177°C |
| System Compatibility | 3300 XL Proximitor systems |
| Mounting Style | Direct threaded mounting |
| Approximate Dimensions | 320 × 145 × 18 mm |
| Approximate Weight | 0.45 – 0.95 kg |
Typical Operational Applications
The 330103-00-06-90-02-00 probe is commonly integrated into industrial machinery protection systems requiring precise vibration analysis and shaft position monitoring.
Primary applications include:
-
Steam turbine condition monitoring
-
Gas compressor protection systems
-
Generator shaft vibration analysis
-
High-speed centrifugal pumps
-
Industrial electric motors
-
Petrochemical rotating machinery
-
Oil & gas processing systems
-
Power generation facilities
-
Heavy-duty gearbox monitoring
Its extended 9-meter cable configuration supports installations where monitoring hardware is positioned remotely from rotating equipment.
Key Operational Benefits
Extended Installation Flexibility
The long 9-meter cable design simplifies installation in large industrial machinery layouts while maintaining stable signal transmission performance.
Accurate Vibration Detection
Advanced eddy current sensing technology enables highly precise shaft displacement and vibration measurements for machinery diagnostics.
Industrial-Grade Reliability
Manufactured with durable stainless-steel materials, the probe is built to withstand harsh operating conditions including vibration, oil exposure, and elevated temperatures.
Stable Continuous Monitoring
The proven 3300 XL platform provides consistent signal integrity during long-term operation in mission-critical applications.
Optimized for Predictive Maintenance
Continuous equipment monitoring helps maintenance teams identify early-stage mechanical issues before major failures occur.
Technical FAQs
1. What is the primary purpose of the 330103-00-06-90-02-00 probe?
It is used for non-contact monitoring of shaft vibration, displacement, and position in rotating industrial machinery.
2. What is the cable length of this model?
This version includes a 9.0 meter integrated cable.
3. Which machinery types commonly use this probe?
The probe is widely installed on turbines, compressors, motors, pumps, and generators.
4. What sensing technology does the probe use?
It uses eddy current non-contact sensing technology for accurate vibration measurement.
5. Is the probe compatible with 3300 XL systems?
Yes. It is designed for use with Bently Nevada 3300 XL Proximitor sensors and extension system components.
6. What material is used for the probe housing?
The housing is manufactured from industrial-grade stainless steel for improved durability.
7. Can the probe operate in demanding industrial environments?
Yes. It is engineered for continuous operation in environments with vibration, temperature fluctuations, and industrial contaminants.
8. What industries commonly utilize this probe?
Power generation, petrochemical processing, oil & gas, and heavy manufacturing industries frequently use this model.
9. Why is non-contact vibration monitoring important?
Non-contact sensing reduces physical wear while enabling precise real-time machinery condition analysis.
10. Does the long cable affect monitoring reliability?
The probe is designed to maintain stable signal quality even with extended cable configurations when properly integrated within the 3300 XL system.
