Reliable Non-Contact Monitoring for High-Value Rotating Machinery

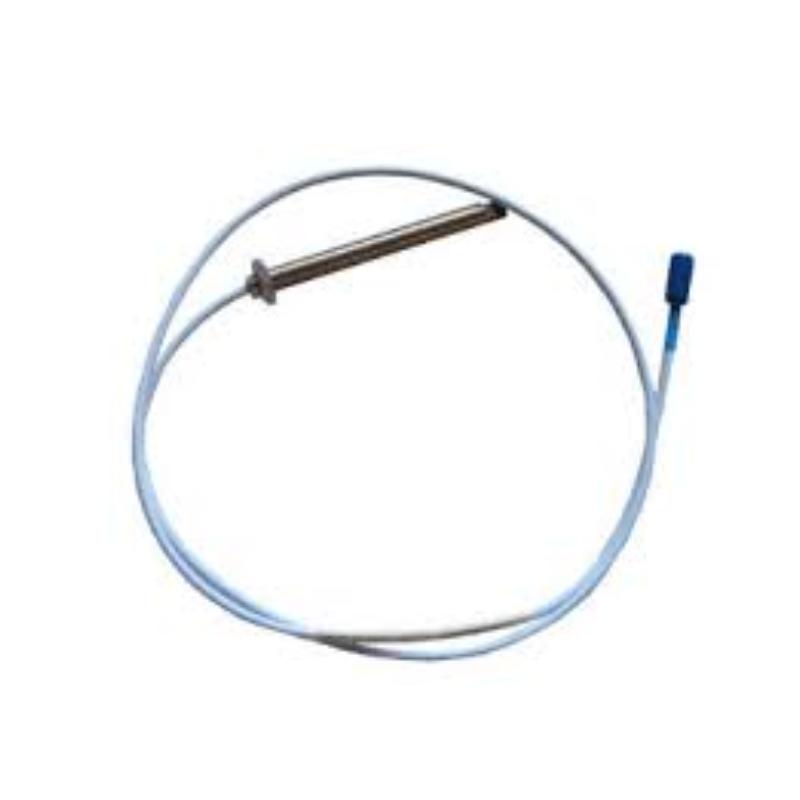

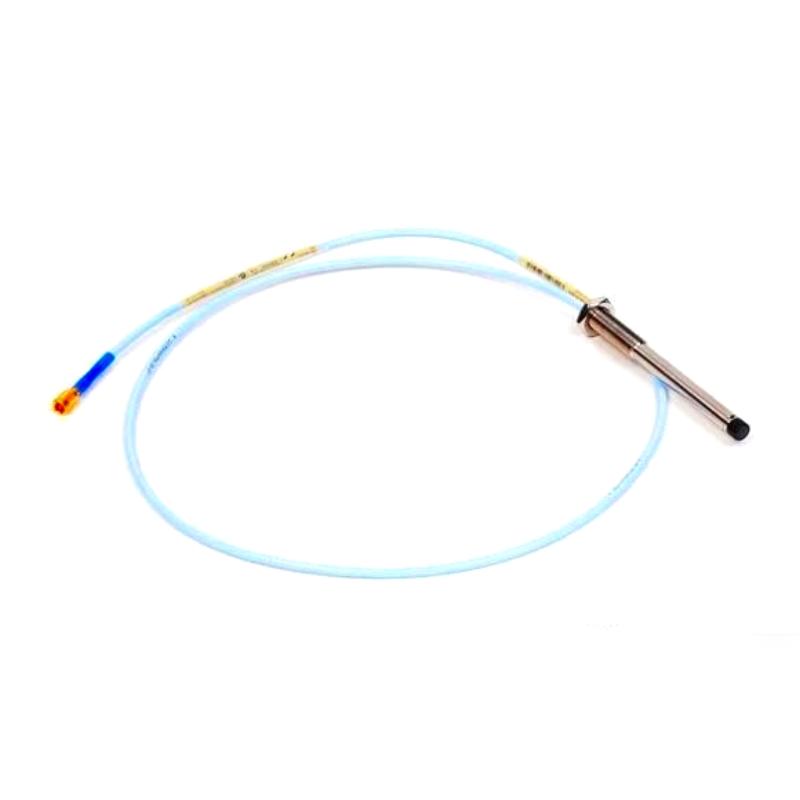

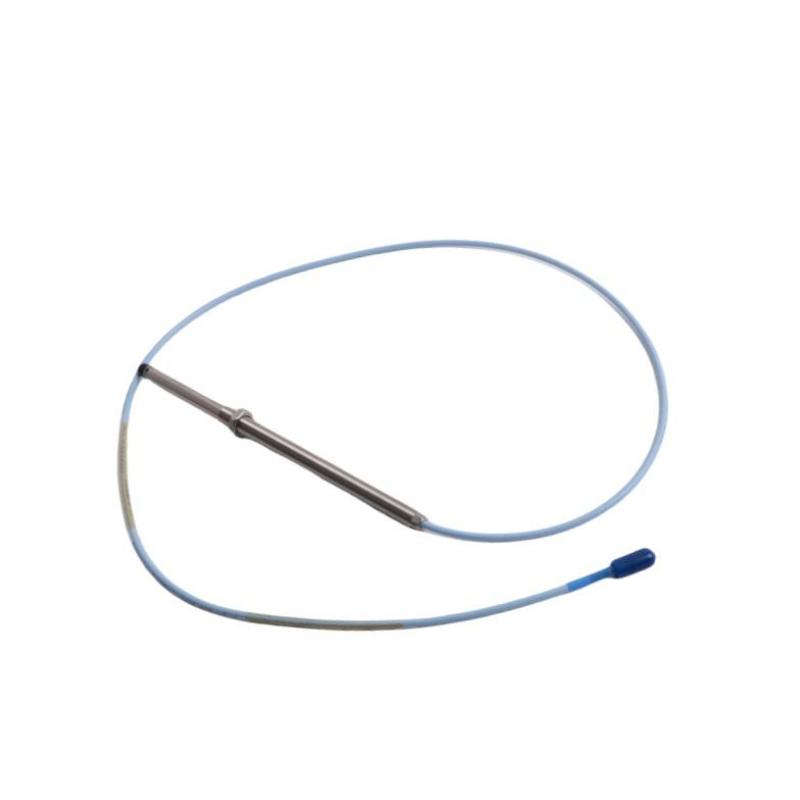

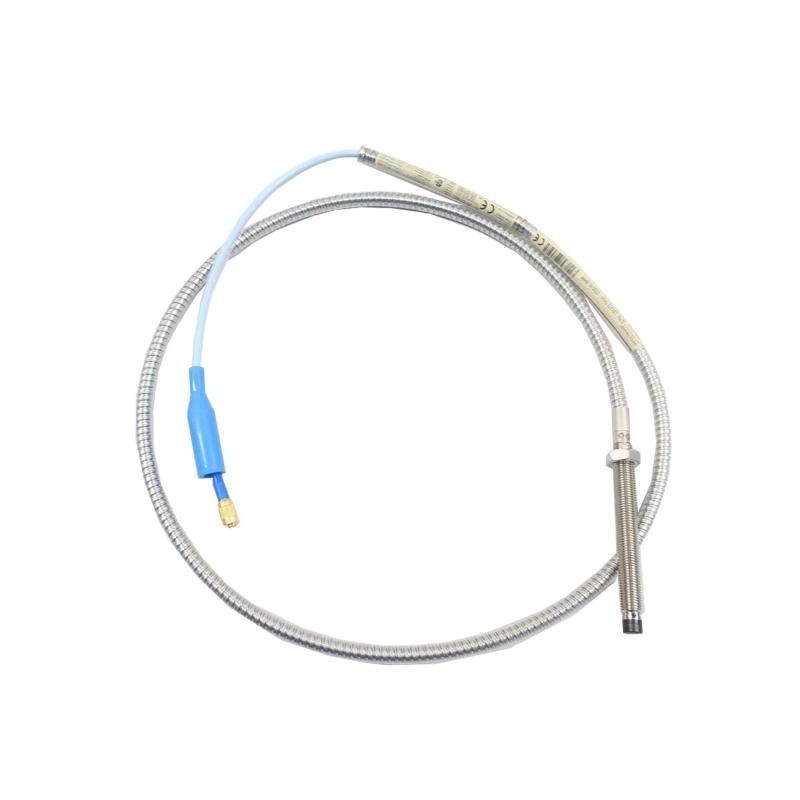

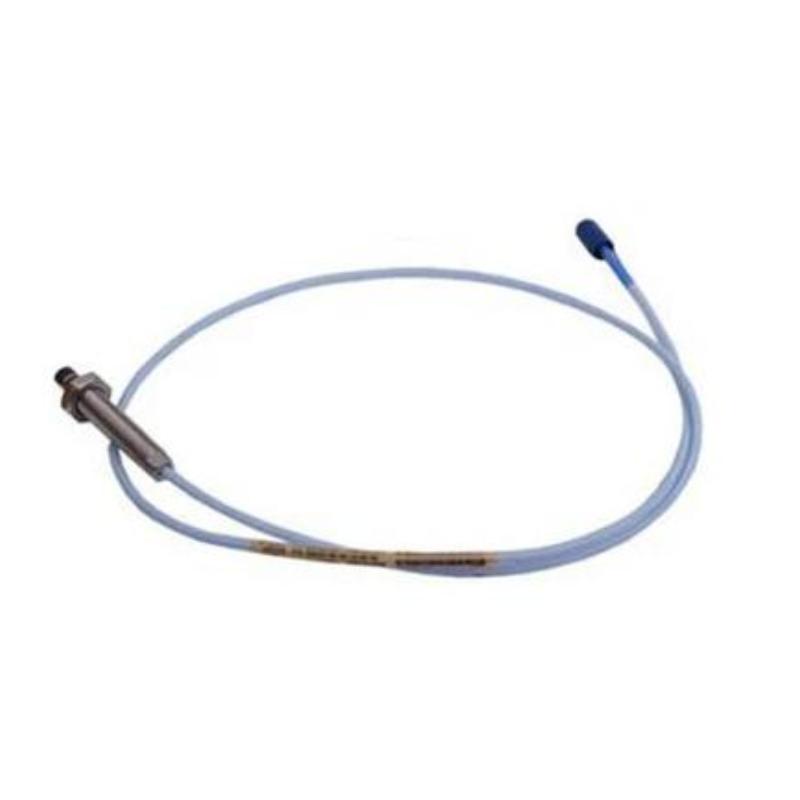

The Bently Nevada 330103-00-06-50-02-05 3300 XL 8mm Eddy Current Probe is designed to provide highly accurate shaft vibration and displacement measurements in demanding industrial environments. As part of the industry-proven 3300 XL series, this probe combines advanced sensing technology with rugged mechanical construction, helping operators maintain machinery reliability and reduce unexpected downtime.
Built for continuous operation in turbine, compressor, motor, and pump monitoring systems, this probe delivers stable signal performance even under extreme temperature fluctuations and vibration-intensive conditions. Its 5-meter cable configuration and precision-engineered sensing element make it a dependable solution for modern predictive maintenance programs.
Engineering Specifications
| Technical Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-06-50-02-05 |
| Product Type | 3300 XL 8mm Eddy Current Probe |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 60 mm |
| Total Cable Length | 5.0 meters (16.4 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Configuration | Standard industrial cable |
| Sensing Technology | Eddy Current Non-Contact Measurement |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Housing Material | Stainless Steel |
| Typical Sensitivity | 200 mV/mil |
| Linear Measurement Range | Up to 2 mm |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –52°C to +177°C |
| Probe Tip Temperature Rating | Up to +218°C |
| Approximate Dimensions | 205 × 120 × 18 mm |
| Approximate Weight | 0.32 – 0.80 kg |
